| Name | Dispensing Peristaltic Pump, Touch Screen |
| Code | scitek-1050 |
| Type | Standard |
| Brand | Scitek |
| Category | Pumps |
| subcategory | Peristaltic Pump |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Speed Range : 0.01~600rpm
Flow Resolution : 0.01ml/min
Flow Range : ≤12000ml/min
Drive Size(WxDxH)mm : 243×400×310
Small, simple and accurate variable flow peristaltic pumps for metering or transferring fluids at flow rates up to 12000ml/min.
Dispensing Peristaltic Pump Features:
Features a 4.3-inch color LCD display with touch screen control, supporting both Chinese and English languages.
Compatible with YZ1515, YZ2515, and DG series pump heads for versatile applications.
Equipped with a built-in memory function for storing historical parameters and quick access to commonly used settings.
Includes an independent full-speed button for rapid pipeline filling and emptying.
External control interface allows for remote control of the peristaltic pump.
Calibration function ensures high accuracy by calibrating as needed.
RS485 communication utilizes the modbus protocol for easy debugging and usage.
Encased in a durable 304 stainless steel metal shell for robustness and longevity.
Dispensing Peristaltic Pump Specifications:
| Drive Model | DPP-G600FC |
|---|---|
| Speed Range | 0.01~600rpm |
| Flow Resolution | 0.01ml/min |
| Flow Range | ≤12000ml/min |
| Flow Calibration | Yes |
| Control Method | Touch screen (Support external signal control and communication control) |
| Display Mode | LCD (English and Chinese optional) |
| Filling Volume Range | 0.01-9999.99ml |
| Filling Volume Resolution | 0.01ml |
| Copy Number Range | 0~9999times, “0” is infinite loop |
| Filling Time Range | 0.1s~9999.99s |
| Pause Time Range | 0.1s~9999.99s |
| Time Resolution | 0.01s |
| Suckback Angle | 0°~360° |
| Power Supply | AC220V±10%(standard) or AC110V±10%(optional) |
| Power Consumption | ＜300W |
| Environment Temperature | 0~40℃ |
| Relatively Humidity | ＜80%, No condensation |
| Drive Size(WxDxH)(mm) | 243×400×310 |
| Drive Weight | 15.5kg |
| Motor Type | Servo motor |
| IP Grade | IP31 |
| External Control | Control Rev. Stop, Direction, Speed.-Support RS485/MODBUS communication protocol, analog quantity control (0-5V 0-10V 4-20mA ...) foot switch control. |
| Pump head | YZ35 | KZ25 |
|---|---|---|
| Tube | 73# 82# | 15# 24# 35# 36# |
| Flow Range | ≤12000 | ≤6000 |
Details of Dispensing Peristaltic Pump:

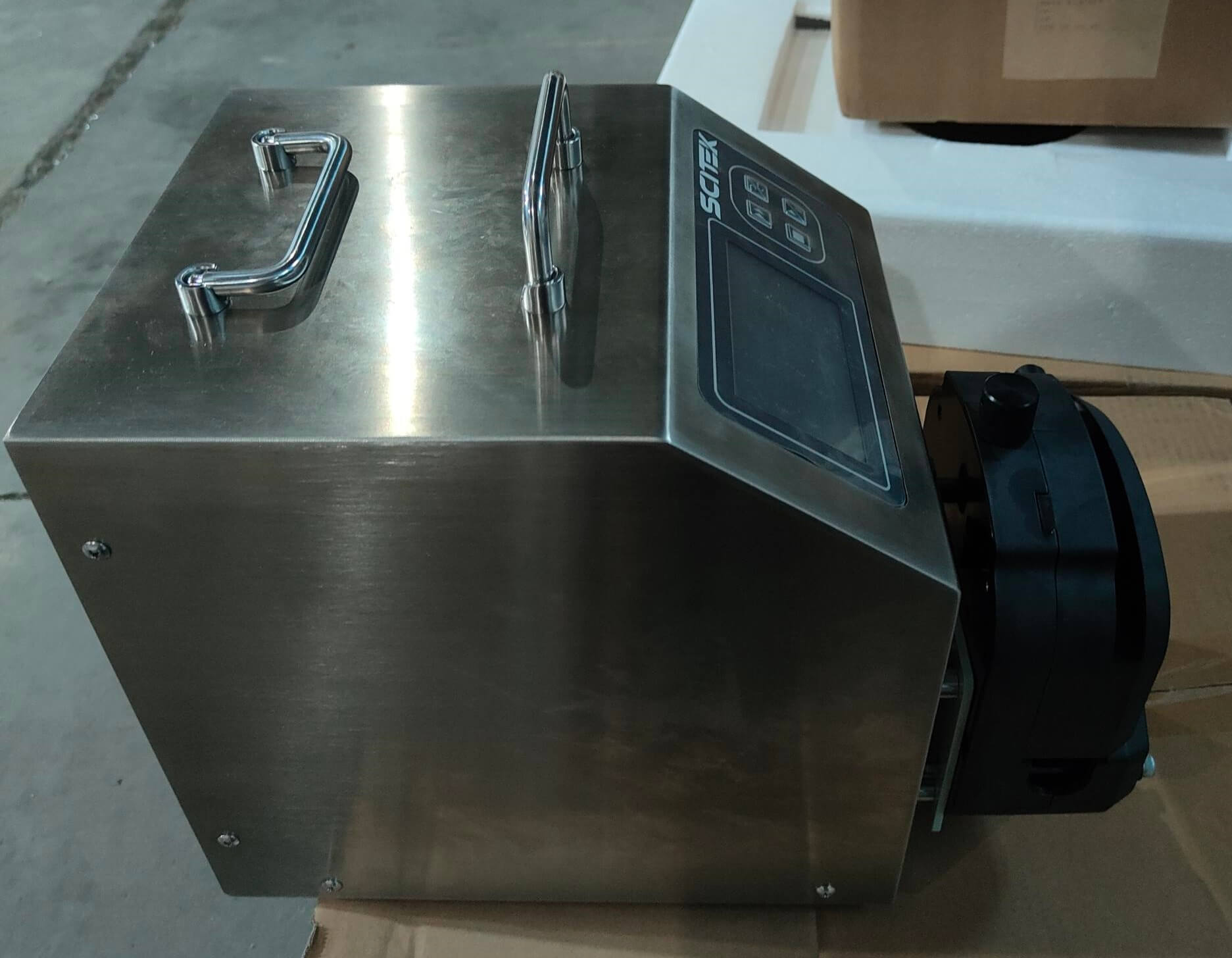

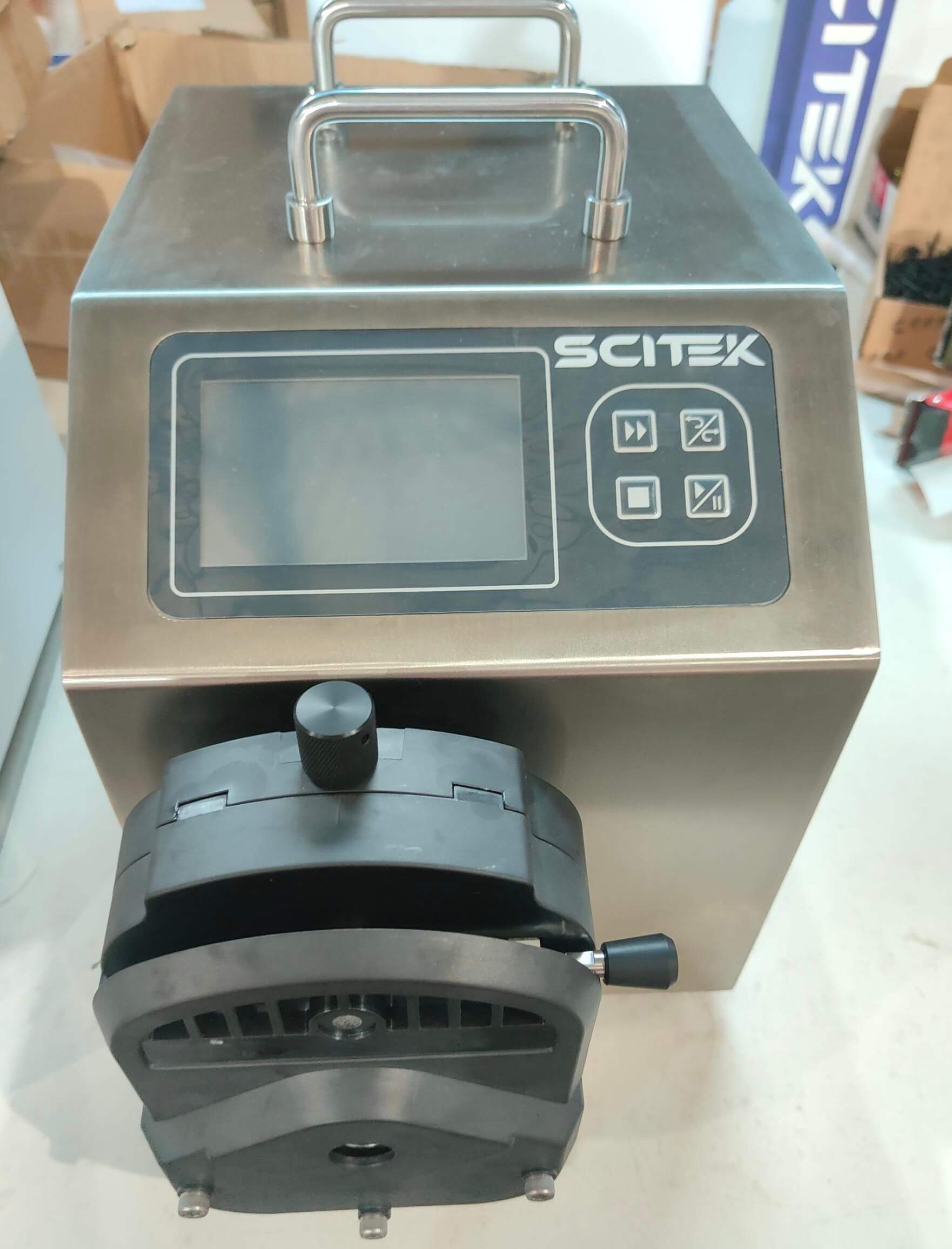

The overall design is compact and suitable for all types of laboratory environments.

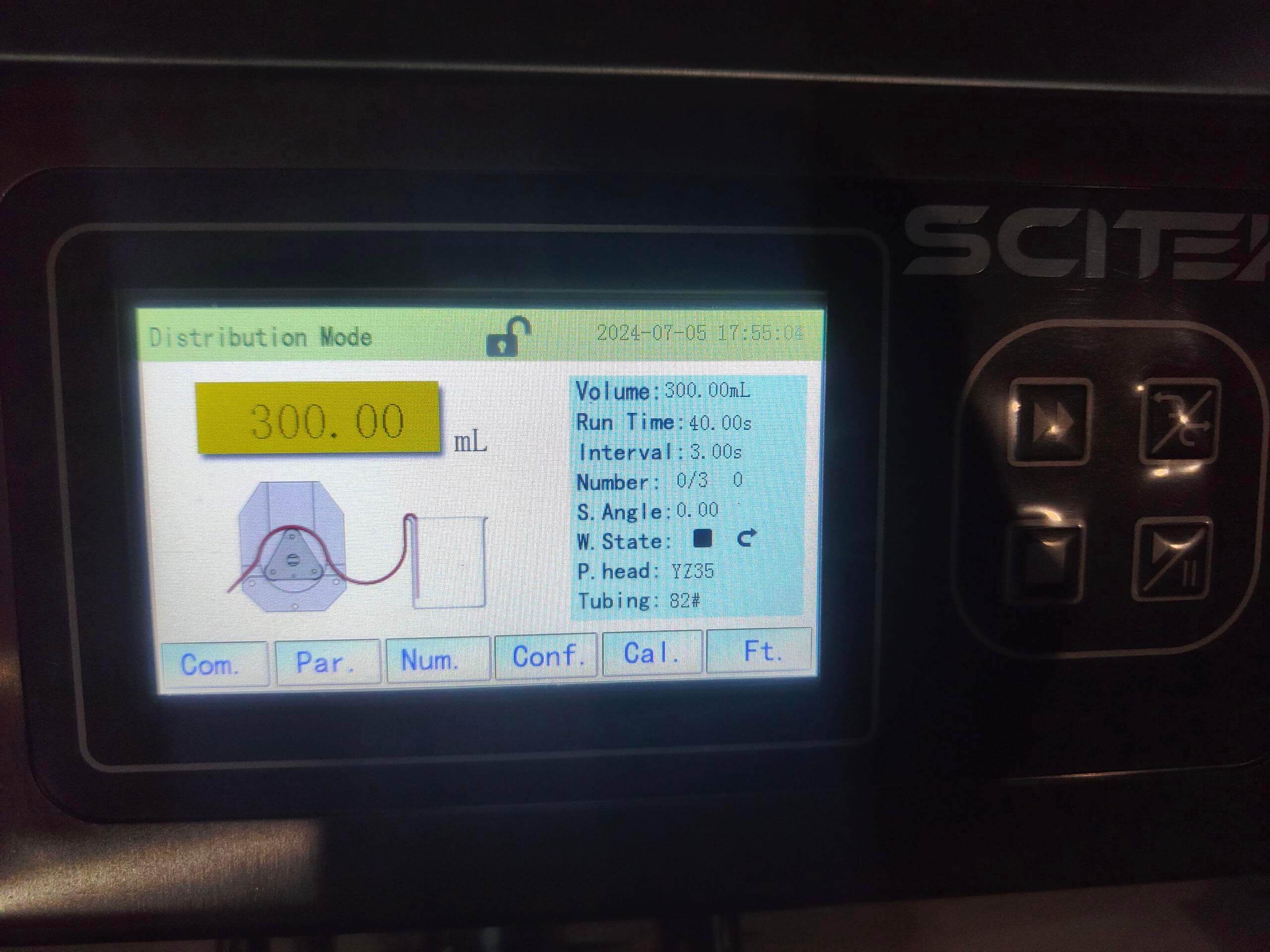

The operation panel is simple and intuitive, allowing the user to quickly adjust settings with the push of a button to ensure accurate fluid transfer.
Top handle for easy removal

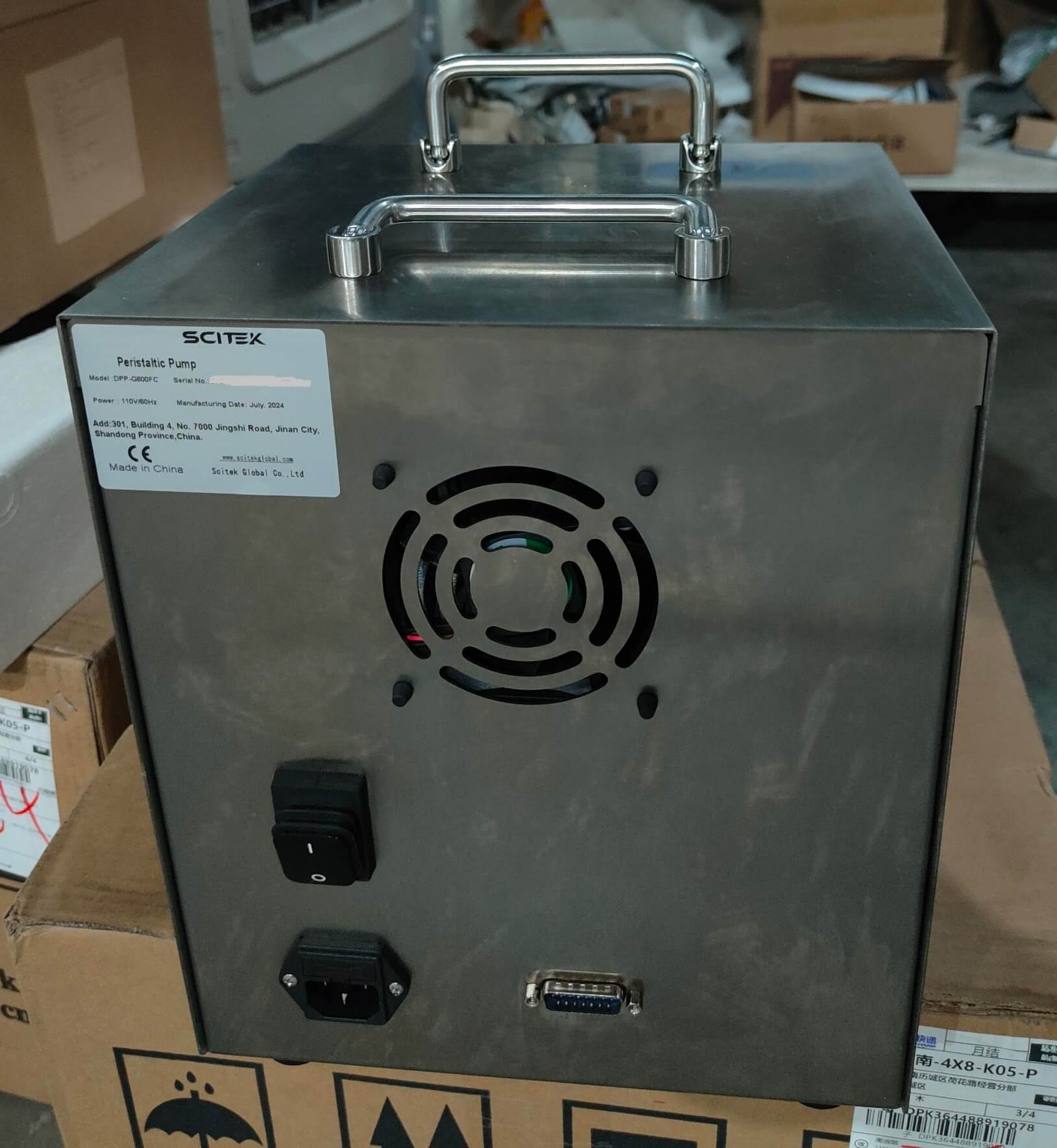

Power socket, communication interface and pump tube connection port
