| Name | Basic Peristaltic Pump, BPP-600J |
| Code | scitek-1042 |
| Type | Standard |
| Brand | Scitek |
| Category | Pumps |
| subcategory | Peristaltic Pump |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: | |
Rotating Speed : 0.1~600rpm
Speed Resolution : Speed <100rpm, 0.1pm; Speed>100, 1rpm
Adjustment Method : Rotary encoder or external control adjustment
External Size(LxWxH)(mm) : 290×200×206

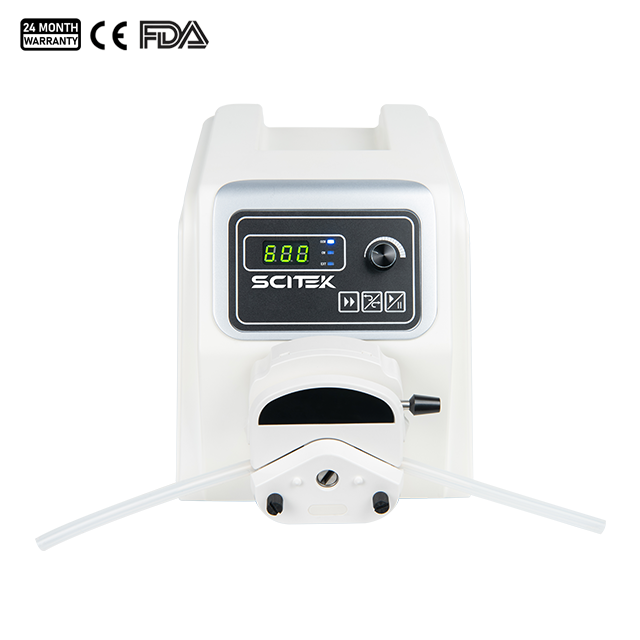

This easy-to-use basic peristaltic pump meets ISO accuracy standards and provides precise speed control for filling and dispensing dry bags.
Basic Peristaltic Pump Features:
Stepper motor subdivision drive, using external drive, has high precision, smooth operation and low vibration.
Green digital display is unique and has wider application fields.
The rotary encoder and toggle switch adjust the speed, direction, start/stop, and the operation is simple and convenient; The basic peristaltic pump is also equipped with a full-speed key for quick filling or emptying.
It has a power-off memory function. After power-off, power on again to maintain the data status before power-off.
Supports wireless control and can be used with our company's remote control to achieve remote wireless control.
Supports mobile phone control and cooperates with Internet of Things technology to achieve artificial intelligence control.
It can be used with optional accessories to achieve small batch filling and distribution.
Basic Peristaltic Pump Specifications:
| Model | BPP-600J |
|---|---|
| Rotating Speed | 0.1~600rpm |
| Speed Resolution | Speed <100rpm, 0.1pm; Speed>100,1rpm |
| Display | LED |
| External Control Function | Start, stop, direction (switch signal); speed (0-5V, 0-10V, 4-20mA, 0-10KHz optional) |
| Adjustment Method | Rotary encoder or external control adjustment |
| Communication Function | RS485 communication (MODBUS protocol) |
| Voltage | AC90-265V, 50Hz/60Hz |
| Power Consumption | <60W |
| Working Environment | Ambient temperature 0~40℃, relative humidity <80% |
| External Size (W×D×H)(mm) | 290×200×206 |
| Weight (Excluding Pump Head) | 3.82kg |
| Protection Level | IP31 |
Configuration
| Model | Applicable pump head | Applicable hose | Flow range (ml/min) | Number of channels |
|---|---|---|---|---|
| BPP-600J | YZ1515 | 13# 14# 19# 16# 25# 17# 18# | 0.007-2280 | 1,2 |
| YZ2515 | 15# 24# | 1.7-1600 | 1,2 |
