| Name | Basic Peristaltic Pump, LED Display |
| Code | scitek-1038 |
| Type | Standard |
| Brand | Scitek |
| Category | Pumps |
| subcategory | Peristaltic Pump |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Range of Rotation : 4-~600rpm
Speed Resolution : 1rpm
Timing Error : 0.1s
Maximum Reference Flow Range : 12000ml/min
External Size(LxWxH)(mm) : 348×242×212
The basic peristaltic pump's straightforward interface allows for quick setup and operation, saving you time and effort.
Basic Peristaltic Pump Features:
Use high-torque, maintenance-free DC brushless motor drive.
It has speed display, flow display and timing and quantitative functions.
The peristaltic pump can be controlled through the external control interface to control the speed, start-stop status and operating direction.
The simple peristaltic pump is equipped with a full-speed button to realize rapid filling and emptying of pipelines.
The RS485 communication protocol uses Modbus protocol, which is easy to debug and use.

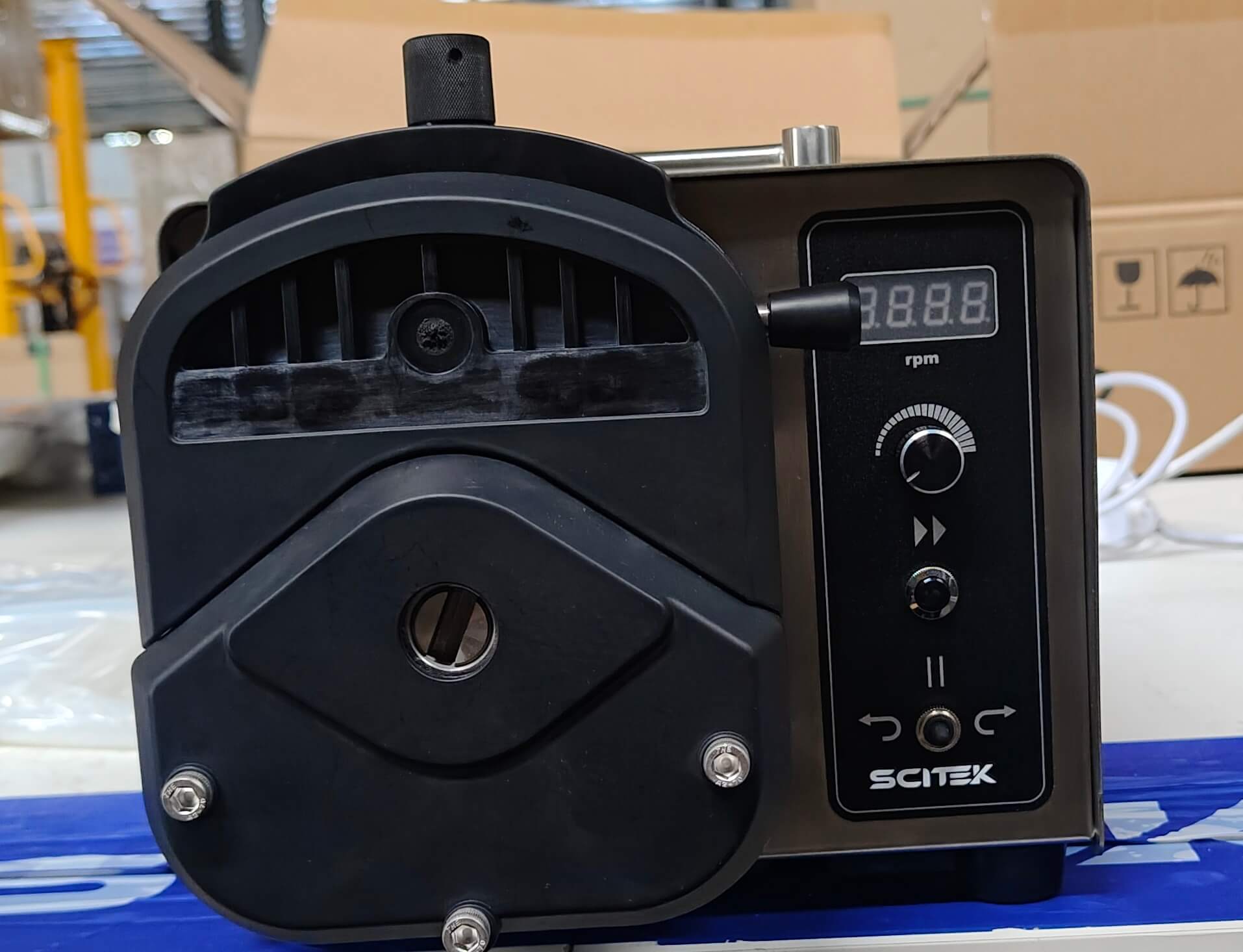

Front panel display for easy operation.
Basic Peristaltic Pump Specifications:
| Model | BPP-600L |
|---|---|
| Range of Rotation | 4~600rpm |
| Speed Resolution | 1rpm |
| Display | LED |
| External Control Input Interface | 0-10kHz, 0-5V, 0-10V, 4-20mA |
| Timing Error | 0.1s |
| Timing Display Resolution | 1s |
| Timing Range | 1 s-99 h, 59 min and 59 s |
| Maximum Reference Flow Range | 12000ml/min |
| External Control Function | Passive signal control: start-stop control and direction control |
| Communication Function | RS485 communication (using universal Modbus protocol) |
| Voltage | AC90-265V, 50Hz/60Hz |
| Power | <400W |
| External Size (W×D×H)(mm) | 348×242×212 |
| Weight (Excluding Pump Head) | 10.5kg |
| Working Environment | Temperature 0~40℃, relative humidity <80% |
| Protection Level | IP31 |
Configuration
| Model | Applicable pump head | Applicable hose | Flow range (ml/min) | Number of channels |
|---|---|---|---|---|
| WG600L | YZ35× (1, 2) | 73# 83# | Single channel 400-12000 | 1 |
Details of simple peristaltic pump:

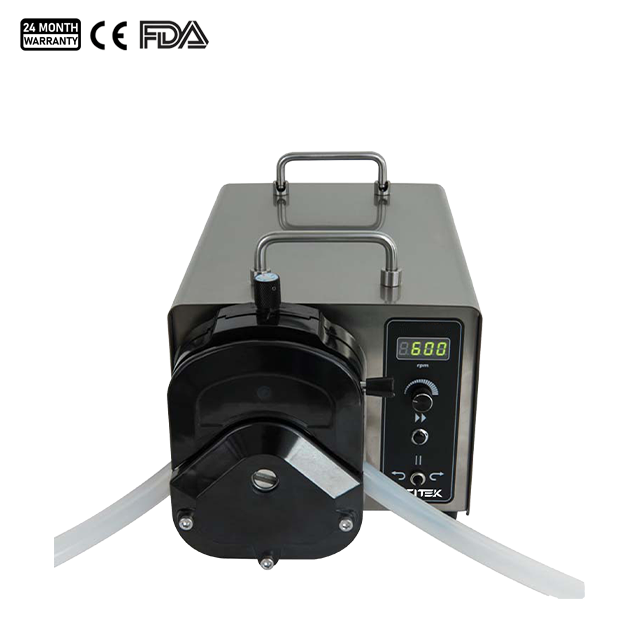

The pump head, typical of peristaltic pumps, is used for precise control of fluid delivery.
The pump head is tightly connected to the controller, integrating an integrated design for easy operation and maintenance.

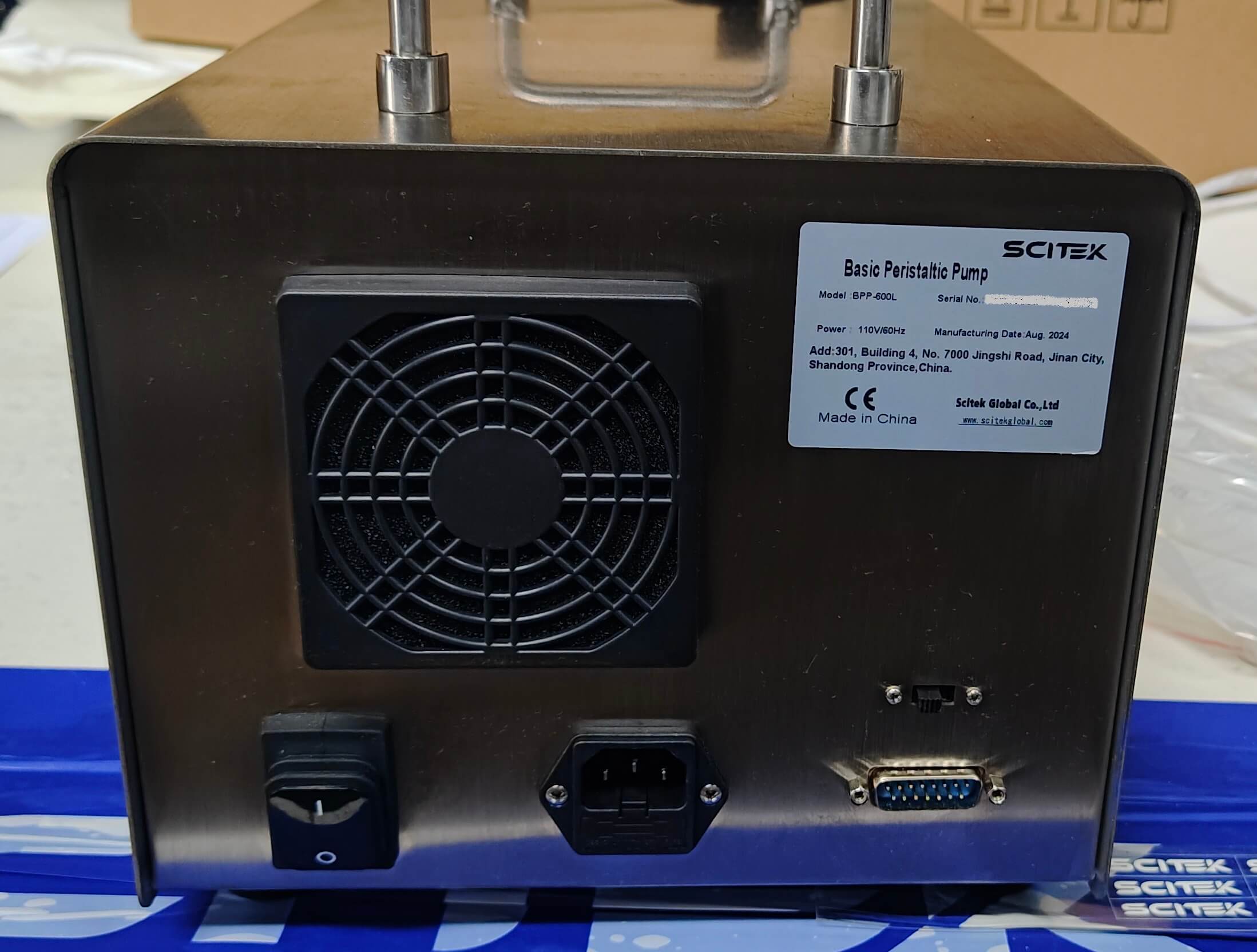

Visible cooling holes are designed to ensure that the device maintains good cooling performance during operation.

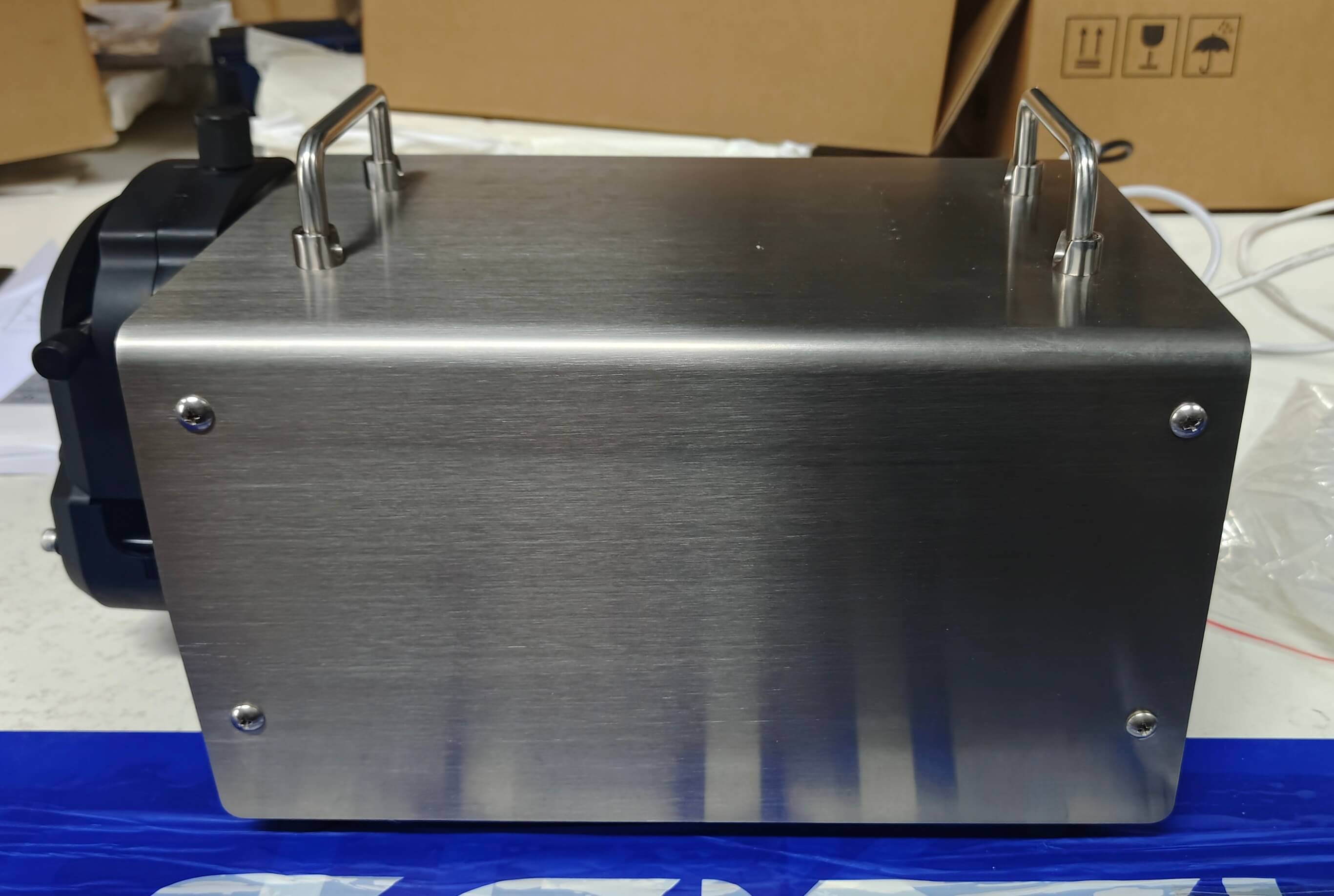

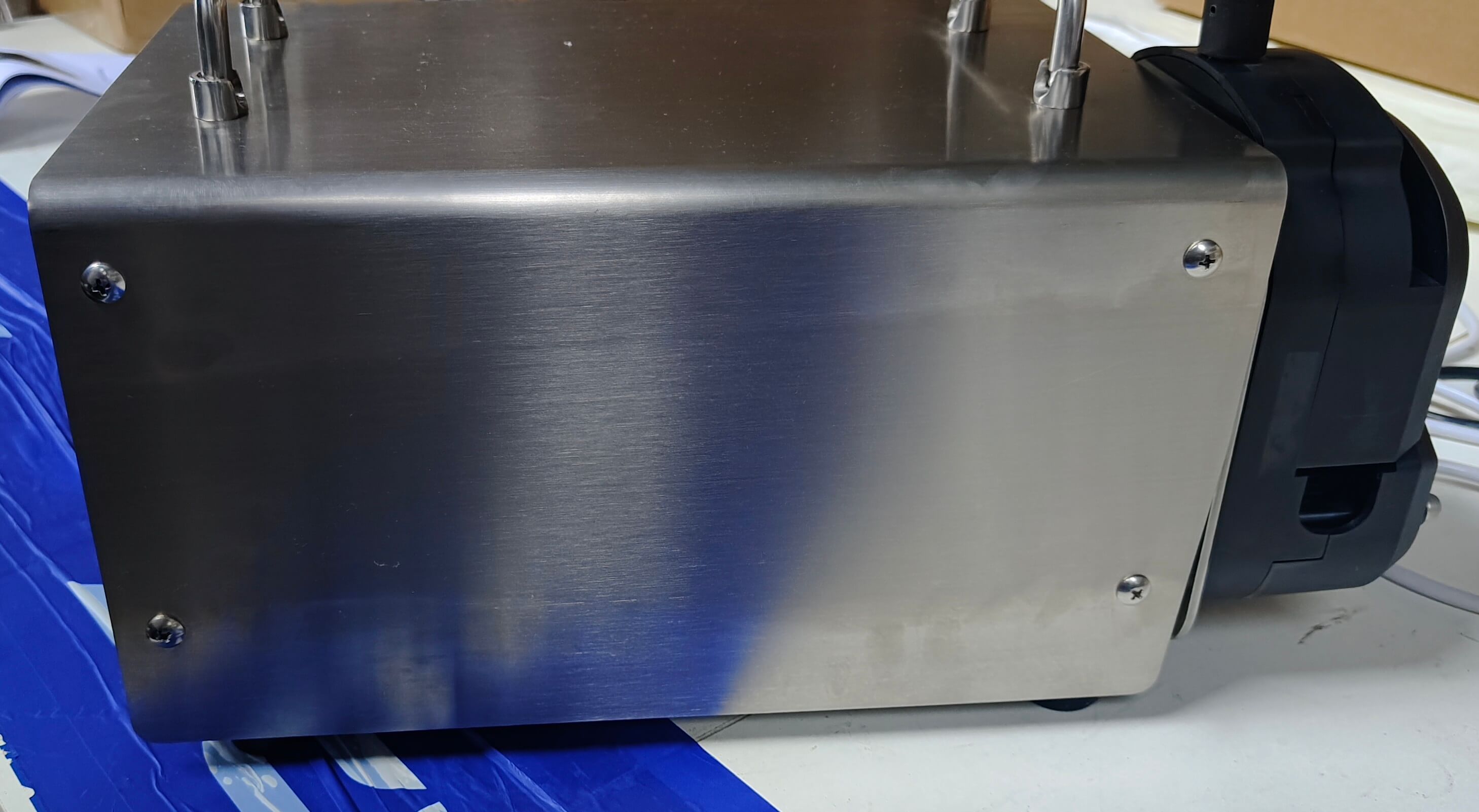

The body of the simple peristaltic pump is made of stainless steel with a flat and durable external surface, suitable for environments requiring corrosion and temperature resistance.
