| Name | Vacuum Controller |
| Code | scitek-0308 |
| Type | Standard |
| Brand | Scitek |
| Category | Evaporators and Chillers |
| subcategory | Vacuum Concentrators |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Vacuum Setting Range : 1-1000mbar
Vacuum Measurement Range : 1-1000mbar
Control Operation Mode : Single-point control mode, Programmed control mode
Sensor Overload Pressure : 1,500 mbar
Connector Diameter : 8mm

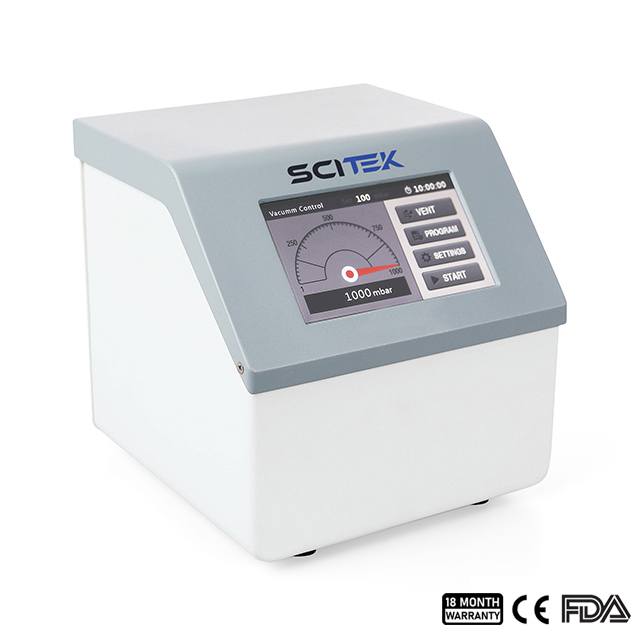

This vacuum controller is designed to accurately and easily self-adjust the application vacuum level without taking up bench space in the lab.
Vacuum Controller Specifications:
| Model | VC100 |
|---|---|
| Vacuum Setting Range | 1-1000mbar |
| Vacuum Measurement Range | 1-1000mbar |
| Control Operation Mode | Single-point control mode, Programmed control mode |
| Control Program | Can store up to 5 programs, each containing 5-step control (capable to set the degree of vacuum and time) |
| Setting Method | Touch screen setting |
| Display | 5” TFT |
| Sensor Overload Pressure | 1,500 mbar |
| Connector Diameter | 8mm |
| Materials in Contact with Vapor | PTFE, PP, silicone and ceramics |
| Power | 600 W |
| Compatible Conditions with Vacuum Pump | Power of 50Hz vacuum pump ≤400W power of 60Hz vacuum pump ≤500W |
| Power Supply | 110V-240V, 50Hz/60Hz |
| Operating Environment | 10℃～40℃, ≤80%RH |
| Sizes(W×D×H)(mm) | 310×270×290 |
| Shipping Size (W×D×H)(mm) | 470×300×420 |
| N.W./G.W. (kg) | 4/7 |
Vacuum Controller Features:
Wide range of measurement and control, 1-1,000mbar
Two control modes available Single-point control and programmed control
Stores up to 5 programs, each containing up to 5 steps of programming control
Large TFT touch screen display control provides easy operation
All parts in contact with vapor or liquid are made of PTFE, ceramics or other high-performance materials which effectively resists corrosion caused by organic solvents, water, acid and alkali
Built-in vent valve can feed inert gas into system equipment
One-click decompression allows easy installation and dismantling of vacuum system
Can be connected with pump power control for temporary shutdown of pump power supply after reaching stable degree of vacuum for energy conservation and environmental protection.
Can also be operated in the normally open status of pump
Reliable and functional design to fulfill essential needs of precise vacuum regulation
