Rotary Evaporator, RE-50 Series (scitek-0673) Products
| Name | Rotary Evaporator, RE-50 Series |
| Code | scitek-0673 |
| Type | Standard |
| Brand | Scitek |
| Category | Evaporators and Chillers |
| subcategory | Vacuum Concentrators |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Product details for Invoice
Model : RE-50A; RE-50C; RE-5300
Rotary Bottle : 1 L 24# (standard size）
Collecting Bottle : 0.5 L 24# (standard size)
Condenser : Vertical φ85×450mm, 29# (standard size)
Rotating Speed : 0~120 rpm
Vacuum : -0.098 Mpa
Temp. Range : RT~99 ℃
This rotary evaporator meets the highest expectations for convenience and versatility and is the first choice for small to medium sized laboratories.
Rotary Bottle : 1 L 24# (standard size）
Collecting Bottle : 0.5 L 24# (standard size)
Condenser : Vertical φ85×450mm, 29# (standard size)
Rotating Speed : 0~120 rpm
Vacuum : -0.098 Mpa
Temp. Range : RT~99 ℃
This rotary evaporator meets the highest expectations for convenience and versatility and is the first choice for small to medium sized laboratories.
Product Details
Meets the highest expectations in terms of convenience and versatility. All your basic needs in terms of vaporization can be met. The vaporizer allows precise setting of the rotation speed and heating bath temperature on the digital touchscreen display, which is quickly accessed directly through the knobs on the operating panel.
Rotary Evaporator Specifications:
| Model | RE-50A | RE-50C | RE-5300 |
|---|---|---|---|
| Rotary Bottle | 1 L 24# (standard size) | ||
| Collecting Bottle | 0.5 L 24# (standard size) | ||
| Condenser | Vertical φ85×450mm, 29# (standard size) | ||
| Charging Valve | 19# (standard size) | ||
| Rotating Speed | 0~120 rpm | ||
| Vacuum | -0.098 Mpa | ||
| Temp. Range | RT~99 ℃ | ||
| Temp. Accuracy | ±1℃ | ||
| Stroke Height | 150 mm | ||
| Rotating Power | 30W | ||
| Heating Power | 1KW | ||
| Chamber Material | SS φ220×120mm | SS φ245×140mm | |
| Shelf Material | Powder coating anticorrosive | ||
| Power Supply | AC220V±10%, 50/60Hz; 110V, 60Hz | ||
| Standard Accessory | 1000ml rotary bottle×1, 500ml recycling bottle×1 | ||
| Optional Accessory | RT~400℃ Oil bath, Transparent bath cover, Vacuum pump, Recirculating chiller | ||
| Sizes(W×D×H)(mm) | 650×440×1000mm | 650×440×1010mm | |
| Shipping Size (W×D×H)(mm) | 610×470×480mm | ||
| N.W./G.W. (kg) | 15/20 | 16/21 | 16/21 |
| Supporting Products | RE-50A/50C/5300+Water Circulating Vacuum Pump (VP-DIII) + Low temperature cooling liquid circulator (LTC-20I) | ||
Rotary Evaporator Features:
Electronic stepless speed controll
Explosion-proof function is optional

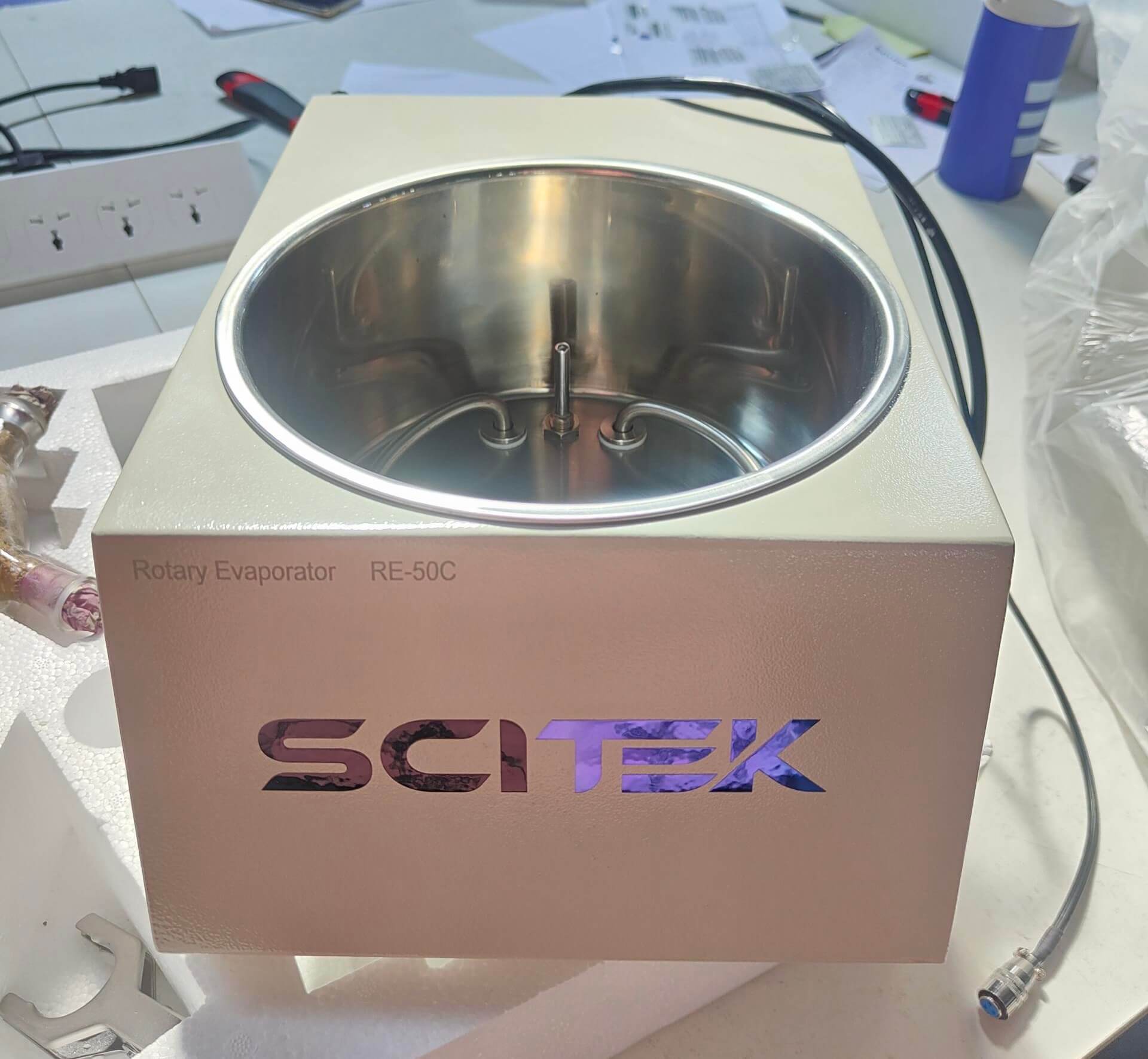

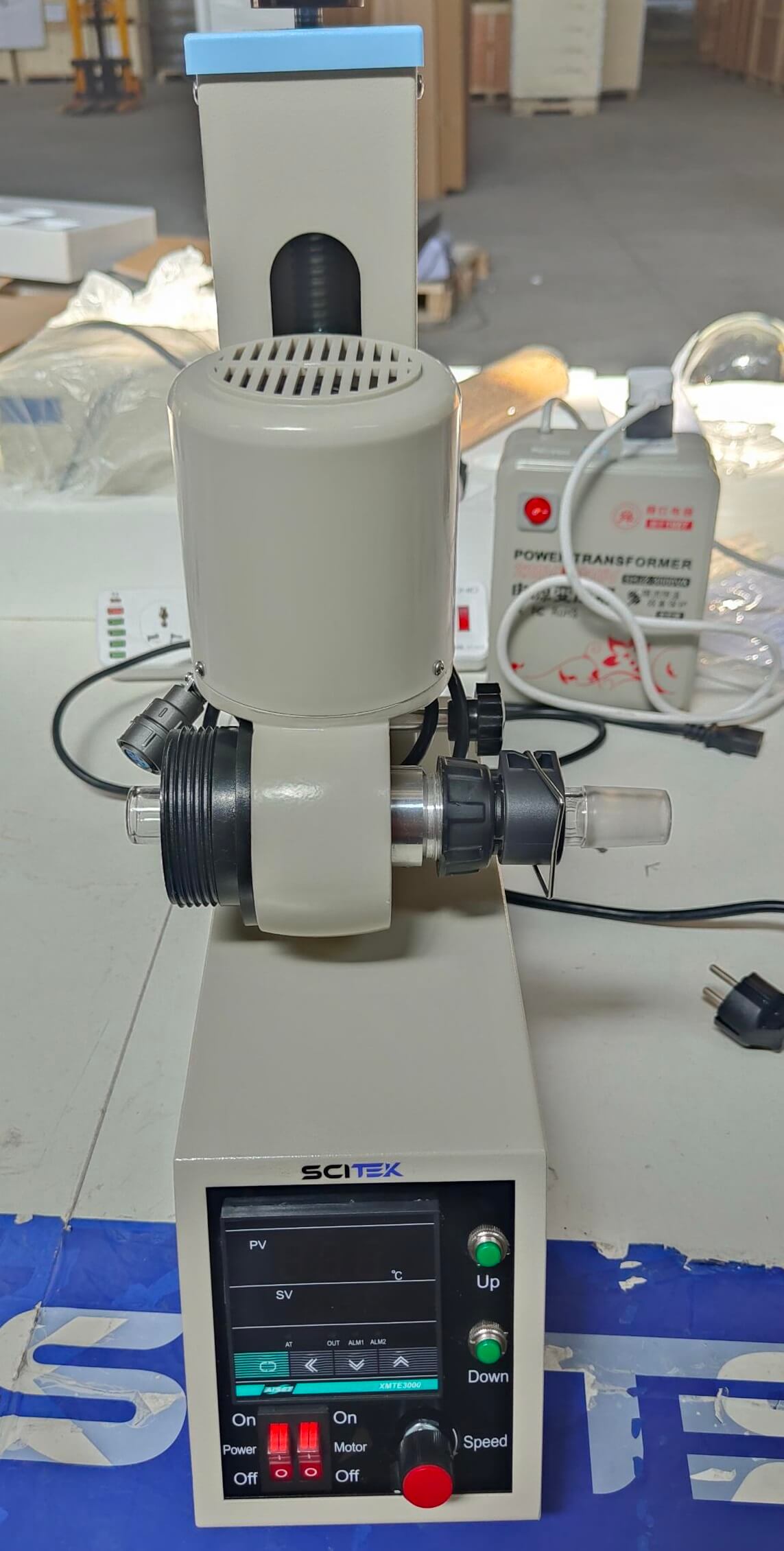

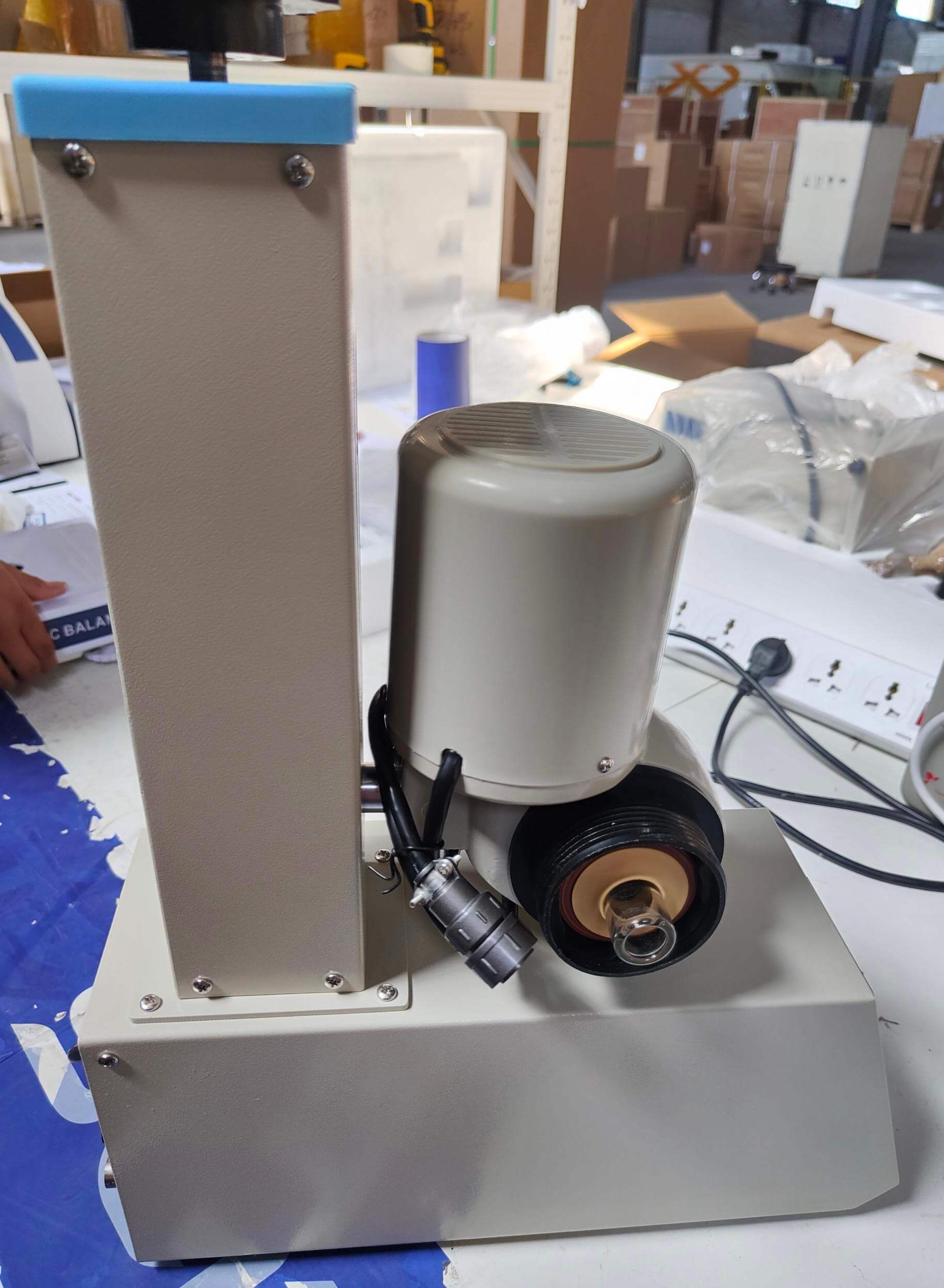

Details of Rotary Evaporator(RE-50C):
Precise operation control for repeatability and safety
