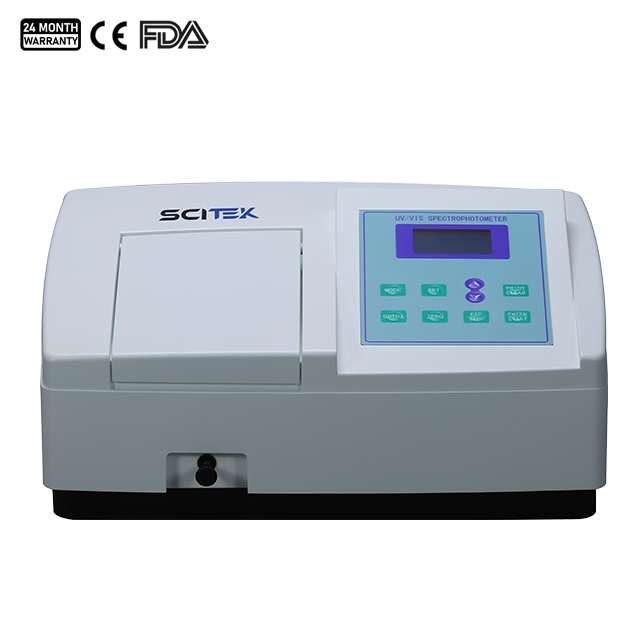

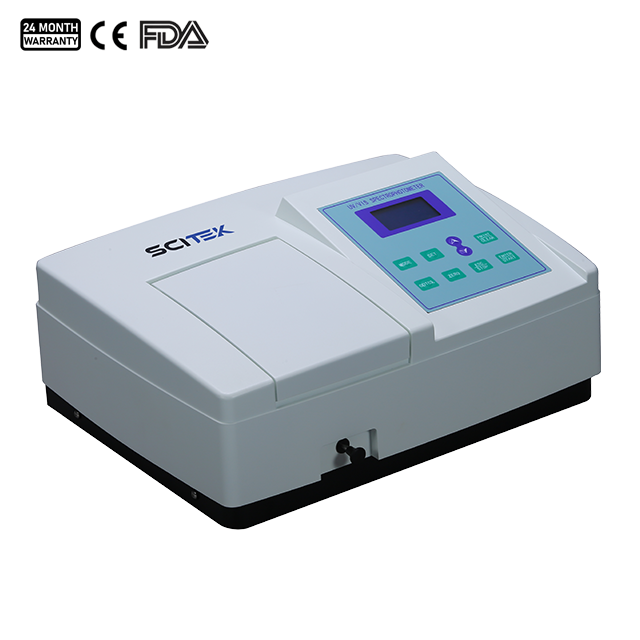

| Name | UV VIS Spectrophotometer with USB & Parallel Port |
| Code | scitek-0520 |
| Type | Standard |
| Brand | Scitek |
| Category | Spectrophotometer and Colorimeter |
| subcategory | UV-Vis Spectrophotometer |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Wavelength Range : 190-1000nm
Wavelength Accuracy : ±1nm
Wavelength Repeatability : 0.5nm
Size(W×D×H)(mm) : 490x370x220
UV VIS Spectrophotometer Specifications:
| Model | SP-UV5100I |
|---|---|
| Optical System | Single beam, Grating 1200 lines/mm |
| Wavelength Range | 190-1000nm |
| Bandwidth | 2nm |
| Wavelength Accuracy | ±1nm |
| Wavelength Repeatability | 0.5nm |
| Wavelength Setting | Auto |
| Photometric Accuracy | ±0.5%T |
| Photometric Repeatability | ≤0.2%T |
| Photometric Range | -0.3-3A, 0-200%T, 0-9999C |
| Stray Light | ≤0.05%T@360nm |
| Stability | ± 0.001A/h @ 500nm |
| Display | 128x64 LCD |
| Detector | Silicon Photodiode |
| Light Source | Tungsten Lamp & Deuterium Lamp |
| Output | USB & Parallel Port(Printer) |
| Power Requirements | AC 85-250V |
| Size(W×D×H)(mm) | 490x370x220 |
| Shipping Size(W×D×H)(mm) | 630x540x370 |
| N.W./G.W. (kg) | 15/18 |
UV VIS Spectrophotometer Features:
SP-UV5100I is a practical UV-visible spectrophotometer. Its unique structural design ensures high reliability and easy replacement of parts. It has the following features:
Low stray light: Adopts high-quality components with low stray light.
Automatic wavelength setting: Direction keys automatically set the wavelength to avoid operation errors.
Solid structure: SP-UV5100I adopts a rigid die-casting aluminum base as the optical mount, which makes the machine stable.
Convenient Viewing: It is equipped with a USB port to display spectral scanning, kinetics and multi-wavelength test results directly on the screen.
Intelligent: UV-visible spectrophotometer can establish various standard curves according to the customer's solution and determine the concentration of the unknown solution. The spectrophotometer displays wavelength, absorbance and transmittance with 5 results per screen.
