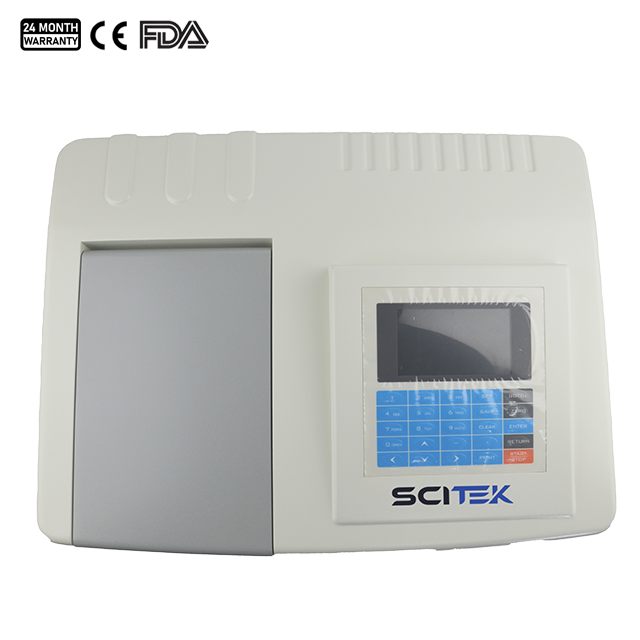

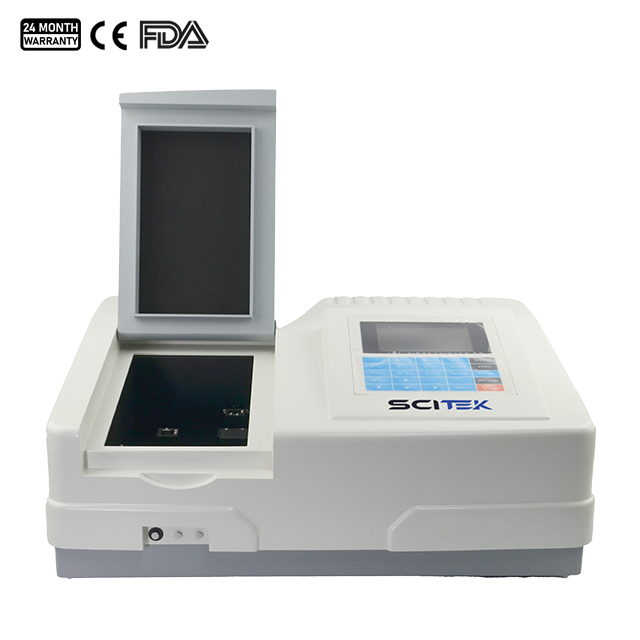

UV VIS Spectrophotometer (scitek-0425) Products
| Name | UV VIS Spectrophotometer |
| Code | scitek-0425 |
| Type | Standard |
| Brand | Scitek |
| Category | Spectrophotometer and Colorimeter |
| subcategory | Double Beam UV-Vis Spectrophotometer |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Product details for Invoice
Model : SP-DUV560; SP-DUV580; SP-DUV590
Wavelength Range : 190-1100nm
Wavelength Accuracy : ±0.3nm
Wavelength Repeatability : ≤0.2nm
Size(W×D×H)(mm) : 740×570×440
Wavelength Range : 190-1100nm
Wavelength Accuracy : ±0.3nm
Wavelength Repeatability : ≤0.2nm
Size(W×D×H)(mm) : 740×570×440
Product Details
UV VIS Spectrophotometer Specifications:
| Model | SP-DUV560 | SP-DUV580 | SP-DUV590 |
|---|---|---|---|
| Optical System | Double beam, grating 1200 lines/mm | ||
| Wavelength Range | 190-1100nm | ||
| Spectrum Bandwidth | 1.8nm | 1nm | 0.5/1/2/4/5nm |
| Wavelength Accuracy | ±0.3nm | ||
| Wavelength Repeatability | ≤0.2nm | ||
| Photometric Accuracy | ±0.002A(0-0.5Abs), ±0.004A(0.5-1.0Abs), ±0.3%T(0-100%T) | ||
| Photometric Repeatability | 0.001Abs(0-0.5Abs), 0.002Abs(0.5-1.0Abs), ≤0.2%T(0-100%T) | ||
| Stray Light | ≤0.04T@360nm; 220nm | ||
| Stability | ±0.0003A/h@ 500nm | ||
| Baseline Flatness | ±0.0005A | ||
| Sound Emission | ±0.0002Abs | ||
| Display | 65 thousand true color 7 inch TFT LCD(480x800) | ||
| Photometric Mode | T/A/C/E | ||
| Photometric Range | 0-200%T.0.301-3.0A | ||
| Detector | Silicon photodiode | ||
| Light Source | Deuterium lamp,tungsten lamp | ||
| Input | Membrane keypad | ||
| Output | USB-Ax2 print and data output USB-B connect PC | ||
| Compartment Optional: 8 Auto cell holder, solid sample holder, micro cell holder,10-100mm cell holder | |||
| Size(W×D×H)(mm) | 740×570×440 | ||
| Shipping Size(W×D×H)(mm) | 760x580x460 | ||
| N.W./G.W. (kg) | 25/30 | ||
UV VIS Spectrophotometer Features:
SP-DUV560, SP-DUV580, SP-DUV590 dual beam UV-Vis spectrophotometer is a basic instrument for quality control and scientific research, which can be widely used in the fields of medicine and health, drug sensitivity test, environmental monitoring, biochemistry, and so on.
7-inch color touch screen, easy to operate
Long-life environmentally friendly deuterium lamp tungsten filament;
Data can be exported to U disk, which makes it easy to transfer data, and can be connected to the printer, direct printing.
GLP self-test function
Adopt SiO2 coated optics, fully reduce external contamination.
High precision optical system design
The upgrade package can be downloaded from the AOE website, with serial number, support U disk one-key upgrade.
