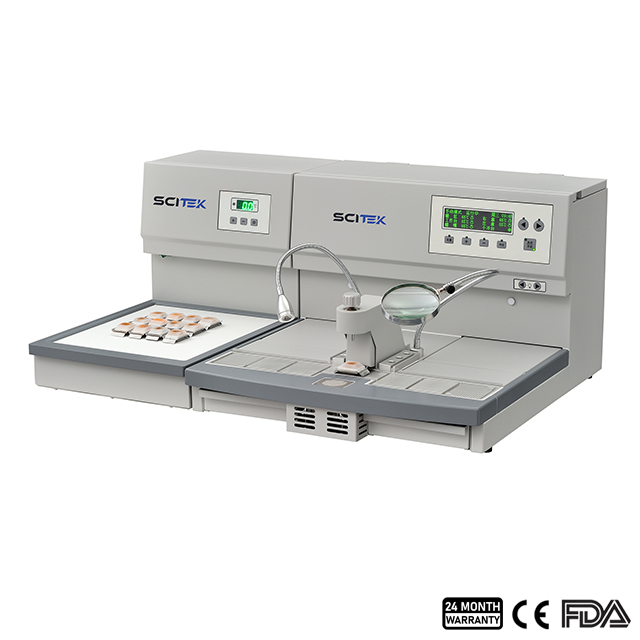

| Name | Tissue Embedding Center, 6 L |
| Code | scitek-0536 |
| Type | Standard |
| Brand | Scitek |
| Category | Histology and Cytology |
| subcategory | Center Embedding |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Paraffin Chamber Capacity : 6L
Temperature Ranges : RT~85℃
Sizes(W×D×H)(mm) : 675×575×390
Tissue Embedding Center Specifications:
| Model | TE-IV |
|---|---|
| Paraffin Chamber Capacity | 6 L |
| Temperature Ranges | RT~85℃ |
| Temperature Control Precision | ±1℃ |
| Paraffin Flow Control | Paraffin flow control via finger touch plate and optional foot pedal |
| Fully Programmable ON/OFF Control | Allows automatic system start and stop anytime weekly |
| Sizes of Paraffin Chamber (EBD-4) | 495×132×95 |
| Sizes of Thermal Chamber (each of two) | 240×160×50 |
| Working Area of Embedding Module | 540×93mm |
| Sizes of Small Cold Plate | 60×50mm |
| Power Supply | AC 220V±10% 50Hz (standard model); AC110V±10% 60Hz |
| Power | 1000W (TE-IV) |
| Sizes(W×D×H)(mm)(EBD-4) | 675×575×390 |
| Shipping Size(W×D×H)(mm) | 800x720x570 |
| N.W./G.W. (kg) | 48/60(TE-IV) |

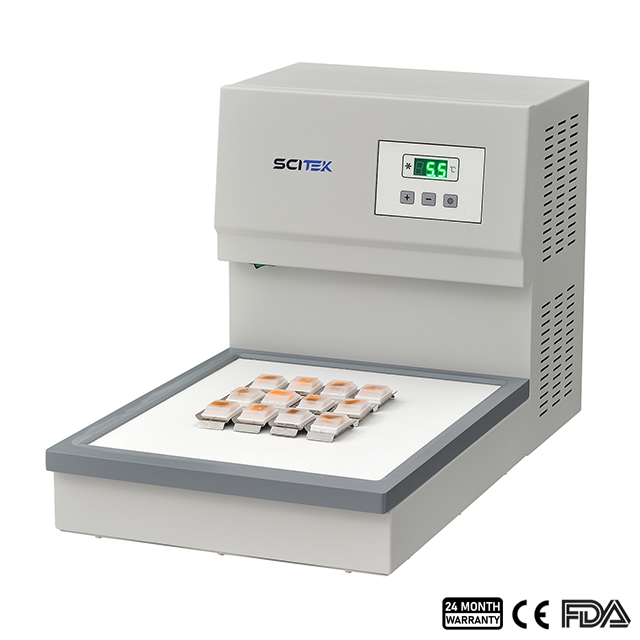

| Cooling Model | CS-IV |
| Temperature Ranges of Cryo Module | 0~ -20℃ |
| Temperature of Small Cold Plate | ＜-5℃ |
| Temperature Setting of Cryo Module | The optimal working temperature is approximately -10c, and the temperature is under delay protection. |
| Sizes of Cryo Module | 315×380 |
| Power Supply | AC 220V±10% 50Hz (standard model); AC110V±10% 60Hz |
| Power | 300W (CS-IV) |
| Sizes(W×D×H)(mm) | 710×350×39(CS-IV) |
| Shipping Size(W×D×H)(mm) | 810x500x580 |
| N.W./G.W. (kg) | 34/44(CS-IV) |
Tissue Embedding Center Features:
Can adjust the magnifier in any direction and at any angle
OLED screen: Energy-saving, clear display, no need for background light, clear field of view at any angle without blind spots;
Adopt flexible heating mechanism and PID technology to achieve fast heating and precise temperature control
The seven working areas of the paraffin chamber, paraffin distributor, left and right heat storage chambers, heating plate (working plate), small cooling plate and freezing module are controlled individually and work independently without interfering with each other;
The distributor is heated by wrapped heating film, which is smooth, safe, and reliable;
Two sides of the trimming board, convenient for tissue block trimming
All buttons are equipped with light tubes and can adjust the angle and brightness so that specimen observation is easy and convenient
With an automatic action function to ensure that the unit continues to work after power failure.
