| Name | Tissue Embedding Center & Cooling System, 4L |
| Code | scitek-0535 |
| Type | Standard |
| Brand | Scitek |
| Category | Histology and Cytology |
| subcategory | Center Embedding |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Paraffin Chamber Capacity : 4L
Temperature Range of Forceps Wells/Paraffin-melting Chamber/Thermal Storage Compartments : RT - 99℃
Sizes(W×D×H)(mm) : 670×590×445 (TE-III); 685×380×430 (CS-III);

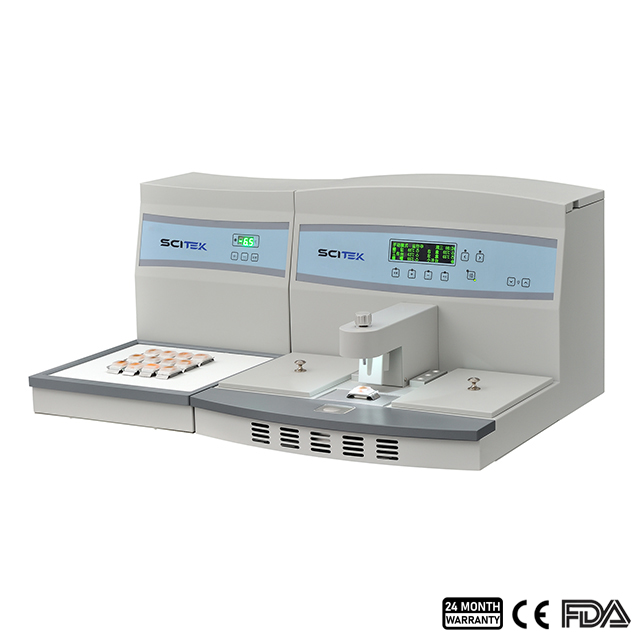

Use the tissue embedding center & cooling system to embed routine tissue samples into paraffin blocks for comfortable and efficient slicer sectioning.
Tissue Embedding Center & Cooling System Specifications:
| Model | TE-III/CS-III/ TE-III & CS-III | |
|---|---|---|
| TE-III | Paraffin Chamber Capacity | 4L |
| Temperature Range of Forceps Wells | RT-99℃ | |
| Temperature Range of Paraffin Chamber | RT-99℃ | |
| Temperature Range of Thermal Storage Compartment | RT-99℃ | |
| Temperature Range of Working Plate (Hot Plate) | RT-99℃ | |
| Temperature Range of Paraffin Dispenser | RT-99℃ | |
| Paraffin Flow Control | Paraffin flow control via finger touch plate and optional foot pedal | |
| Fully Programmable ON/OFF Control | Allows automatic system start and stop anytime weekly | |
| Temperature of Small Cold Plate | ＜5℃ | |
| CS-III | Temperature Setting of Cryo Module | +5~ -20℃ (Temperature control mode) |
| The lowest temperature can reach -28℃ (Super cooling mode) | ||
| TE-III/CS-III | Temperature Control Precision | ±1% |
| Size of Working Plate (TE-III) | 155×90mm | |
| Size of Small Cold Plate (TE-III) | 60×50mm | |
| Size of Cryo Module (CS-III) | 340×322mm | |
| Power Supply | AC 220V±10% 50Hz (standard model); AC110V±10% 60Hz | |
| Consumption | 1000W (TE-III), 300W (CS-III) | |
| Sizes(W×D×H)(mm) | 670×590×445 (TE-III) | |
| 685×380×430 (CS-III) | ||
| Shipping Size(W×D×H)(mm) | 785x710x625(TE-III) 815x500x600(CS-III); | |
| N.W./G.W. (kg) | 40/48(TE-III) | |
| 36/46(CS-III) | ||
Tissue Embedding Center & Cooling System Features:
Microprocessor control temperature, accurate temperature measurement, reliable performance
The paraffin chamber, paraffin dispenser, left and right preservation room, heating plate (work area), and five heating areas separate control independent work do not interfere with each other.
Automatic memory and recovery function
A tissue embedding system, cooling plate, and preservation table can be used separately or in combination.
Large-capacity paraffin tank ensures the ability to complete the work at one time.
Separate design of the freezing module and embedding module provides flexible module configuration choices;
Large working area for easy cleaning of excess paraffin wax

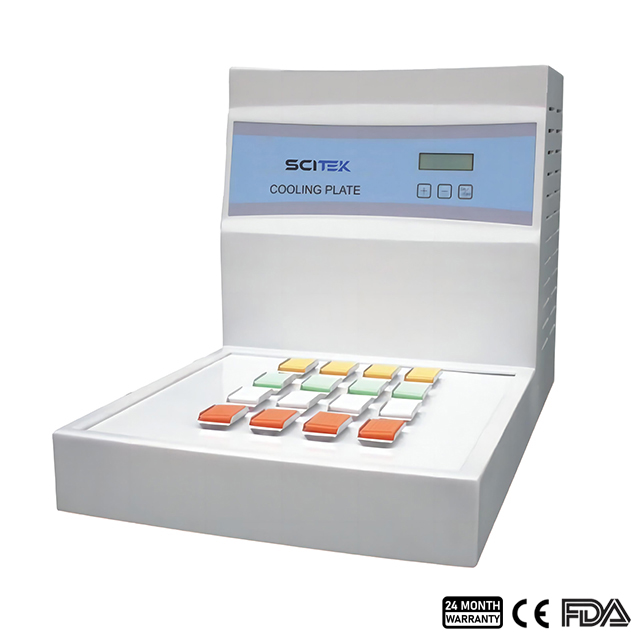

The cooling plate adopts a new inverter compressor and can freely adjust the temperature between +50℃～-35℃, with double overheating protection, safe and reliable
Safe and reliable low voltage lighting system;
Heated working plate and forceps holes make tissue embedding more convenient;
