Graphite Digester GDA-10 GDA-20 (biobase-0623) Products
Name Graphite Digester GDA-10 GDA-20
Code biobase-0623
Type Standard
Brand Biobase
Category Laboratory Solid Processing Equipments
subcategory Graphite Digester
Unit pcs (pcs)
In Stock Yes
Berminat hub kami: wa chat
Product details for Invoice
Introduction:
Graphite Digester adopts infrared radiation graphite conduction heating technology, accurate temperature control, uniform heating, fast heating speed.
Product Details

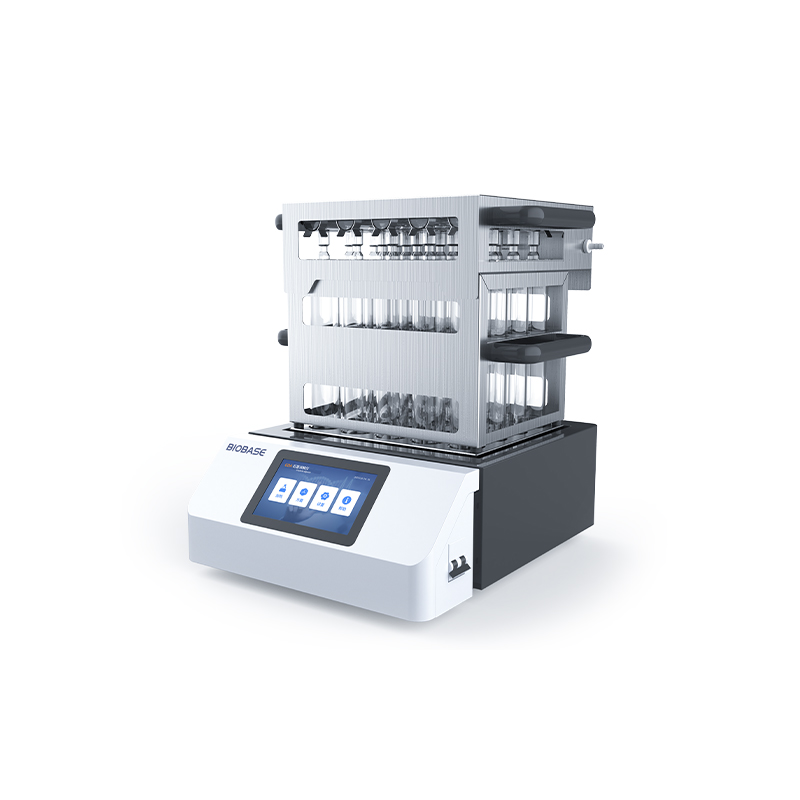

Graphite Digester GDA-10 GDA-20

Application:

Food, medicine, agriculture, forestry, environmental protection, chemical, biochemical and other industries as well as quality inspection institutions, universities, scientific research departments to soil. Sample digestion processing prior to chemical analysis of grain, feed, food, water, plants, seeds, ores, heavy metals, etc

Graphite Digester

Features:

* Infrared radiation graphite conduction heating method, fast heating speed, the temperature difference between the holes is small, and the sample digestion is consistent.

* PID intelligent temperature control algorithm, accurate and stable control, adapt to different sample pretreatment.

* Two heating methods of curve heating and linear heating, 200 groups of digestion programs can be edited and stored, and each group can be set up to 25 segments.

* Temperature and time gradient to meet different experimental needs of users.

* Special anti-corrosion treatment to avoid the corrosion of acidic liquid on the machine.

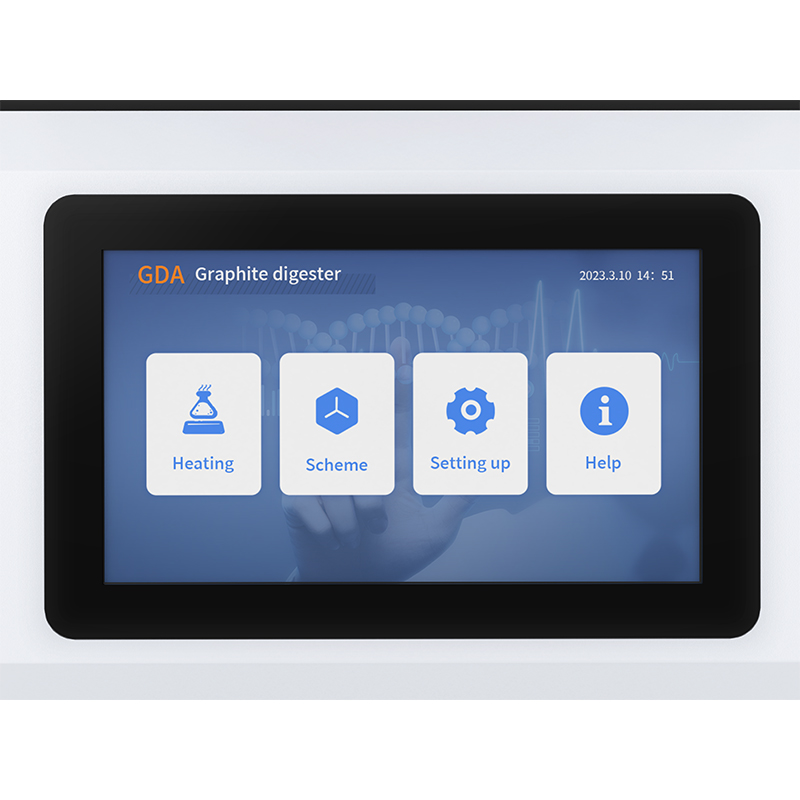

* 7-inch high resolution LCD display, real-time display temperature curve.

* Overvoltage, overcurrent, overheating and other alarm Settings and leakage protection.

* New ceramic fiber insulation layer and air duct insulation technology.

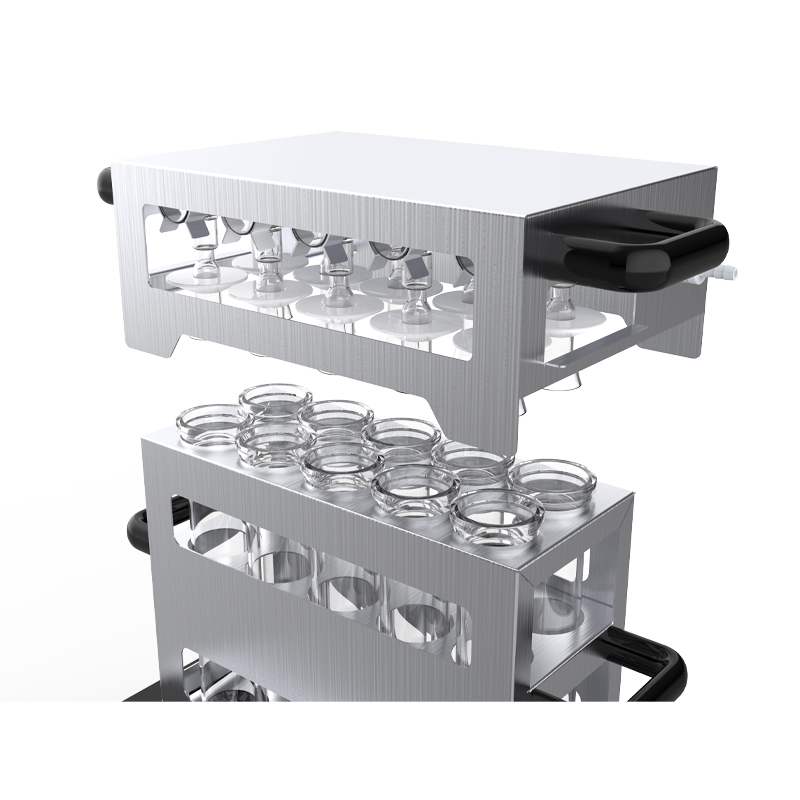

* Standard digestive tube cooling rack and drip tray, the digestive tube can be cooled quickly.

* Exhaust hood, PTFE sealing cap seal, prevent operators from inhaling harmful gases.

 Microwave Digestion System

 Technical Parameters:

Model

GDA-10

GDA-20

Temp. Range

RT+5℃~450℃

Temp. Accuracy

±1℃

Capacity

10pcs

20pcs

Digestive Tube

Glass tube 300ml*10

Glass tube 300ml*20

Heating Mode

Infrared heating and high purity graphite conduction

Insulation Mode

Ceramic fiber, split air duct insulation

Display

7-inch high resolution color LCD screen

Consumption

1.8KW

3.4KW

Power Supply

Standard: 220V±10%, 50/60Hz

Optional: 110V±10%, 50/60Hz

External Size

360*390*177mm

480*390*177mm

Package Size

620*500*560mm

700*610*770mm

Net Weight

20kg

26kg

Gross Weight

36kg

58kg
