Stereoscopic Microscope MSC-45 Series (scitek-0961) Products
| Name | Stereoscopic Microscope MSC-45 Series |
| Code | scitek-0961 |
| Type | Standard |
| Brand | Scitek |
| Category | Microscopes |
| subcategory | Stereoscopic Microscope |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Product details for Invoice

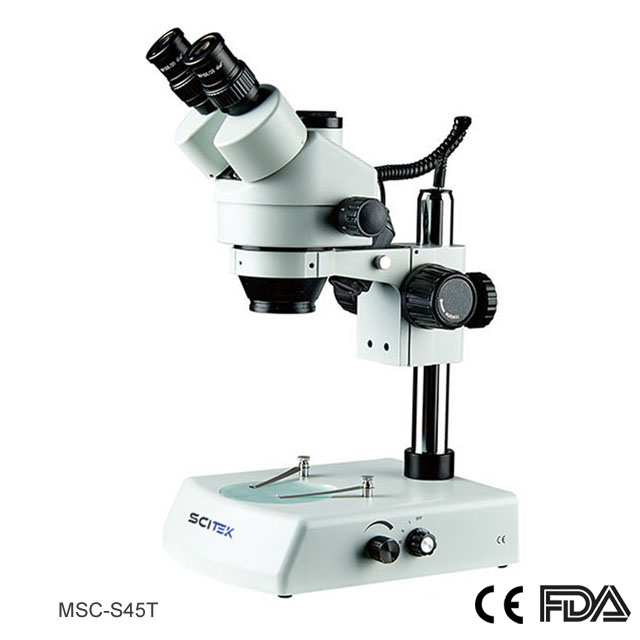

Model : MSC-S45B, MSC-S45T
Viewing Head : Sliding Binocular Head at 45°, 360° Rotatable / Sliding Trinocular Head at 45°, 360°Rotatable
Eyepiece : WF10x/20mm high-eyepoint, wide-field; Convenient for observers wearing glasses / xOptional Eyepiece 15x/15mm, 20x/10mm, 25x/9mm, 30x/8mm
Objectives : 0.7x-4.5x stereo zoom, Zoom Ratio 6.4:1 / *Aux Lens 0.5x, 2x
Viewing Head : Sliding Binocular Head at 45°, 360° Rotatable / Sliding Trinocular Head at 45°, 360°Rotatable
Eyepiece : WF10x/20mm high-eyepoint, wide-field; Convenient for observers wearing glasses / xOptional Eyepiece 15x/15mm, 20x/10mm, 25x/9mm, 30x/8mm
Objectives : 0.7x-4.5x stereo zoom, Zoom Ratio 6.4:1 / *Aux Lens 0.5x, 2x
Product Details
Stereoscopic Microscope Specifications:
| Model | MSC-S45B | MSC-S45T |
|---|---|---|
| Magnification | Zoom objective 7X-45X | |
| Eyepiece | WF10X/20mm high-eyepoint, wide-field; Convenient for observers wearing glasses | |
| Optional eyepiece 15X/15mm, 20X/10mm, 25X/9mm, 30X/8mm | ||
| Main Body | Binocular head, 45° inclined, 360° rotatable, can be locked in any position desired. Interpupillary distance adjustment: 54-76mm; Diopter adjustment: ±5 diopters | Trinocular head, 45° inclined, 360° rotatable, can be locked in any position desired. Interpupillary distance adjustment: 54-76mm; Diopter adjustment: ±5 diopters |
| Objective | 0.7X-4.5X stereo zoom; Zoom Ratio: 6.4:1 | |
| Aux Lens: 0.5X, 2X | ||
| Focusing Mount | Focusing mount with vertical working distance 50mm | |
| Stand | Vertical Post: 240mm; Diameter: φ32mm; With φ95mm B/W Plastic & Perspex Plate and Paired Clips; Base Size: 200x255x60mm | |
| Illumination | Transmitted and reflected 12v/15w halogen; xLED illumination | Transmitted and reflected 12v/15w halogen; xLED illumination |
| C-Mount | SZM 1X C-Mount; SZM 0.5X C-Mount; SZM 0.3X C-Mount; | |
| Information: 3.5X-270X with optional eyepieces and objectives | ||
| Package | Carton | |
| Shipping Size (W×D×H)(mm) | 510x210x380 | 510x280x380 |
| G.W. (kg) | 7 | 7 |
