| Name | LCD Digital Microscope, Binocular Viewing Head |
| Code | scitek-0952 |
| Type | Standard |
| Brand | Scitek |
| Category | Microscopes |
| subcategory | Digital Microscope |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Viewing Head : Siedentopf Binocular Viewing Head Inclined at 30°, Interpupillary 47-78mm / 48-75mm
Eyepiece : Wide Field Eyepiece WF 10×/18
Objectives : Achromatic Objective 4×, 10×, 40×, 100× / Infinite Semi-plan Achromatic Objectives 4×, 10×, 40×, 100×
The LCD digital microscope with its siedentopf binocular viewing Head inclined at 30°, providing a comfortable viewing angle and an interpupillary distance range of 47-78mm, ensures an ergonomic and adaptable experience for users. This design promotes extended periods of observation with reduced eye strain, accommodating a variety of user preferences.
LCD Digital Microscope Specifications:
| Model | MSC-125D | MSC-300D |
|---|---|---|
| Viewing Head | Siedentopf Binocular Viewing Head Inclined at 30°, Interpupillary 47-78mm | Siedentopf Binocular Viewing Head, 30° Inclined, Interpupillary 48-75mm |
| Optical System | Finite Optical System | Infinite Optical System |
| Eyepiece | Wide Field Eyepiece WF 10×/18 | |
| Condenser | NA1.25 Abbe Condenser | Sliding-in Centerable condenser NA1.25 |
| Nosepiece | Backward Quadruple Nosepiece | Quadruple Nosepiece |
| Objective | Achromatic Objective 4×,10×,40×,100× | Infinite Semi-plan Achromatic Objectives 4×,10×,40×,100× |
| Stage | Double Layers Mechanical Stage 140mm×140mm/ 75mm×50mm | |
| Focusing System | Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Moving Range 25mm | Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation,Moving Range 20mm |
| Illumination | S-LED Illumination, Brightness Adjustable | |
| Power Supply | AC 220/110V, 50/60Hz | |
| Shipping Size (W×D×H)(mm) | 380x270x470 | 350x350x640 |
| G.W. (kg) | 8.5 | 12 |
LCD Digital Microscope Features:
The coaxial coarse and fine adjustment focusing system is a standout feature, allowing for precise and effortless focusing. With a fine division of 0.002mm and a generous moving range of 25mm, this microscope provides the user with the capability to achieve highly detailed and sharp images. The coaxial design streamlines the focusing process, enhancing the efficiency of specimen examination.
The S-LED illumination is a notable highlight, providing consistent and adjustable brightness. This feature ensures optimal illumination for various specimens, allowing for clear visualization and detailed observation. The LED lighting also offers energy efficiency and durability compared to traditional illumination methods.
In summary, this LCD digital microscope combines ergonomic design, precise focusing capabilities, and adaptable illumination, making it an excellent choice for a range of applications, including biological research, medical diagnostics, and educational purposes. Its user-friendly features and advanced optics contribute to a versatile and efficient microscopy experience.
Details of LCD Digital Microscope:
High lens transmission reduces visual fatigue
The LCD digital microscope utilizes high magnification optics and a high-definition camera to magnify every detail of microscopic specimens, making it suitable for a wide range of applications such as teaching, research, and industrial inspection.

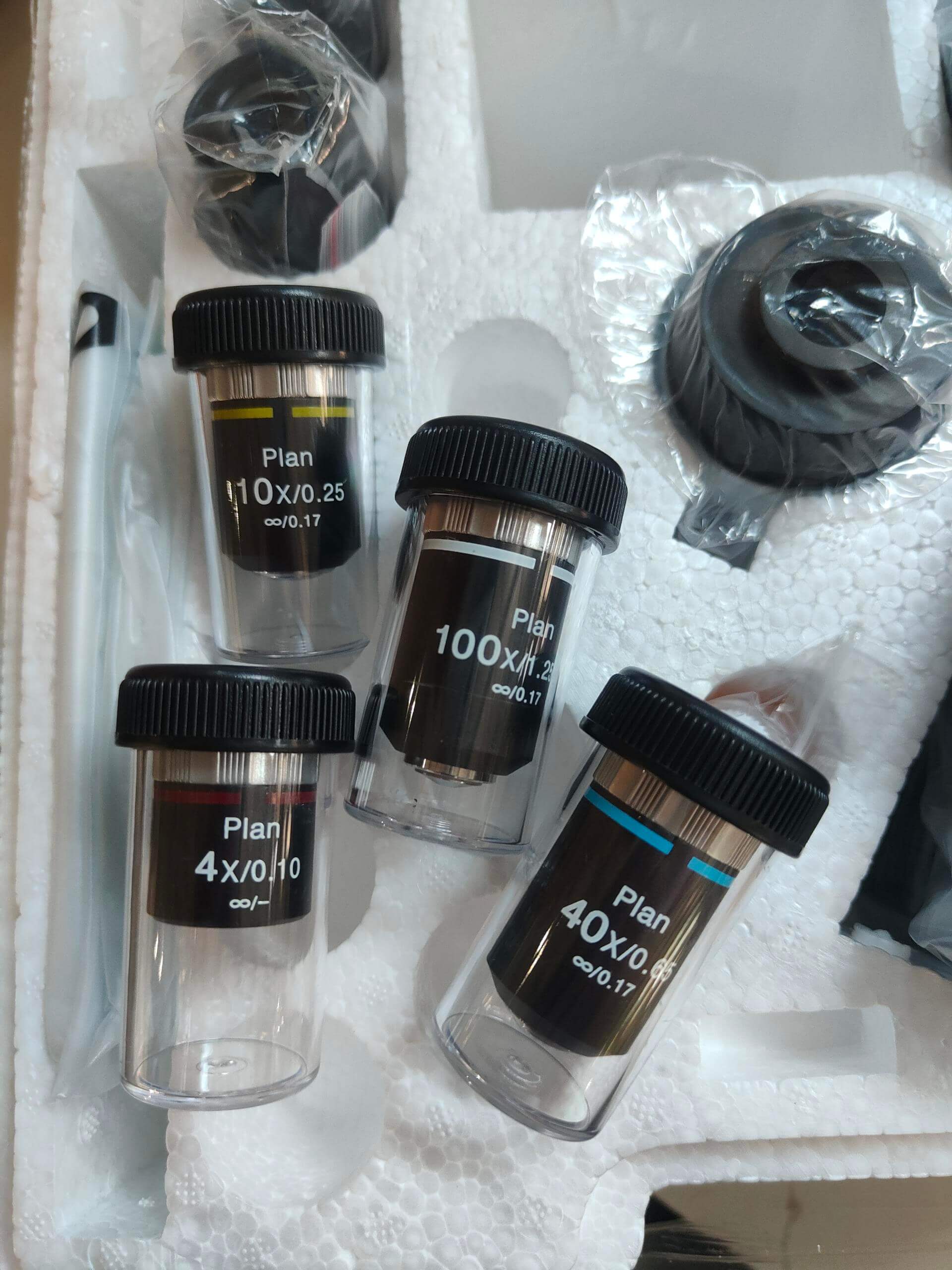

The objective part is equipped with a variety of lenses with different magnifications, which can be rotated and selected by the user according to the needs, and is applicable from low magnification observation to high magnification detailed research.
