| Name | Biological Microscope, Trinocular Head |
| Code | scitek-0948 |
| Type | Standard |
| Brand | Scitek |
| Category | Microscopes |
| subcategory | Biological Microscope |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Viewing Head : Siedentopf Trinocular Viewing Head at 30° IncIined Interpupillary (55-75mm) / Sliding Free Trinocular Head lnclined at 45° Interpupillary (55-75mm)
Eyepiece : Wide Field Eyepiece WF10x18mm
Objective : Achromatic Objective 4x, 10x, 40x, 100x

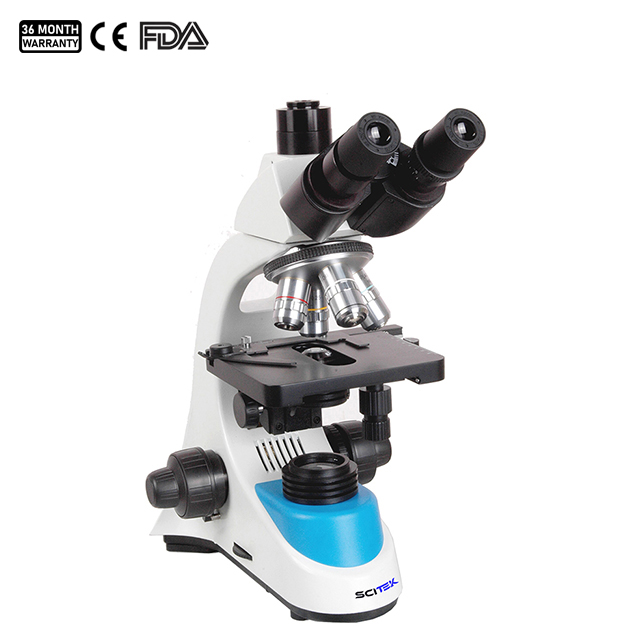

Tilting ergonomic trinocular head, with adjustable height for multiple user environments. MSC-BH208T Biological Microscope System is ideal for multiple user environments.
Biological Microscope Specifications:
| Model | MSC-BH208T | MSC-BS208T |
| Viewing Head | Siedentopf trinocular viewing head at 30° incIined interpupillary (55-75mm) | Sliding free trinocular head inclined at 45° interpupillary (55-75mm) |
| Eyepiece | Wide Field Eyepiece WF10x18mm | |
| Nosepiece | Quadruple Nosepiece | |
| Objective | Achromatic Objective 4X, 10X, 40X, 100X | |
| Stage | Double Layers Mechanical Stage 140x135mm/ 75x50mm | |
| Condense | Abbe NA1.2５ with Iris Diaphragm & Filter | |
| Focusing System | Coaxial coarse and fine adjustment, fine division 0.002mm, coarse stroke 37.7mm per rotation, fine stroke 0.2mm per rotation, moving range 28mm | Coaxial coarse and fine adjustment, fine division 0.002mm, coarse stroke 37.7mm per rotation, fine stroke 0.2mm per rotation, moving range 24mm |
| Illumination | S-LED Illumination, Brightness Adjustable | 3W LED Illumination, Brightness Adjustable |
| Halogen Lamp 100V-240V/ 6V20W | ||
| Plan-concave Mirror | ||
| Filter | Blue Filter | |
| Package | Carton | |
Shipping Size (W×D×H)(mm) | 360x260x470 | |
| G.W. (kg) | 7 | |
Biological Microscope Features:
The MSC-BH208T and MSC-BS208T are advanced biological microscopes designed for precise and efficient observation in various applications. Both models offer comfortable viewing angles with interpupillary adjustments ranging from 55-75 mm, allowing the user to make the optimal adjustment for their needs. Increased flexibility in observation setup.
Biological microscopes have high-quality wide-field eyepieces that provide clear and detailed imaging. The quadruple nosepiece accommodates achromatic objectives (4X, 10X, 40X, 100X) and offers a wide choice of magnifications to ensure versatility in specimen examination.
The double-layer mechanical stage facilitates precise sample manipulation, accurate positioning and ease of use.
Concentrator is an Abbe NA1.25 with an iris diaphragm and filters to ensure optimal illumination and contrast control for a variety of microscope applications.
The coaxial coarse and fine adjustment system has a fine index of 0.002 mm for precise focusing, with a crude adjustment travel of 37.7 mm/turn and a fine adjustment travel of 0.2 mm/turn.
Details of Biological Microscope:
Built-in LED light, sufficient light source, better brightness, protect your eyes. Comfortable observation without glare, no need to adjust the reflector
