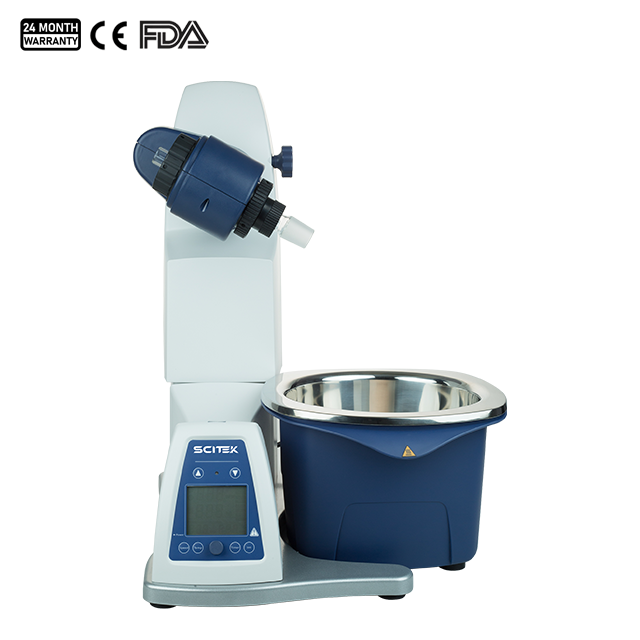

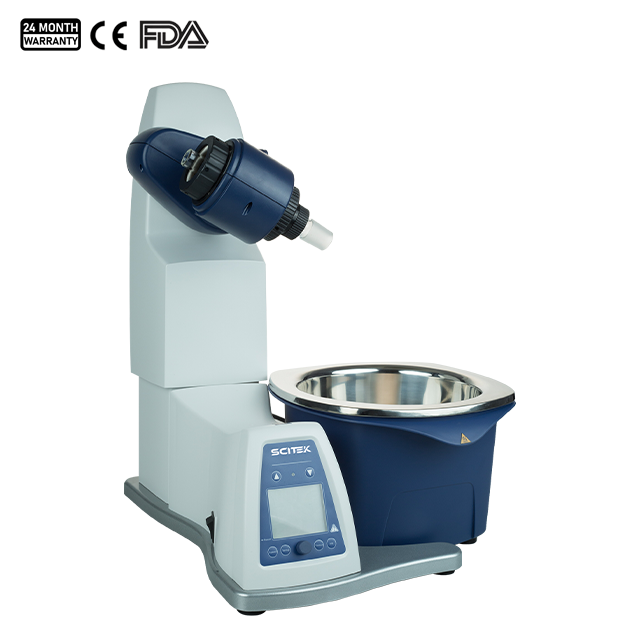

| Name | Highly Sealed Rotary Evaporator |
| Code | scitek-0303 |
| Type | Standard |
| Brand | Scitek |
| Category | Evaporators and Chillers |
| subcategory | Rotary Evaporators |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Evaporating Flask Volume : 50-2000ml(Standard configuration-1000ml)
Receiving Flask Volume : 100-2000ml(Standard configuration-1000ml)
Speed Range : 20rpm-280rpm
Heating Temperature Range : Room temp. to 180℃
Stroke Displacement : Automatic 150mm
This rotary evaporator is exclusive to academic institutions and meets all your basic needs for evaporation.
Highly Sealed Rotary Evaporator Specifications:
| Model | RE-100P |
|---|---|
| Evaporating Flask Volume | 50-2000ml (Standard configuration-1000ml) |
| Receiving Flask Volume | 100-2000ml (Standard configuration-1000ml) |
| Motor Type | Brushless DC motor |
| Speed Range | 20rpm-280rpm |
| Display | LCD (speed, temperature, time) |
| Clockwise and Anti-clockwise | Yes |
| Heating Temperature Range | Room temp. to 180℃ |
| Control Accuracy | water: ±1℃ oil: ±3℃ |
| Heating Power | 1300W |
| Stroke Displacement | Automatic 150mm |
| Timer | Yes |
| Time Setting Range | 1-999min |
| Interval Time Setting Range | 1~999s |
| Permissible Ambient Temperature | 5℃-40℃ |
| Permissible Relative Humidity | 80%RH |
| Protection Class | IP20 |
| USB Interface | Yes |
| Power | 1400 W |
| Power Supply | 100V-120V/200V-240V; 50Hz/60Hz |
| Sizes(W×D×H)(mm) | 1060×600×520 |
| Shipping Size(W×D×H)(mm) | 1100×600×640 |
| N.W./G.W. (kg) | 28/36 |
| Supporting products | RE-100P+ Diaphragm Vacuum Pump VP-410+Low Temperature Circulator LTC-P5+Vacuum Controller VC100 |
Rotary Evaporator Features:
Digital LCD display of both rotation speed and heating temperature allows for optimal control of all distillation processes
Automatic motor lift releases the evaporating flask to a safe position in case of power failure
5L heating bath with wide temperature range from room temperature to 180°C Water/oil heating mode can be changed only through a switch
Overheating protection temperature at 220 °C
Boil-dry protection, automatically power off if heating without water/oil in the heating bath
Speed range from 20 to 280rpm, and interval operation in clockwise and anticlockwise directions for drying process
Condenser (cooling surface 1700cm) with excellent cooling effect
Ejection mechanism ensures easy removal of evaporating flask
Patented double spring sealing ring made of PTFE provides an excellent sealing performance
Optional glassware with explosion proof film available
Details of Highly Sealed Rotary Evaporator:

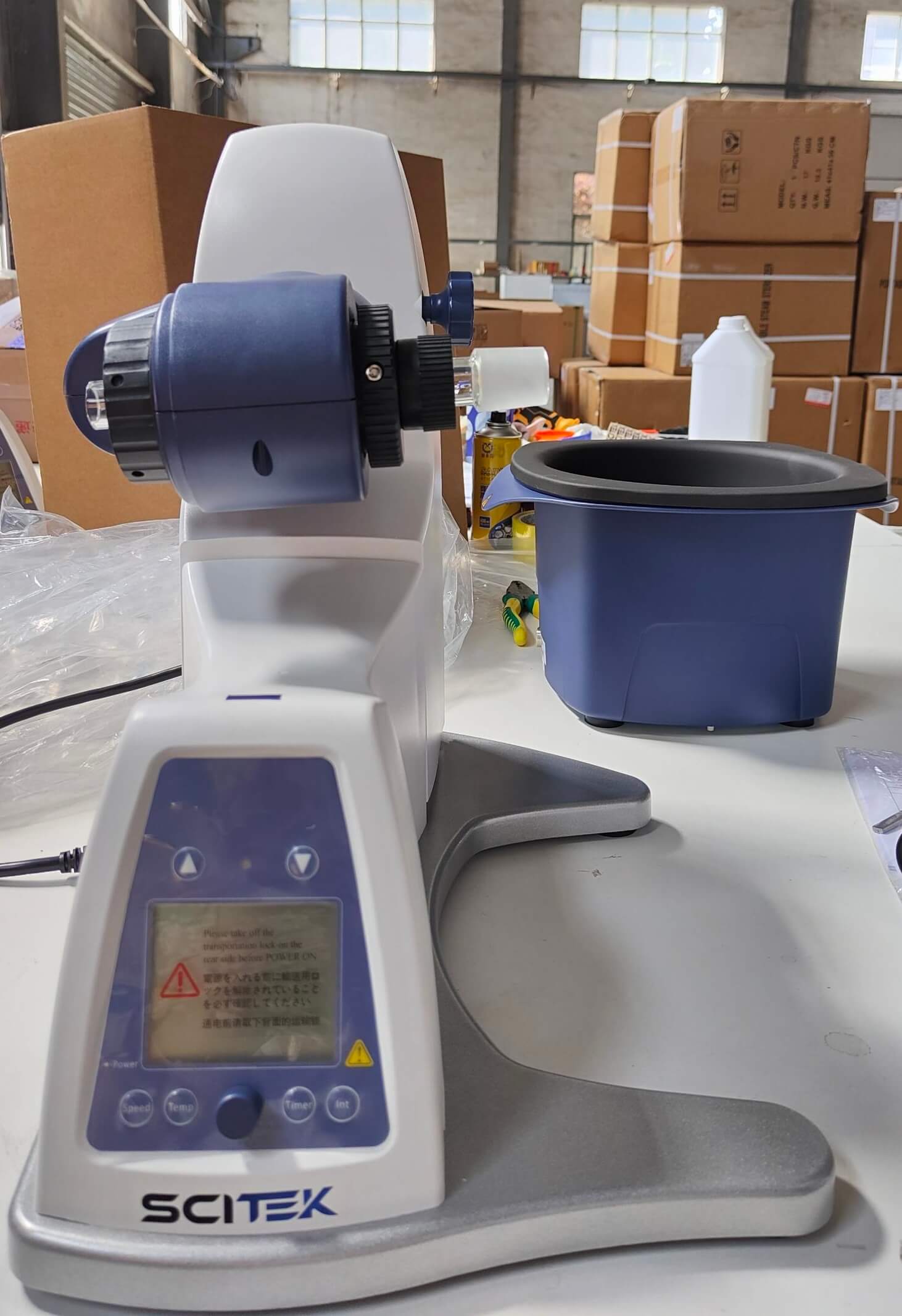

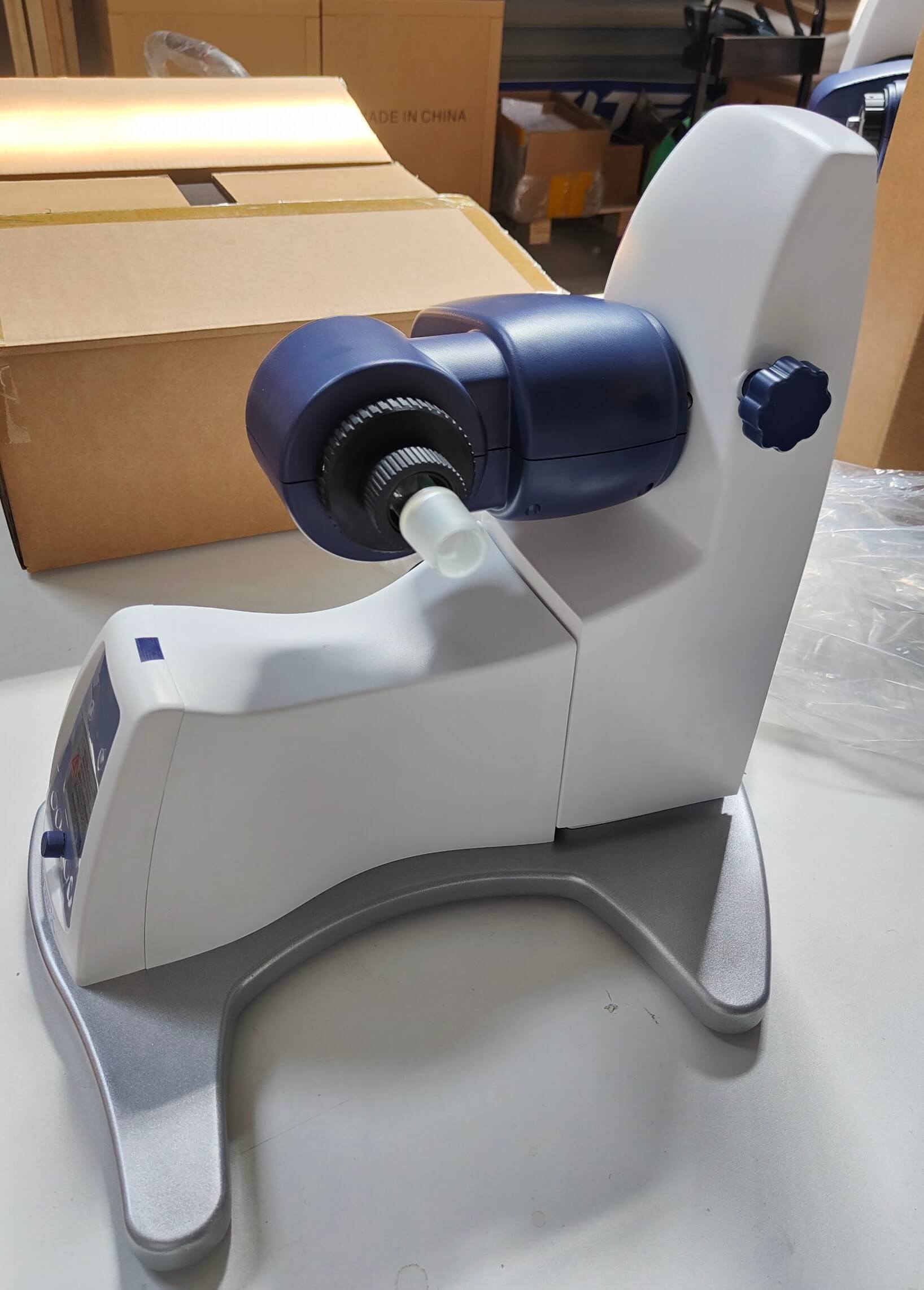

The front of the rotary evaporator has a clear and concise design, with all key operating components centered in front of the user's operation for ease of use.

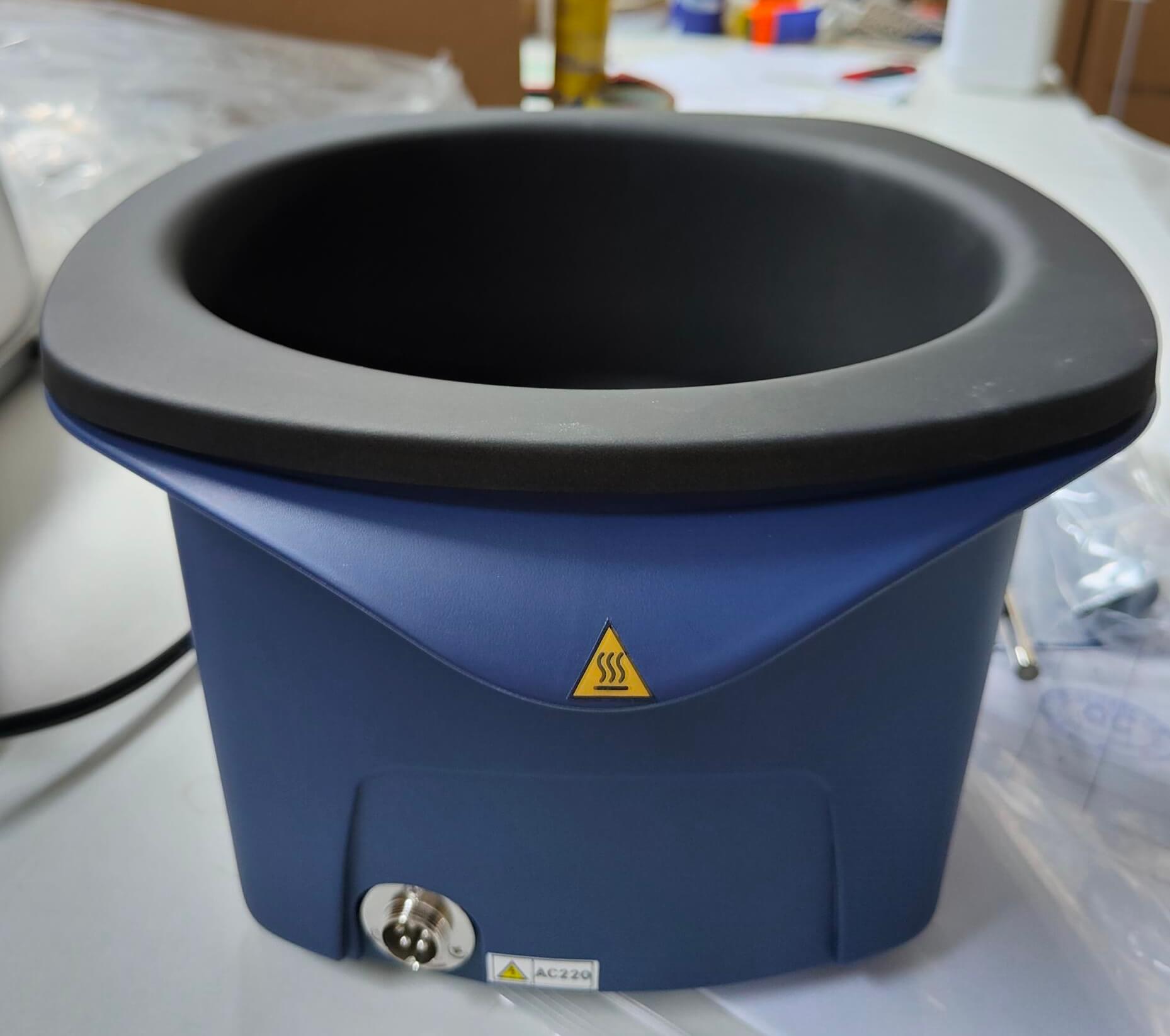

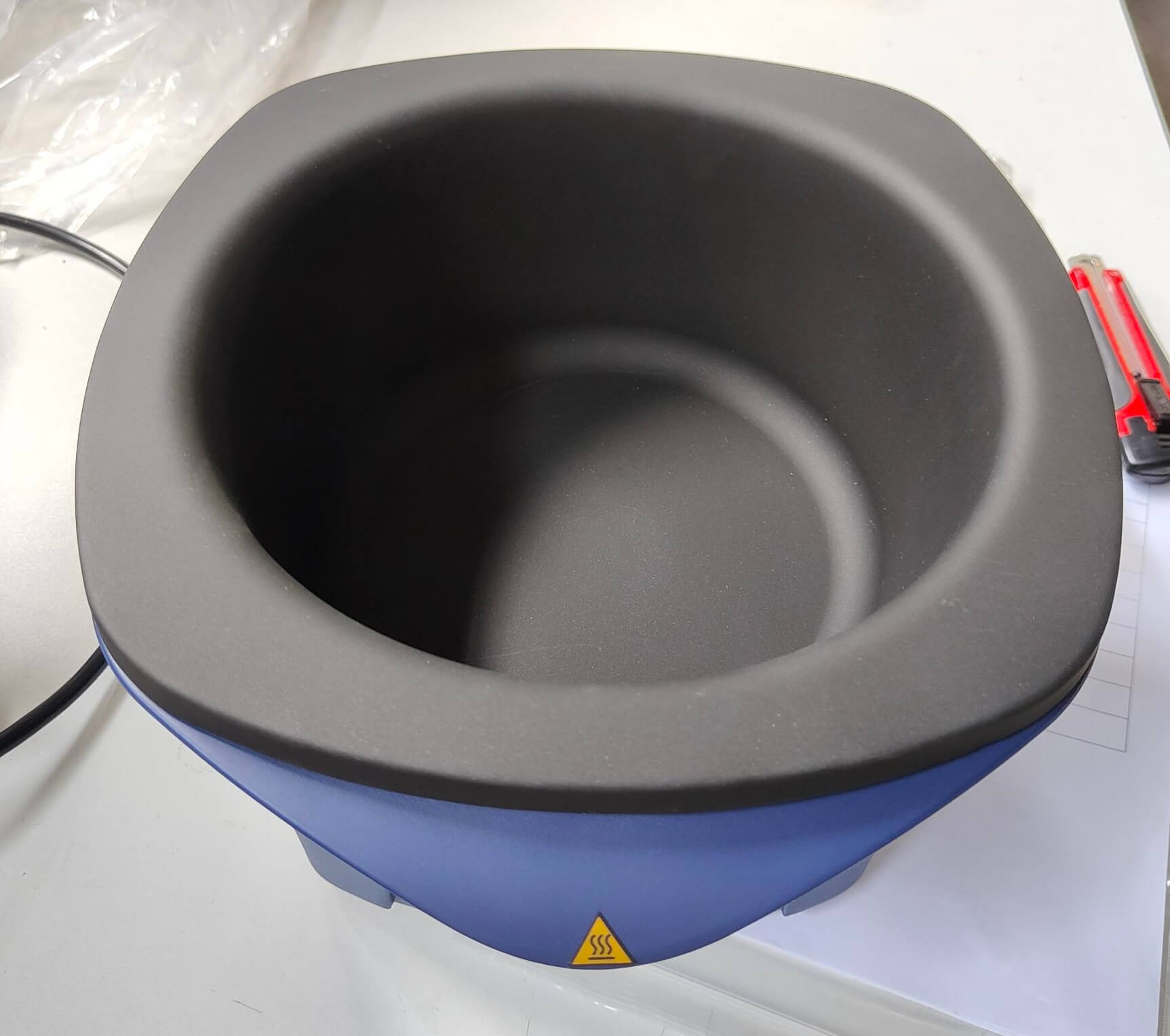

Made of stainless steel with a rounded sink structure. Smooth surface for easy cleaning and good corrosion resistance at the same time
