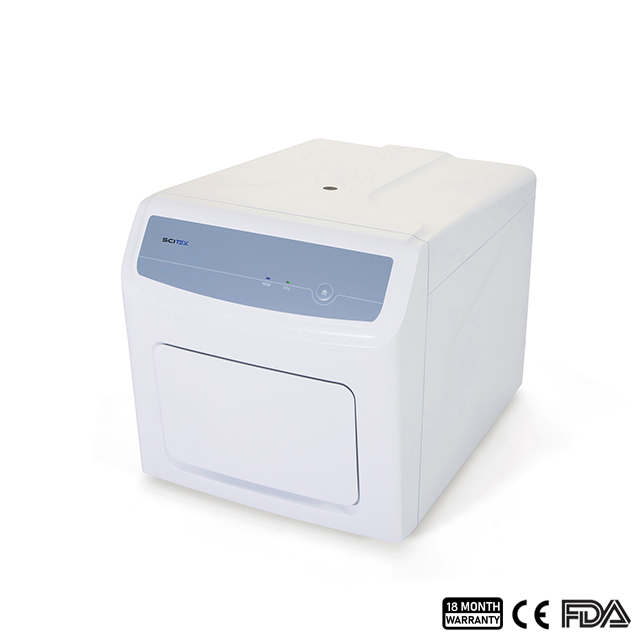

| Name | Real-time Fluorescence Quantitative PCR Detection System, RFQ96 Series |
| Code | scitek-0836 |
| Type | Standard |
| Brand | Scitek |
| Category | PCR Analyzer and Pretreatment |
| subcategory | Real-time PCR System |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Sample Capacity : 0.1ml PCR tubes×96, 8×12 PCR plate or 96 well plate ×1
MAX. Ramp Rate : 6℃/s
Reaction Volume : 10-50 μl
Sizes (W×D×H)(mm) : 720x560x620
The real-time fluorescence quantitative PCR system is highly sensitive and suitable for use in research and clinical diagnostics.
Real-time Fluorescence Quantitative PCR Detection System Specifications:
| Model | PCR-RFQ96 | PCR-RFQ96I |
|---|---|---|
| Sample Capacity | 0.1ml PCR tubes×96, 8×12 PCR plate or 96 well plate ×1 | |
| Reaction Volume | 10-50 μl | |
| Thermal Cycle Technology | Peltier | |
| Temperature Control system | ||
| Max. Heating/Cooling Rate | 6.0°C/s | |
| Heating Temperature Range | 4-100 °C | |
| Temperature Accuracy | ± 0.2°C | |
| Temperature Uniformity | ±0.2℃ @60℃, ±0.3℃ @95℃ | |
| Temperature Gradient Setting Range | 30-100°C | |
| Temperature Gradient Difference Setting range | 1-36°C | |
| Detection System | ||
| Excitation Light Source | 5 monochrome high efficiency LEDs | 6 monochrome high efficiency LEDs |
| Detection Device | PMT | |
| Detection Mode | Time-resolved signal separating technology | |
| Excitation/detection Wavelength Range | 455-650nm | 510-715nm |
| Fluorescent Channels | 5 channels | 6 channels |
| Supported Dye | FAM/SYBR Green, VIC/HEX ROX, Cy5, Cy3 (only for PCR-RFQ96I) | |
| Sensitivity | Single copy gene | |
| Resolution | 1.33 folds copy number difference can be distinguished in single-plex qPCR | |
| Dynamic Range | 10 orders of magnitude copies | |
| Sizes (W×D×H)(mm) | 720x560x620 | |
| Shipping Size(W×D×H)(mm) | 980x680x780 | |
| N.W./G.W. (kg) | 36/50 | |
Real-time Fluorescence Quantitative PCR Detection System Features:
The real-time fluorescence quantitative PCR detection system is a new optical scanning detection system that uses an innovative scanning method and time-resolved signal separation technology to ensure accurate and reliable results. The PCR-RFQ96 real-time PCR System is an essential choice for quantitative analysis in molecular biology, and it is widely used in various fields, such as scientific research and quality and safety testing.
Up to 6 fluorescence detection channels allow multiplex PCR.
Effectively reduces multi-colour crosstalk and fringing effects without ROX correction.
New optical scanning detection system to ensure the accuracy of the detection results
Innovative scanning method and time-resolved signal separation technology to improve detection efficiency
Unique edge temperature compensation technology to improve the precision of control temperature
