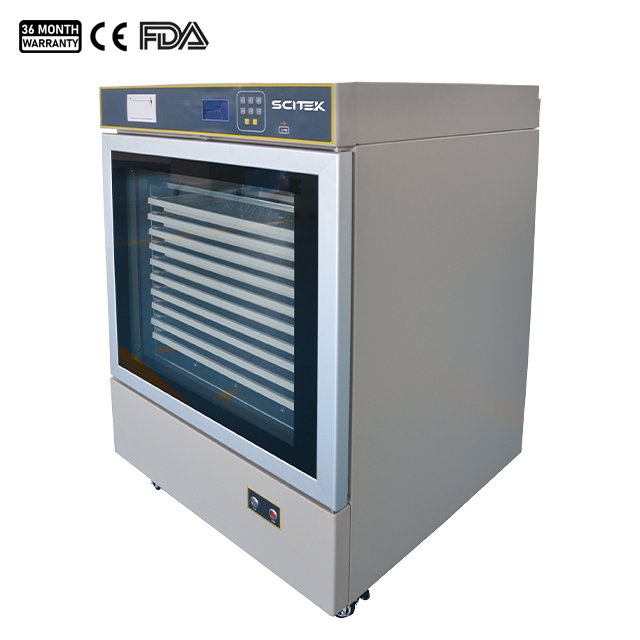

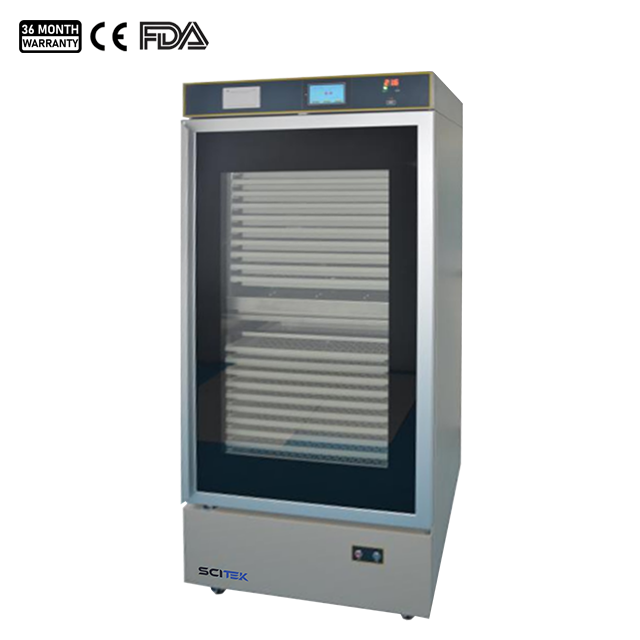

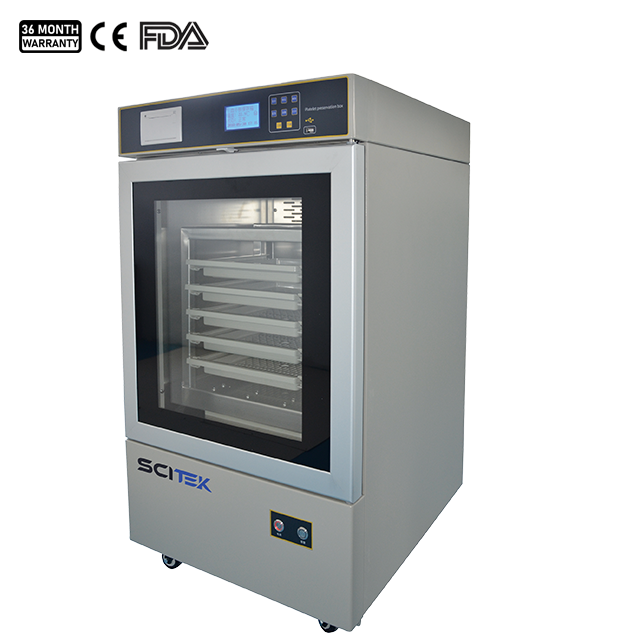

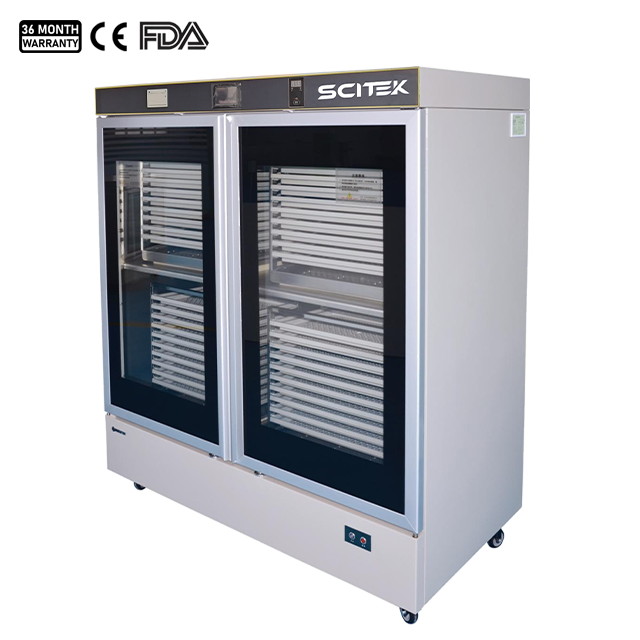

Platelet Preservation Box (scitek-0640) Products
| Name | Platelet Preservation Box |
| Code | scitek-0640 |
| Type | Standard |
| Brand | Scitek |
| Category | Blood Bank Equipment |
| subcategory | Platelet Preservation Box |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Product details for Invoice
Model : PPB-I; PPB-II; PPB-III; PPB-IV; PPB-V
Temperature Control method : Digital signal detection, Microprocessor control
Oscillation Frequency : 60±5 cycles/min
Oscillation Amplitude : 50 mm
Size(W×D×H)(mm) : 540x595x970; 690x680x1050; 720x750x1700; 1450x750x1700
Temperature Control method : Digital signal detection, Microprocessor control
Oscillation Frequency : 60±5 cycles/min
Oscillation Amplitude : 50 mm
Size(W×D×H)(mm) : 540x595x970; 690x680x1050; 720x750x1700; 1450x750x1700
Product Details
Platelet Preservation Box Specifications:
| Model | PPB-I | PPB-II | PPB-III | PPB-IV | PPB-V |
|---|---|---|---|---|---|
| Temperature Control method | Digital signal detection, Microprocessor control | ||||
| Temperature Control Range | 22±2℃ | ||||
| Temperature Control Accuracy | ±0.1℃ | ||||
| Environmental Temperature | 5~35℃ | ||||
| Alarm Temperature | ＜20℃, >24℃,Abnormal shutdown and power outage alarm | ||||
| Oscillation Frequency | 60±5 cycles/min | ||||
| Oscillation Amplitude | 50mm | ||||
| Working Mode | Continuously reciprocates left and right, oscillating horizontally | ||||
| Storage Area and Number of Layers | 430x380x470mm; 5 layers | 430x380x480mm; 7 layers | 585x545x410mm; 10 layers | 590x450x1130mm; 20 layers | 1300x450x1130mm; 10 layers x 4 (Double Door) |
| Number of Blood Bags Stored (Optimal/Maximum) | 5/10 bags | 7/14 bags | 20/40 bags | 60/100 bags | 120/200 bags |
| Heating Consumption | 200W | 400W | |||
| Refrigeration Consumption | 300W | 500W | |||
| Power Supply | AC220/110V, 50/60Hz | ||||
| Size(W×D×H)(mm) | 540x595x970 | 690x680x1050 | 720x750x1700 | 1450x750x1700 | |
| Shipping Size (W×D×H)(mm) | 650x710x1130 | 670x720x1150 | 820x800x1230 | 760x790x1930 | 1530x930x1780 |
| G.W. (kg) | 85 | 85 | 90 | 160 | 280 |
Platelet Preservation Box Feature:
1. Adopting IPS high-definition touch display
2. Multiple ways to monitor equipment temperature
3. With UV disinfection and lighting functions
4. High/low temperature alarm; Abnormal shutdown alarm; The oscillation device (motor) is faulty alarm; Automatic alarm if the equipment door is not closed tightly
5. New anti-slip coated drawer shelves
6. Microprocessor control
7. Air cooled R134a non- fluorocarbon refrigerant,
8. Silent casters with lock for easy movement
9. Equipped with leakage protector
10. Automatic frost and defrost function
11. Double-layer tempered glass door with good thermal insulation effect
Optional:
1. Wireless monitoring system
2. Scanner,scaning the plasma bag barcode
3. UPS power supply
4. Connecting to LIS system
