| Name | Light Horizontal Planetary Ball Mill |
| Code | biobase-0615 |
| Type | Standard |
| Brand | Biobase |
| Category | Laboratory Solid Processing Equipments |
| subcategory | Ball Mill |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
*Horizontal structure of grinding pots.
*Special gear with low noise.
Technical Parameters:
|
Model |
BKBM-H2L |
|
|
Capacity |
2L |
|
|
Volume of Each Capacity |
50~500ml |
|
|
Pot Quantity |
4 pcs |
|
|
Running Time Range |
1~9999min |
|
|
Reciprocal Running Time |
1~999min |
|
|
Adjustable Speed Revolution |
Revolution |
35~335rpm |
|
Rotation |
70~670rpm |
|
|
Noise |
60±5dB |
|
|
Transmission Mode |
Gear Drive |
|
|
Working Mode |
2 or 4 pots can be used each time |
|
|
Maximum Sample Volume (material + grinding ball) |
2/3 of the volume of the ball mill tank |
|
|
Feed Size |
Soft and Crispy material<10mm, Other materials<3mm |
|
|
Out-put Granularity |
Minimum Granularity can be reached to 0.1pm |
|
|
Adjusting Mode of Rotate Speed |
Frequency converter with stepless speed regulation |
|
|
Speed Control Mode |
Frequency Control |
|
|
Consumption |
0.75KW |
|
|
Power Supply |
AC110/220V±10%, 50/60HZ |
|
|
External Size(W*D*H)mm |
700*570*520 |
|
|
Package Size(W*D*H)mm |
800*610*670 |
|
|
Net Weight(kg) |
86 |
|
|
Gross Weight(kg) |
110 |
|
|
Note: Both pot and ball are optional. For a ball mill with a capacity of 2L, if the matching mill pot specification is 25ml or 50ml, you need to purchase a base holder separately. |
||
Optional:

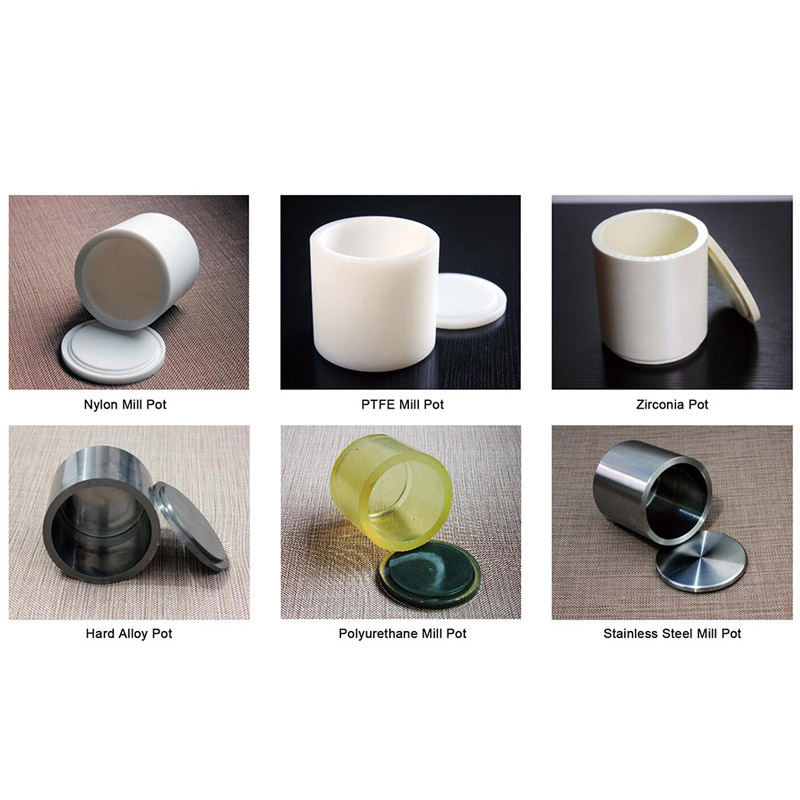

Selection of pot's material: Pot's material has no pollution to the grinding materials and no effect to the appearance of powder.
Technical Parameters:
|
Category & Request of Grinding Material |
Reference for Mill Pots' Material Option |
|
Soil and other Materials which impurities are not allowed to be brought. |
Agate Pot |
|
Metal and non-metal materials which impurities are not allowed to be brought. |
Zirconia Pot |
|
High hardness materials like diamond, hard alloy. |
Hard Alloy Pot |
|
Strong acid and strong alkali substances, and materials under high temperature. |
PTFE Mill Pot |
|
Iron and steel minerals, impurities are not highly sensitive materials. |
304 Stainless Steel Mill Pot |
|
Pigment material, and materials which can be processed at high temperature. |
Nylon Mill Pot |
|
Containing aluminum material like ceramic glaze. |
Corundum Pot |
|
Electronic material like lithium battery. |
Polyurethane Mill Pot |
|
Easily oxidized materials which need to be protected by special gas. |
Vacuum Mill Pot |
