Heavy Metal Digester GDA-30 (biobase-0624) Products
Name Heavy Metal Digester GDA-30
Code biobase-0624
Type Standard
Brand Biobase
Category Laboratory Solid Processing Equipments
subcategory Graphite Digester
Unit pcs (pcs)
In Stock Yes
Berminat hub kami: wa chat
Product details for Invoice
Introduction:
GDA-30 has the advantages of fast digestion, high efficiency, convenience and large processing capacity. It is an ideal pre-treatment equipment for atomic absorption spectroscopy, ICP mass spectrometry and other elemental analysis instruments.
Product Details
Heavy Metal Digester GDA-30

Application:

According to the experimental needs, can choose PTFE and silica glass two kinds of test tube, fully expand the user digestion acid range. Suitable for food, medicine, agriculture, forestry, environmental protection, chemical, biochemical and other industries as well as universities, scientific research departments to soil, feed, heavy metals, ore and other samples digestion treatment before chemical analysis.

Heavy Metal Digester

Features:

* The temperature in the furnace can be continuously adjusted, high precision , the temp. of the controlled point is constant, high heat conduction efficiency.

* Separate isolation design of control system and heating system to reduce the influence of high temperature radiation and acid corrosion on the control system.

* With overvoltage, overcurrent, overheat, overtemperature alarm, automatic fault alarm and other multiple protection.

* Embedded software temperature control technology, PID temperature control.

* Automatic detection of heating unit work fault and can determine the fault module.

* New flame retardant environmental protection materials and air duct insulation.

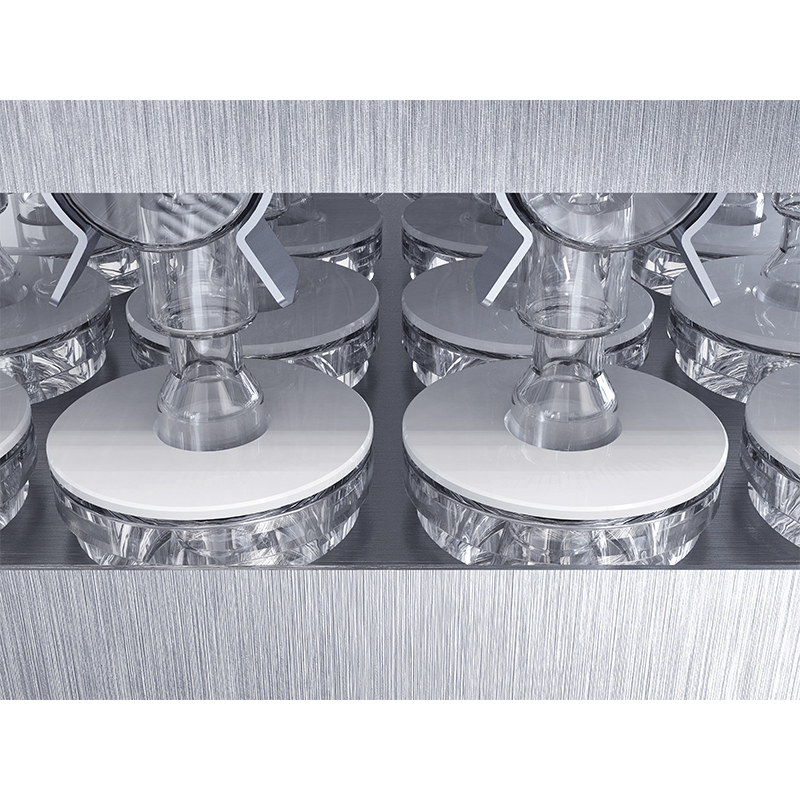

* PTFE and borosilicate glass two kinds of test tubes are available.

* Surround three-dimensional heating, so that all parts of the sample are heated evenly.

* Graphite block is treated with special anti-oxidation technology to prolong the service life.


Technical Parameters:

Model

GDA-30

Temp. Range

RT+5℃~450℃

Temp. Accuracy

±1℃

Capacity

30pcs

Digestive Tube

Glass tube scale 50mL(full capacity 100mL)

PTFE tube (full capacity 70mL) (standard 30pcs)

Heating Mode

Infrared heating and high purity graphite conduction

Insulation Mode

Ceramic fiber, split air duct insulation

Display

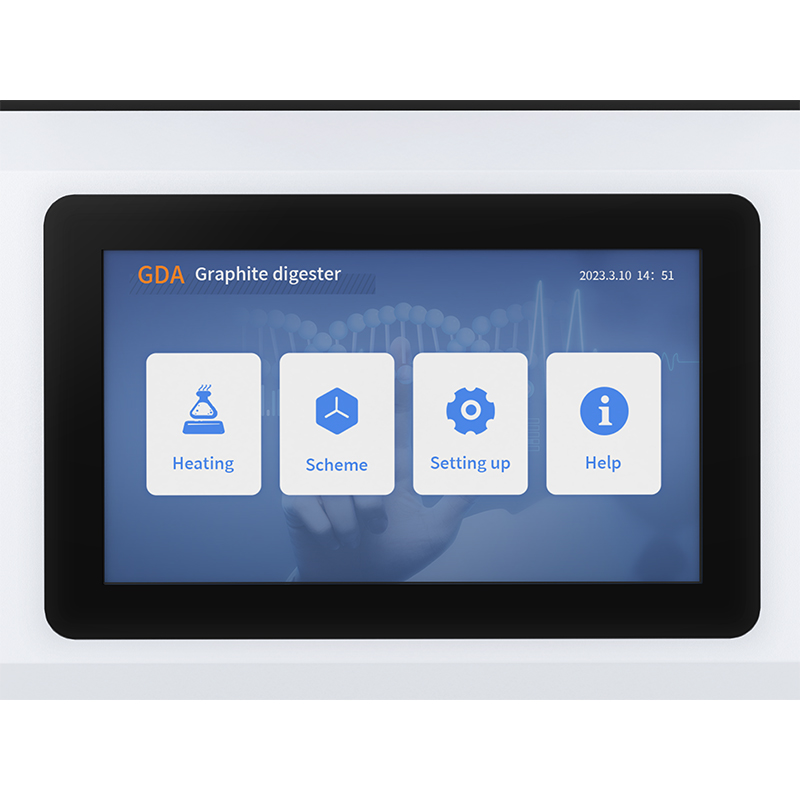

7-inch high resolution color LCD screen

Alarm

Over temperature alarm

Consumption

3.4KW

Power Supply

Standard: 220V±10%, 50/60Hz

Optional: 110V±10%, 50/60Hz

External Size

480*390*177mm

Package Size

610*500*455mm

Net Weight

26kg

Gross Weight

38kg
