Freeze Dryer, -50℃ Condenser Temp. (scitek-0997) Products
| Name | Freeze Dryer, -50℃ Condenser Temp. |
| Code | scitek-0997 |
| Type | Standard |
| Brand | Scitek |
| Category | Freeze Dryer |
| subcategory | Freeze Dryer, -50℃ Condenser Temp. |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Product details for Invoice
Model : FD-3H; FD-6H
Freeze Drying Area (m2) : 0.3; 0.56
Tray Size(mm) : 205x385; 220x510
Maximum Capacity : 3~5kg; 6~8kg
Condenser Temperature : ≤-50℃
Main Machine Size(W×D×H)(mm) : 570x780x1000; 890x750x1370

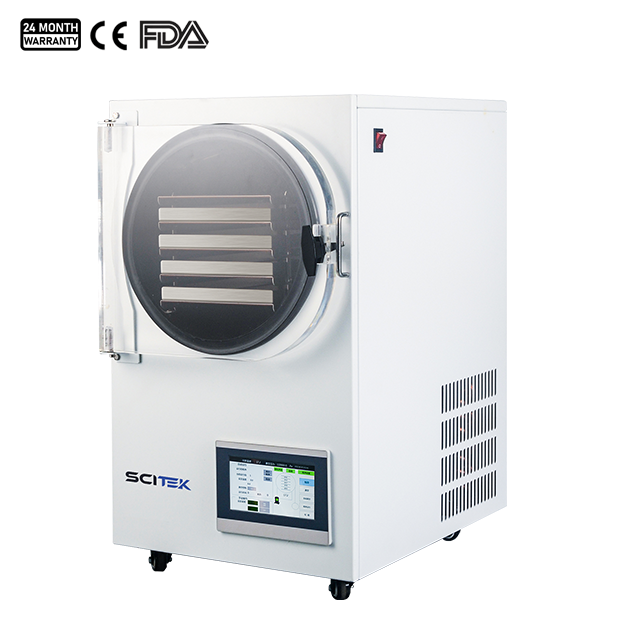

This is a freeze dryer that can be used for home use and is designed to lyophilise light to medium sample volumes.
Freeze Drying Area (m2) : 0.3; 0.56
Tray Size(mm) : 205x385; 220x510
Maximum Capacity : 3~5kg; 6~8kg
Condenser Temperature : ≤-50℃
Main Machine Size(W×D×H)(mm) : 570x780x1000; 890x750x1370
This is a freeze dryer that can be used for home use and is designed to lyophilise light to medium sample volumes.
Product Details
Freeze Dryer Specifications:
| Model | FD-3H | FD-6H |
|---|---|---|
| Freeze-drying Area(m2) | 0.3 | 0.56 |
| Tray Size(mm) | 205x385 | 220x510 |
| Tray Quantity | 4 | 5 |
| Maximum Capacity | 3~5kg | 6~8kg |
| Tray Distance (mm) | 40 | 54 |
| Condenser Temperature | ≤-50℃ | |
| Vacuum Degree (Pa) | ＜15Pa | |
| Consumption (W) | 1200 | 2300 |
| Power Supply | AC220V, 50/60Hz | |
Machine Size (W×D×H) | 450x610x760 | 620x694x1098 |
| Shipping Size(W×D×H)(mm) | Main machine: 540x750x970 | Main machine: 860x720x1335 |
| G.W. (kg) (Including Vacuum Pump) | 130/155 | 220/240 |
Freeze Dryer Features:
Shelf heating accelerates drying
One click operation with built-in preset program
Small size, occupying small space
Users can set their own operating parameters
Smart temperature control
Vacuum pump (Standard)
Remote monitoring function (Optional)
