| Name | Benchtop Freeze Dryer, Automatic Capping |
| Code | scitek-0296 |
| Type | Standard |
| Brand | Scitek |
| Category | Freeze Dryer |
| subcategory | Benchtop Freeze Dryer, Automatic Capping |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Freeze Drying Area (m2) : 0.36
Tray Size(mm) : 320x400
Tray Quantity : 3
Tray Spacing : 60mm
Freeze Drying Chamber(W×D×H)(mm) : 450x359x364
The pre-freezing and drying of benchtop freeze dryer are completed in situ for better drying effect. It adopts PID temperature control technology to realise the temperature control of the partition, which makes the temperature control more accurate.
Benchtop Freeze Dryer Specifications:
| Model | FD-B4 |
|---|---|
| Maximum Freeze-drying Area (m2) | 0.36 |
| Cold Trap Water Capture Capacity (kg) | 6kg |
| Tray Size (mm) | 320x400 |
| Tray Quantity | 3 |
| Tray Spacing | 60mm |
| Tray Temperature Range | -40~70℃ (No load, ambient temperature ≤ 23 ℃) |
| Vacuum Pump | Standard (An organic solvent resistant vacuum pump is optional.) |
| Vacuum Pump Pumping Speed | 2L/s |
| Capping Method | Automatic capping |
| Freeze Drying Bottles | 4x50ml, 4x100ml, 4x250ml, 4x500ml (optional) |
| Power Supply | AC220V, 50/60Hz |
| Consumption (W) | 2800W |
| Freeze Drying Chamber (W×D×H)(mm) | 450x359x364 |
| Shipping Size (W×D×H)(mm) | Main machine: 970x840x1180 Vacuum pump: 530x250x350 |
| Main Machine/Vacuum Pump:G.W. (kg) | 270/17 |

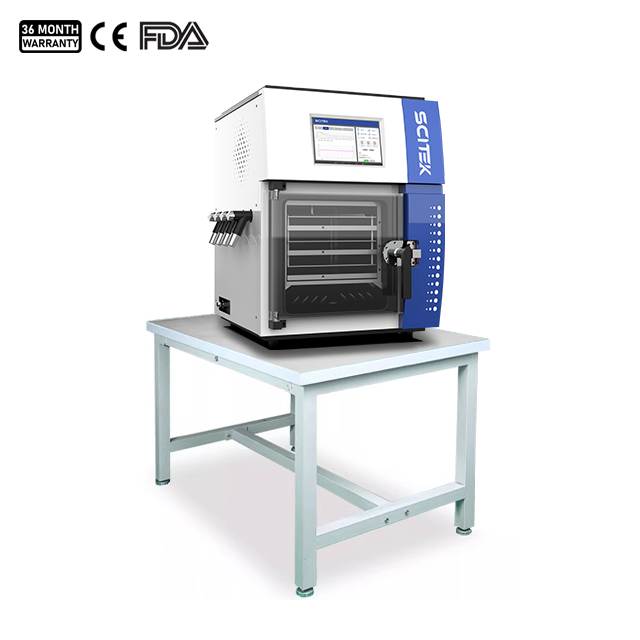

FD-B4 benchtop freeze dryer is a in-situ pre-freeze type. In-situ pre-freeze has changed the cumbersome operation in the past drying process, preventing contamination caused by material transfer, and achieving the automation of low-temperature drying. This box freeze dryer consists of a vacuum pump, cold trap, freeze-drying chamber, touch screen, and electrical control system, and has functions such as partition temperature control, intelligent vacuum adjustment, and automatic capping.
Benchtop Freeze Dryer Features:
316L stainless steel square freeze dryer, with organic glass material for the door
Shelf temperature control system
Real-time display of vacuum degree, cold trap temperature, sample temperature, partition temperature, and running error alarm
Freeze-drying curve optimization control technology
10-inch color LCD touch screen
Exclusive JD lyophilization operating system. Switchable between Chinese and English, simple and user-friendly. Can edit and save over 1000 process formulas, each containing 50 temperature control segments. Experiment can be paused midway to modify parameters
Automatic preservation of freeze-dried data
Automatic One-Button Defrosting for Cold Traps
Intelligent vacuum adjustment (optional)
Hydraulic system to meet the vacuum packaging requirements after sample freeze-drying (optional)
Internet of Things (IoT) remote control system (optional)
