| Name | Benchtop Freeze Dryer |
| Code | scitek-0297 |
| Type | Standard |
| Brand | Scitek |
| Category | Freeze Dryer |
| subcategory | Benchtop Freeze Dryer |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Freeze Drying Area (m2) : 0.36; 0.48
Tray Size(mm) : 300x400
Tray Quantity : 3/4
Tray Spacing : 95mm; 70mm
Freeze Drying Chamber(W×D×H)(mm) : 496x434x441

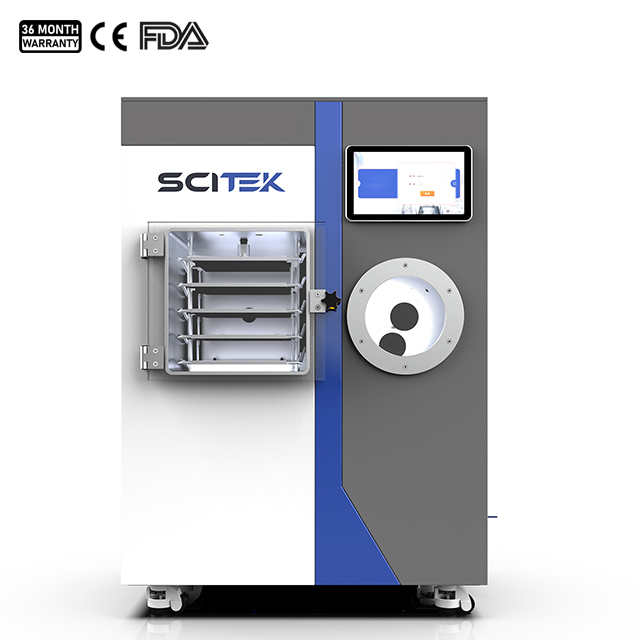

The benchtop freeze dryer enables in-situ pre-freezing, drying and sample encapsulation for better drying results. The structure adopts bin trap separation, effectively preventing frost and sealing effect.
Benchtop Freeze Dryer Specifications:
| Model | FD-B4I | FD-B5 |
|---|---|---|
| Maximum Freeze-drying Area(m2) | 0.36 | 0.48 |
| Cold Trap Water Capture Capacity(kg) | 12kg | |
| Tray Size(mm) | 300X400 | |
| Tray Quantity | 3 | 4 |
| Tray Spacing | 95mm | 70mm |
| Tray Temperature Range | -50~60℃ | |
| Vacuum Pump | Standard | |
| Vacuum Pump Pumping Speed | 4L/s | |
| Capping Function | Standard | |
| Vacuum Degree(Pa) | ≤5Pa (No load) | |
| Ultimate Vacuum Degree(Pa) | 1Pa | |
| Inert Gas Backfill | 0.2µm | |
| Power Supply | AC220V, 50/60Hz | |
| Consumption(W) | 5000W | |
| Freeze Drying Chamber (W×D×H)(mm) | 496x434x441 | |
| Shipping Size(W×D×H)(mm) | Main machine:1480x1130x2030 Vacuum pump:530x250x350 | |
| Main Machine/Vacuum Pump:G.W. (kg) | 640/17 | |
Benchtop Freeze Dryer Features:
316L stainless steel square freeze dryer, with organic glass material for the door
Shelf temperature control system
Real-time display of vacuum degree, cold trap temperature, sample temperature, partition temperature, and running error alarm
Freeze-drying curve optimization control technology
15-inch color LCD touch screen
Exclusive JD lyophilization operating system. Switchable between Chinese and English, simple and user-friendly. Can edit and save over 1000 process formulas, each containing 50 temperature control segments. Experiment can be paused midway to modify parameters
Automatic preservation of freeze-dried data
Audio-visual alarm system, supporting temperature alarm, vacuum alarm, experiment completion reminder function, and emergency stop function
Account privilege management (Three-level Account Privilege Management)
Hydraulic system to meet the vacuum packaging requirements after sample freeze-drying
Internet of things (IoT) remote control system (optional)
Intelligent vacuum adjustment (optional)
