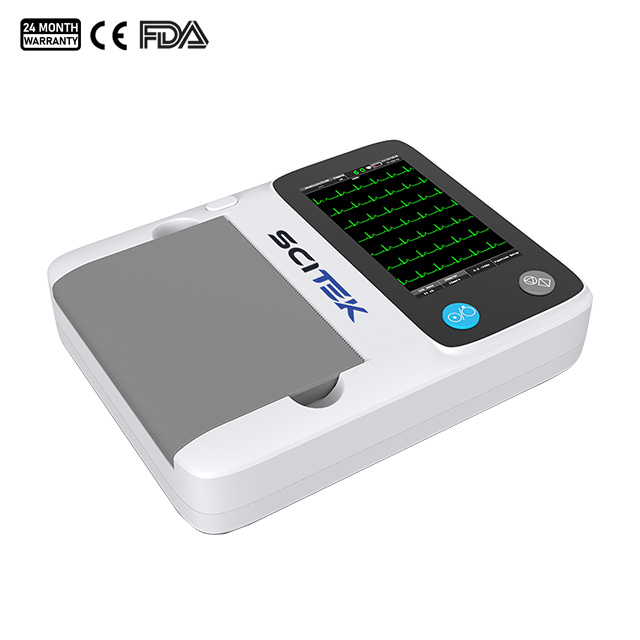

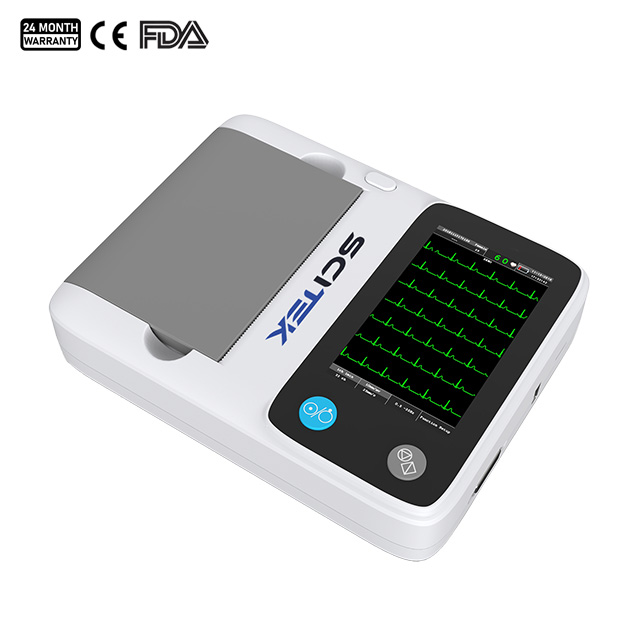

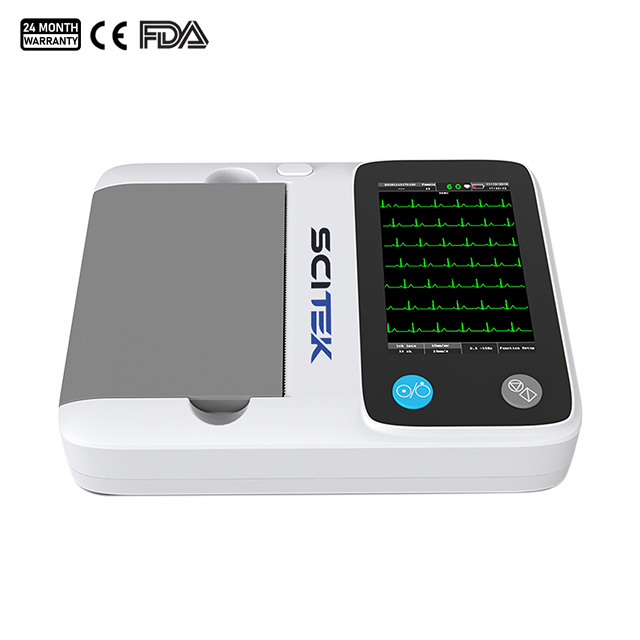

| Name | Electrocardiograph ECG-302A |
| Code | scitek-0624 |
| Type | Standard |
| Brand | Scitek |
| Category | Medical Device |
| subcategory | Electrocardiograph |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Lead : 12 leads
Measurement Range : ±5mVpp
Input Impedance : ≥50MΩ
Input Circuit Current : <0.05μA
External Size ( WxDxH ) (mm) : 225x175x50
This electrocardiograph has a simple design and is easy to operate, making it suitable for beginners and non-professionals. Now the best electrocardiograph for sale at cost price.
Our electrocardiograph is not only affordable, but also functional and practical for a variety of medical facilities and clinics. Whether you are a doctor, nurse or medical technician, this electrocardiograph will be your most reliable partner. The electrocardiograph is a reliable companion that helps you to quickly and accurately obtain ECG information from your patients, providing important support for diagnosis and treatment.
Electrocardiograph Specifications:
| Model | ECG-302A |
|---|---|
| Lead | 12 leads |
| Acquisition Mode | Simultaneous 12 leads acquisition |
| Measurement Range | ±5mVpp |
| Input Circuit | Floating; Protection circuit against defibrillator effect |
| Input Impedance | ≥50MΩ |
| Input Circuit Current | <0.05μA |
Record Mode | Automatic: 3CH×4+1R,3CH×4, 3CH×2+2CH×3, 3CH×2+2CH×3+1R, 6CH×2 |
| Filter | EMG Filter: 25 Hz/30Hz/40Hz/75Hz/100Hz/150Hz |
| DFT Filter: 0.05 Hz/0.15 Hz | |
| AC Filter: 50 Hz/60 Hz | |
| CMRR | >100dB |
| Patient Leak Current | <10μA(220V-240V) |
| Frequency Response | 0.05Hz~150Hz (-3dB) |
| Sensitivity | 2.5mm/mV, 5 mm/mV, 10 mm/mV, 20 mm/mV (error: ±5%) |
| Anti-baseline Drift | Automatic |
| Time Constant | ≥3.2s |
| Noise Level | <15μVp-p |
| Paper Speed | 12.5mm/s, 25mm/s, 50mm/s |
| Recording Mode | Thermal printing system |
| Paper Specification | Roll 80mmx20M |
| Safety Standard | IEC I/CF |
| Sample Rate | Normal: 1000sps/channel |
| Power Supply | AC: 100~240V, 50/60Hz, 30VA~100VA |
| DC: 14.8V/2200mAh, build-in lithium battery | |
| Standard Configuration | Main machine: 1 pc Patient cable: 1pc Limb electrode: 1 set (4pcs); Chest electrode: 1set (6pcs) Power cable: 1pc; 80mmx20M recording paper: 1pc Paper axis: 1pc; Power cord: 1pc |
| External Size (WxDxH)(mm) | 225x175x50 |
| Shipping Size (WxDxH)(mm) | 320x250x170 |
| Net Weight (kg) | 1.3 |
| Gross Weight (kg) | 2.8 |
| Packing Information | 8 units/carton, Carton Package Size: 540x330x750mm, Carton Gross Weight: 22kg |
Electrocardiograph Features:
5-inch-high resolution color touch screen
12-lead simultaneous acquisition and display
ECG Automatic measurement and interpretation function
Complete digital filters, resisting baseline drift, AC and EMG interference
Compact and lightweight design
Support USB flash disk and micro SD card to extend memory
Software update via USB/SD card
Built-in rechargeable Li-ion battery
