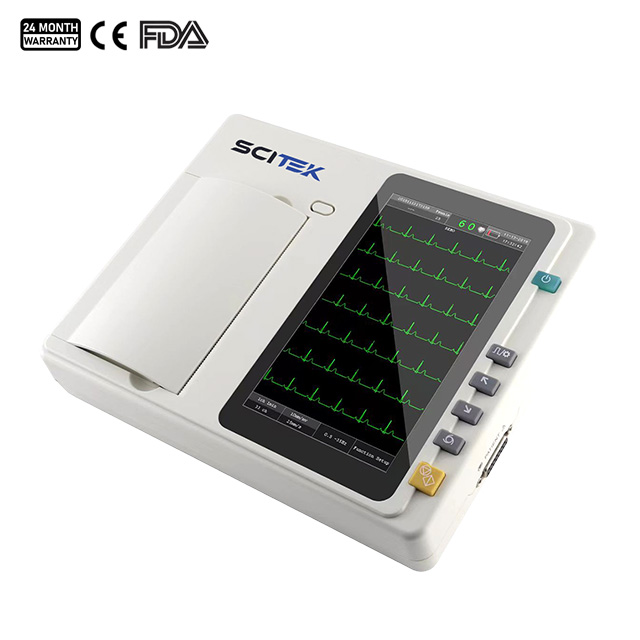

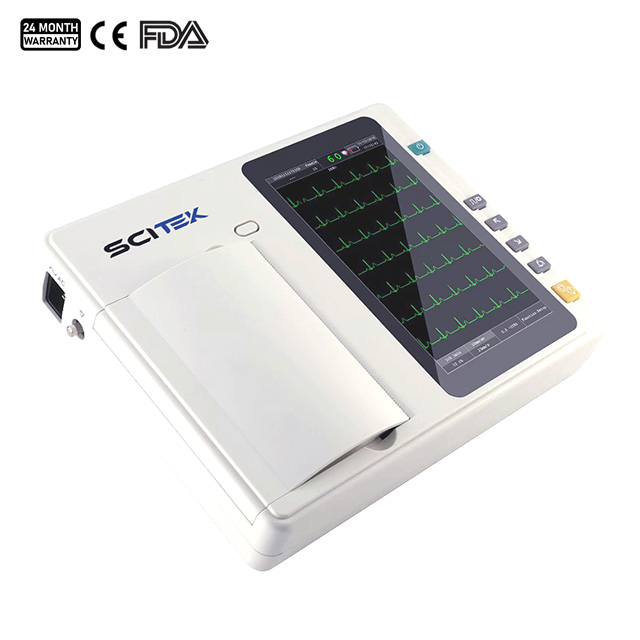

| Name | Electrocardiograph ECG-301M |
| Code | scitek-0623 |
| Type | Standard |
| Brand | Scitek |
| Category | Medical Device |
| subcategory | Electrocardiograph |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Lead : 12 leads
Measurement Range : ±5mVpp
Input Impedance : ≥50MΩ
Input Circuit Current : <0.05μA
External Size ( WxDxH ) (mm) : 250 x 200 x 50
Affordable and ideal for healthcare facilities and clinics, this electrocardiograph meets basic ECG monitoring needs without being burdensome.
This electrocardiograph uses advanced technology and design to provide you with accurate and reliable ECG monitoring. It offers many advantages such as multi-Lead acquisition, simultaneous acquisition, wide waveform range, protective design and flexible recording modes. Ensure you get the most comprehensive and reliable ECG information. Whether for clinical diagnosis or cardiac disease monitoring, our electrocardiograph will be your reliable partner.
Electrocardiograph Features:
7-inch-high resolution color touch screen
12-lead simultaneous acquisition and display
ECG Automatic measurement and interpretation function
Complete digital filters, resisting baseline drift, AC and EMG interference
Compact and lightweight design
Support USB flash disk and micro SD card to extend memory
Software update via USB/SD card
Built-in rechargeable Li-ion battery
Electrocardiograph Specifications:
| Model | ECG-301M |
|---|---|
| Lead | 12 leads |
| Acquisition Mode | Simultaneous 12 leads acquisition |
| Measurement Range | ±5mVpp |
| Input Circuit | Floating; Protection circuit against defibrillator effect |
| Input Impedance | ≥50MΩ |
| Input Circuit Current | <0.05μA |
| Record Mode | Automatic: 3CH×4+1R, 3CH×4, 3CH×2+2CH×3, 3CH×2+2CH×3+1R, 6CH×2 |
| Manual: 3CH, 2CH, 3CH+1R, 2CH+1R | |
| Rhythm: any lead selectable | |
| 1inch 1min Mode:1 minute 1-lead | |
| Filter | EMG Filter: 25 Hz/30Hz/40Hz/75Hz/100Hz/150Hz |
| DFT Filter: 0.05 Hz/0.15 Hz | |
| AC Filter: 50 Hz/60 Hz | |
| CMRR | >100dB |
| Patient Leak Current | <10μA (220V-240V) |
| Frequency Response | 0.05Hz~150Hz (-3dB) |
| Sensitivity | 2.5mm/mV, 5 mm/mV, 10 mm/mV, 20 mm/mV (error: ±5%) |
| Anti-baseline Drift | Automatic |
| Time Constant | ≥3.2s |
| Noise Level | <15μVp-p |
| Paper Speed | 12.5mm/s, 25mm/s, 50mm/s |
| Recording Mode | Thermal printing system |
| Paper Specification | Roll 80mmx20M |
| Safety Standard | IEC I/CF |
| Sample Rate | Normal: 1000sps/channel |
| Power Supply | AC: 100~240V, 50/60Hz, 30VA~100VA |
| DC: 14.8V/2200mAh, build-in lithium battery | |
| Standard Configuration | Main machine: 1 pc Patient cable: 1pc Limb electrode: 1 set (4pcs); Chest electrode: 1set (6pcs) Power cable: 1pc; 80mmx20M recording paper: 1pc Paper axis: 1pc; Power cord: 1pc |
| External Size (WxDxH)(mm) | 250 x 200 x 50 |
| Shipping Size (WxDxH)(mm) | 320x250x170 |
| Net Weight (kg) | 1.2 |
| Gross Weight (kg) | 2.8 |
| Packing Information | 8 units/carton, Carton Package Size: 540x330x750mm, Carton Gross Weight: 22kg |

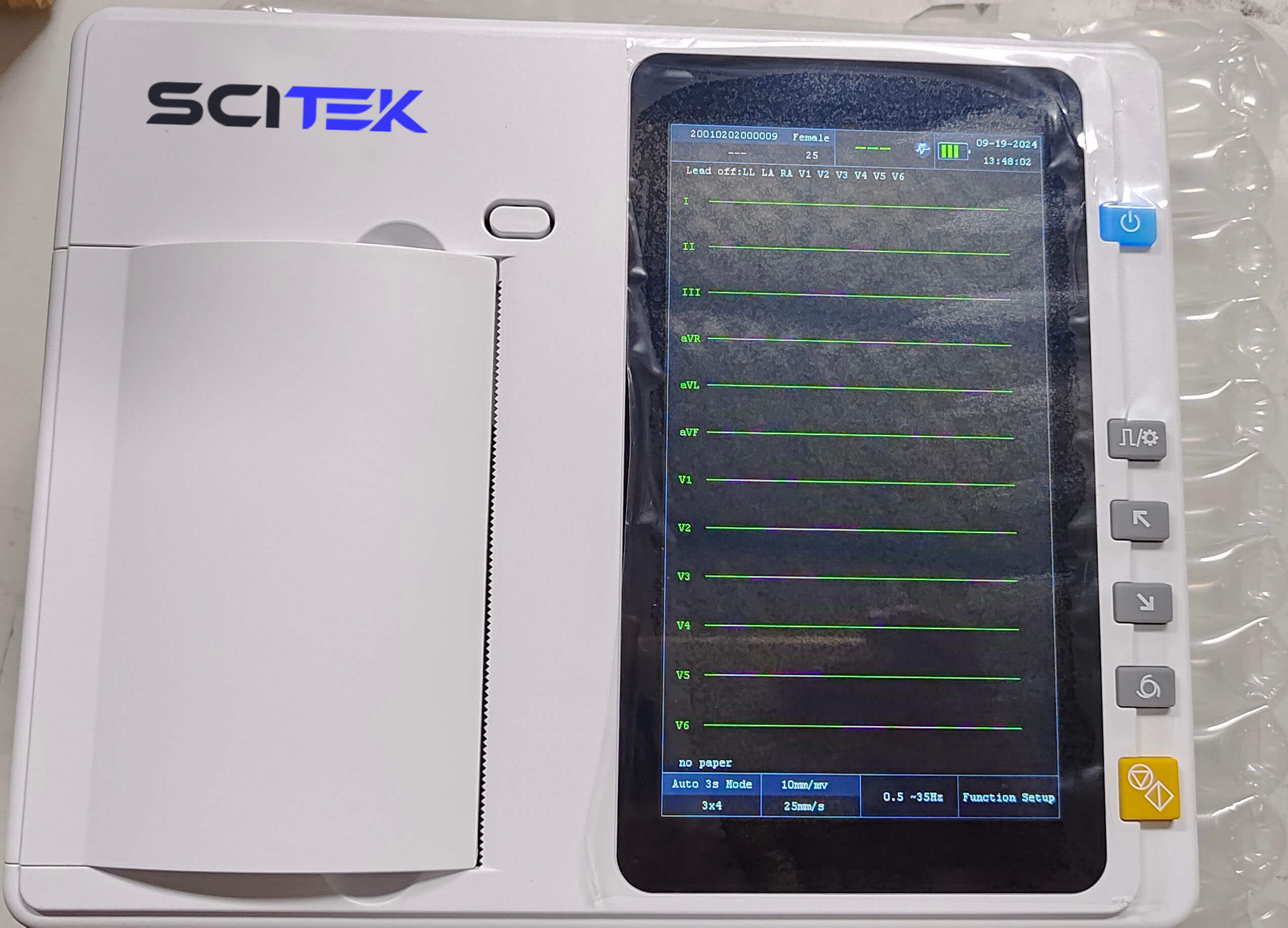

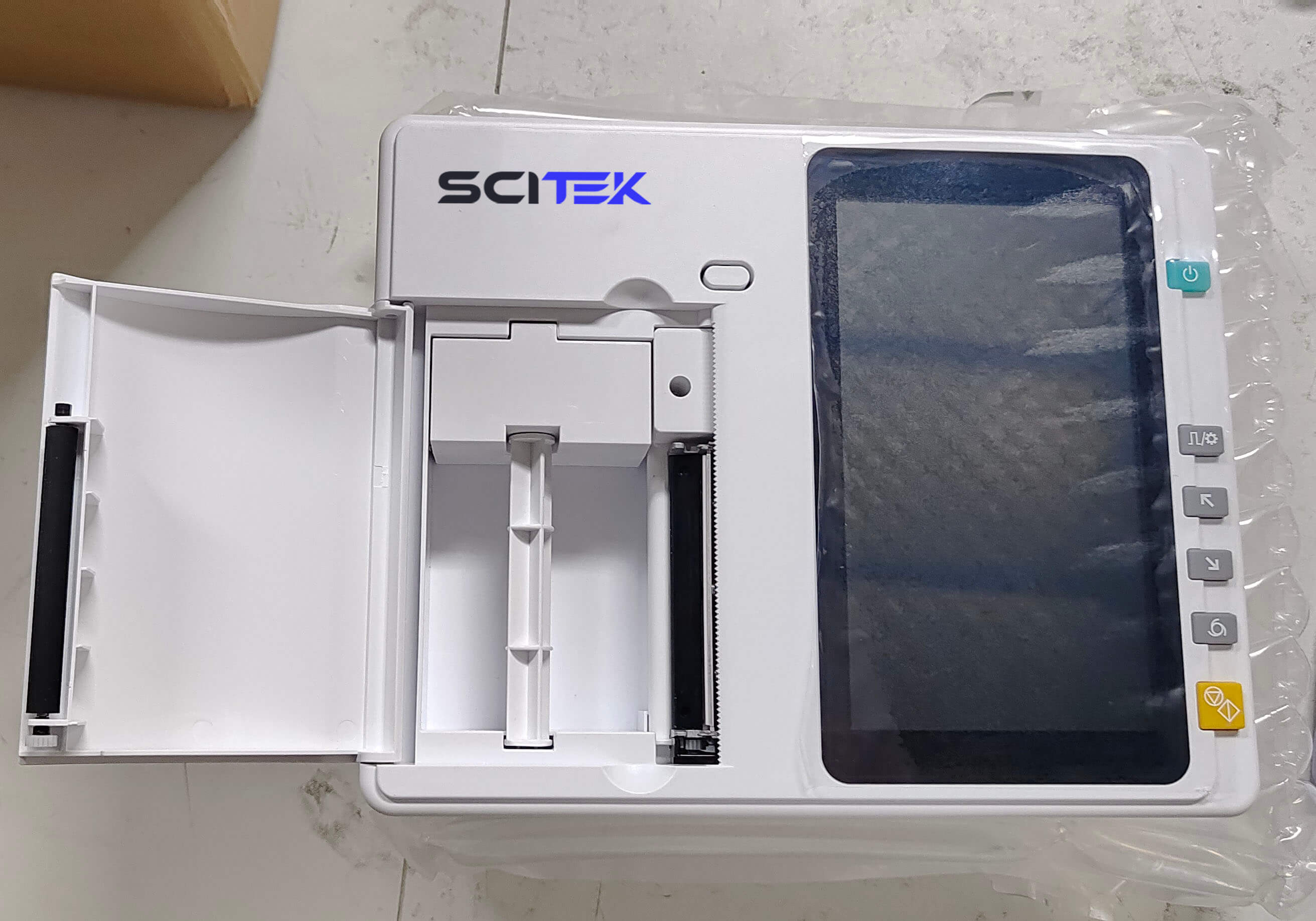

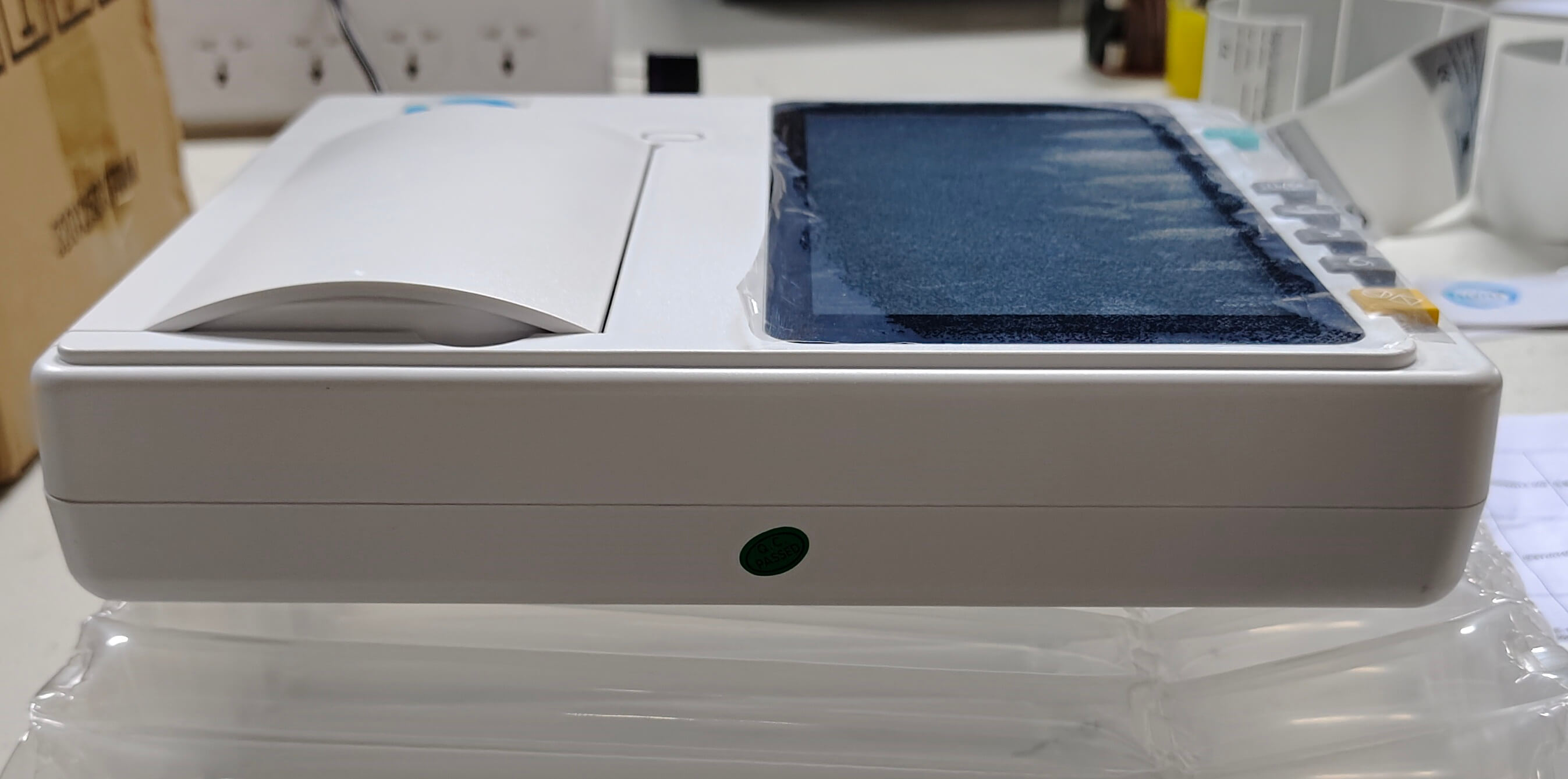

Details of Electrocardiograph:
The electrocardiograph captures the heart's electrical signals through precise electrode sensors and displays real-time ECG waveform maps to help physicians and healthcare professionals with heart health assessment and diagnosis.
