scitek-1171 - Portable Full-digital Black and White Ultrasound Scanner

Portable Full-digital Black and White Ultrasound Scanner (scitek-1171) Products

Name	Portable Full-digital Black and White Ultrasound Scanner
Code	scitek-1171
Type	Standard
Brand	Scitek
Category	Medical Device
subcategory	Doppler Ultrasound
Unit	pcs (pcs)
In Stock	Yes
Berminat hub kami:

Product details for Invoice

Model : US-B580

Scanning Mode : Convex matrix / Linear array / Micro convex
Display Mode : B, B + B, 4B, B + M, M.
Probe Pport : 1
Display Screen : 12.1 inch medical LED display
External Size(mm) : 330x 289x70
The ultrasound scanner comes with a high definition LCD screen to ensure image clarity.

Product Details

Abdominal, urology, obstetrics and gynecology, pediatrics / neonatology, superficial structure / small organs, musculoskeletal, heart and so on.

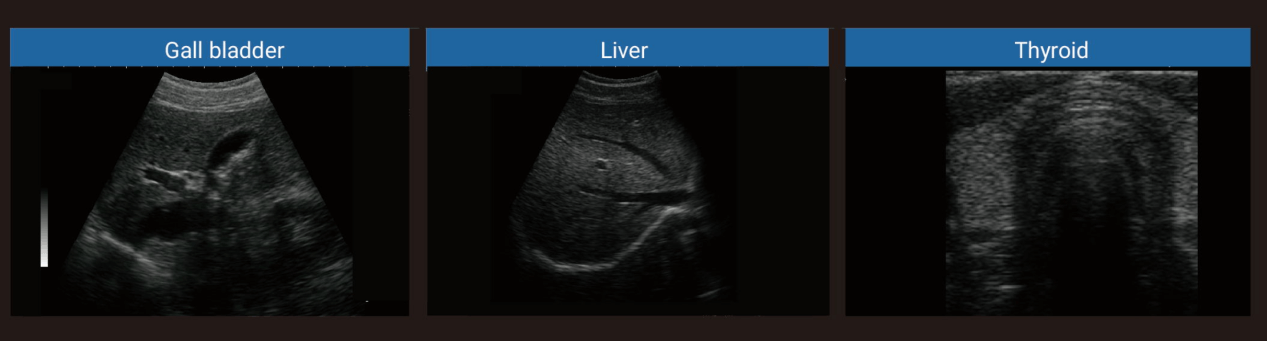

Ultrasound Machine -580

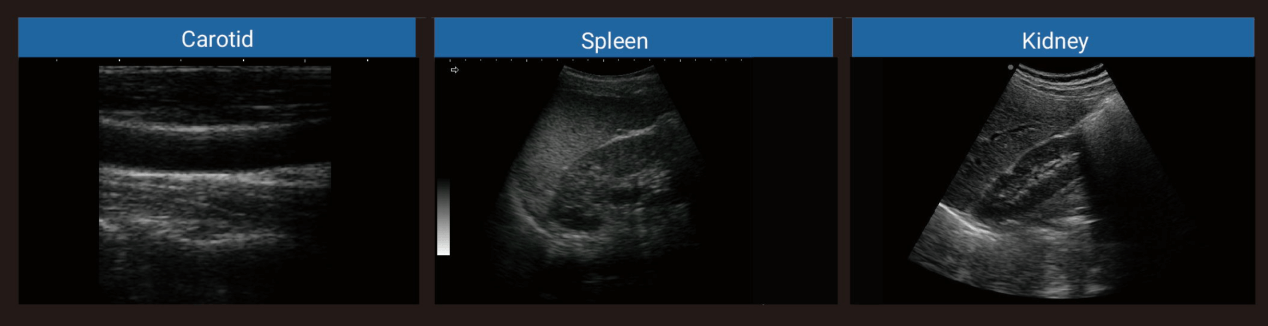

Ultrasound Machine 580-1

Black and White Ultrasound Scanner Features:

Comprehensive and rich graphic information processing functions;
Intelligent TGC 8-stage gain control;
External USB storage,image upload more convenient;
High-qualiy digital imaging technolog, the image is clearer;
Large capacity movie playback,automatic image loop demo;
Compact size,clear image,easy to operate, strong endurance.

Black and White Ultrasound Scanner Specifications:

Model	US-B580
Scanning Mode	Convex matrix / Linear array / Micro convex
Measurement	B; GYN,Thyroid,URO,Kidney,Cardiac,OB1,OB2 measurement.
Probe Port	Standard configuration: 1 probe ports (Optional docking station for 2 probe ports)
Display Mode	B, B + B, 4B, B + M, M.
Optional Probe Detail	3.5MHz Convex Probe	2.0MHz, 2.5MHz, 3.5MHz, 4.0MHz, 5.0MHz Depth range: 307mm Visual adjustable
	7.5MHz Linear probe	5.5MHz, 6.5MHz, 7.0MHz, 7.5MHz, 9.0MHz Depth range: 35-104mm
	6.5MHz Transvaginal probe	5.0MHz, 5.5MHz, 6.5MHz, 7.5MHz, 8.5MHz Depth range: 62-139mm
	5.0MHz Micro-Convex probe	4.0MHz, 4.5MHz, 5.0MHz, 6.5MHz, 7.0MHz Depth range: 62-139mm
	7.5MHz Rectal Probe	5.5MHz, 6.5MHz, 7.0MHz, 7.5MHz, 9.0MHz
System Language	Chinese/ English/ Russian/ Spanish/ French/ Portuguese
Focus	4
Position Marker	≥ 96 kinds
Image Mirroring	Up and down, left and right, black and white , in any mode can be changed and operated. Images can be 0 °, 90 °, 180 °, 270 °, 360 ° rotation
Character Display	Date, time, name, sex, age, doctor, hospital, comment (full screen character editing) (can be mixed with letters, numbers, punctuation, arrows)
Interface	RS-232, VGA, VIDEO, 2 USB ports, DICOM
Image post-processing function	DBF, DRF, DRA, THI, RDA, DFS, RDF
Display	12.1 inch medical LED display
Battery	10400mA built-in rechargeable lithium battery (4-8H)
Storage	Built in 8G memory card to save more than 4000 images, supporting U disk storage .
External Size(mm)	330x 289x70
N.W./G.W. (kg)	4.7/9.5
The 2D-dimensional imaging mode:
Gray scale	256 level, 7 kinds, can be adjustable
Dynamic range	0-135dB
Focus	1-4 focus optional, adjustable focus position continuously
TGC	8 segments
Tissue Harmonics	0-1MHZ
Playback Frame	≥ 512 frames, can be continuous to play or view by line.
Frame correlation	4 kinds, adjustable
Line correlation	6 kinds, adjustable
Gamma correction	8 kinds,adjustable
Edge enhancement	4 kinds, visual adjustable
Scanning range	4 kinds, adjustable
Zoom function	Overall zoom
Image level adjustment	0-1
Black and white flip	0-1
Depth adjustment	16 level
Gain	0 ~ 100 adjustable
Scanning speed	0-7
M pseudo color	0-7
Blind Zone	≤ 4
Geometric Accuracy	Horizontal ≤ 5%, vertical ≤ 5%
Resolution	lateral ≤ 2mm, axial ≤ 1mm
