| Name | Biological Microscope, Siedentopf Binocular Head |
| Code | scitek-0945 |
| Type | Standard |
| Brand | Scitek |
| Category | Microscopes |
| subcategory | Biological Microscope |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Viewing Head : Seidentopf Binocular Head, Inclined at 30°, Interpupillary 50-75mm
Eyepiece : Seidentopf Binocular Head, Inclined at 30°, Interpupillary 50-75mm
Objective : Infinite Plan Achromatic Objective 4×, 10×, x20×, 40×, 100× / xFlour semi-apo abjective 4×, 10×, x20×, 40×, 100× / xInfinite Plan Phase Objective Ph10x, 20x, 40x, 100x
Basic fixed magnification biological microscope ideal for simple tasks
Biological Microscope Specifications:
| Model | MSC-B203B |
| Optical System | Infinite Optical System |
| Viewing Head | Siedentopf Binocular Head, Inclined at 30°, Interpupillary 50-75mm |
| Eyepiece | WF10×22mm Wide Field Eyepiece WF10×22mm; xWF16×; xWF20× |
| Objective | Infinite Plan Achromatic Objective: 4×, 10×, x20×, 40×, 100× |
| xFlour Semi-apo Abjective: 4×, 10×, x20×, 40×, 100× | |
| xInfinite Plan Phase Objective: Ph10x, 20x, 40x, 100x | |
| Nosepiece | Quadruple Nosepiece/xQuintuple Nosepiece |
| Stage | Double Layers Mechanical Stage 210x150mm/ 75x50mm |
| Condense | Abbe Condenser NA1.25 with Iris Diaphragm & Filter |
| Focusing System | Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 24mm |
| Illumination | LED Illumination, Brightness Adjustable |
| xOptional | Phase Contrast Kit; Dark Field Attachment; Fluorescent Attachment |
| xOptional Configuration | |
Shipping Size (W×D×H)(mm) | 590x350x360 |
| G.W. (kg) | 9 |
Biological Microscope Features:
The MSC-B203B biological microscope is a cutting-edge instrument for advanced microscopy applications with infinite optics for superior image quality.
The siedentopf binocular lenses are comfortable to wear and provide a wide and detailed field of view, ensuring ergonomic observation even during prolonged use.
Biological microscope is equipped with xWF16× and xWF20× eyepieces for different magnification requirements.
Infinite plan achromatic and fluorescent semi-achromatic objectives provide excellent optical performance at various magnifications.
The quadruple (quintuple) nosepiece facilitates quick and precise objective changes, increasing workflow efficiency. The dual mechanical stage (210x150 mm/75x50 mm) provides ample space for sample manipulation and precise positioning.
Coaxial coarse and fine adjustment system has a fine index of 0.002 mm for precise focusing.

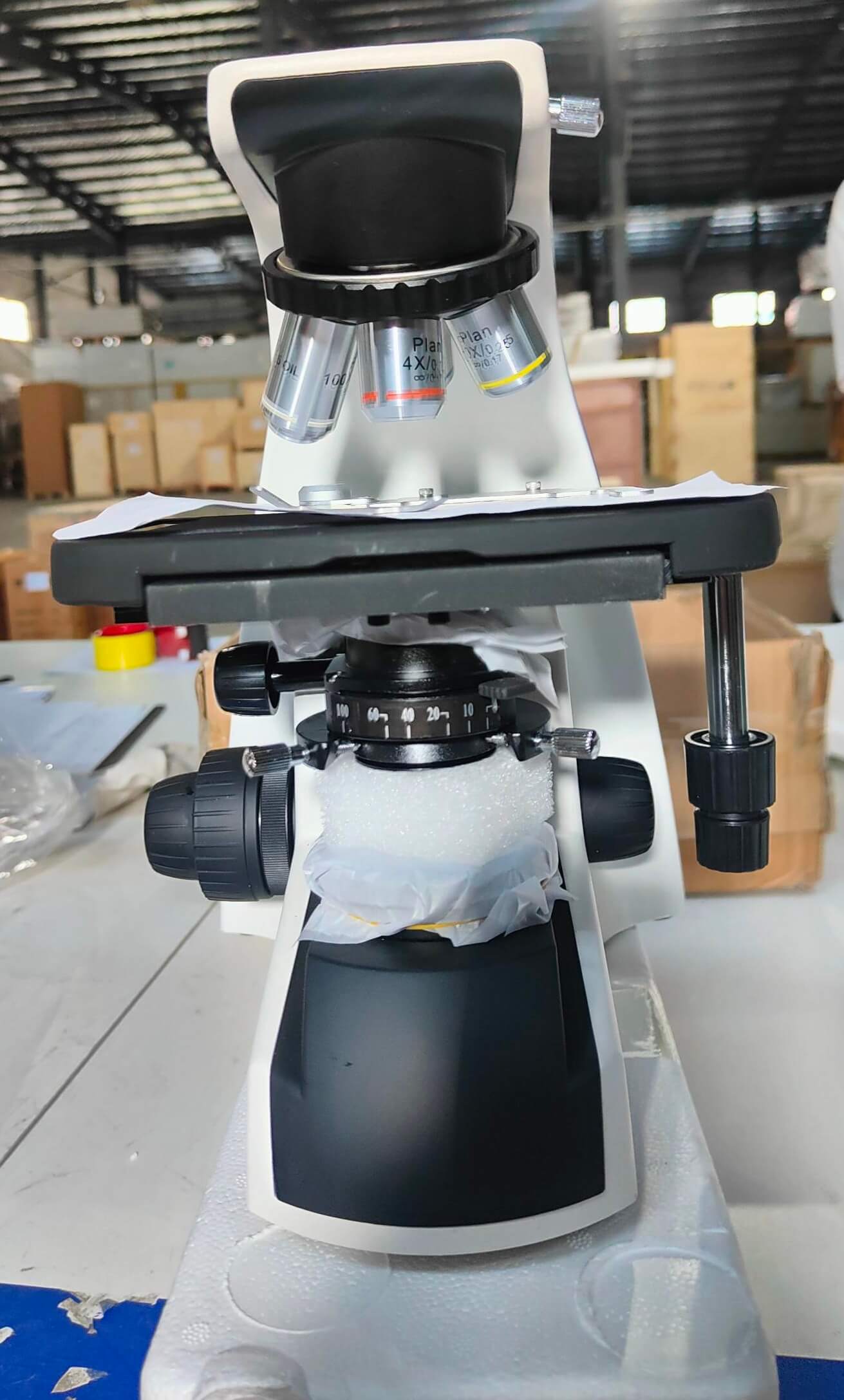

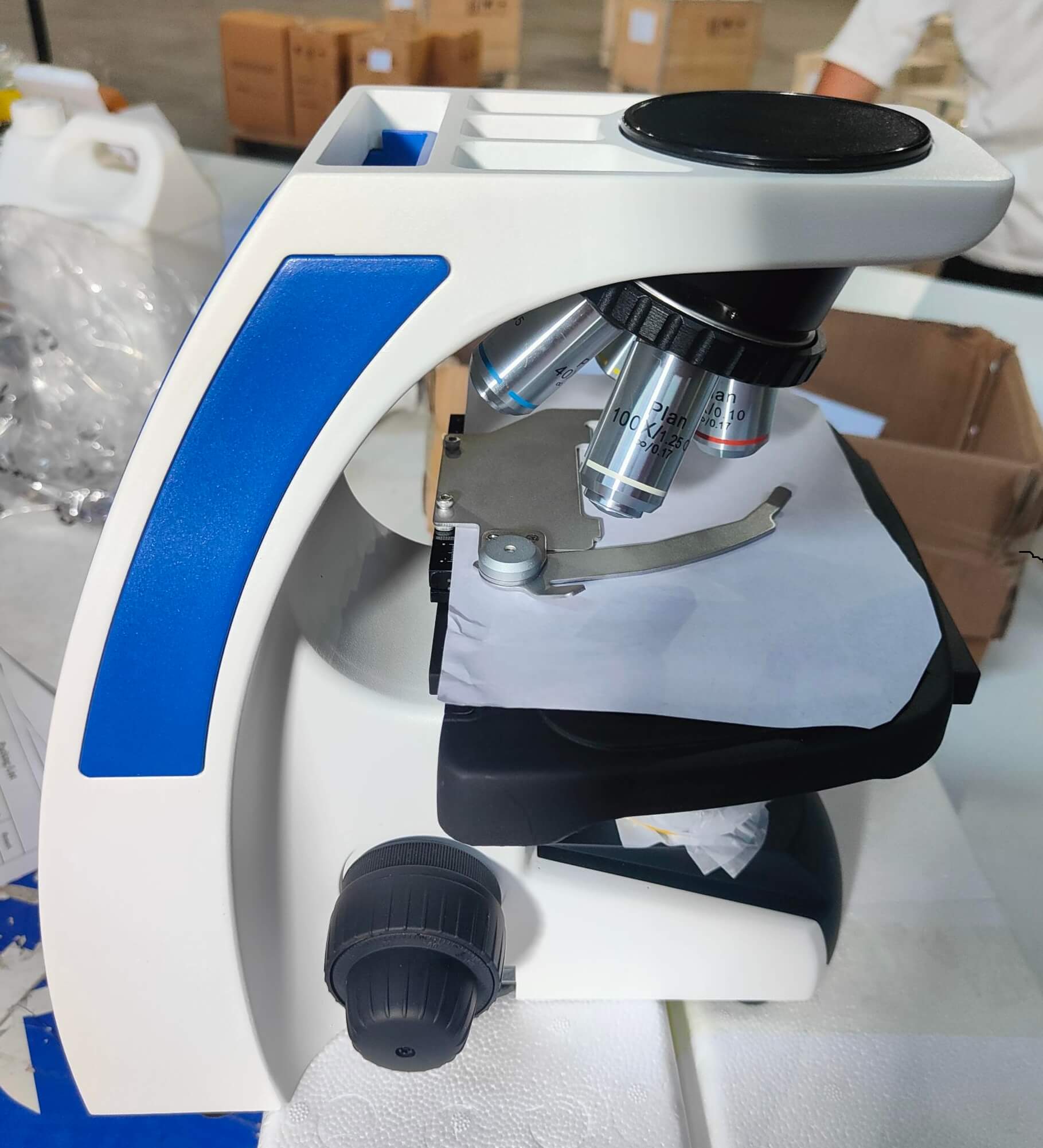

Details of Biological Microscope:
