| Name | Biological Microscope MSC-103B Series |
| Code | scitek-0721 |
| Type | Standard |
| Brand | Scitek |
| Category | Microscopes |
| subcategory | Biological Microscope |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Viewing Head : Seidentopf Binocular Head lnclined at 30, Interpupillary 55-75mm
Eyepiece : Wide Field Eyepiece WF10x18mm
Objective : Achromatic Objective 4x, 10x, 20x, 40x, 100x / Plan Achromatic Objective 4x, 10x, 20x, 40x, 100x
Entry biological microscope for macro-sized specimens ideal for education and laboratory use.
Biological Microscope Specifications:
| Model | MSC-BH103B | MSC-BS103B |
|---|---|---|
| Viewing Head | Siedentopf Binocular Head, lnclined at 30°, Interpupillary 55-75mm | Sliding Binocular Head at 45°, IncIined Interpupillary (55-75mm) |
| Eyepiece | Wide Field Eyepiece WF10x18mm | |
| Objective | Achromatic Objective: 4X, 10X, 20x, 40X, 100X | |
| Plan Achromatic Objective: 4x, 10x, 20x, 40x, 100x | ||
| Nosepeice | Quadruple Nosepiece | |
| Stage | Double Layers Mechanical Stage 115x125mm/ 70x30mm | |
| Condenser | Abbe NA1.25 with Iris Diaphragm & Filter | |
| Focusing System | Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Fine Stroke 0.2mm per Rotation, Moving Range 20mm | |
| Illumination | LED Lamp, Brightness Adjustable | |
| Halogen Lamp 6V 20W, Brightness Adjustable | Halogen Lamp 100V-240V/ 6V20W | |
| Plan-concave Mirror | ||
| Package | Styrofoam | |
| Carton | ||
| Wooden Case | ||
| Shipping Size (W×D×H)(mm) | 370x260x470 | |
| G.W. (kg) | 6 | |
| Filter | / | White Filter |
Biology Microscope Features:
The observation heads of the microscopes are available in both translating and hinged binocular head options to ensure user comfort and clarity of field of view for different needs.
The eyepieces provide a wider field of view for more comfortable observation.
Achromatic objective lens provides high-quality optical performance for clear and accurate observation.
The four-aperture conversion mechanism provides more choices of objective lenses, enhancing the flexibility and diversity of experiments.
Dual mobile platform design provides users with more operating space.
Variable light bar and filter tray ensure uniformity and adjustable brightness of the light source.
The focusing system adopts coarse and micro-motion coaxial focusing, enabling users to achieve precise focusing operations quickly.
Brightness is continuously adjustable, providing a uniform, bright light source for observation.

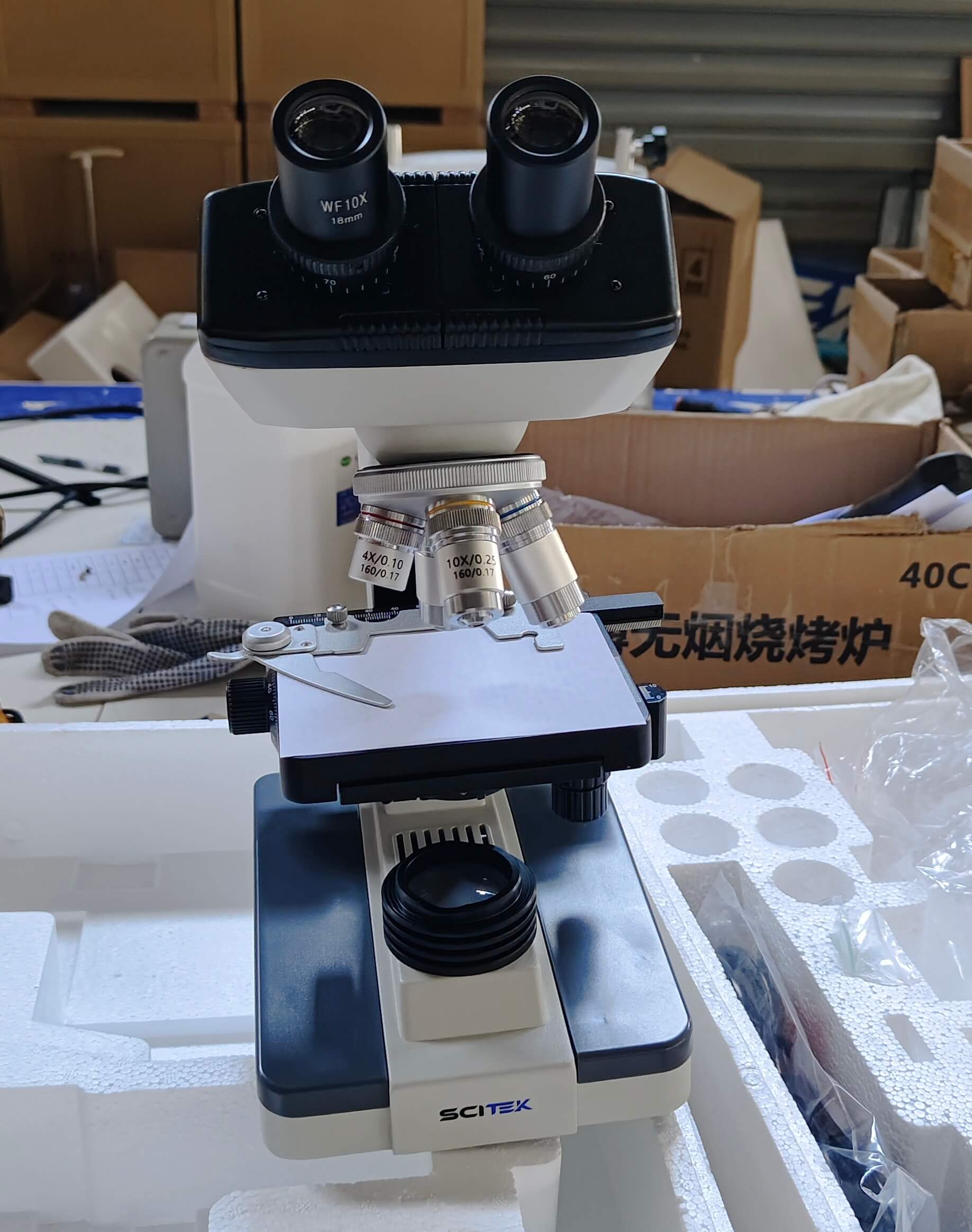

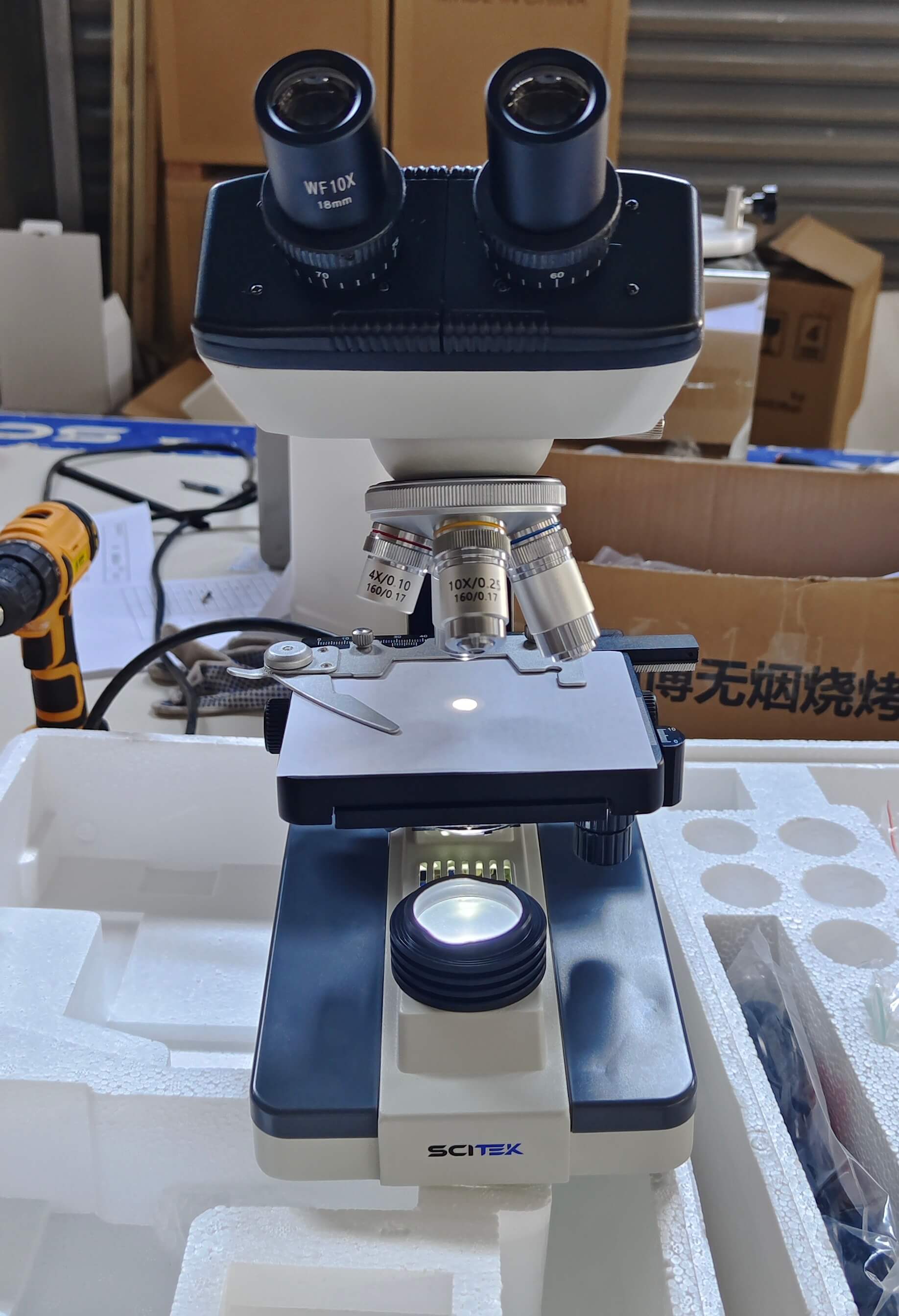

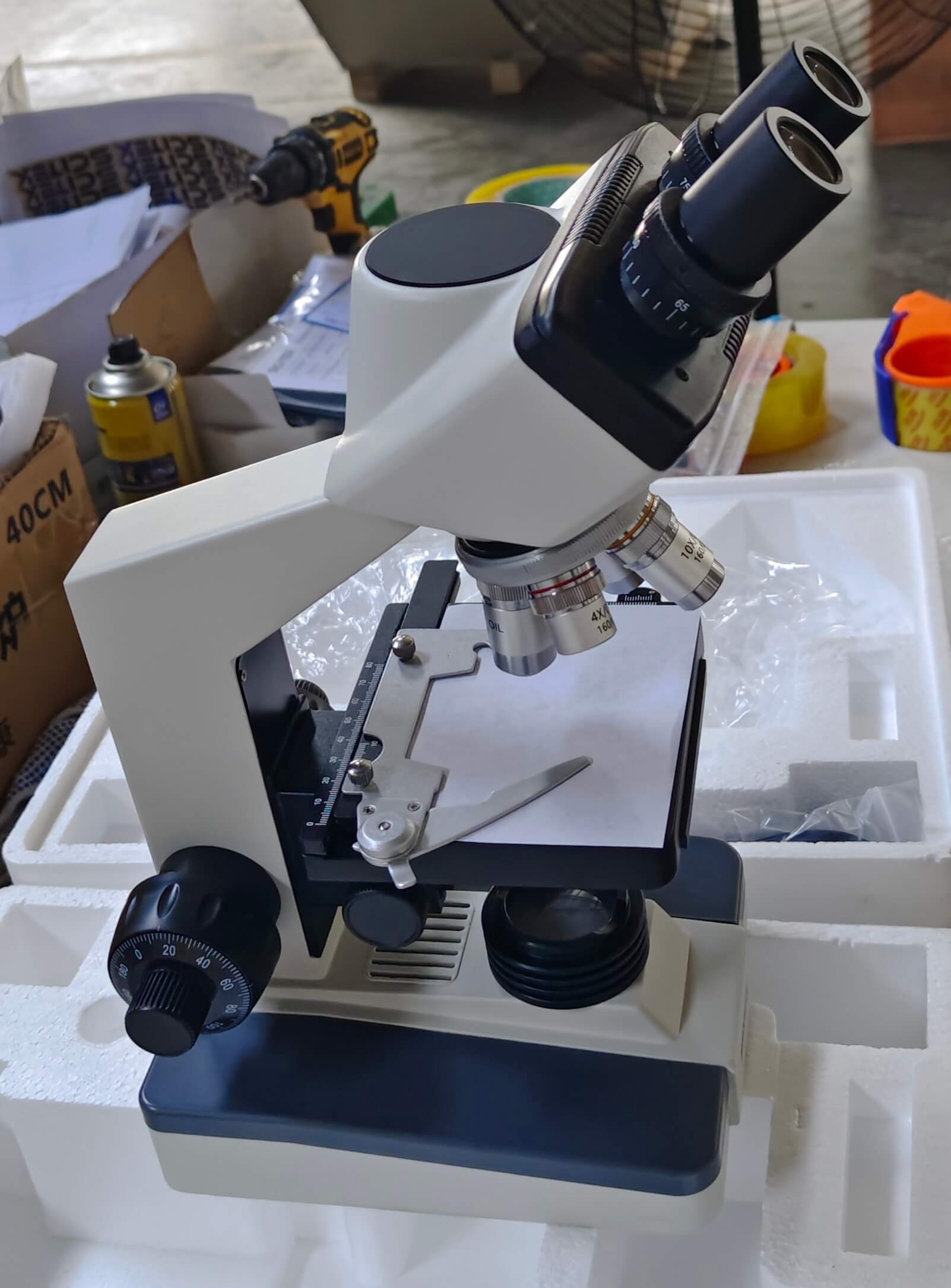

Details of Biological Microscope (MSC-BS103B):
