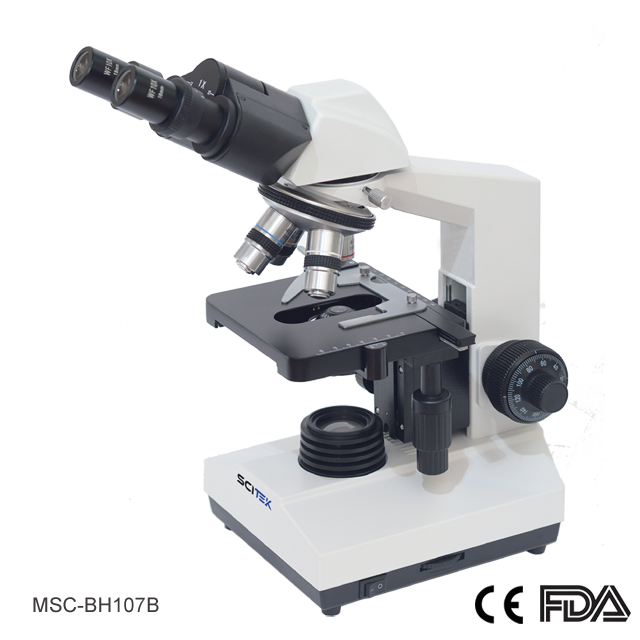

| Name | Binocular Biological Microscope |
| Code | scitek-0722 |
| Type | Standard |
| Brand | Scitek |
| Category | Microscopes |
| subcategory | Biological Microscope |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Viewing Head : Siedentopf Binocular Head lnclined at 45°interpupillary (55-75mm) / Sliding Binocular Head inclined at 45°interpupillary (55-75mm)
Eyepiece : Wide Field eyepiece WF10x18mm
Objective : Achromatic Objective 4x, 10x, 40x, 100x
The binocular biological microscope is widely used in secondary schools, universities, small and medium sized laboratories and veterinary applications.
Biological Microscope Specifications:
| Model | MSC-BH107B | MSC-BS107B |
| Viewing Head | Siedentopf Binocular Head lnclined at 45° Interpupillary (55-75mm) | Sliding Binocular Head Inclined at 45° Interpupillary (55-75mm) |
| Eyepiece | Wide Field Eyepiece WF10x18mm | |
| Nosepiece | Quadruple Nosepiece | |
| Objective | Achromatic Objective 4X,10X,40X,100X | |
| Stage | Double Layers Mechanical Stage 140x135mm/ 75x50mm | |
| Condense | Abbe NA1.2５ with Iris Diaphragm & Filter | |
| Focusing System | Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 28mm | |
| Illumination | LED Illumination, Brightness Adjustable | |
| Halogen Lamp 100V-240V/ 6V20W | ||
| Plan-concave Mirror | ||
| Package | Styrofoam | |
| Carton | ||
| Wooden Case | ||
| Filter | White Filter | |
Shipping Size (W×D×H)(mm) | 330x280x440 | |
| G.W. (kg) | 7 | |
Biological microscopes are used in diverse applications such as biological research, medical diagnostics, education, forensic analysis, environmental science, agriculture, veterinary medicine, and industrial applications. They enable the observation and analysis of microscopic structures, cells, tissues, microorganisms, and provide valuable insights in these fields.
Biological Microscope Features:
The microscope offers a solid square base for stability and comfortable operation, providing a simple and rich user experience. It supports the use of multiple accessories for versatile applications.
Fluorescent Viewing:
The microscope is available with single or dual channel fluorescent modules. It supports various fluorescence filters including DAPI, FITC, TRITC, Texas Red, GFP, CFP, and CY5. The fluorescence illumination can be provided by a 100W Mercury Lamp Housing or a 5W LED Lamp.
Objectives:
The microscope is equipped with achromatic objectives, which are cost-effective and suitable for everyday fluorescence microscopy.
Fluorescence Filter Group:
The microscope uses high-transmittance, high cut-off, and deep cut-off depth filters, resulting in brighter images, sharper contrast, and darker background.
Dark-field Viewing:
The microscope is capable of clear viewing of fine structures such as blood cells or flagella using dark-field illumination.
Phase Contrast Viewing:
The microscope offers high contrast imaging with a neutral background color, making it suitable for viewing non-stained specimens.
Camera:
The microscope supports different camera options, including a USB 2.0 Camera (5.0M resolution) such as EC510/TC 5.0, and a USB 3.0 Camera (TC 6). These cameras allow for capturing and recording images with high resolution.
