| Name | Bante220 Portable pH Meter |
| Code | bante-0007 |
| Type | Standard |
| Brand | Bante |
| Category | pH Meters |
| subcategory | Portable Meters |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Bante220 Portable pH Meter
Economical portable pH meter with mV measurement mode, 1 to 3 points calibration, automatic temperature compensation, setup menu contains 7 options, accuracy: 0.01 pH.
Features:
• Economical portable pH meter is equipped with a backlit LCD display.
• 1 to 3 points calibration with automatic recognition for USA and NIST buffers.
• Automatic electrode diagnosis helps the user decide whether to replace the pH electrode.
• Automatic temperature compensation ensures accurate readings over the entire range.
• Auto-read function senses and locks the measurement endpoint.
• Auto-power off effectively conserves battery life.
• Setup menu allows setting the pH buffer set, number of calibration points, temperature unit,
etc.
• Reset function automatically resumes all settings back to the factory defaults.
• Expanded memory stores or recalls up to 100 data sets.
• USB communication interface for data transfer or connecting a power adapter to the meter.
Specification
Model | Bante220 | |
pH | ||
Range | -2.00 to 20.00 pH | |
Resolution | 0.01 pH | |
Accuracy | ±0.01 pH | |
Calibration | 1 to 3 points | |
pH Buffer Options | USA (pH 4.01/7.00/10.01) / NIST (pH 4.01/6.86/9.18) | |
mV | ||
Range | -1999 to 1999 mV | |
Resolution | 1 mV | |
Accuracy | ±1 mV | |
Temperature | ||
Range | 0 to 105°C / 32 to 221°F | |
Resolution | 0.1°C/°F | |
Accuracy | ±0.5°C / ±0.9°F | |
Calibration | 1 point | |
Calibration Range | Reading ±10°C/°F | |
Other Specifications | ||
Temperature Compensation | 0 to 100°C / 32 to 212°F, manual or automatic | |
Hold Function | Manual / Auto-read measurement endpoint | |
Auto-Power Off | 30 minutes after last key pressed | |
Memory | Stores up to 100 data sets | |
Output | USB communication interface | |
Connector | BNC, 3.5 mm jack socket | |
Display | Custom LCD (80 × 60 mm) | |
Power Supply | 3 × 1.5V AA batteries or 5V DC power adapter | |
Battery Life | Approximately 150 hours without backlight | |
Environmental Conditions | 0 to 50°C / 32 to 122°F, relative humidity < 80% | |
Dimensions | 170 × 85 × 30 mm | |
Weight | 300 g |

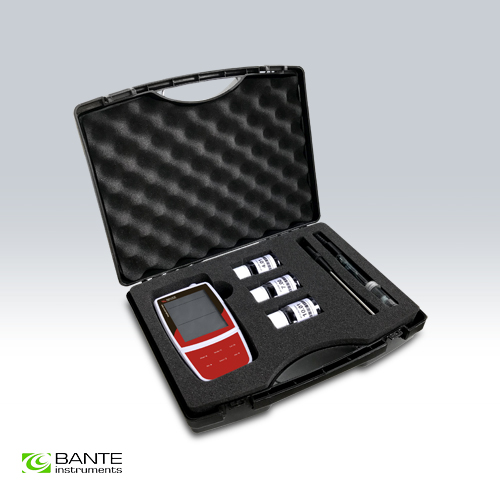

Ordering Info
Ordering Code | Meter Includes |
Bante220-CN | E201-BNC pH electrode |
TP-10K temperature probe | |
pH 4.01, 7.00, 10.01 buffer solutions | |
| Electrode clip | |
Carrying case | |
Bante220-UK
| P11 glass pH electrode |
TP-10K temperature probe | |
pH 4.01, 7.00, 10.01 buffer solutions | |
| Electrode clip | |
Carrying case |
Optional Accessories
| Items | Description |
| E201-BNC pH Electrode | For measuring the liquids |
| E202-BNC pH Electrode | For measuring the semisolid and gel samples |
| P11 pH Electrode | For measuring the weak corrosive samples |
| P11-LiCl pH Electrode | For measuring the non-aqueous samples |
| P11-HA pH Electrode | For measuring the high alkalinity samples |
| P11-NA pH Electrode | For measuring the biofuels |
| P13 pH Electrode | For measuring the micro-volume samples |
| P15 pH Electrode | For measuring the low conductivity samples |
| P16 pH Electrode | For measuring the Tris buffers |
| P19 pH Electrode | For measuring the semisolid samples |
| P22 pH Electrode | For measuring the high temperature samples |
| TP-10K Temperature Probe | For temperature compensation and measurement |
| pH Buffer Solutions | For pH calibration |
| pH Electrode Storage Solution | For electrode maintenance and storage |
| pH Electrode Cleaning Solution | For general cleaning |
| pH Electrode Cleaning Solution | For removing the protein contamination |
| USB Cable | For transferring data or connecting power adapter |
| 5V DC Power Adapter | For connecting external power source |
Packaging
Ordering Code | Dimensions and Weights |
Bante220-CN | 35 × 10 × 30 cm, 1.5 kg |
Bante220-UK | 35 × 10 × 30 cm, 1.5 kg |
