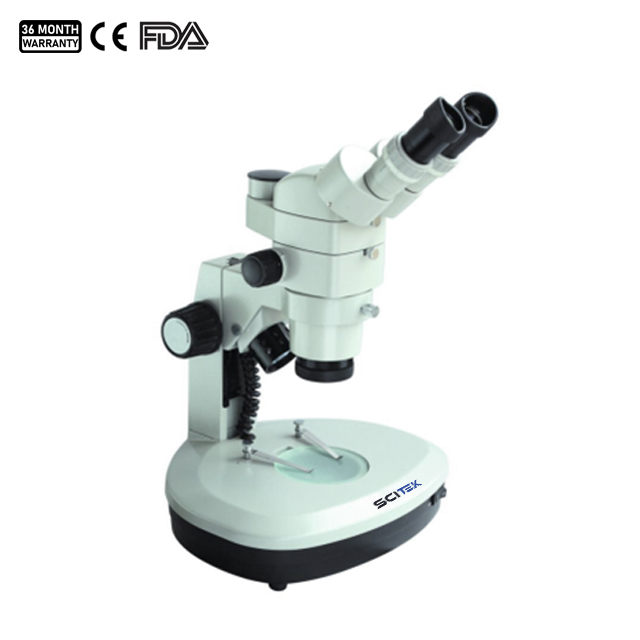

Stereoscopic Microscope MSC-ST830 Series (scitek-0963) Products
| Name | Stereoscopic Microscope MSC-ST830 Series |
| Code | scitek-0963 |
| Type | Standard |
| Brand | Scitek |
| Category | Microscopes |
| subcategory | Stereoscopic Microscope |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Product details for Invoice
Model : MSC-ST830B; MSC-ST830T
Objective : 0.6X-5X stereo zoom; Zoom Ratio1:8.3
Working distance : 95mm
Focusing Mount : Focusing track mount with vertical working distance 104mm
Objective : 0.6X-5X stereo zoom; Zoom Ratio1:8.3
Working distance : 95mm
Focusing Mount : Focusing track mount with vertical working distance 104mm
Product Details
Stereoscopic Microscope Specifications:
| Model | MSC-ST830B; MSC-ST830T |
|---|---|
| Magnification | Zoom objective 6X-50X |
| Eyepiece | WF10X/22mm high-eyepoint, wide-field; Convenient for bservers wearing glasses |
| Main Body | Binocular head, 45° inclined, 360° rotatable, can be locked in any position desired. Diopter adjustment: ±5 diopters |
| Interpupillary Distance adjustment:48-75mm | |
| Objective | 0.6X-5X stereo zoom; Zoom Ratio1:8.3 |
| Working Distance | 95mm |
| Focusing Mount | Focusing track mount with vertical working distance 104mm |
| Illumination | Upper light source: halogen lamp; Lower light source: 5W fluorescent lamp |
| C-Mount | Three vision road annex |
| MSC 1X C-Mount; *MSC 0.5X C-MountL; *MSC 0.3X C-Mount |
Stereoscopic Microscope Feature:
MSC-ST830 series high performance continuous haploid visual microscope with doubling ratio of 1:8.3. The whole machine adopts modular structure, can easily access to photography, camera, coaxial lighting and other functions in the optical road, support the series of accessories, but also connect digital camera, facilitate on-site shooting. Non-coaxial image technique improves the edge clarity of the field and strong three-dimensional sense, which has good clear effect on observing bright background objects. Comfortable to use, large working platform, convenient operation and reliable performance. It can be widely used in medical and health care, agriculture and forestry geology, electronic precision.
