-86°C Ultra Low Chest Freezer (scitek-0492) Products
| Name | -86°C Ultra Low Chest Freezer |
| Code | scitek-0492 |
| Type | Standard |
| Brand | Scitek |
| Category | Cold Storage Products |
| subcategory | -86°C Freezer |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Product details for Invoice

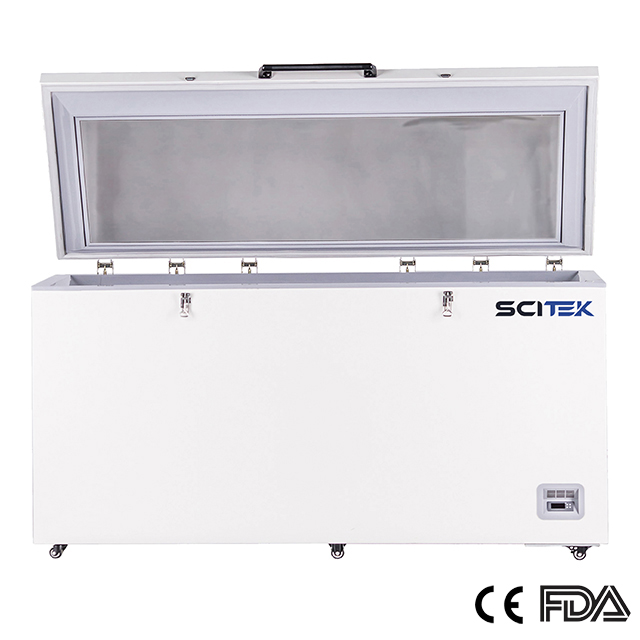

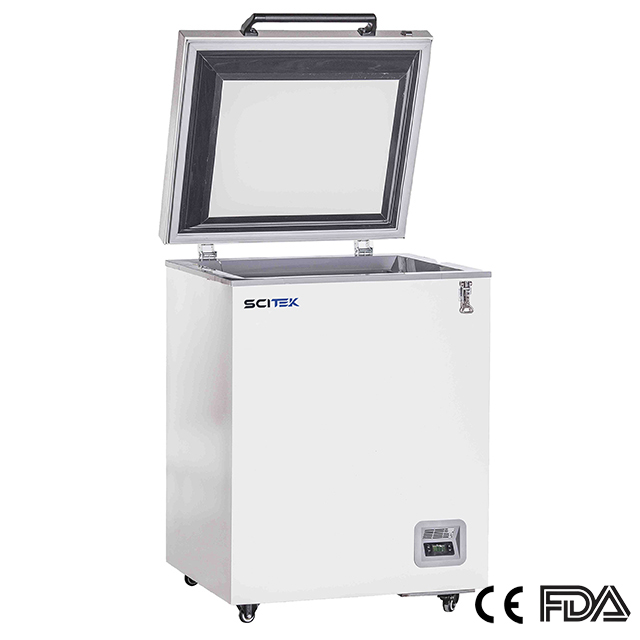

Model : UFZ-86H100; UFZ-86H490
Capacity (L) : 105 / 485
Internal Size (mm) : 480x380x665 / 1455.5x525.2x674
Temperature Range (℃) at RT.10~32℃ : -40~-86
Freestanding ultra cold freezer is perfect for small medical clinics, pharmacies and laboratories
Capacity (L) : 105 / 485
Internal Size (mm) : 480x380x665 / 1455.5x525.2x674
Temperature Range (℃) at RT.10~32℃ : -40~-86
Freestanding ultra cold freezer is perfect for small medical clinics, pharmacies and laboratories
Product Details
Ultra Low Chest Freezer Specifications:
| Model | UFZ-86H100 | UFZ-86H490 | |
|---|---|---|---|
| Capacity (L) | 105 | 485 | |
| Size(WxDxH) (mm) | Internal | 480x380x665 | 1455.5x525.2x674 |
| External | 680x580x935 | 1695x840x962 | |
| Temperature | Range (℃) at RT. 10~32℃ | -40~-86 | -40~-86 |
| Sensor | PTC | PTC | |
| Controller | Microprocessor | Microprocessor | |
| Cooling System | Refrigerant | R4001 (CFC Free) | R4001 (CFC Free) |
| Defrost | Manual | Manual | |
| Compressor (Qty) | CUBIGEL/1 | SECOP/1 | |
| Display | Digital display | Digital display | |
| Audible & Visible Alarm | High/Low temperature, sensor error, 12h power failure backup system(alarm) | ||
| Material | Internal | Stainless steel, grade 304 | |
| External | Electro-galvanized steel with antimicrobial powder coating | ||
| Accessories | Casters, 25mm test hole | ||
| Shelves / Drawers (Qty) | / | / | |
| Optional Frozen Racks (Qty) | Racks | 2 (11x) + 2 (6x1) | 24 (11x1) + 6 (6x1) |
| Boxes (2 Inches) | 34 | 300 | |
| Samples (2ml) | 3400 | 30000 | |
| Sound Emission (dB) | 50 | 54.5 | |
| Electricity | Voltage/Frequency | AC110/220V±10%, 50/60Hz | |
| Consumption (W) | 500 | 670 | |
| N.W./G.W. (kg) | 65/70 | 130/150 | |
| Shipping Size(WxDxH) (mm) | 770x705x1090 | 1765x900x1060 | |
Ultra Cold Freezer Features:
Accurate Microprocessor-controlled system ensures temperature rage of -86℃ to -40℃ for chamber space with 1℃ increment.
Powerful cooling system with unique design supports rapidly temperature decrease.

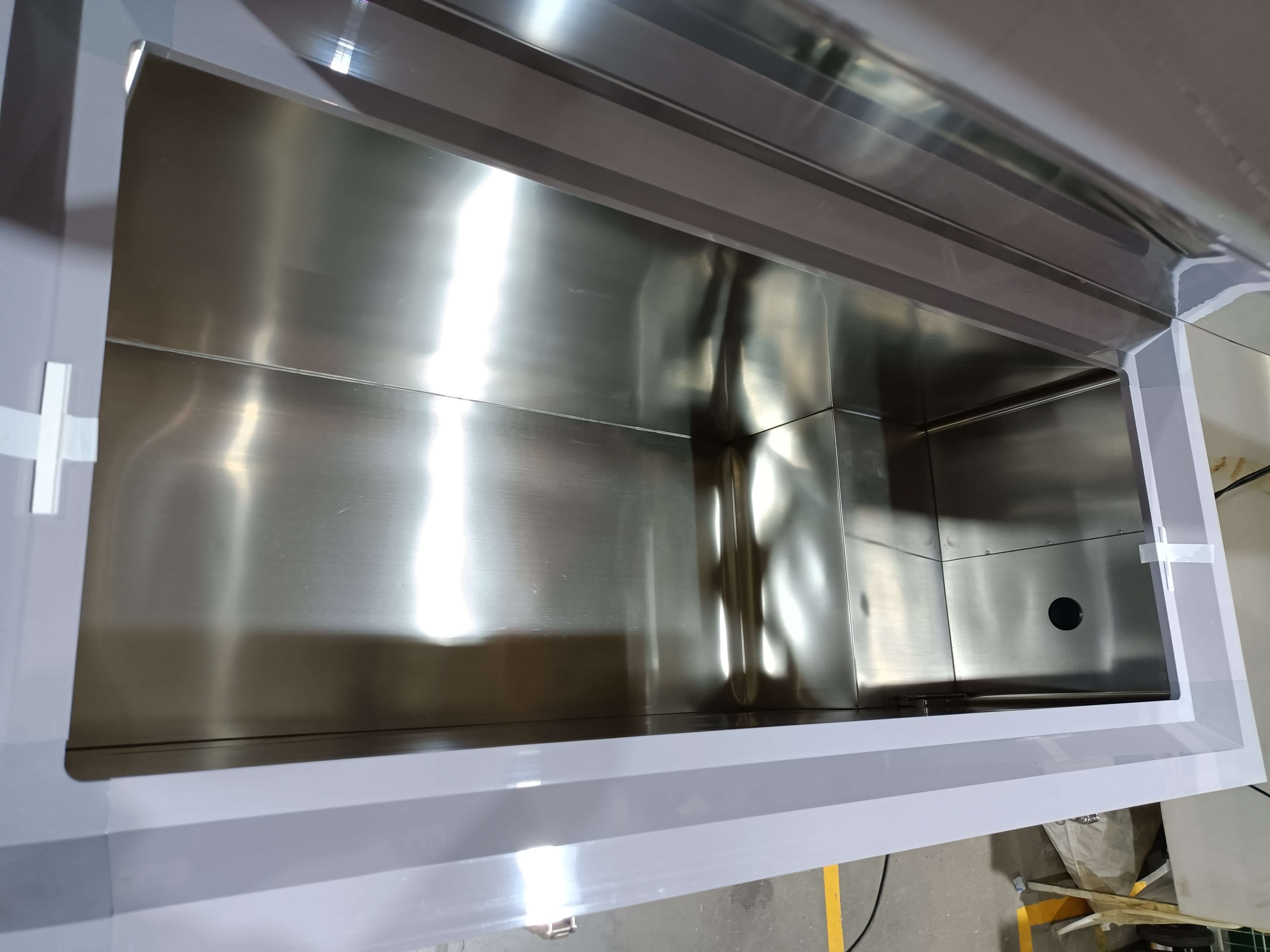

Chamber material made by 304 stainless steel for friendly cleaning.
Reliability
Audible buzzer and visible flashing temperature alarm system for temperature high/low alarm, sensor malfunction alarm
Safety password protected control panel prevents unauthorized system modification.
Reliability
High-density layer of insulation foam improves heat preservation capability.
Optimized refrigeration system with self-cascade technology to cool faster while consuming less power.

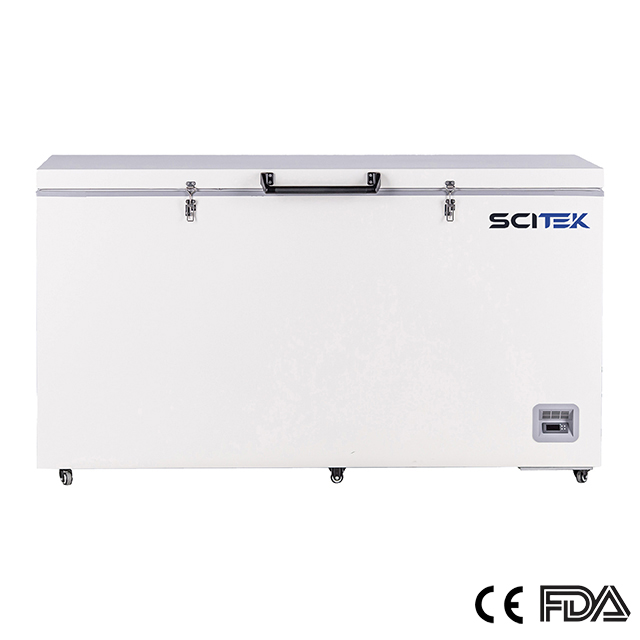

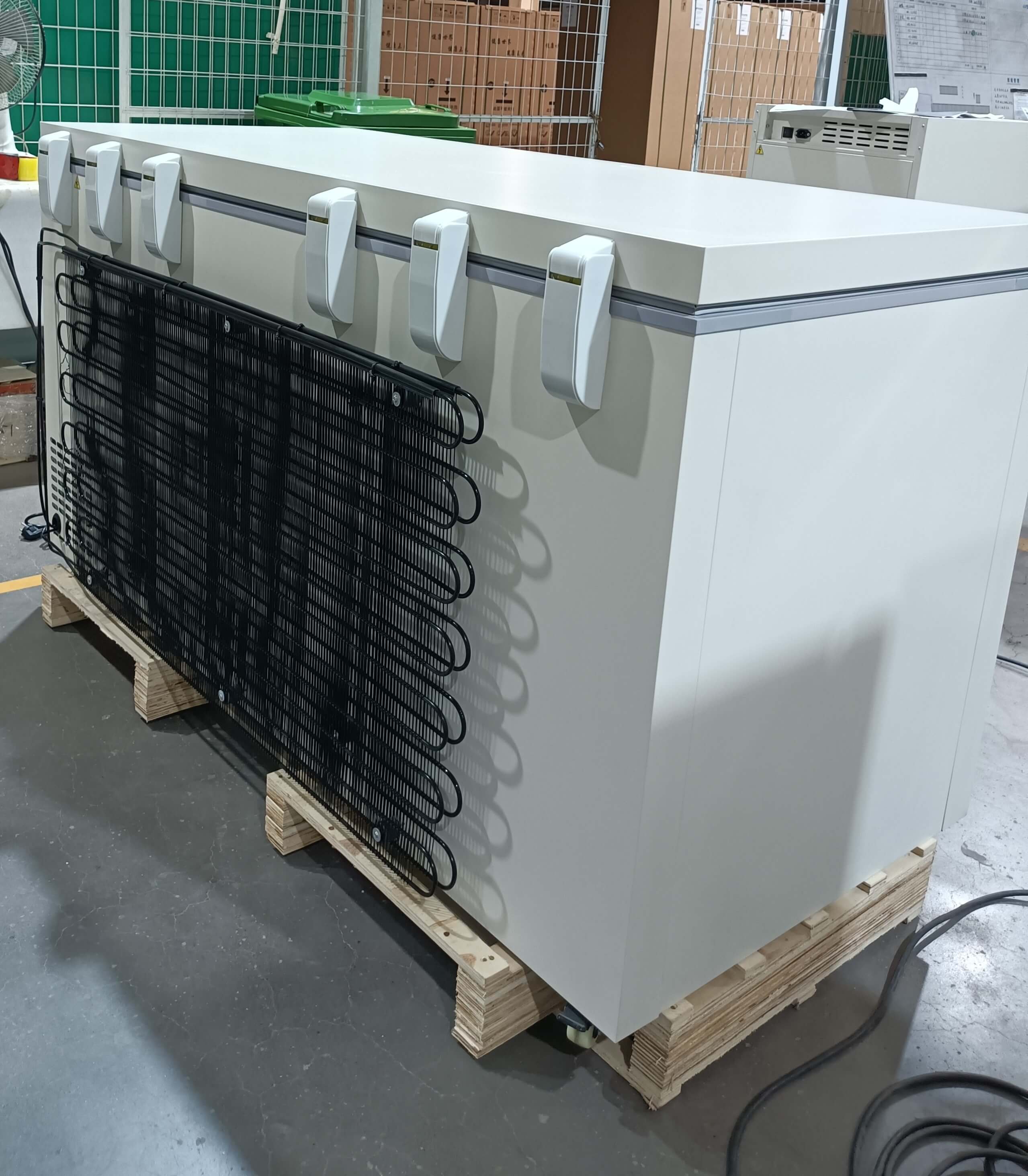

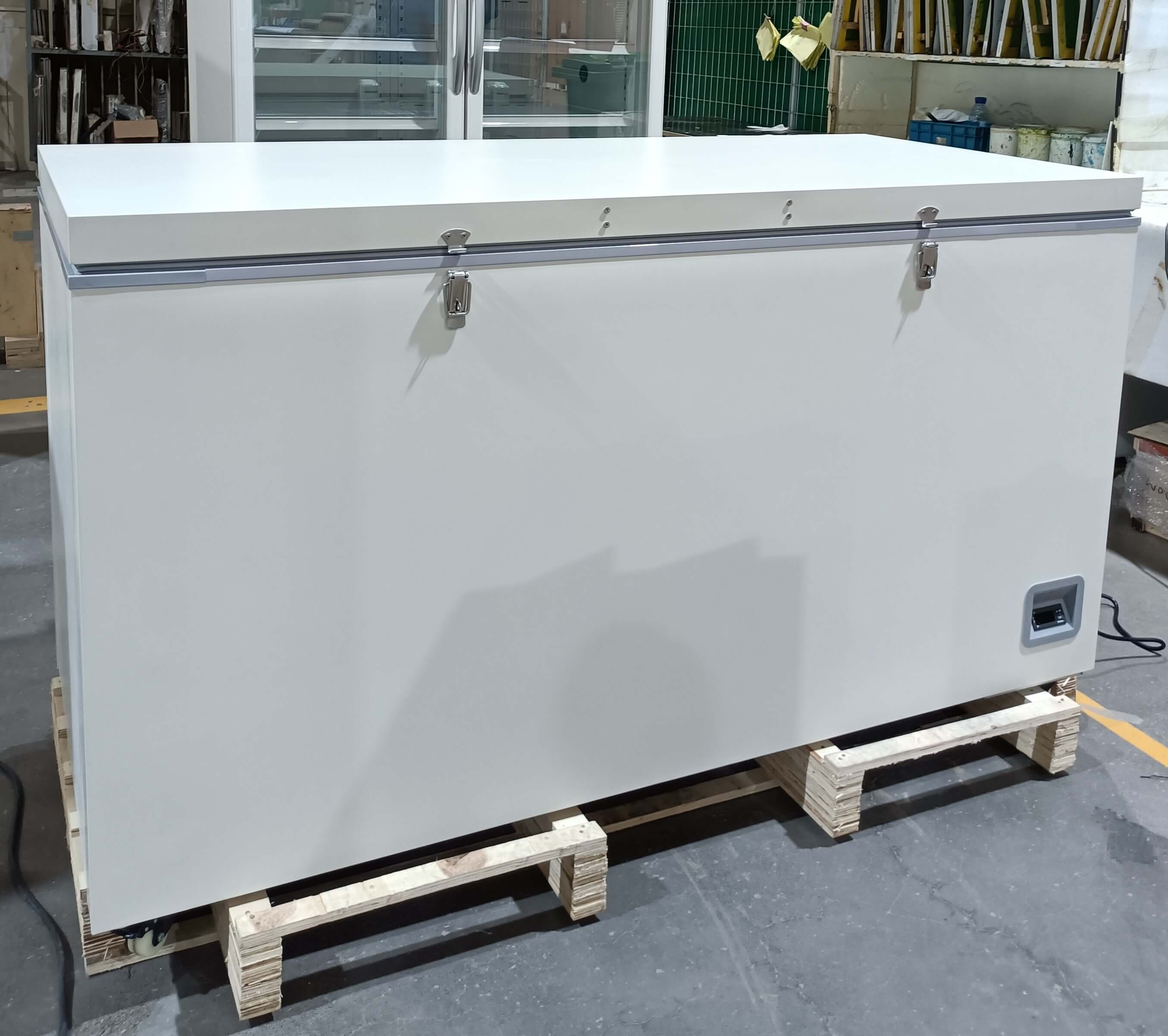

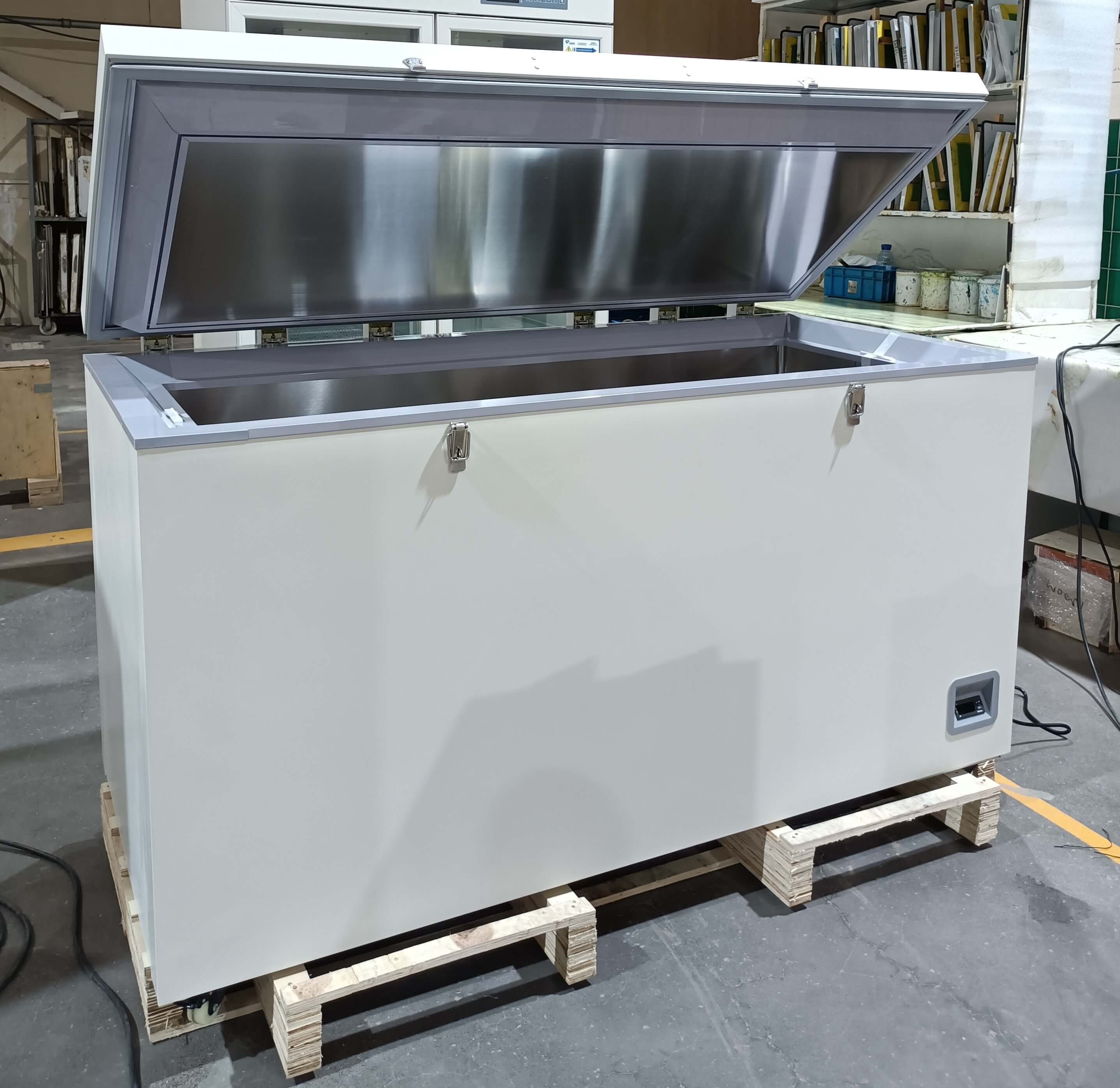

Details of Ultra Low Freezer(UFZ-86H490):
