| Name | Blood Bank Refrigerator with Auto-defrost |
| Code | scitek-0210 |
| Type | Standard |
| Brand | Scitek |
| Category | Cold Storage Products |
| subcategory | 4°C Blood Bank Refrigerator |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Capacity (L) : 108 / 208 / 368 / 658 / 1008
Shelves / Drawers (Qty) : 2 Shelves / 4 Shelves / 4 Shelves / 12 Shelves / 12 Drawers
Temperature Range (℃) at RT.10~32℃ : 4±1
The blood storage refrigerator is provides energy efficient, safe and reliable performance designed for research, life science, clinical and commercial applications. Supports remote alarm monitoring.
This blood storage refrigerator is designed to provide high quality storage and maximum protection for life-saving blood. Multiple parameters provide options for blood component and whole blood storage.
Blood Bank Refrigerator Specification:
| Model | BR-4V110 | BR-4V210 | BR-4V370 | BR-4V660 | BR-4V1000 | |
|---|---|---|---|---|---|---|
| Capacity (L) | 108 | 208 | 368 | 658 | 1008 | |
| Bloodbags (450ml)(Qty) | 66 | 132 | 200 | 360 | 576 | |
| Size (WxDxH) | Internal (mm) | 432x462x478 | 432x462x978 | 685x429x1380 | 1100x454x1325 | 1100x684x1325 |
| External (mm) | 540x630x1030 | 540x640x1530 | 785x565x1920 | 1220x648x1885 | 1240x860x1895 | |
| Temperature | Range (℃) at RT. 10~32℃ | 4±1 | 4±1 | 4±1 | 4±1 | 4±1 |
| Sensor | NTC | NTC | NTC | NTC | NTC | |
| Controller | Micro- processor | Micro- processor | Micro- processor | Micro- processor | Micro- processor | |
| Cooling System | Refrigerant | R134a (CFC Free) | R134a (CFC Free) | R134a (CFC Free) | R134a (CFC Free) | R134a (CFC Free) |
| Defrost | Auto | Auto | Auto | Auto | Auto | |
| Compressor (Qty) | EMBRACO/1 | EMBRACO/1 | EMBRACO/1 | SECOP/1 | SECOP/1 | |
| Display | Digital display | Digital display | Digital display | Digital display | Digital display | |
| Audible & Visible Alarm | High/Low temperature, High ambient temperature, Sensor error, Low battery, Power failure backup system(alarm)(72h) | |||||
| Material | Internal | Stainless steel, grade 304 | ||||
| External | Electro-galvanized steel with antimicrobial powder coating | |||||
| Accessories | USB Port | Standard | ||||
| Casters | Standard | Optional | Optional | |||
| Test Hole(Qty) / Diameter (mm) | 1/25 | 1/25 | 1/25 | 1/25 | 1/25 | |
| Shelves / Drawers (Qty) | Shelves/2 | Shelves/4 | Shelves/4 | Shelves/12 | Drawers/12 | |
| Sound Emission (dB) | 49.6 | 51.2 | 51.2 | 51.2 | 53.6 | |
| Electricity | Voltage/ Frequency | AC110/220V & plusmn; 10%, 50/60Hz | ||||
| Consumption (W) | 175 | 183 | 325 | 383 | 513 | |
| N.W./G.W. (Kg) | 74/95 | 96/120 | 128/135 | 202/257 | 265/335 | |
| Shipping Size (WxDxH)(mm) | 700x585x1200 | 590x700x1700 | 890x650x2100 | 1300x735x2110 | 1325x970x2130 | |
Blood Bank Refrigerators Features:
Forced-air cooling system with electrical heat compensation controlled by microprocessor.
Auto-defrost system ensure no moisture on cooling surface.
Clear LED screen and control panel support easy display and operation.
Frost free door made by three-layer toughened glass.
Safety lock prevents unauthorized access.

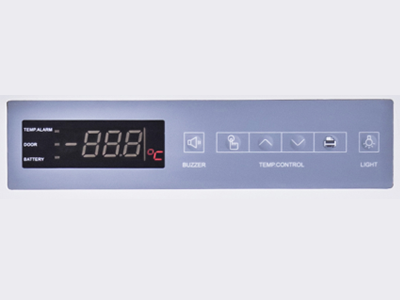

Clear LED Display

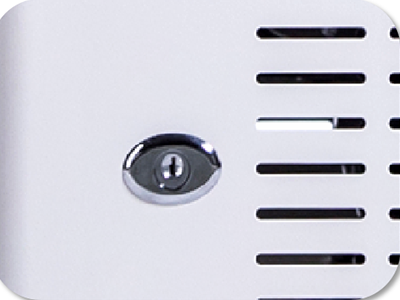

Safety Lock

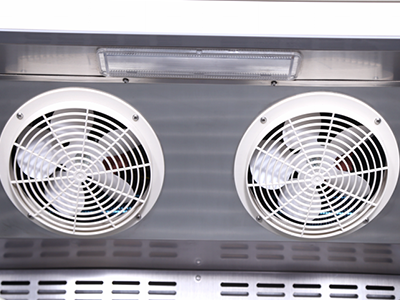

Forced-air Cooling System

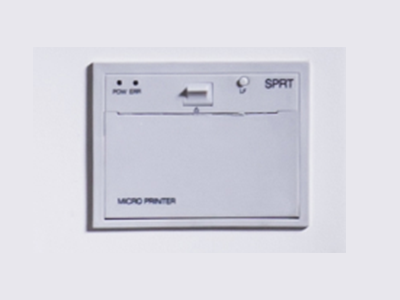

Thermal Printer
Reliability
Lockable doors and password protected microprocessor parameter setting.
Build-in backup battery up to 72 hours to display temperature and operate audible and visual alarm systems.
Audible buzzer and visible flashing temperature alarm system for High/low temperature, power failure, voltage abnormal, door ajar, backup battery.
Separated inner acrylic doors ensure less affection on each space when the other door opened.
Ergonomic Design
Adjustable shelves and separated basket for maximum safety storage and use.
Automatic ON/OFF light also controlled from control panel.
Standard 25mm test hole for connecting temperature monitoring systems.
Lockable universal caster wheels.
Details of blood storage refrigerator (BR-4V110):

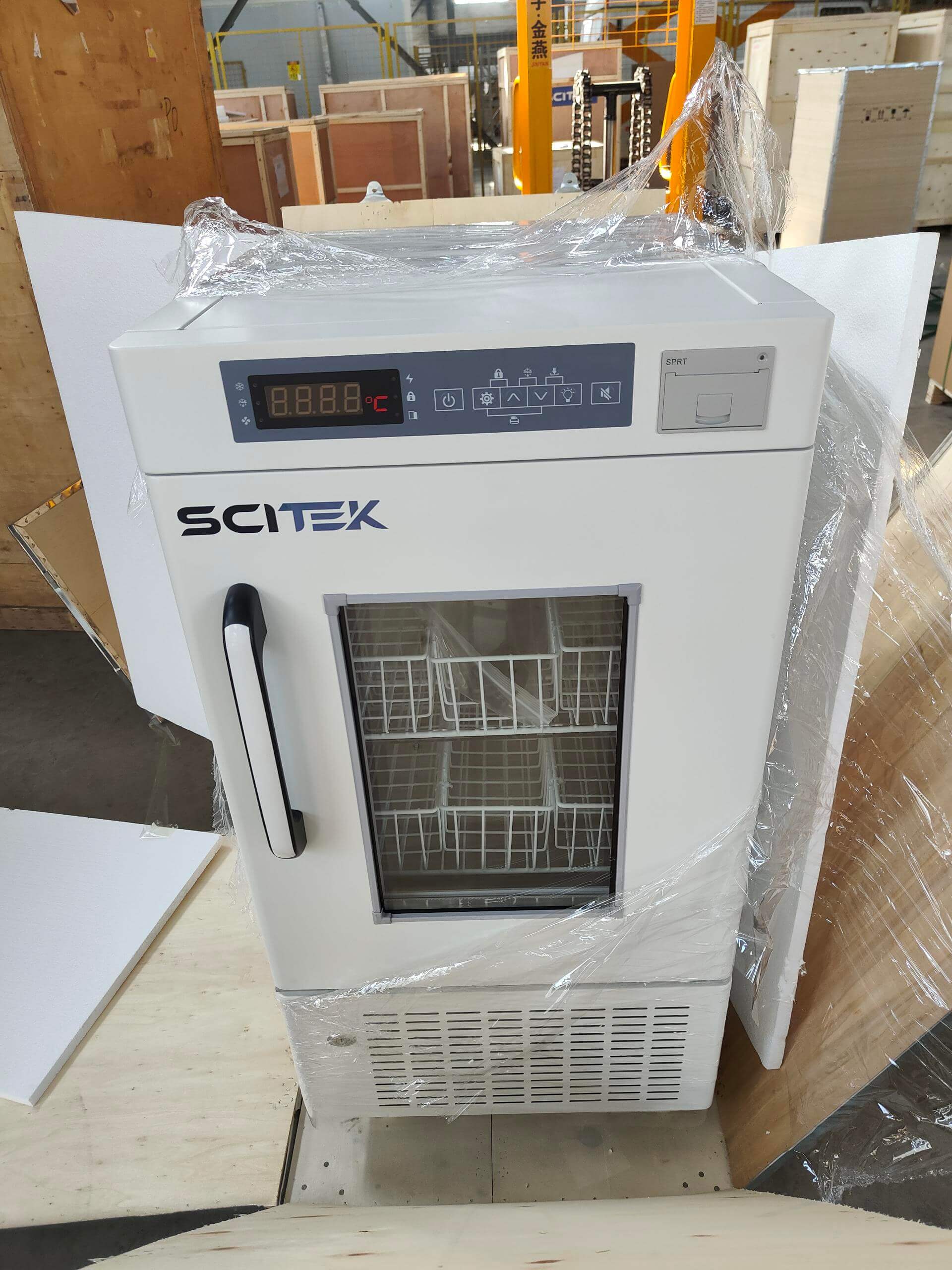

The blood storage refrigerator's clear glass door makes it easy for medical staff to take a quick look inside, reduces the number of times the door has to be opened and keeps the internal temperature stable. Real-time display of internal temperature ensures precise control of the blood storage environment.

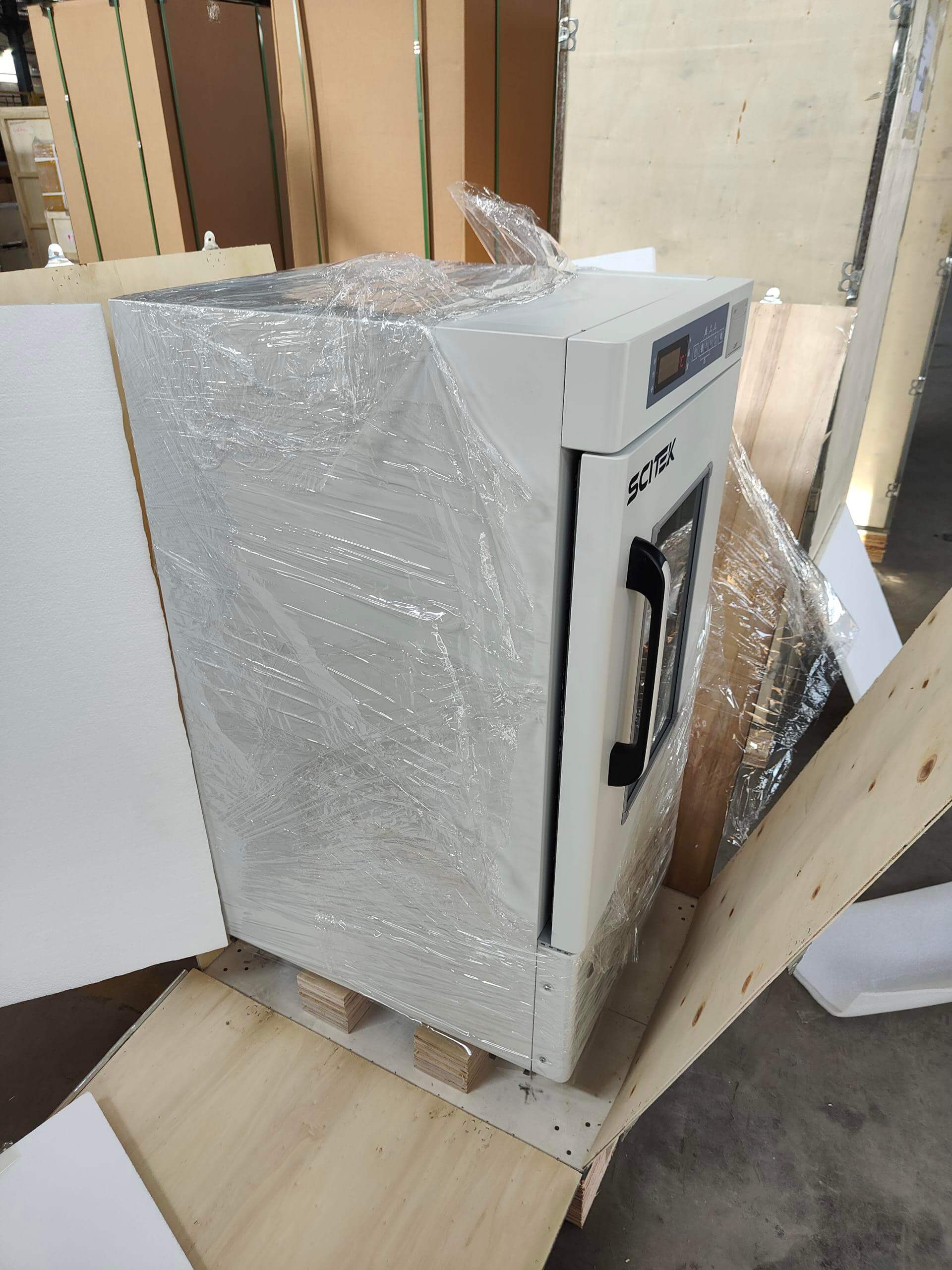

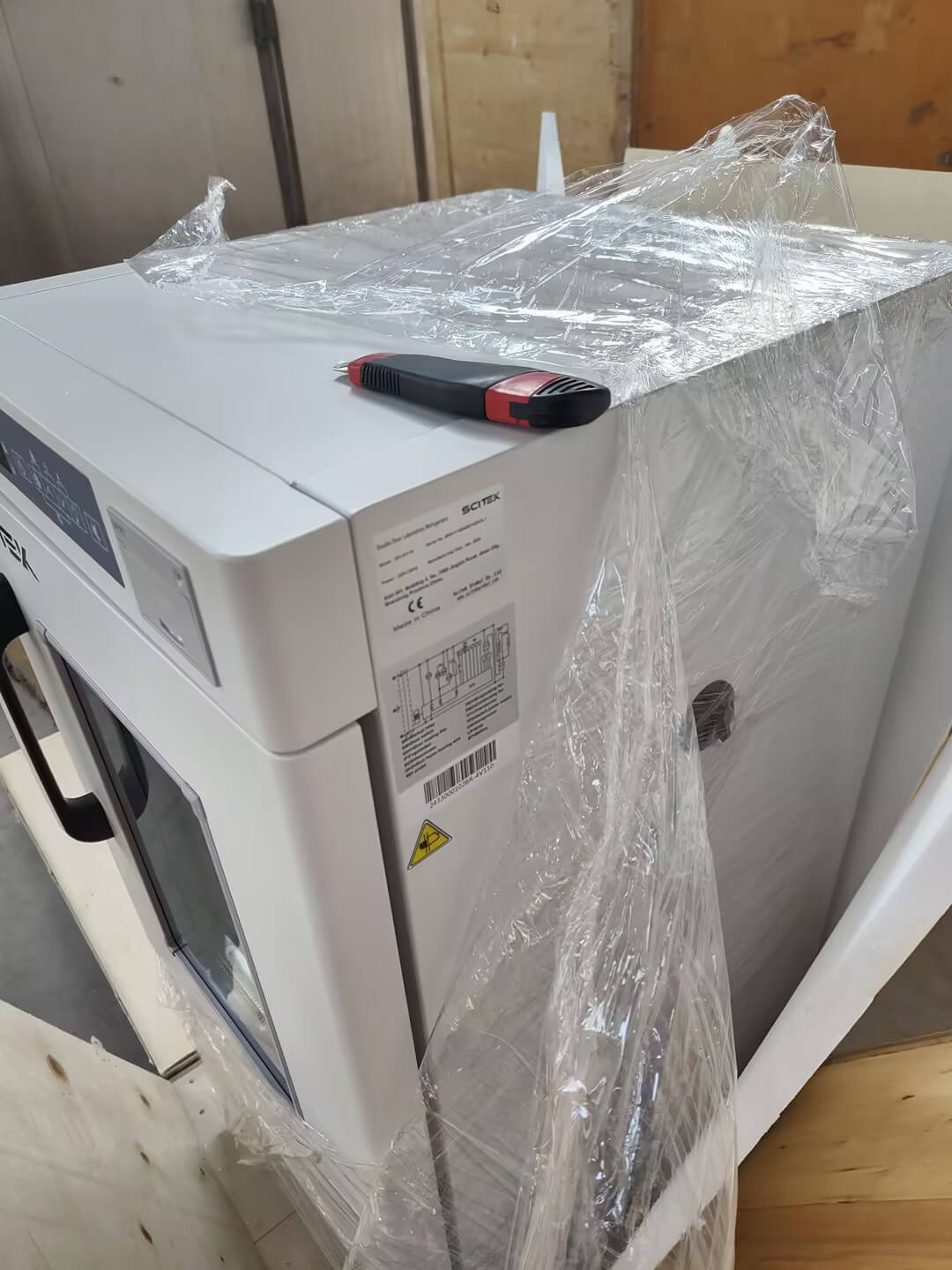

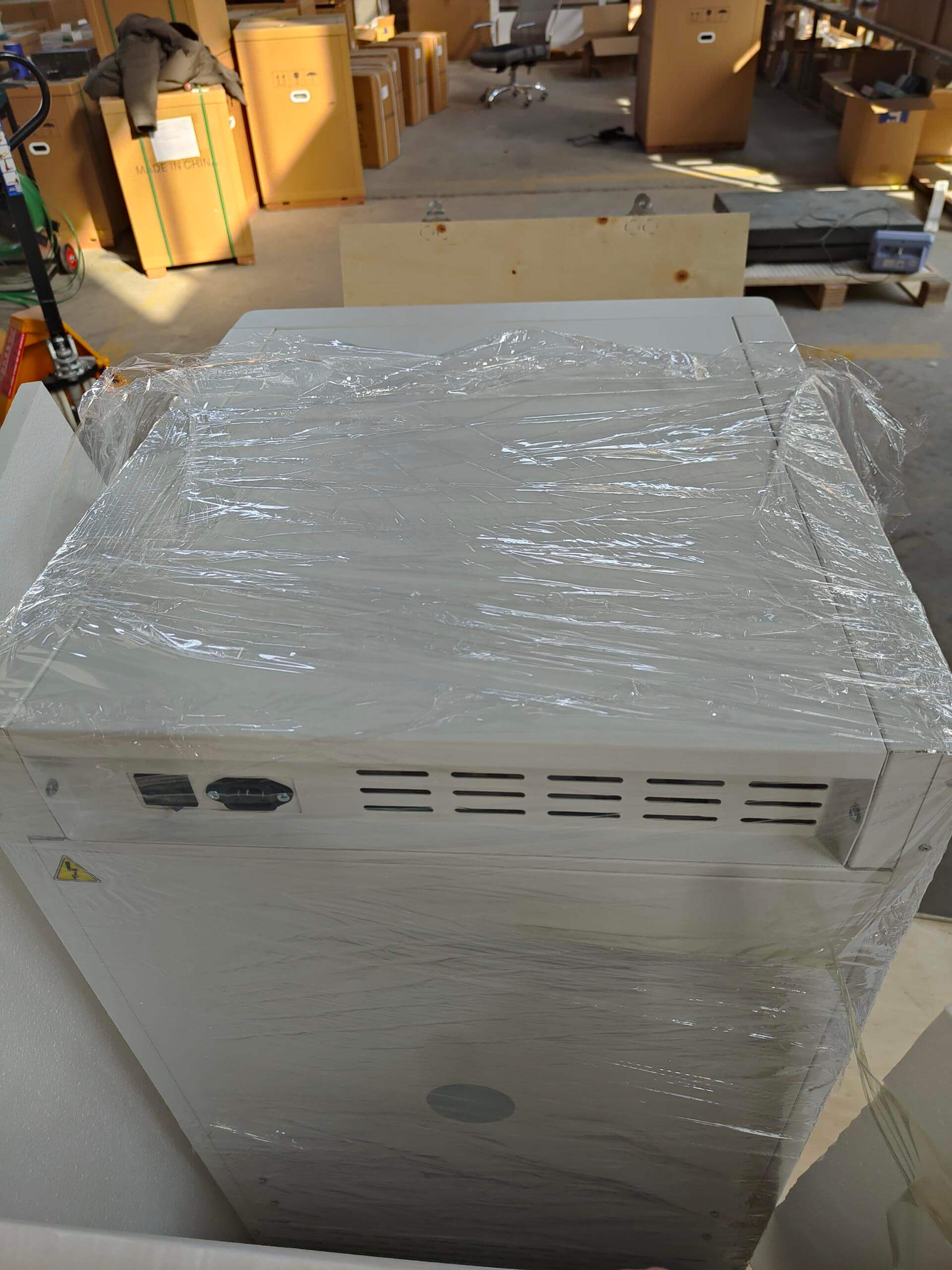

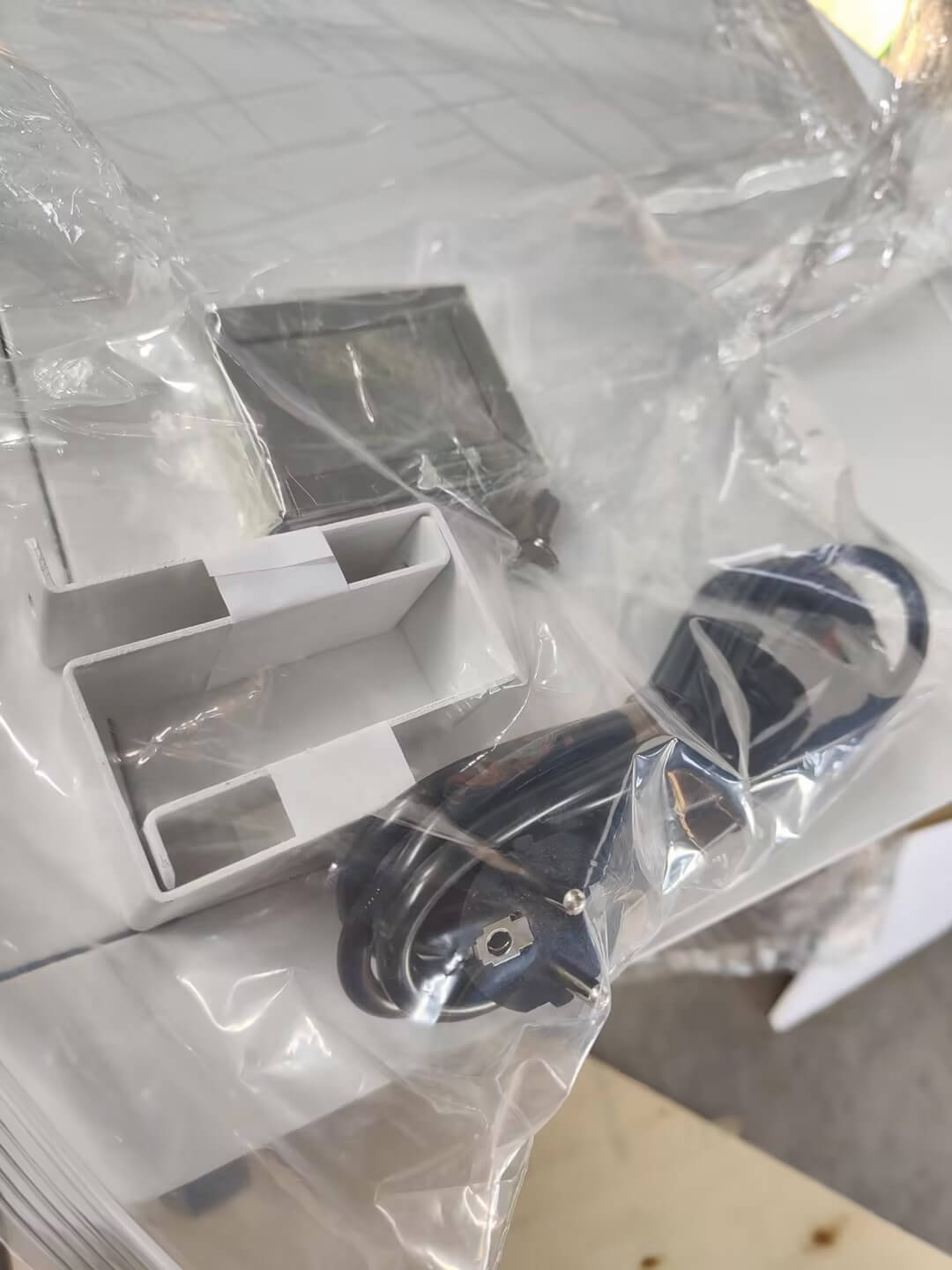

The BR-4V110 blood storage refrigerator is shipped with multi-layer protection using high-strength packaging materials to ensure that the unit is not damaged during transport. The interior of the box is equipped with anti-vibration foam and fixing devices to effectively absorb external shocks and prevent the equipment from shaking.

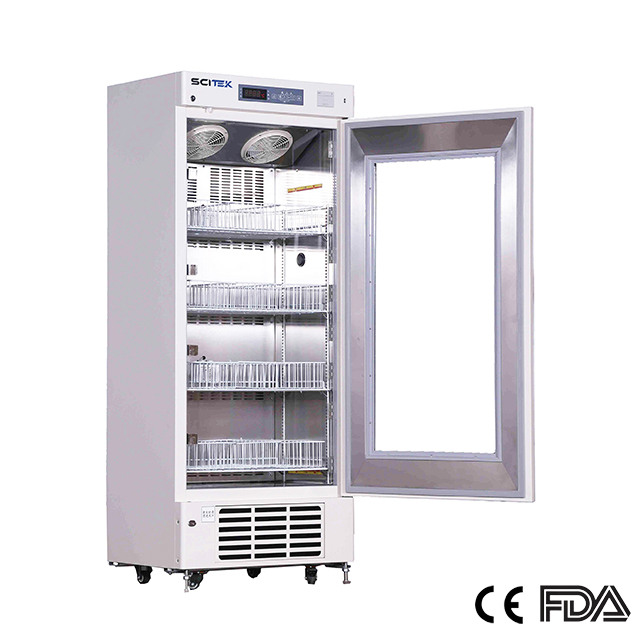

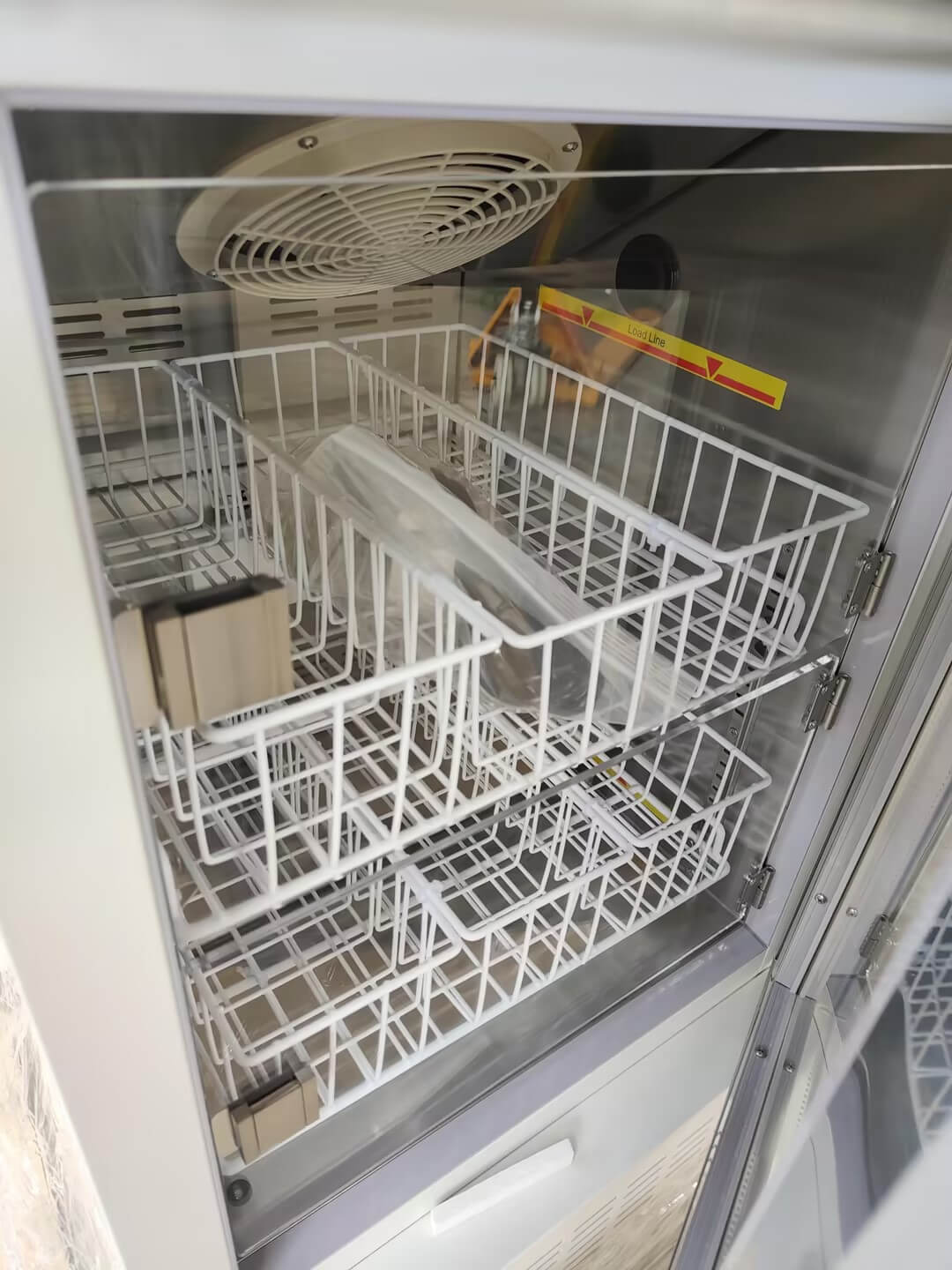

The internal shelves are well laid out and can effectively separate different types of blood products for easy storage and access. It also provides sufficient storage space, suitable for storing large quantities of blood and blood products.
Why Scitek
By choosing our BR-4V110 blood refrigerator, you will get superior quality and precise temperature control to ensure safe storage of blood and blood products. Our blood bank refrigerators are user-friendly in design, easy to operate and equipped with advanced temperature control system. We also provide professional after-sales service and safe and reliable transport guarantee to ensure that the blood storage refrigerator reaches you in perfect condition. When you choose Scitek, you choose reliability and excellent customer service.
