X-Ray Film Viewer BH-GPD01 BH-GPD02 BH-GPD03 BH-GPD04 (biobase-0850) Products
Name X-Ray Film Viewer BH-GPD01 BH-GPD02 BH-GPD03 BH-GPD04
Code biobase-0850
Type Standard
Brand Biobase
Category New Products
subcategory New Products
Unit pcs (pcs)
In Stock Yes
Berminat hub kami: wa chat
Product details for Invoice
It has automatic sensing function. When the film viewing lamp is inserted into the film, the film insertion area will light up automatically.
Product Details

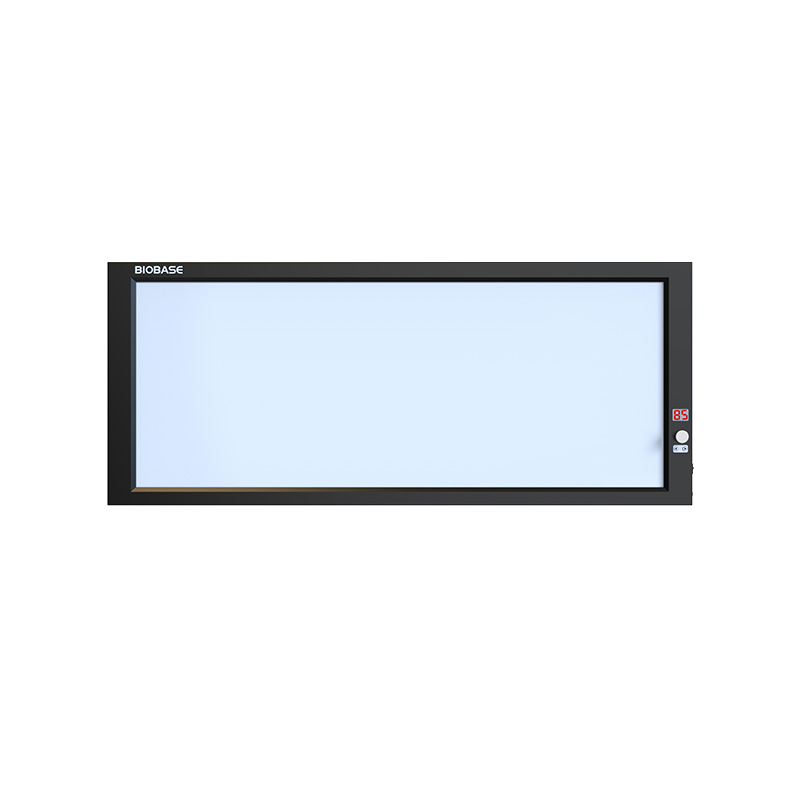

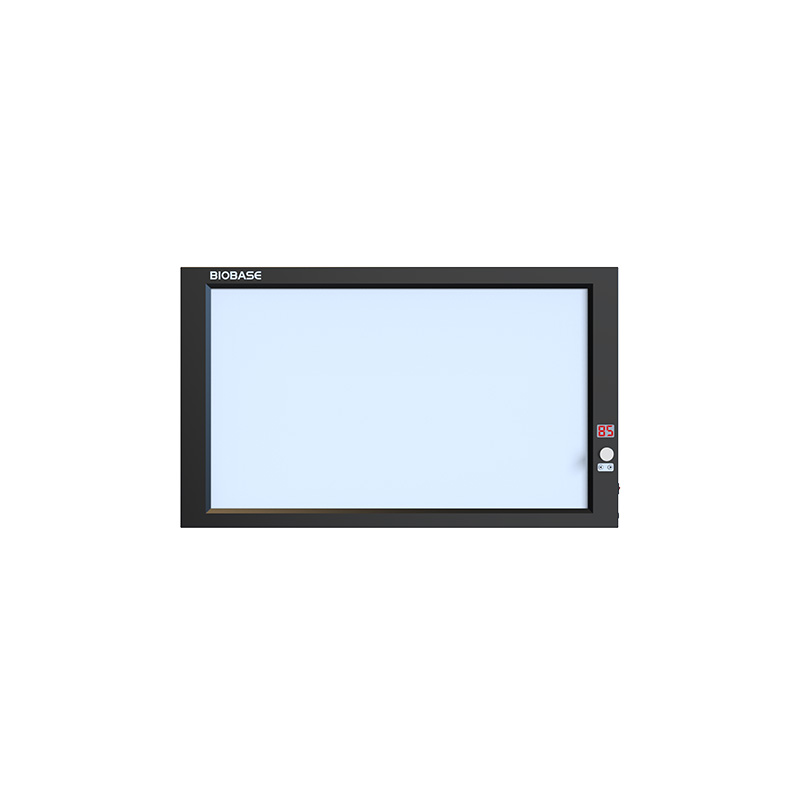

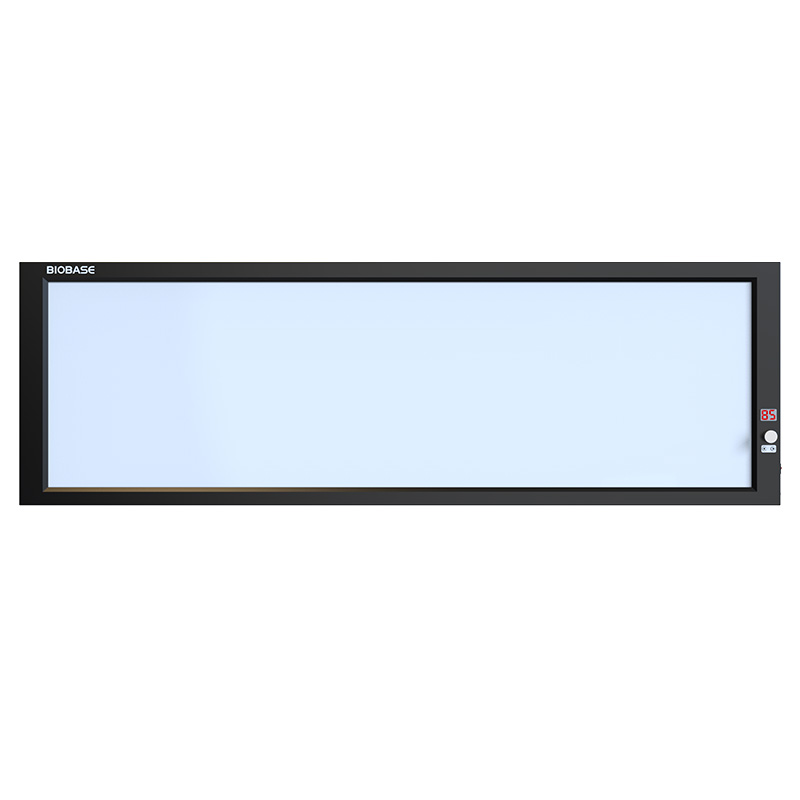

X-Ray Film Viewer BH-GPD01 BH-GPD02 BH-GPD03 BH-GPD04

Features:

1. It has automatic sensing function. When the film viewing lamp is inserted into the film, the film insertion area will light up automatically.

2. The LED color temperature is above 8000K, which makes your eyes less likely to get tired after long-term viewing.

3. The brightness of the light source can be randomly adjusted from 1% to 100%, and supports brightness memory.

4. Imported Mitsubishi observation screen is used, which is durable, does not deform or discolor.

5. Aluminum alloy frame, rapid heat dissipation, reducing LED light and color decay, strong and durable

6. The light source adopts ultra-bright LED cold light source, and the maximum brightness of the observation screen reaches more than 4000cd/m2.



Technical Parameters:

Model

BH-GPD01

BH-GPD02

BH-GPD03

BH-GPD04

Type

1 Ray Light Panel

2 Ray Light Panels

3 Ray Light Panels

4 Ray Light Panels

Light Color Temp.

>8000K

Luminance Uniformity

≥90%

Max Luminance

>4000cd/m²

Installation Method

Standard: Hanging type, optional: bracket type

Auto-induction

Insert automatically lights up, take off automatically, brightness memory

Light Source

LED cold light

Clamping device

Soft silicone

External Size(mm)

475*498*25

835*498*25

1195*498*25

1555*498*25

Viewing Area(mm)

360*420

720*420

1080*420

1440*420

Power Supply

100-240V, 50/60Hz;

Packing Size(mm)

620*115*680

980*120*660

1350*130*680

1700*130*680

Gross Weight(kg)

4.7

7

10.3

12.2
