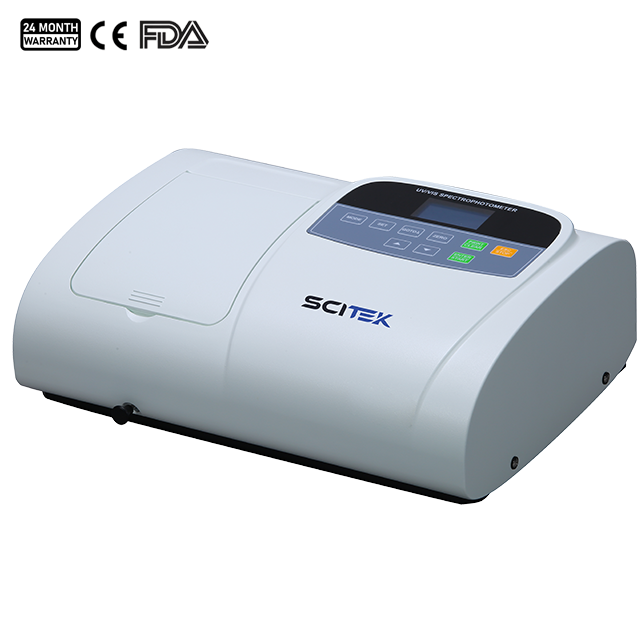

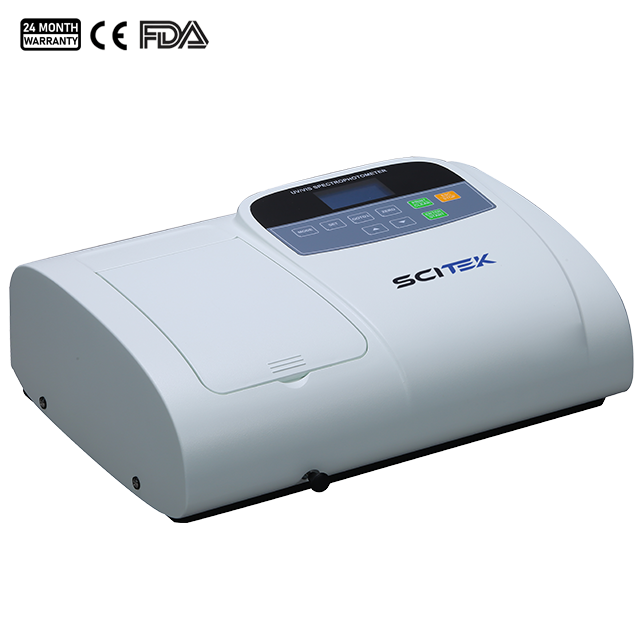

Visible Spectrophotometer, Bandwidth 2/4nm (scitek-0511) Products
| Name | Visible Spectrophotometer, Bandwidth 2/4nm |
| Code | scitek-0511 |
| Type | Standard |
| Brand | Scitek |
| Category | Spectrophotometer and Colorimeter |
| subcategory | Visible Spectrophotometer |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Product details for Invoice
Model : SP-V5100
Wavelength Range : 325-1000nm
Wavelength Accuracy : ±2nm
Wavelength Repeatability : 0.5nm
Output : USB Port & Parallel Port(Printer)
Size(W×D×H)(mm) : 420x280x180
Visible spectrophotometer with automatic wavelength setting, designed for ease of use.
Wavelength Range : 325-1000nm
Wavelength Accuracy : ±2nm
Wavelength Repeatability : 0.5nm
Output : USB Port & Parallel Port(Printer)
Size(W×D×H)(mm) : 420x280x180
Visible spectrophotometer with automatic wavelength setting, designed for ease of use.
Product Details
Single Beam Visible Spectrophotometer Specifications:
| Model | SP-V5100 |
|---|---|
| Optical System | Single beam, Grating 1200 lines/mm |
| Wavelength Range | 325-1000nm |
| Bandwidth | 4nm(optional 2nm) |
| Wavelength Accuracy | ±2nm |
| Wavelength Repeatability | 0.5nm |
| Wavelength Setting | Auto |
| Photometric Accuracy | ±0.5%T |
| Photometric Repeatability | ≤0.2%T |
| Photometric Range | -0.3-3A, 0-200%T, 0-9999C |
| Photometric Mode | T, A, C, F |
| Stray Light | ≤0.1%T |
| Stability | ± 0.002A/h @ 500nm |
| Display | 128x64 LCD |
| Detector | Silicon Photodiode |
| Light Source | Tungsten Lamp |
| Output | USB Port & Parallel Port (Printer) |
| Power Requirements | AC 85~250V |
| Size(W×D×H)(mm) | 420x280x180 |
| Shipping Size(W×D×H)(mm) | 600x460x330 |
| N.W./G.W. (kg) | 10/14 |
Single Beam Visible Spectrophotometer Features:
A 2.5 inch LCD screen is included to display standard curves and groups of results.
Various standard curves can be established based on the customer's solutions to determine the concentration of unknown solutions.
The device has a USB port for data output, which can be connected to a PC to display spectrum scanning, kinetics, and multi-wavelength testing results on the screen.
The device can display wavelength, absorption, and transmittance with 5 results per screen and store up to 200 results in its memory.
Users can set the wavelength automatically using arrow keys to avoid operation errors.
