Visible Spectrophotometer, Spectrum Bandwidth 5nm (scitek-0416) Products
| Name | Visible Spectrophotometer, Spectrum Bandwidth 5nm |
| Code | scitek-0416 |
| Type | Standard |
| Brand | Scitek |
| Category | Spectrophotometer and Colorimeter |
| subcategory | Visible Spectrophotometer |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Product details for Invoice
Model : SP-VG722; SP-VGI721; SP-VG721
Wavelength Range : 325-1000nm, 340-1000nm
Wavelength Accuracy : ±2nm
Photometric Accuracy : ±0.5%T
Size(W×D×H)(mm) : 400x300x200
The visible spectrophotometer can be used in both laboratory and teaching environments for teaching, basic research and quality control.
Wavelength Range : 325-1000nm, 340-1000nm
Wavelength Accuracy : ±2nm
Photometric Accuracy : ±0.5%T
Size(W×D×H)(mm) : 400x300x200
The visible spectrophotometer can be used in both laboratory and teaching environments for teaching, basic research and quality control.
Product Details

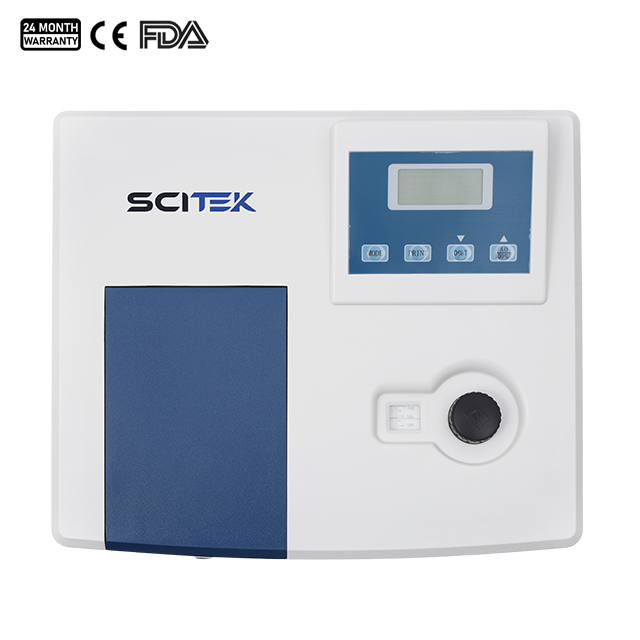

Visible Spectrophotometer Specifications:
| Model | SP-VG722 | SP-VGI721 | SP-VG721 |
|---|---|---|---|
| Photometry | Single Beam | ||
| Monochromator Type | Czerny-Turner | ||
| Detector | Silicon Photocell | ||
| Wavelength Setting | Manual Turn Knob | ||
| Wavelength Range | 325-1000nm | 340-1000nm | |
| Wavelength Accuracy | ±2nm | ||
| Wavelength Repeatability | ≤1nm | ||
| Spectrum Bandwidth | 5nm | ||
| Stray Light | ≤0.5%T (at 360nm NaNo2) | ||
| Photometric Range | 0-100.0%T | ||
| 0-1.999A | |||
| 0-1999C | |||
| Photometric Accuracy | ±0.5%T | ||
| Photometric Repeatability | ≤0.2%T | ||
| Noise | 100% (T) noise ≤0.3% (T), 0% (T) noise ≤0.2% (T) | ||
| Drifting | ±0.5 %T/3min | ||
| Cuvette Holder Size | 50mm | 100mm | 50mm |
| Power | AC220V±22V; 50Hz±1Hz, 50W | ||
| Size(W×D×H)(mm) | 400x300x200 | ||
| Shipping Size(W×D×H)(mm) | 560x500x300 | ||
| N.W./G.W. (kg) | 13/15 | ||
Visible Spectrophotometer Features:
Sample chamber for 5-100mm cuvettes
Precise automatic T/A conversion
RS232 interface
Direct concentration reading and concentration factor setting
Automatic zero and full scale adjustment
Standard software (SP-VG721)
Optional dedicated printer (SP-VGI721)
Common Features
High quality silicon photodiode detector and 1200 lines/mm diffraction grating ensure high quality accuracy and precision.
Automatic 0%A and 100%T.
Backlit LED display for easy reading.
Easily switch between transmittance, absorbance and concentration modes.
Users can easily change halogen or deuterium lamps on their own.
Direct concentration readout and concentration factor setting capability.
Cuvettes from 5 - 100mm optical lengths with optional holders.
