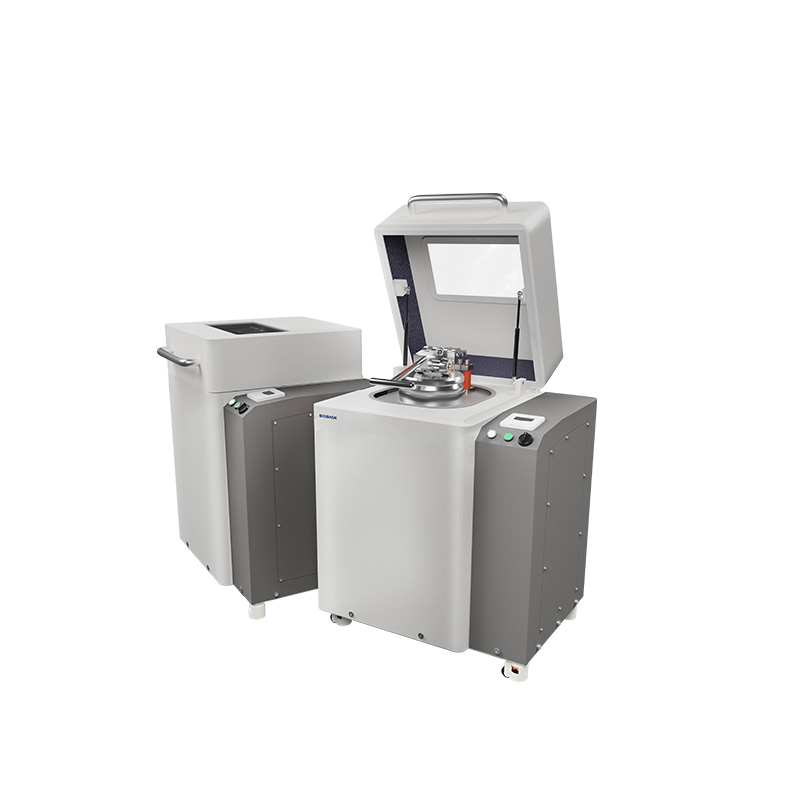

| Name | Vibration Mill BK-VBM01 |
| Code | biobase-0611 |
| Type | Standard |
| Brand | Biobase |
| Category | Laboratory Solid Processing Equipments |
| subcategory | Ball Mill |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Features
1. It has good horizontal grinding force, high grinding efficiency, comfortable control button feel, simple operation, and a clamping device that achieves fast pressing, sturdy and durable.
2. The appearance and posture are generous, and the feet are equipped with pulleys, making it easy to move.
Technical Parameters
Model | BK-VBM01 |
Grinding Disc Speed | 1480r/min |
Control Device | Master switch/button switch/digital time controller |
Motor Phase Loss/Overcurrent Protection | Have |
Cover opening and shutdown | Have |
Grinding Disc Seat | Single |
Clamping Device | Quick clamping |
Grinding Disc Material | Tungsten carbide Outsourced steel sleeve |
Grinding Disc Specifications | 100ml（1-50g） |
Optional Grinding Disc Material | High chromium steel, agate, zirconia, corundum, and high manganese steel |
One Grinding Time | 60-180S |
Feed Particle Size | ≤8mm |
Grinding Particle Size | ≤0.074mm |
Equipment support feet | 4 fixed and sliding feet |
Power Supply | AC 380V±5%, 50Hz, three-phase, external air switch, no plug |
External Dimensions (mm） | 680*620*915 |
Net Weight(kg) | 160 |
Packing Size(mm) | 840*740*1090 |
Gross Weight(kg) | 185 |
Remarks: There are two power options, 1.1KW and 1.5KW. 1.1KW corresponds to 960 rpm, 1.5KW corresponds to 1480 rpm, and the prices of both are the same.
