Vertical Pressure Steam Sterilizer 50/80/100/120/150L (scitek-0125) Products
Name Vertical Pressure Steam Sterilizer 50/80/100/120/150L
Code scitek-0125
Type Standard
Brand Scitek
Category Autoclaves & Sterilizers
subcategory Vertical Autoclave
Unit pcs (pcs)
In Stock Yes
Berminat hub kami: wa chat
Product details for Invoice
Model : ST-V50; ST-V80; ST-V100; ST-V120; ST-V150

Sterilization Temperature (℃) : 105~136
Max. Sterilization Pressure (Mpa) : 0.23
Drying Function : YES
Water Injection Method : Built-in water tank
Drying Time : 15 min
This vertical pressure steam sterillzer with a water tank provides a continuous supply of water vapour for the sterilisation process.
Product Details

Vertical Pressure Steam Sterilizer Specifications:

Model ST-V50 ST-V80 ST-V100 ST-V120 ST-V150
Capacity 50L 80L 100L 120L 150L
External Size (WxDxH)(mm) 476x616x990 546x688x1030 566x708x1295 620x760x1190 680x820x1180
Chamber Size (ØxH)(mm) Ø316x667 Ø386x695 Ø400x800 Ø450x760 Ø500x780
Chamber Material SUS304
Sterilization Temperature 105~136 ℃
Designed Temperature 150℃
Max.Working Temperature 136 ℃
Dissolution Temperature 40~100℃
Warming Temperature 40~60℃
Temp. Accuracy 0.1℃
Designed Pressure 0.3Mpa
Max.Sterilization Pressure 0.23Mpa
Sterilization Time Range 0~99min
Temp. Controller PID control by microprocessor
Display LED display
Drying Function YES
Drying Time 15min
Sterilization Program ●High temperature instrument program
●Low temperature instrument program
●Culture medium sterilization warming program
●Culture medium dissolution warming program
Water Injection Method Built-in water tank
Power Consumption 3KW 4.5KW 5.4KW 5.4KW 9.3KW
Power Supply 220V 50Hz 220V 50Hz 220V 50Hz 380V 50Hz 380V 50Hz
Standard SS Basket 2pcs 2pcs 2pcs 2pcs 2pcs
Net Weight 68kg 92kg 100kg 175kg 195kg
Gross Weight 103kg 127kg 140kg 215kg 235kg
Shipping Size (WxDxH)(mm) 730x820x1250 800x880x1300 800x880x1480 950x1050x1280 950x1050x1440

Vertical Pressure Steam Sterilizer Features:

  1. Overheat protection: Automatically cutting off heating with audible and visual indication when the autoclave is overheated.

  2. Anti-burning protection: Automatically cutting off heating with audible and visual indication when the autoclave is lack of water.

  3. Interlock safety: Preventing from starting a cycle if door is not properly closed or from door opening if there is pressure inside chamber.

  4. Steam pressure safety valve: Automatically works when the chamber pressure exceeds the limit.

  5. Automatic operation of sterilization with PID microprocessor control and LED display.

  6. Positive pulsing function removes the air efficiently.

  7. Automatic air discharge control prevents boil over of liquids and explosions of bottles

  8. With Power-off memory function.

  9. Internal water tank with steam-water internal circulation.

  10. With drying function, automatic operation from sterilization to drying process can be easily set by the interactive key input system.

Details of Vertical Pressure Steam Sterilizer:

Vertical Pressure Steam Sterilizer

Vertical Pressure Steam Sterilizer

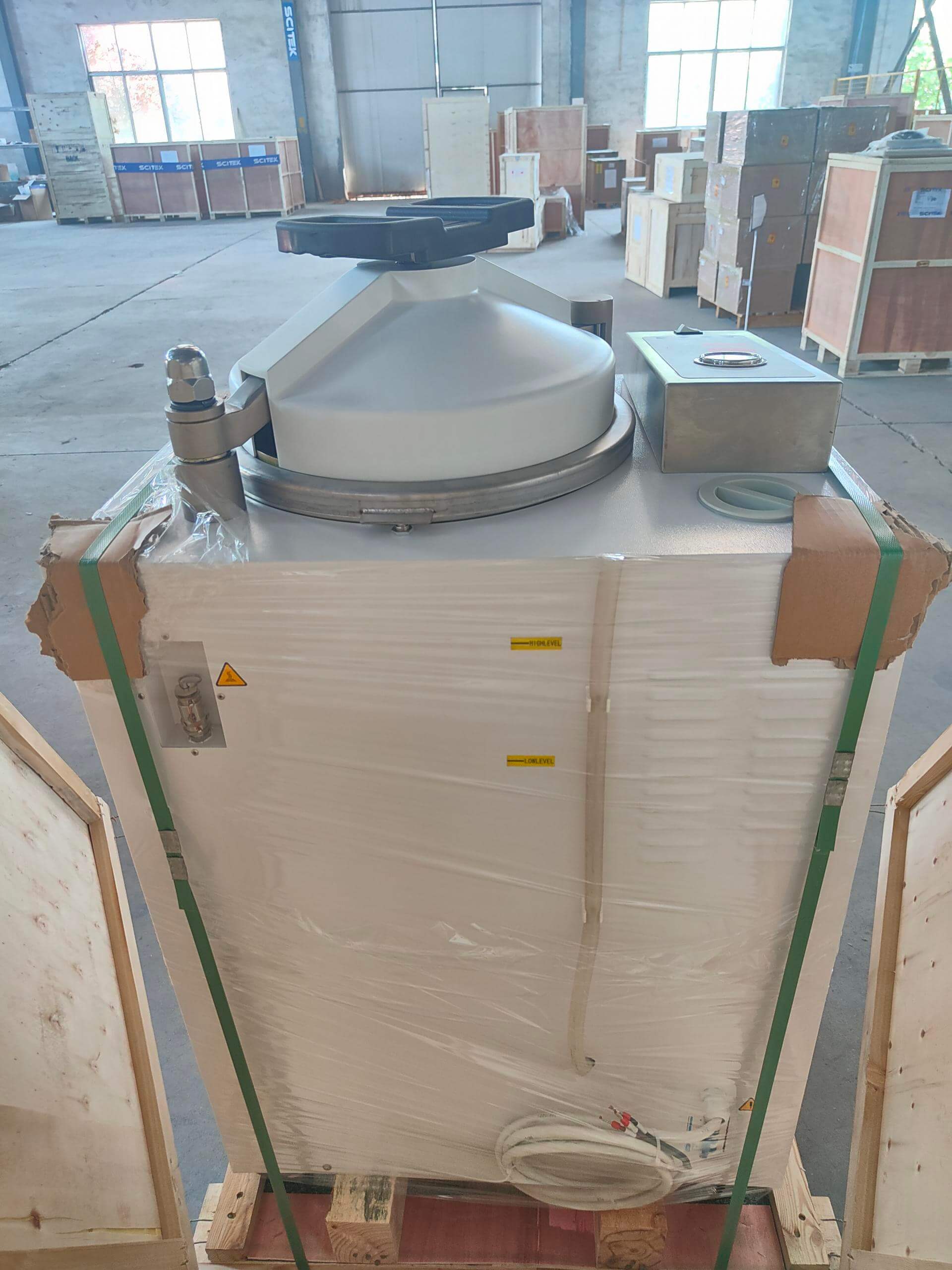

Handwheel lid opening structure, easy and effortless to open the lid, only need to rotate left and right to complete the switching steps.

Pressure Steam Sterilizer

Pressure Steam Sterilizer

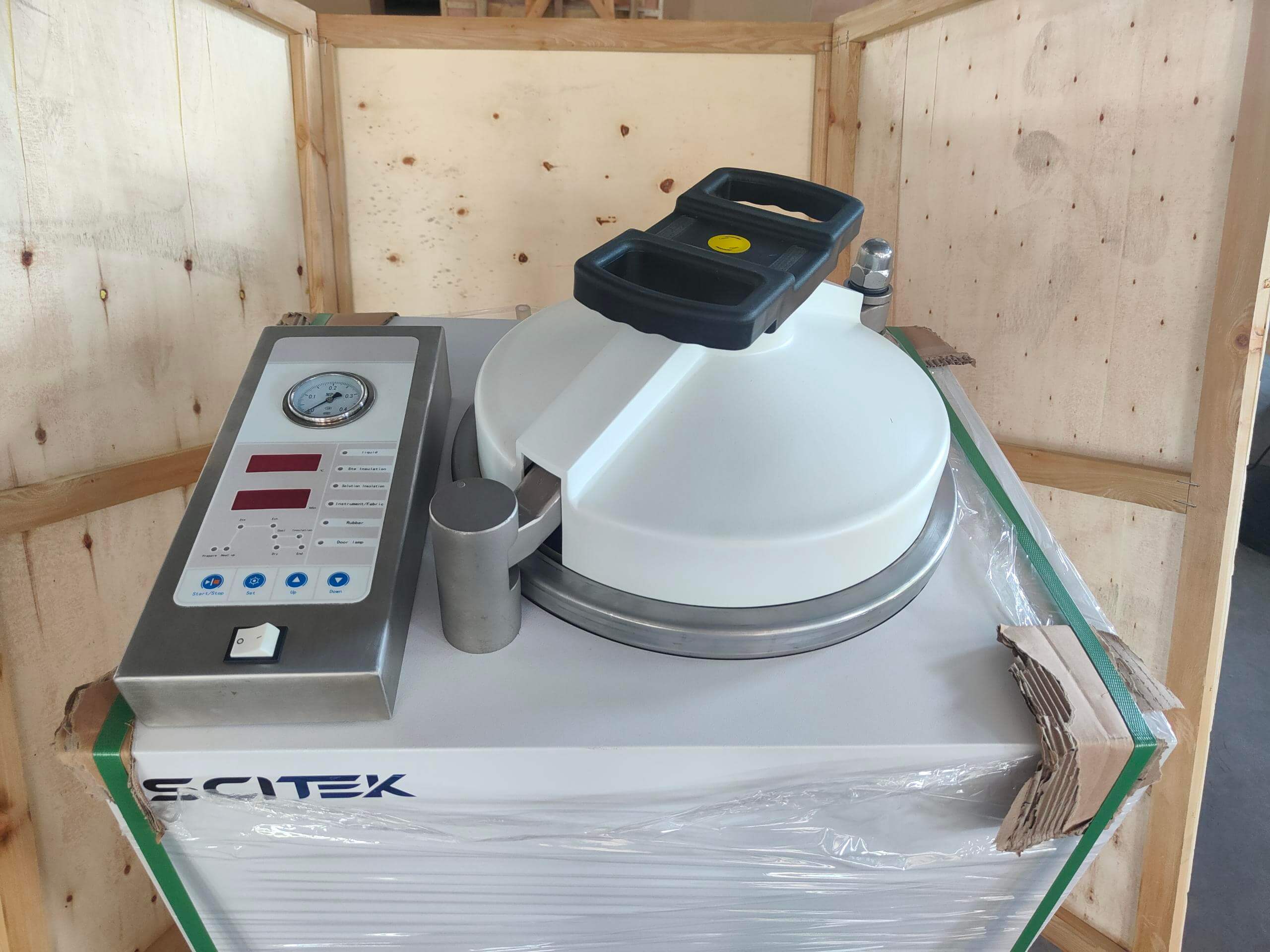

Friendly control panel and sturdy handles for easy opening and closing. Display buttons, indicator lights and pressure gauge.
