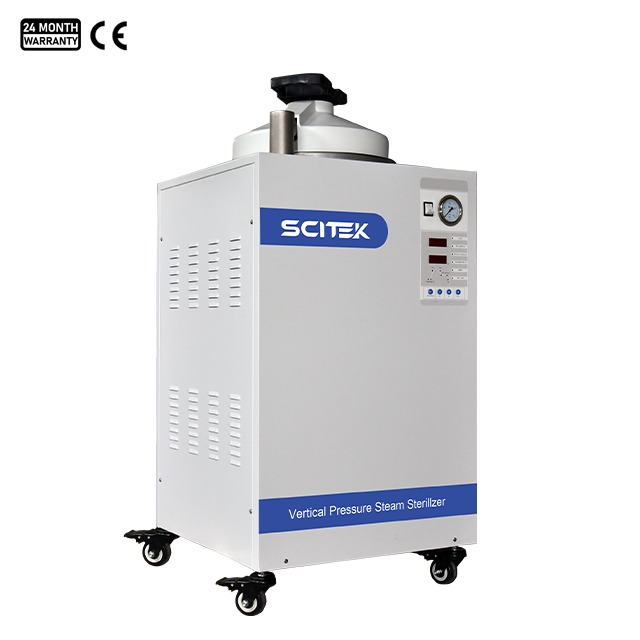

Economical Vertical Pressure Steam Sterilizer (scitek-0123) Products
Name Economical Vertical Pressure Steam Sterilizer
Code scitek-0123
Type Standard
Brand Scitek
Category Autoclaves & Sterilizers
subcategory Vertical Autoclave
Unit pcs (pcs)
In Stock Yes
Berminat hub kami: wa chat
Product details for Invoice
Model : ST-V50E; ST-V80E; ST-V100E; ST-V120E; ST-V150E

Capacity (L) : 50 / 80 / 100 / 120 / 150
Sterilization Temperature (℃) : 105~136
Max. Sterilization Pressure (Mpa) : 0.23
Drying Function : YES
Water Injection Method : Manual
Drying Time : 15min
The economical vertical pressure steam sterilizer is suitable for routine sterilisation in the laboratory.
Product Details

Vertical Pressure Steam Sterilizer Features:

  1. Overheat protection: Automatically cutting off heating with audible and visual indication when the autoclave is overheated.

  2. Anti-burning protection: Automatically cutting off heating with audible and visual indication when the autoclave is lack of water.

  3. Interlock safety: Preventing from starting a cycle if door is not properly closed or from door opening if there is pressure inside chamber.

  4. Steam pressure safety valve: Automatically works when the chamber pressure exceeds the limit.

  5. Automatic operation of sterilization with PID microprocessor control and LED display.

  6. Positive pulsing function removes the air efficiently.

  7. Automatic air discharge control prevents boil over of liquids and explosions of bottles

  8. With Power-off memory function.

Vertical Pressure Steam Sterilizer Specifications:

Model ST-V50E ST-V80E ST-V100E ST-V120E ST-V150E
Capacity 50L 80L 100L 120L 150L
External Size (WxDxH)(mm) 476x616x990 546x688x1030 566x708x1295 620x760x1190 680x820x1180
Chamber Size (ØxH)(mm) Ø316x667 Ø386x695 Ø400x800 Ø450x760 Ø500x780
Chamber Material SUS304
Sterilization Temperature 105~136 ℃
Designed Temperature 150℃
Max.Working Temperature 136 ℃
Dissolution Temperature 40~100℃
Warming Temperature 40~60℃
Temp.Accuracy 0.1℃
Designed Pressure 0.3Mpa
Max.Sterilization Pressure 0.23Mpa
Sterilization Time Range 0~99min
Temp. Controller PID control by microprocessor
Display LED display
Drying Function YES
Drying Time 15min
Sterilization Program ●High temperature instrument program
●Low temperature instrument program
●Culture medium sterilization warming program
●Culture medium dissolution warming program
Water Injection Method Manual
Power Consumption 3KW 4.5KW 5.4KW 5.4KW 9.3KW
Power Supply 220V 50Hz 220V 50Hz 220V 50Hz 380V 50Hz 380V 50Hz
Standard SS Basket 2pcs 2pcs 2pcs 2pcs 2pcs
Net Weight 55kg 65kg 80kg 165kg 185kg
Gross Weight 90kg 100kg 120kg 205kg 225kg
Shipping Size (WxDxH)(mm) 730x700x1250 800x770x1300 800x770x1480 950x900x1280 950x900x1440

Details of Vertical Pressure Steam Sterilizer:

ST-V50E:


Vertical Pressure Steam Sterilizer

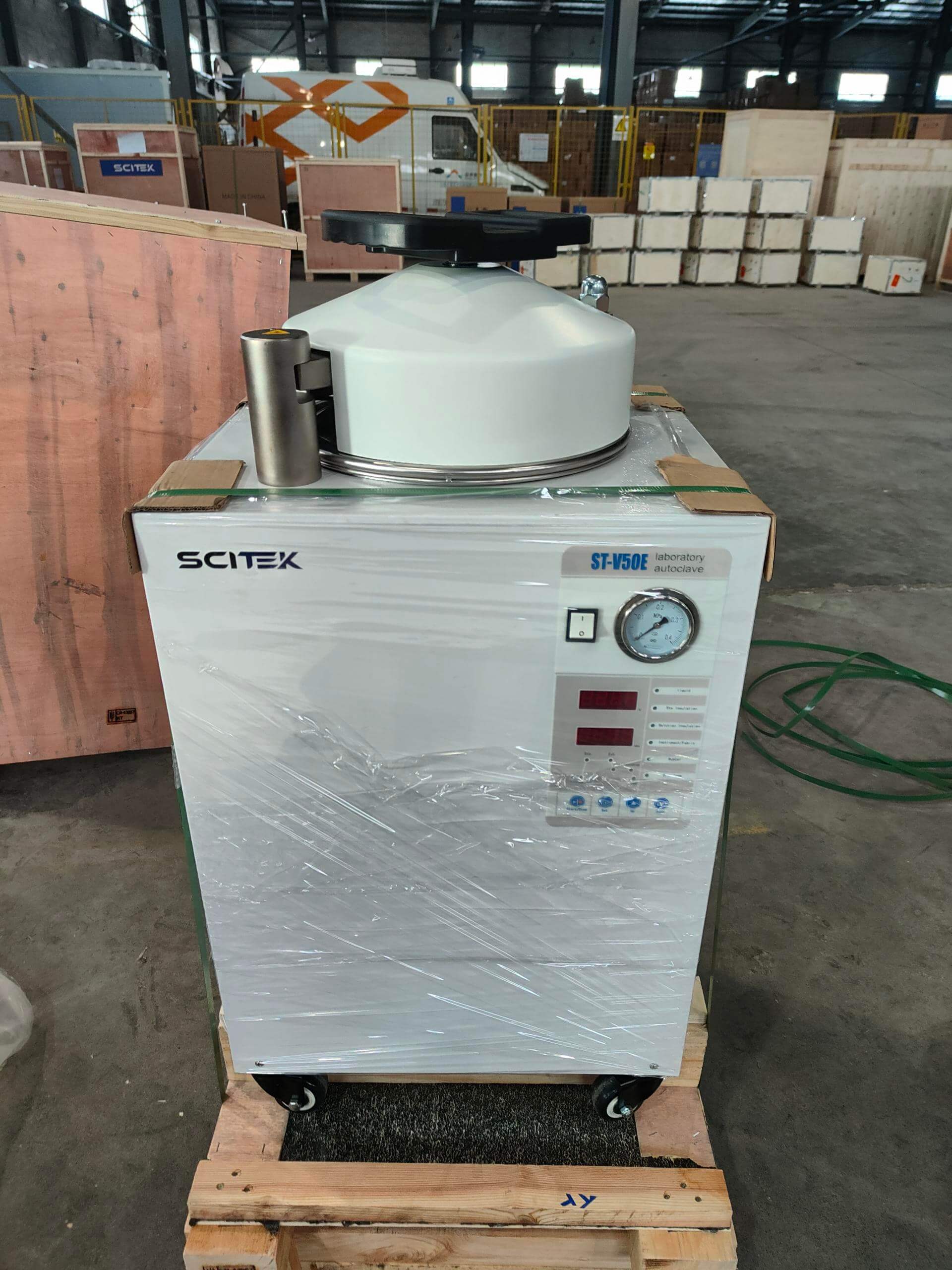

The pressure gauge and various control buttons are clearly displayed in front of the unit to simplify operation.

Vertical Pressure Steam Sterilizer

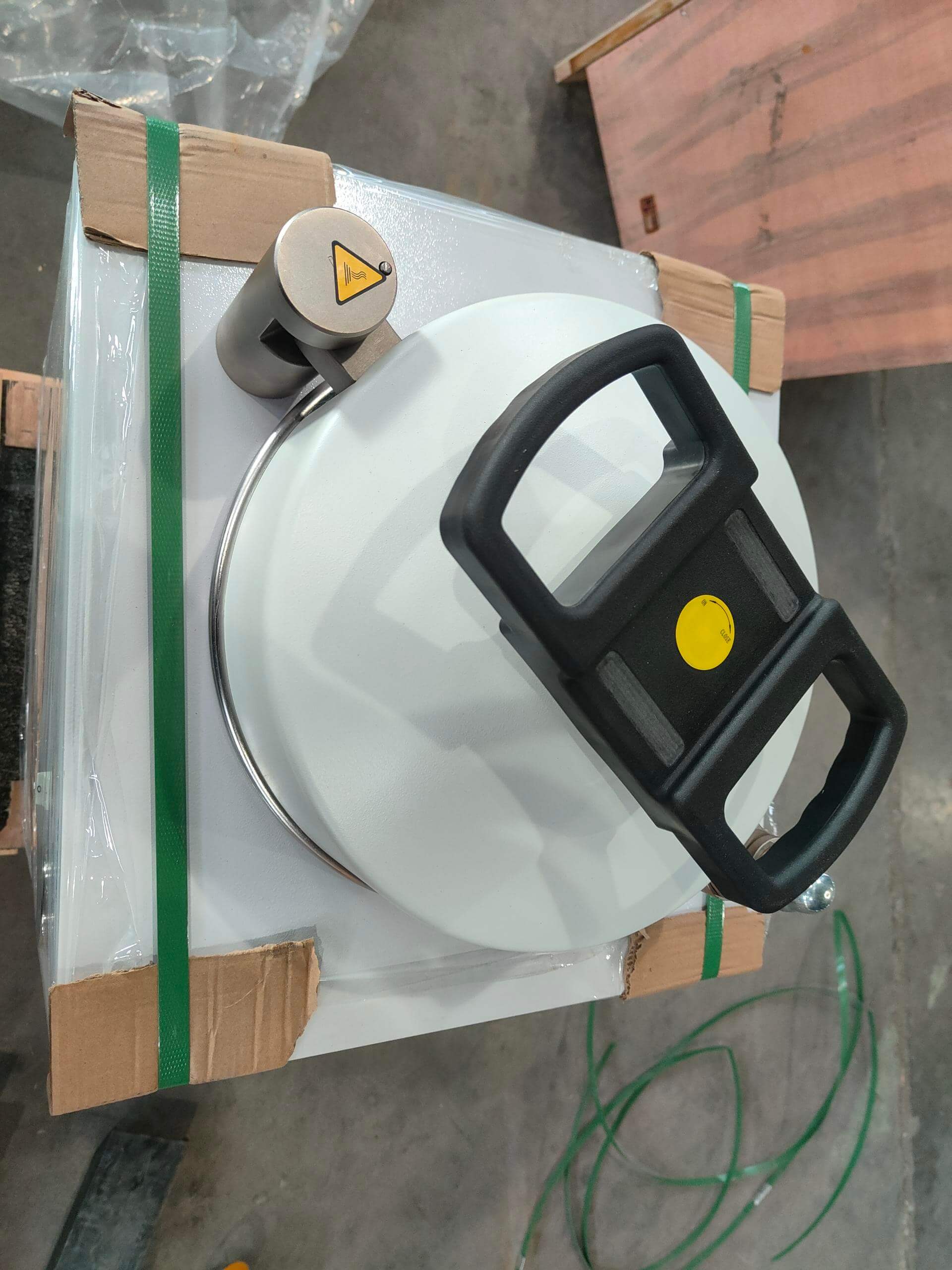

The handwheel design allows the user to easily rotate and lock the lid and provides a good seal to ensure the stability of the internal environment during the sterilisation process and prevent external contamination.

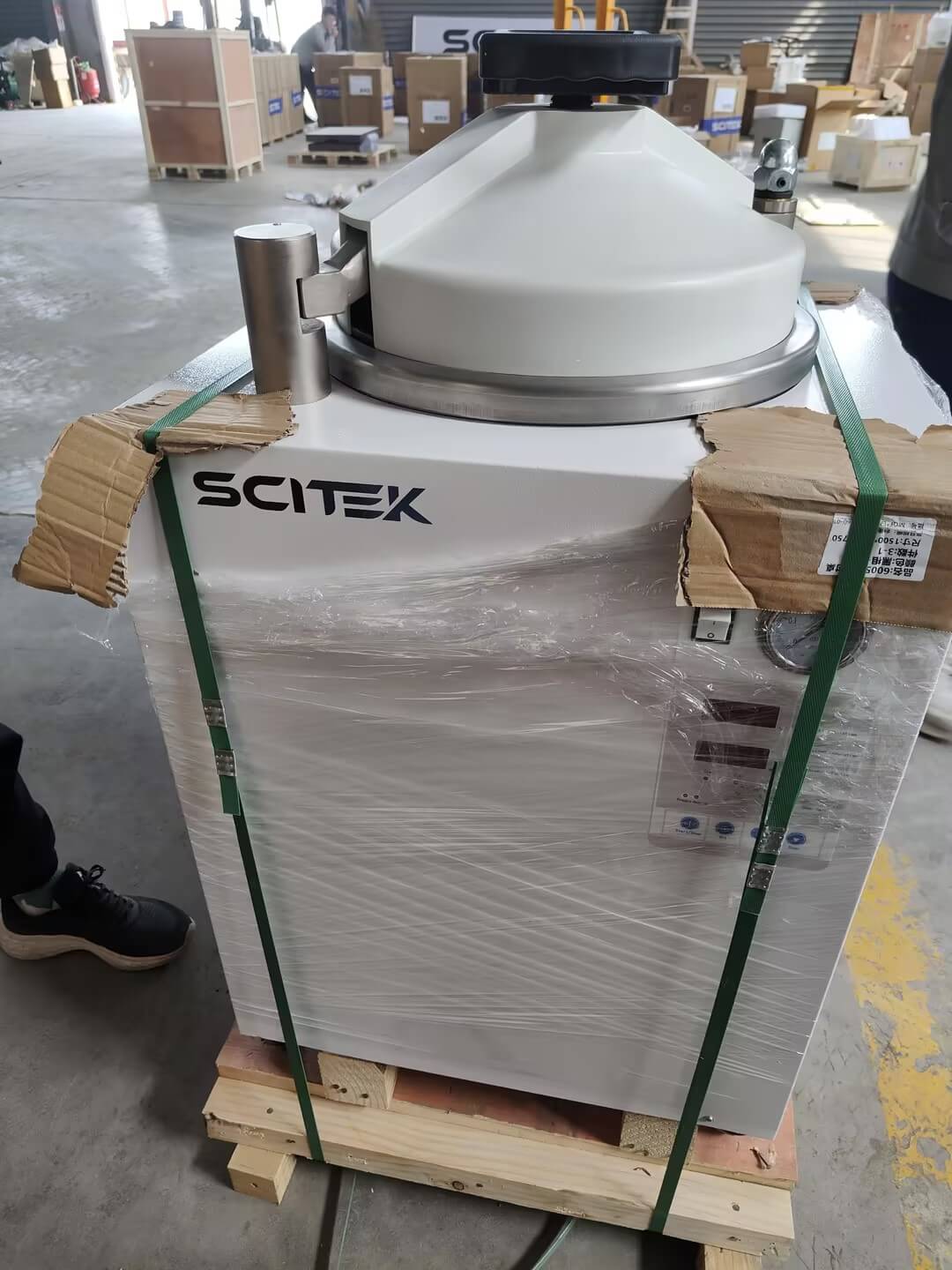

Vertical Pressure Steam Sterilizer


ST-V100E:


Vertical Pressure Steam Sterilizer

The space-saving vertical construction of the steriliser makes it ideal for laboratories and medical facilities where space is at a premium.

Vertical Pressure Steam Sterilizer

The sturdy handles and secure closures are designed to ensure user safety and ease of operation.

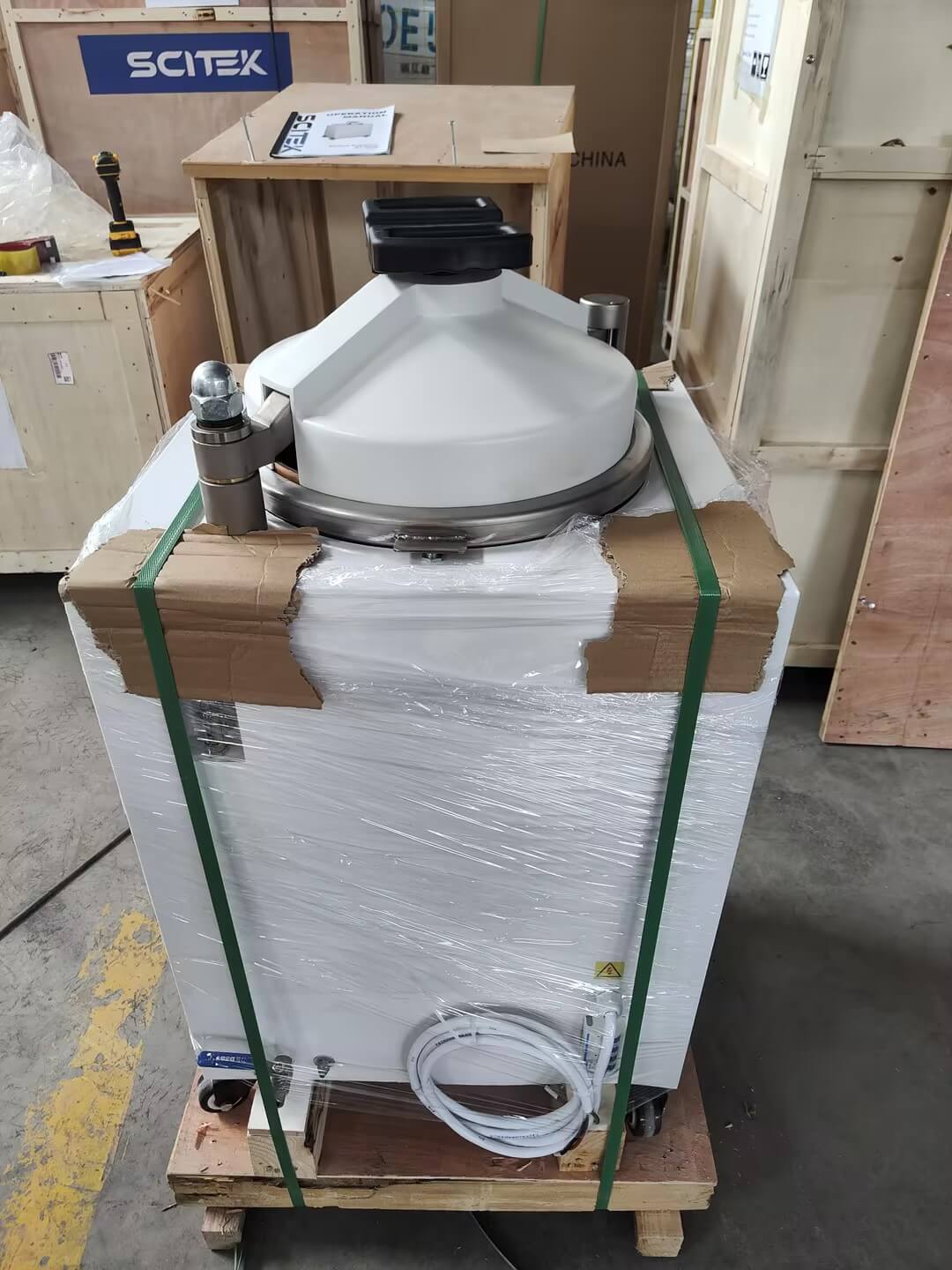

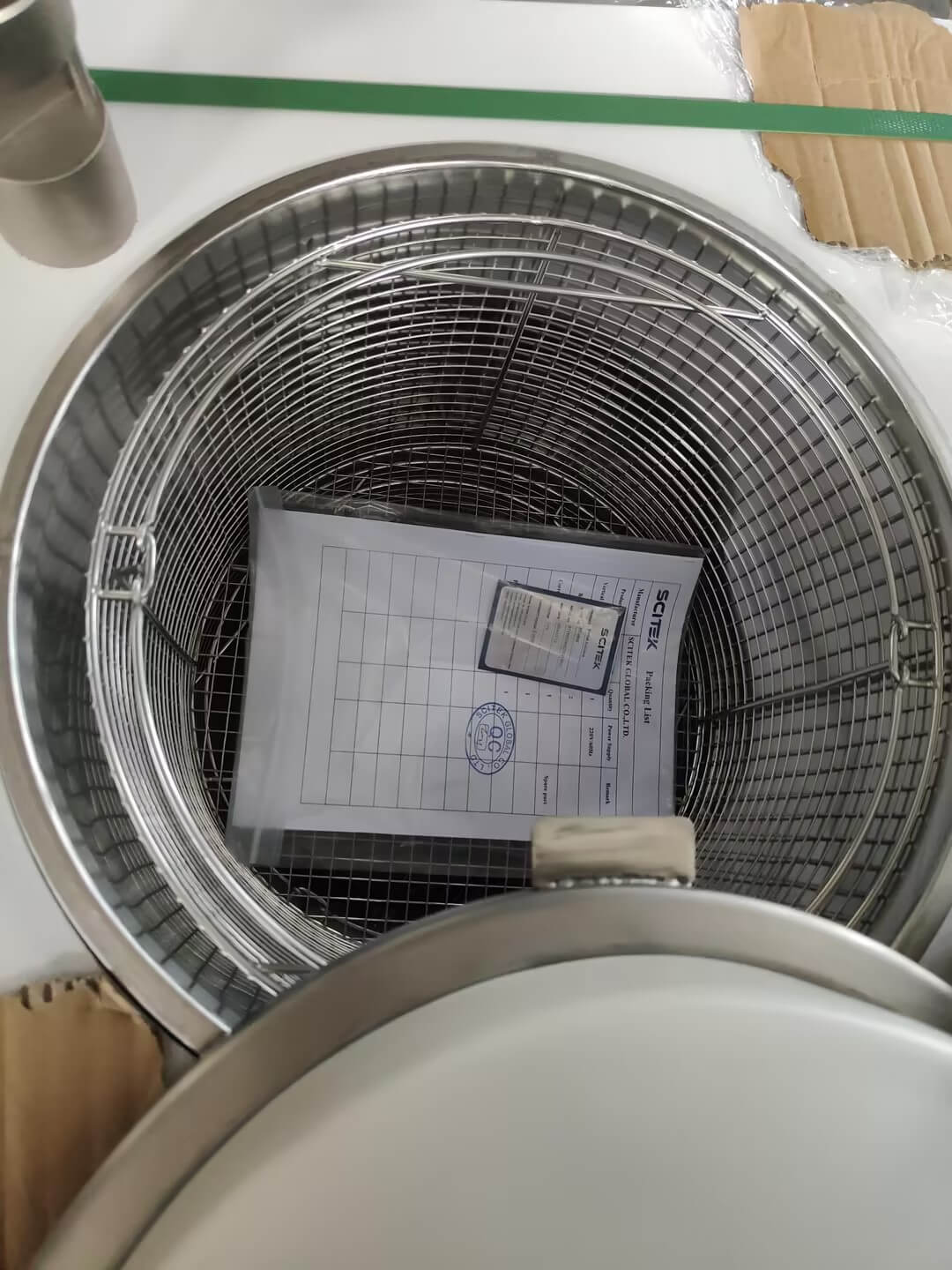

ST-V80E (8)

ST-V80E (7)

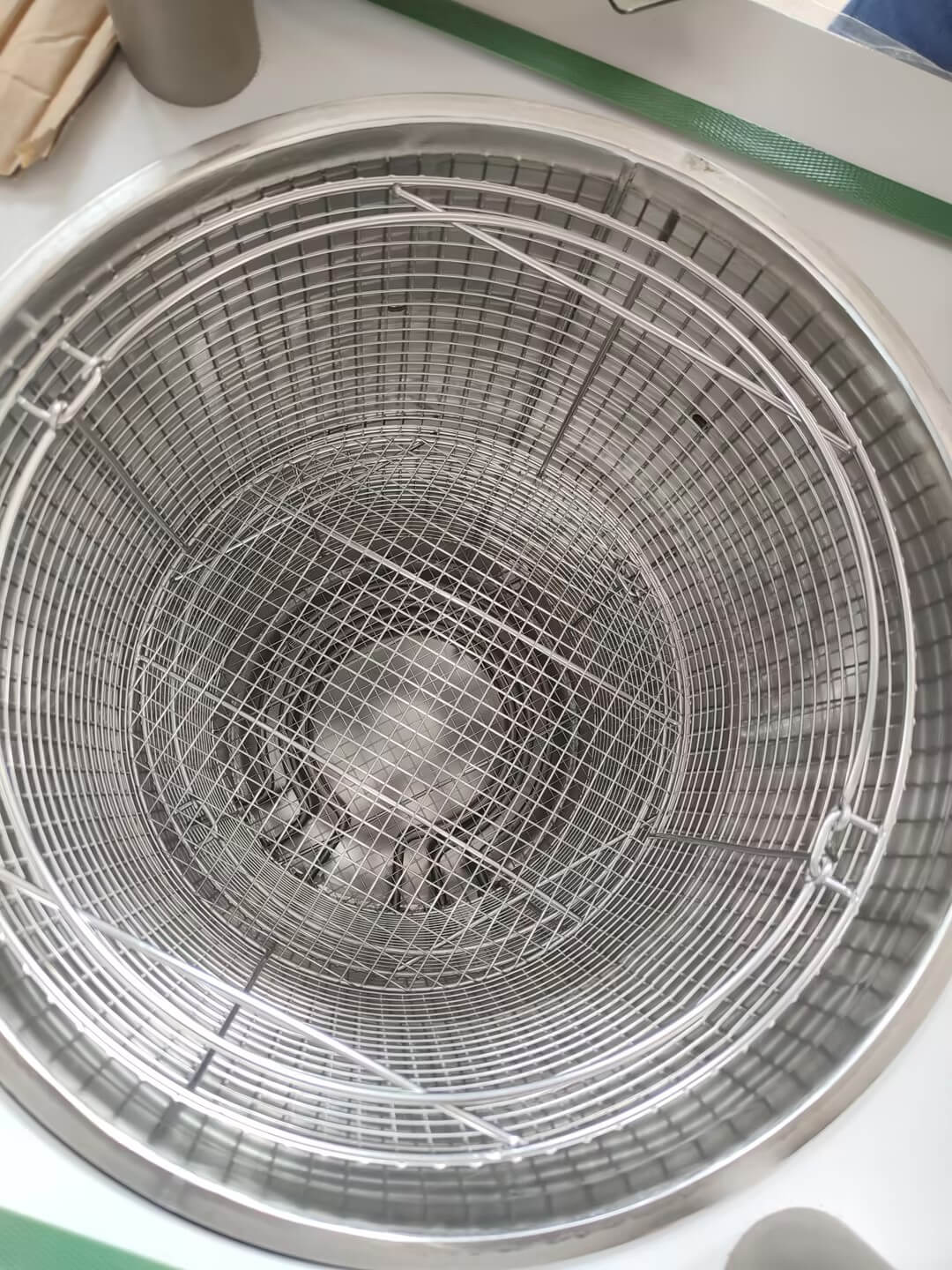

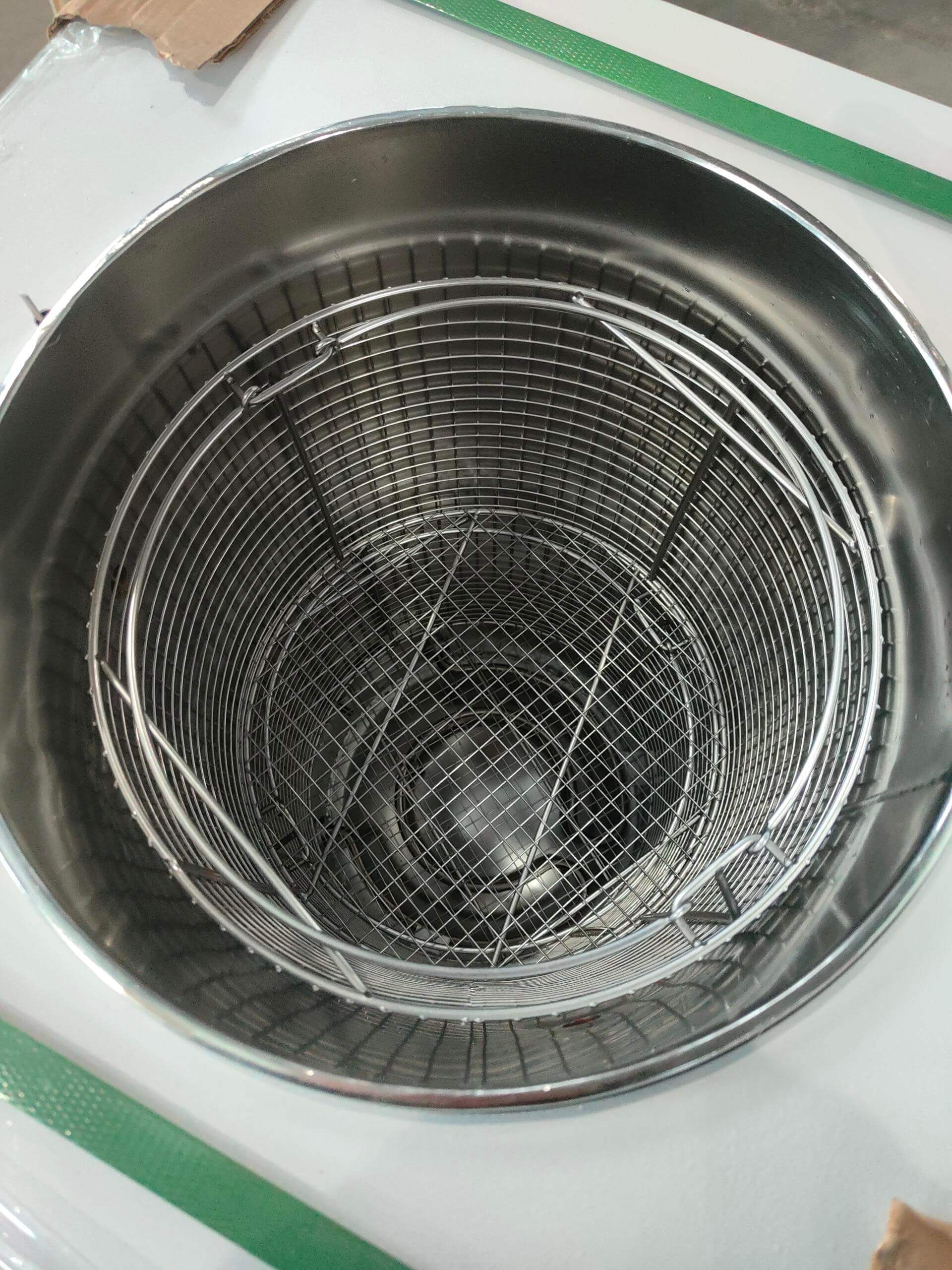

Stainless steel chamber and wire mesh basket to ensure longevity and reliable sterilisation performance.
