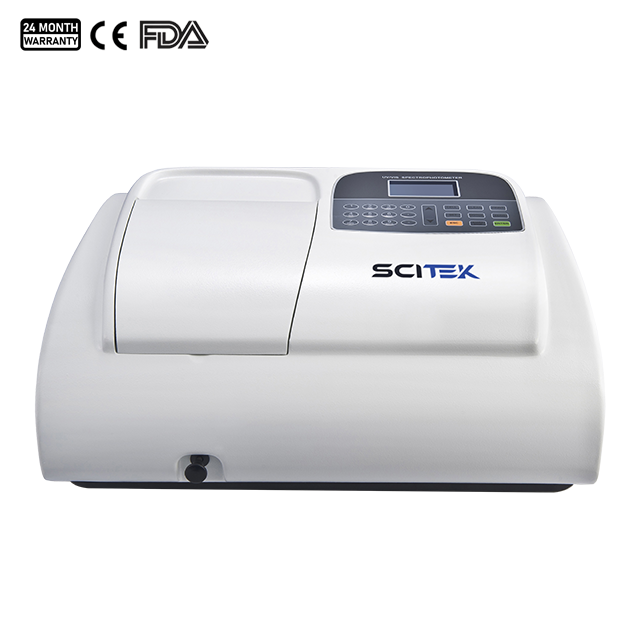

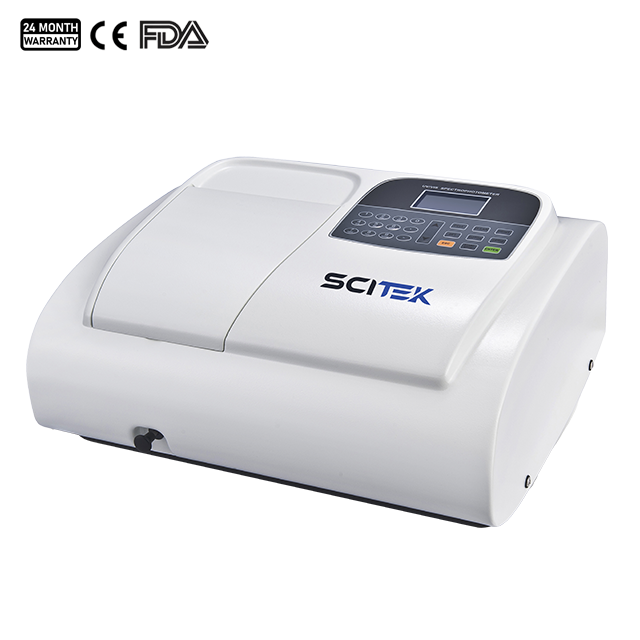

| Name | UV-Visible Spectrophotometer with Parallel Port |
| Code | scitek-0518 |
| Type | Standard |
| Brand | Scitek |
| Category | Spectrophotometer and Colorimeter |
| subcategory | UV-Vis Spectrophotometer |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Wavelength Range : 190-1100nm
Wavelength Accuracy : ±0.5nm
Wavelength Repeatability : ≤0.2nm
Size(W×D×H)(mm) : 460x360x225
The optical paths of the UV Visible Spectrophotometer use spiral form light paths and they will meet the different needs of your organisation for analysis tools.
UV Visible Spectrophotometer Specifications:
| Model | SP-UV5800 |
|---|---|
| Wavelength Range | 190-1100nm |
| Bandwidth | 2nm |
| Wavelength Accuracy | ±0.5nm |
| Wavelength Repeatability | ≤0.2nm |
| Wavelength Setting | Auto |
| Photometric Accuracy | ±0.2%T |
| Photometric Repeatability | 0.2%T |
| Photometric Range | -0.3-3A, 0-200%T, 0-9999C |
| Stability | ± 0.002A/h @ 500nm |
| Baseline Flatness | ± 0.0015A/h |
| Stray Light | ≤0.05%T |
| Data Output Port | USB |
| Printer Port | Parallel Port |
| Display | 128x64 Dots LCD |
| Lamps | Tungsten Lamp & Deuterium Lamp |
| Detector | Silicon Photodiode |
| Power Requirements | AC 220V/50Hz or 110V/60Hz |
| Size(W×D×H)(mm) | 460x360x225 |
| Shipping Size(W×D×H)(mm) | 630x540x370 |
| N.W./G.W. (kg) | 18/23 |
UV Visible Spectrophotometer Features:
SP-UV5800 can establish various standard curves according to the customer's solution to determine the concentration of unknown resolution. And the wavelength can be set automatically by the direction key to avoid operation errors.
UV visible spectrophotometer adopts imported flange deuterium lamp, low stray light, accurate light measurement and easy replacement.
8mm rigid die-cast aluminum base is used as the optical mount to ensure the stability and reliability of the instrument.
SP-UV5800 is controlled by a microprocessor. Numeric keys can easily set all parameters.
This uv visible spectrophotometer adopts a screw structure, greatly improving the wavelength accuracy and resolution.
SP-UV5800 UV vis spectrophotometer is equipped with a USB port for connection to a PC.
