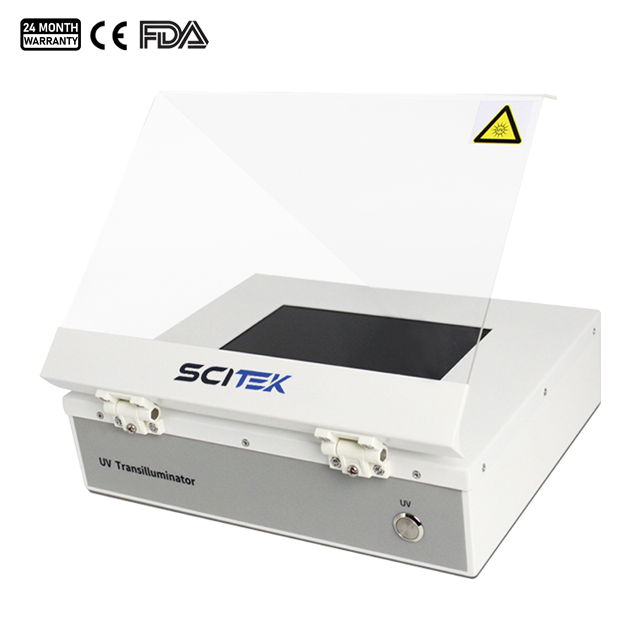

| Name | UV Light Transilluminator |
| Code | scitek-0869 |
| Type | Standard |
| Brand | Scitek |
| Category | Electrophoresis |
| subcategory | Transilluminator |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
LED Wavelength : 302nm(standard); 254nm/354nm(optional)
Observation Area(W×L)(mm) : 195×145
Sizes (W×D×H)(mm) : 335×265×120
This UV light transilluminator utilizes upgraded components for improved efficiency, performance and functionality.
UV Light Transilluminator Specifications:
| Model | TI-UV302 |
|---|---|
| Wavelength | 302nm(standard); 254nm/354nm(optional) |
| Input Power Supply | 220V, 50Hz |
| Power(W) | 8W×6 |
| Observation Area(W×L)(mm) | 195×145 |
| Sizes (W×D×H)(mm) | 335×265×120 |
| Shipping Size(W×D×H)(mm) | 420×370×210 |
| N.W./G.W. (kg) | 5/6.5 |
UV Light Transilluminator Features:
The UV light transilluminator is mainly used for the observation of the results of nucleic acid (DNA/RNA) gel electrophoresis and the gel cutting operation, using different wavelengths of ultraviolet light to detect DNA/RNA electrophoresis gel samples.
UV glue
Special UV filter glass, good permeability, high sensitivity, enhance the ability to capture weak band signals
Precise sealing structure
Effectively reduce gel contamination and internal damage caused by leakage,standard 302nm UV wavelength lamp
UV light tube
Reasonable structure design, strong and uniform ultraviolet rays,e×cellent tluorescence effect

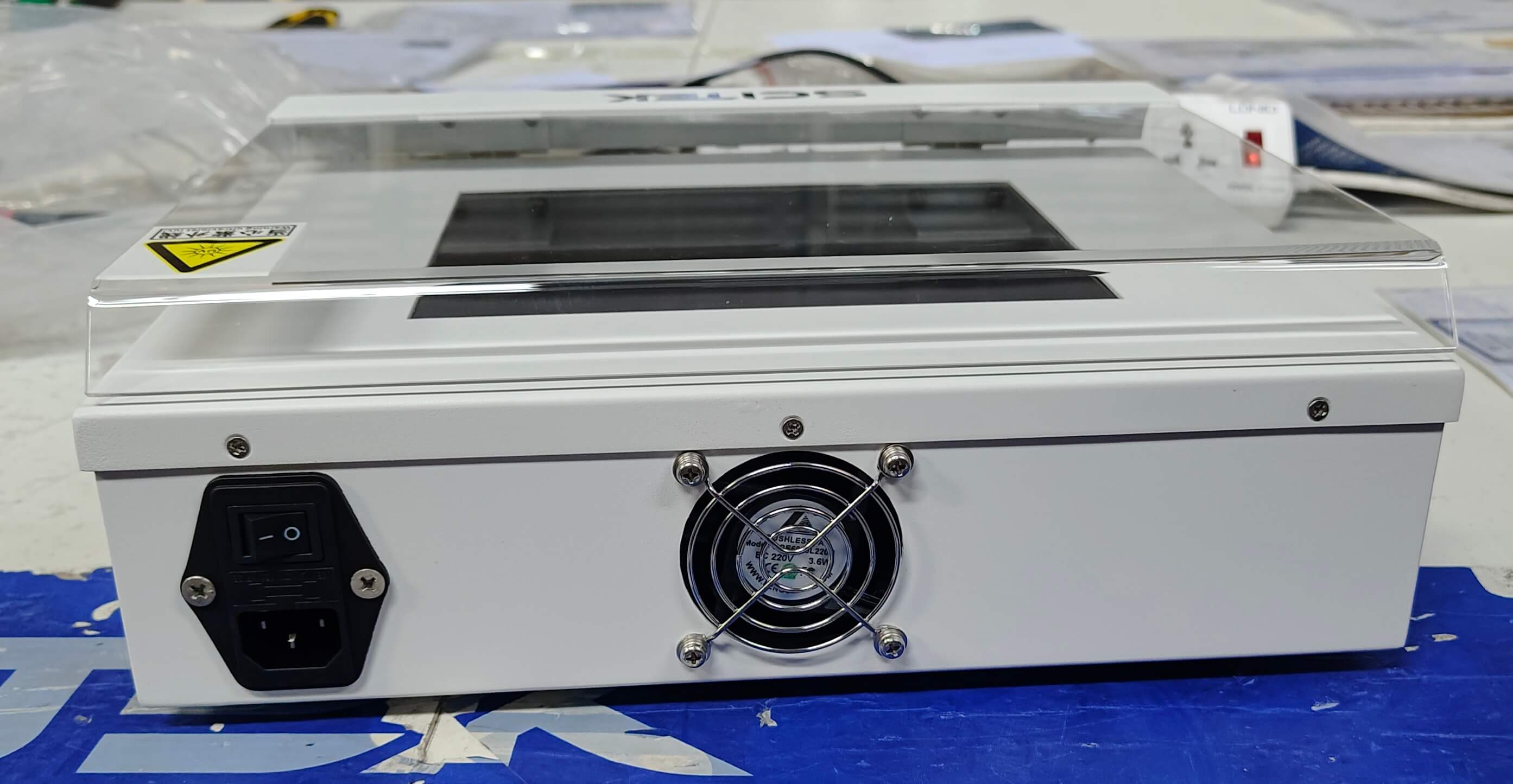

Cooling fans
Comes with fan cooling device to prolong the service life of the machine
Protection cover
Can be freely adjusted and positioned within 0°-180° to ensure optimal UV protection
Power switch
Using high-quality switching power supply,stable and reliable long-term operation
Details of UV Light Transilluminator:

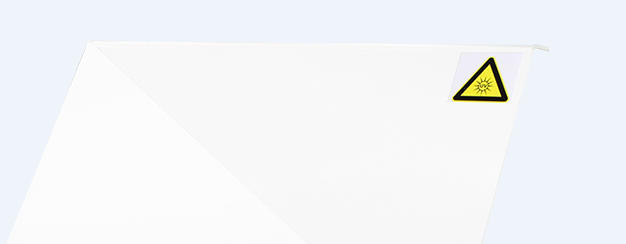

Protection cover
Cooling fans

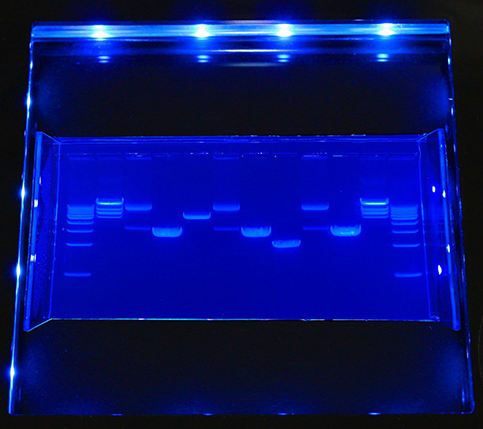

UV light tubes
Power switch
The UV Light Transilluminator is equipped with a high-intensity UV light source on the front and a convenient operator interface to ensure that users can quickly start up and adjust the unit. The ruggedized case protects the internal circuitry from the external environment.

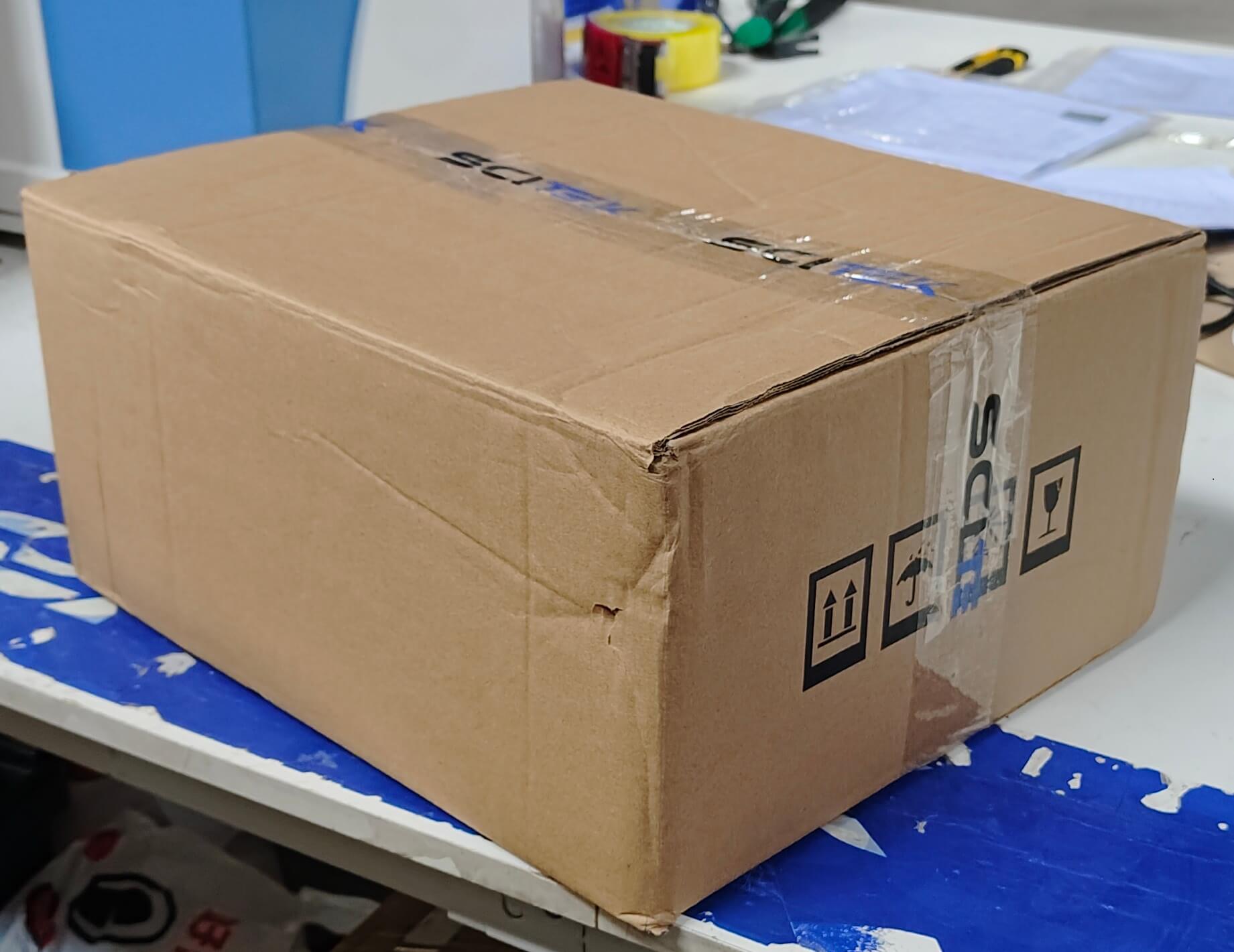

The UV light transilluminator is packaged in a shockproof design to ensure that it will not be damaged in any way during transportation. A detailed instruction manual and warranty card are included to help users get started quickly!
