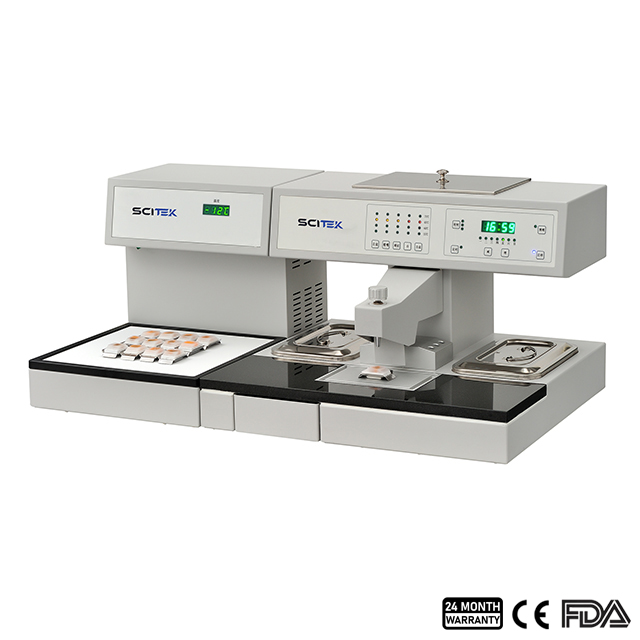

| Name | Tissue Embedding Center & Cooling System, 3L |
| Code | scitek-0466 |
| Type | Standard |
| Brand | Scitek |
| Category | Histology and Cytology |
| subcategory | Center Embedding |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Paraffin Chamber Capacity : 3L
Temperature Range of Forceps Wells/
Paraffin-melting Chamber/Thermal Storage Compartments : 55 - 70℃
Sizes(W×D×H)(mm) : 525×550×385 (TE-I)&590×345×385 (CS-I)
Tissue Embedding Center & Cooling System Specifications:
| Model | TE-I/CS-I/TE-I&CS-I | |
|---|---|---|
| TE-I | The Paraffin-heating Maximum Temperature | 70℃ |
| Paraffin Chamber Capacity | 3L | |
| Temperature Range of Forceps Wells | 55-70℃ | |
| Temperature Range of Paraffin-melting Chamber | 55-70℃ | |
| Temperature Range of Thermal Storage Compartments | 55-70℃ | |
| Temperature Range of Heated Working Areas | 55-70℃ | |
| Temperature Range of Paraffin Dispenser | 55-70℃ | |
| Temperature Control Precision | ±1% | |
| Paraffin Flow Control | Paraffin flow control via finger touch plate and optional foot pedal | |
| Fully Programmable ON/OFF Control | Allows automatic system start and stop anytime weekly | |
| CS-I | Working Temperature of Cryo-Module | ≤ -20℃ |
| Power Supply | AC 220V±10% 50Hz (standard model); AC110V±10% 60Hz | |
| Consumption | 650W (TE-I), 300W (CS-I) | |
| Size(W×D×H)(mm) | 525×550×385 (TE-I) | |
| 590×345×385 (CS-I) | ||
| Shipping Size(W×D×H)(mm) | 690x650x540 (TE-I); 720x470x550 (CS-I) | |
| N.W./G.W. (kg) | 36/45(TE-I), 32/42(CS-I) | |
Tissue Embedding Center & Cooling System Features:
Microprocessor controls the temperature and all functions are controlled by an intuitive control panel, including programmable operating hours.
The five heating zones of the paraffin chamber, paraffin dispenser, left and fitting holding rooms and the heating plate (work zone) are individually controlled and work independently without interfering.
Automatic memory and recovery function
Separate design of the freezing module and the embedded module provides flexible module configuration options;
Large granite work area for easy cleaning of excess paraffin wax
Temperature control. In addition, double overheating protection, safe and reliable
Safe and reliable low voltage lighting system;
Heated work plates and forceps holes make tissue embedding easy;
Two heated trays provide preheating capacity for 80 embedding cassettes and 200 embedding molds
