| Name | Semi-auto Coagulation Analyzer |
| Code | scitek-0614 |
| Type | Standard |
| Brand | Scitek |
| Category | Clinical Analyzers and Reagents |
| subcategory | Coagulation Analyzer |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Test Wavelength : 470nm
Reagent Consumption : 20μL-40μL
Repeatability : CV < 2%
Sizes(W×D×H)(mm) : 380x320x230
The CA series blood coagulation analyzer is a semi-automatic unit that offers excellent performance and reliability at a low price.
A blood coagulation analyzer is a routine medical device used to measure various components in human blood. It quantifies the results of biochemical analyses, providing a reliable digital basis for the clinical diagnosis of various diseases.
Semi-auto Coagulation Analyzer Specifications:
| Model | CA-51 | CA-52 | CA-54 |
|---|---|---|---|
| Testing Channels | 1 channel | 2 channel; 2 different parameters analysis in the same time | 4 different parameters analysis in the same time |
| Sample Pre-warming Position | 6 positions | 16 positions | 24 positions |
| Reagent Pre-warming Position | 2positions | 4 positions | 6 positions |
| Software Timer | 1 | 2 | 4 |
| Test Wavelength | 470nm | ||
| Sample Consumption | 20μL-40μL | ||
| Reagent Consumption | 20μL-40μL | ||
| Temp Control Precision | 37±0.3℃ | ||
| Repeatability | CV < 2% | ||
| Coincidence Indicator | ≤3% | ||
| Memory | 10000 test result | ||
| Notation of Result | S, %, PTR, INR, g/L | ||
| Operation Language | English | ||
| Power Supply | AC220V±10% 50/60Hz | ||
| Working Environment | Temperature: 15℃-30℃; Humidity≤90% | ||
| Sizes (W×D×H)(mm) | 380x320x230 | ||
| Shipping Size (W×D×H)(mm) | 510x320x590 | ||
| N.W./G.W. (kg) | 6.5/13 | 7/15 | |
Semi-auto Coagulation Analyzer Features:
This semi-auto coagulation analyzer accurately measures blood coagulation, making it ideal for assisting physicians in the diagnosis and treatment of coagulation-related disorders. Although this semi-auto coagulation analyzer requires manually adding reagents and samples, it is more affordable. It is ideal for small to medium-sized medical institutions or laboratories.
Simultaneous analysis of up to 4 different parameters saves testing time and is more convenient.
Precision electronic pipettes ensure accuracy
Long wavelength range suitable for a wide range of industries.
Built-in thermal printer supports automatic and manual printing, can print out the test report in time.
Details of Semi-auto Coagulation Analyzer (CA-51):

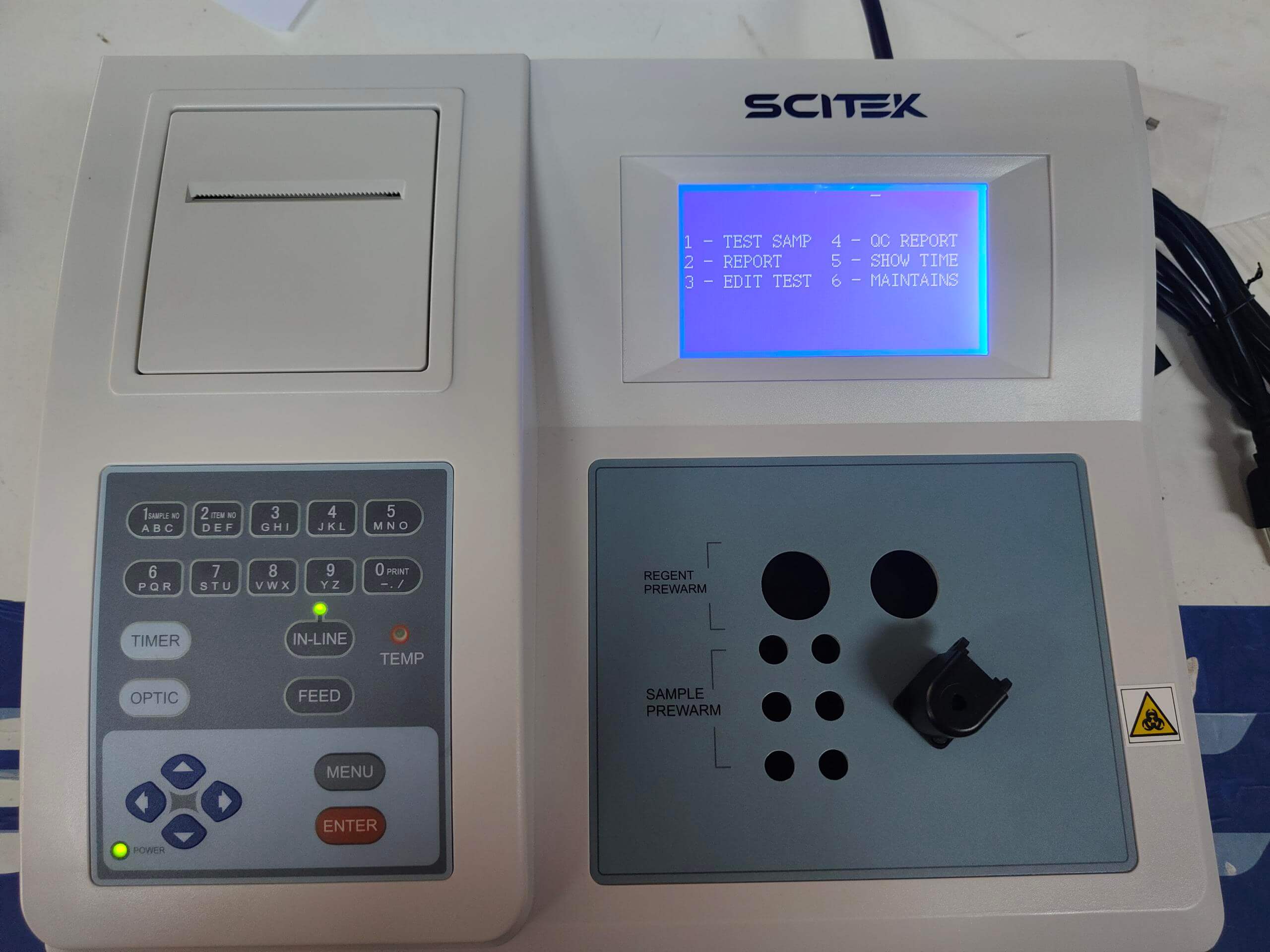

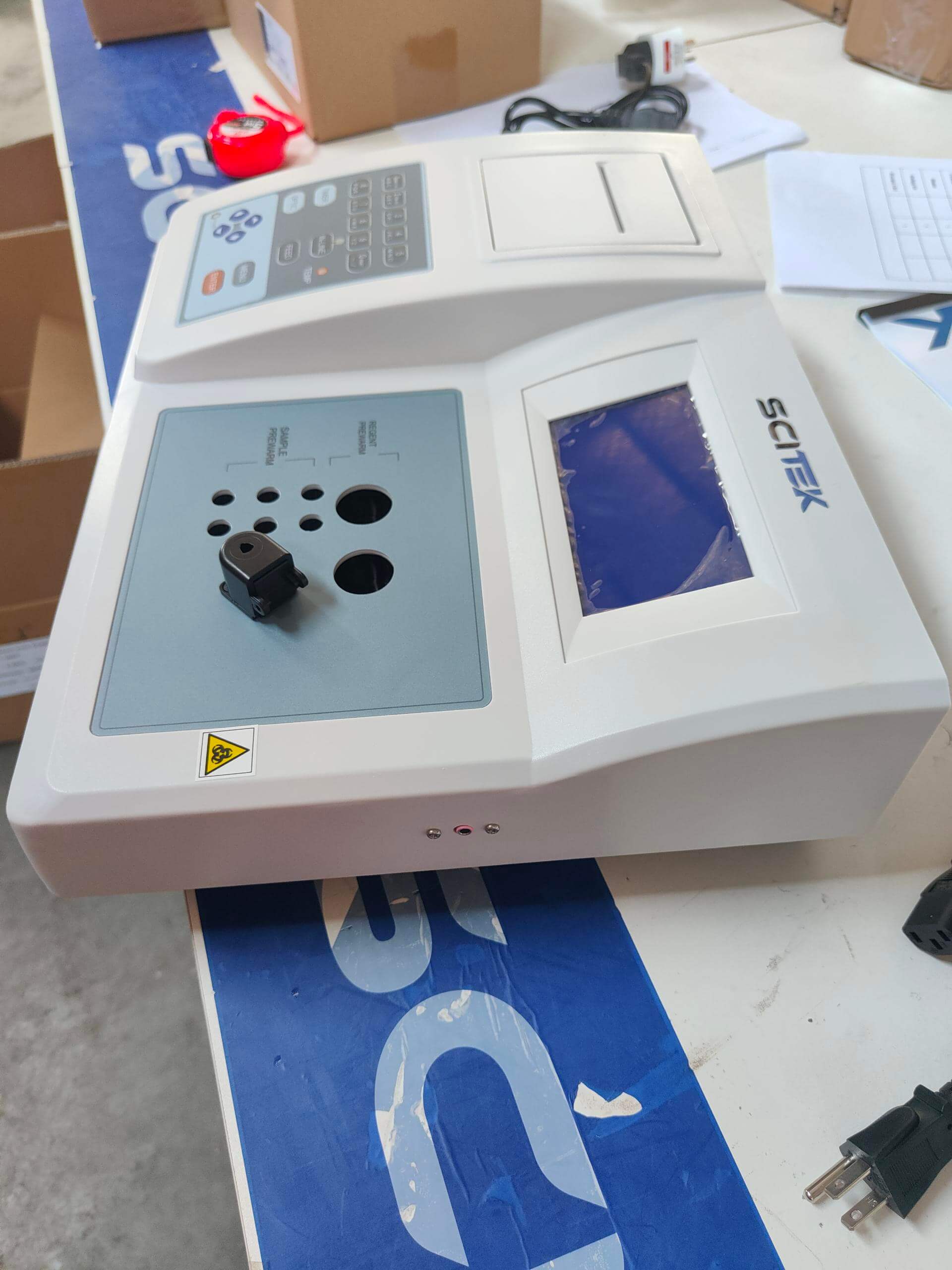

The front of the Semi-auto coagulation analyser has a simple design, with status indicators and control buttons that allow the user to know in real time the operating status of the unit and to make the necessary adjustments.

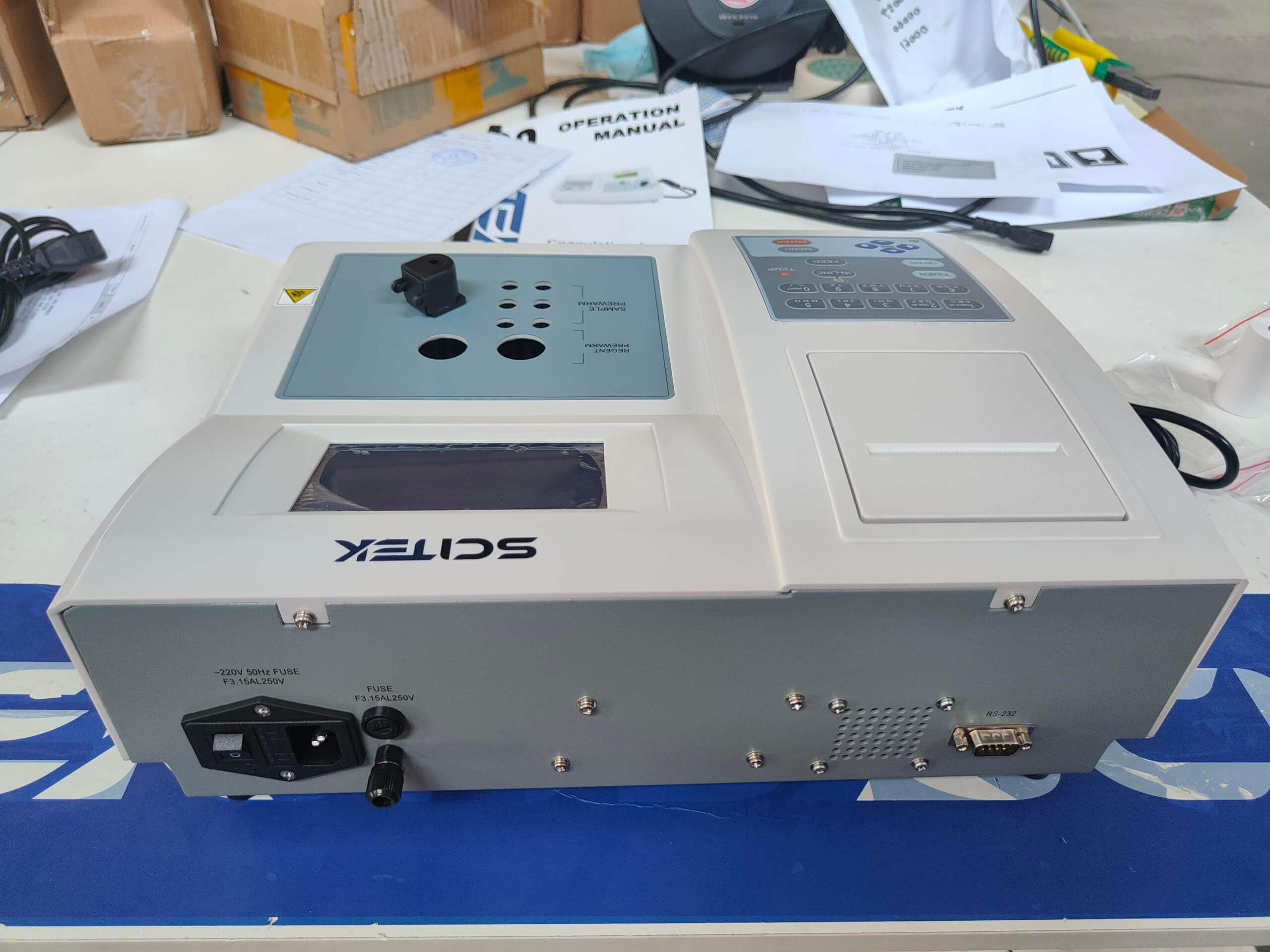

The back is equipped with a power connector, data transfer ports and vents to ensure stable operation and smooth connection with external systems.

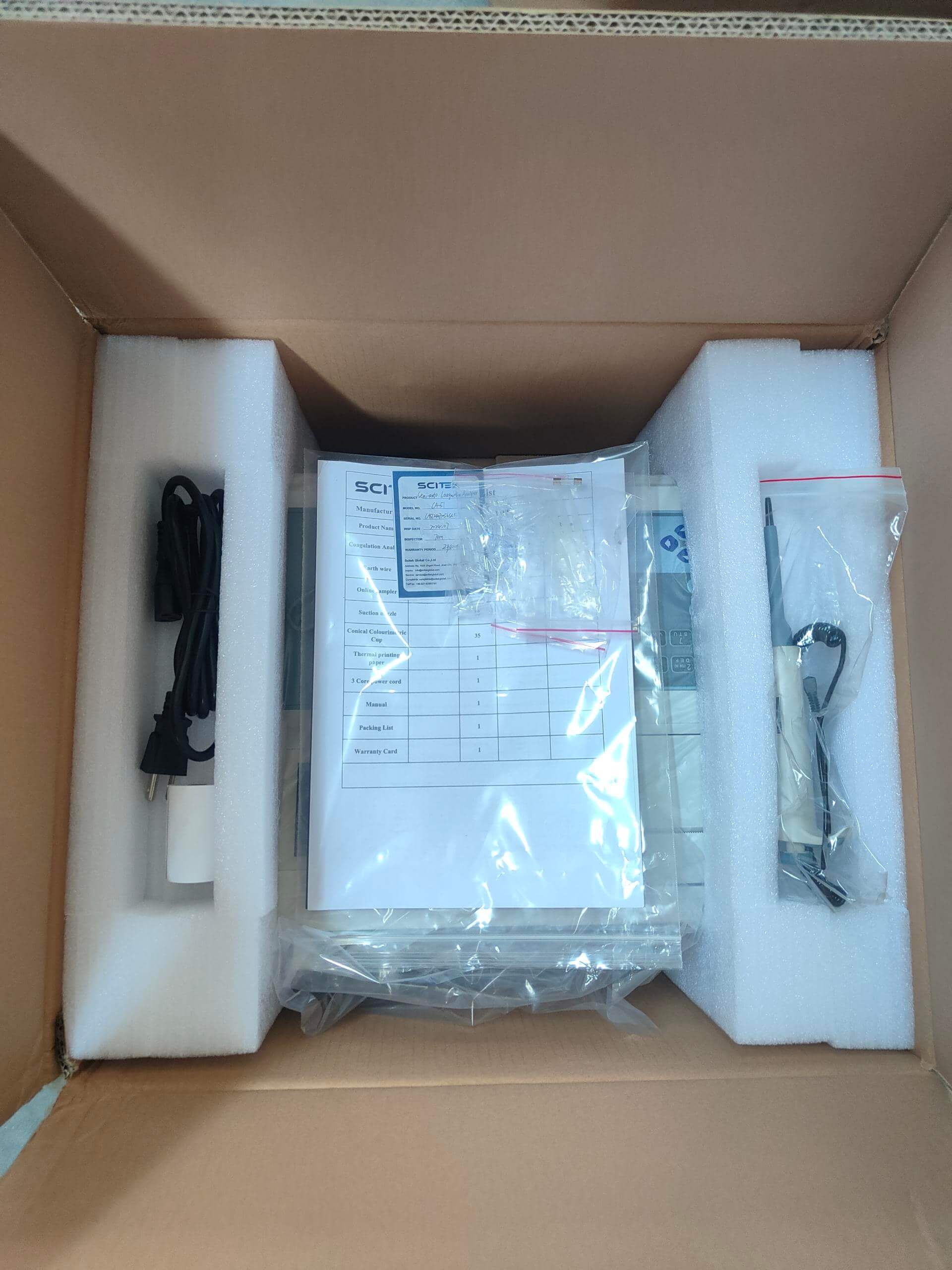

The packaging of the blood coagulation analyzer is designed to be robust and secure, with a high-density foam-padded interior that provides all-round protection against vibration and shock damage.
