| Name | Teaching Microscope BBM-18F2 BBM-18F3 BBM-18F5 |
| Code | biobase-0952 |
| Type | Standard |
| Brand | Biobase |
| Category | Optical Instruments |
| subcategory | Microscope |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |

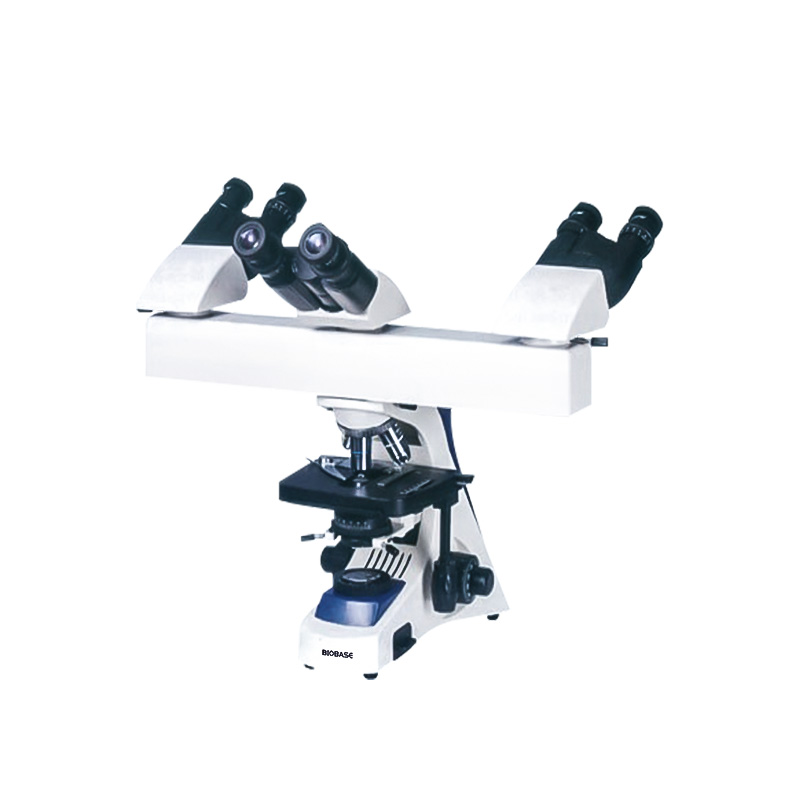

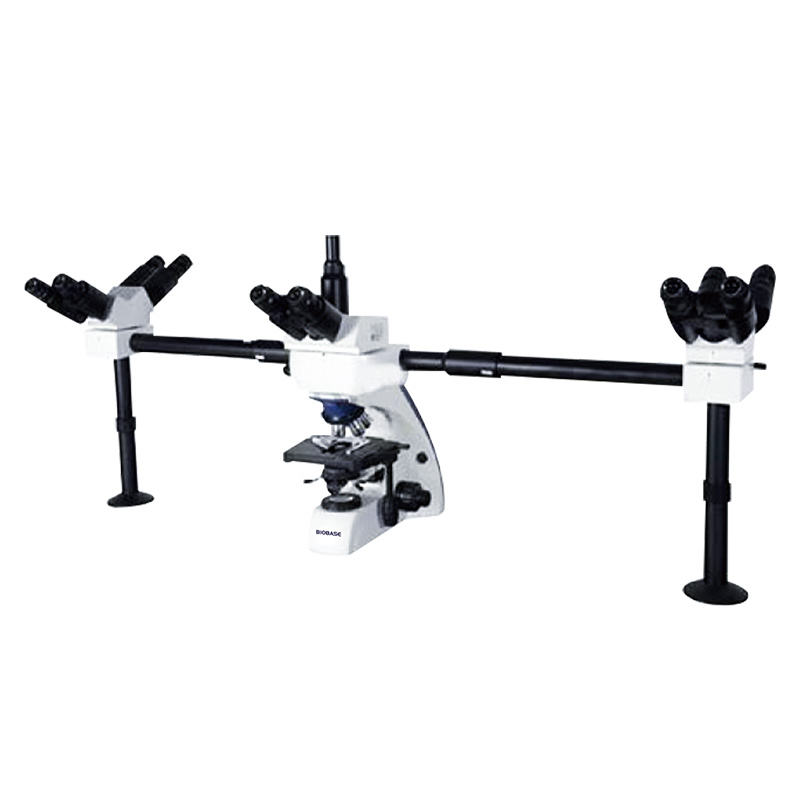

The Teaching Microscope is an advanced educational tool designed to facilitate collaborative learning in classrooms, laboratories, and training centers. It is ideal for use in educational institutions, research facilities, and medical training programs where multiple users need to observe the same specimen simultaneously.
Technical Parameters：
Model | BBM-18F2 | BBM-18F3 | BBM-18F5 |
Optical System | Infinite optical system | ||
View Head | Compensation free binocular head, Inclined at 30°, 360° rotatable, Interpupillary 55~75mm | ||
Eyepiece | WF10X/22mm | ||
Infinite Plan Achromatic Objective | 4X, 10X, 40X(S), 100X(S, Oil) | ||
Focusing | Coaxial Coarse ＆ Fine Adjustable System, Fine Division 0.002mm | ||
Stage | Double Layers Mechanical Stage 180*150mm, Moving Range 75*50mm | Double Layers Mechanical Stage 180*160mm, Moving Range 80*50mm | |
Condenser | Abbe NA1.25 centerable condenser with Iris Diaphragm ＆ Filter | ||
Indicator | LED cursor indicator | ||
Illumination | Halogen lamp 6V/20W, Kohler illumination, brightness adjustable | Halogen lamp 12V/100W, Kohler illumination, brightness adjustable | |
Filter | Blue, yellow, green | ||
Power Supply | AC85~265V, 50/60Hz | ||
Package Size | 360*280*565mm | 505*380*580mm | Box 1: 715*555*210mm, 22kg Box 2: 355*275*625mm, 15kg Box 3: 335*225*445mm, 10kg |
Gross Weight | 12kg | 19kg | |
