biobase-0469 - BIOBASE BMM-1000 BMM-2000 Multi-function Digital Biological Microscope

BIOBASE BMM-1000 BMM-2000 Multi-function Digital Biological Microscope (biobase-0469) Products

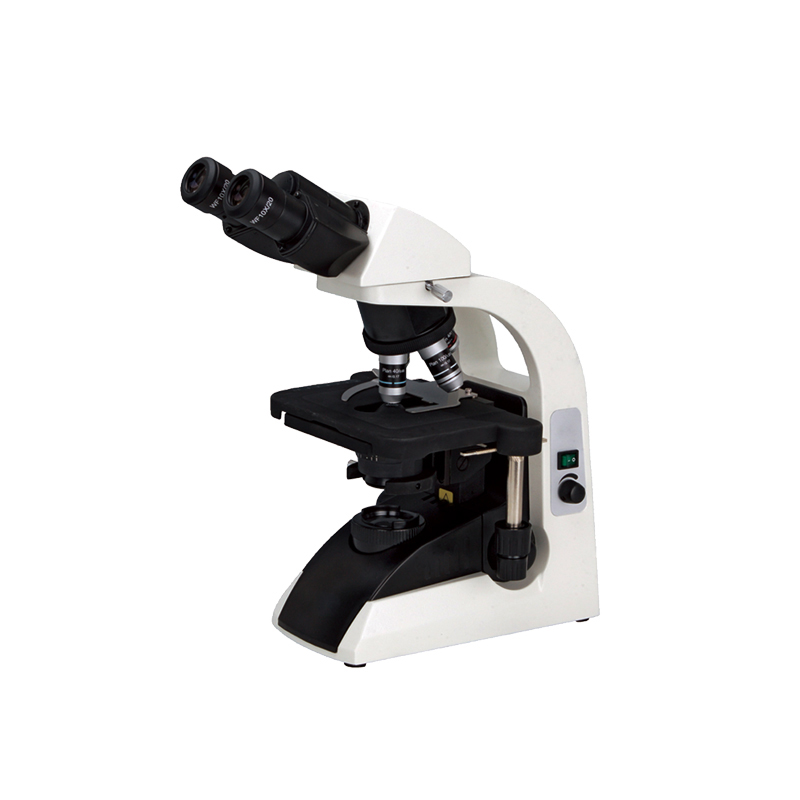

Name	BIOBASE BMM-1000 BMM-2000 Multi-function Digital Biological Microscope
Code	biobase-0469
Type	Standard
Brand	Biobase
Category	Optical Instruments
subcategory	Microscope
Unit	pcs (pcs)
In Stock	Yes
Berminat hub kami:

Product details for Invoice

LCD digital biological microscope is a research level microscope which has been specially designed for college education, medical and laboratory research. The microscope has a 6.0MP high sensitive camera and 11.6" 1080P full HD retina LCD screen. Both traditional eyepieces and an LCD screen can be used for convenient and comfortable viewing. The modular design allows for various viewing modes such as brightfield, darkfield, phase contrast, fluorescence and simple polarizing.

Product Details

BIOBASE BMM-1000 BMM-2000 Multi-function Digital Biological Microscope

Technical Parameters:

Model		BMM-1000	BMM-2000
Optical System	Infinite optical system	/	√
Viewing Head	Siedentopf binocular viewing head, inclined at 30°, 360° rotatable, Interpupillary 48~75mm	√	√
Viewing Head	Siedentopf trinocular viewing head, inclined at 30°, 360° rotatable, Interpupillary 48~75mm	●	●
Eyepiece	WF10x/18
	P16x/11	●
	WF10x/20		√
	WF15x/16		●
Objective	Achromatic objective 4x, 10x, 40x,100x	√
	Plan achromatic objective 4x, 10x, 40x,100x	●
	Infinite plan achromatic objective 20X，60X		●
	Infinite plan achromatic objective 4X，10X, 40X, 100X	●	√
Nosepiece	Quadruple nosepiece	√
	Backward quadruple nosepiece		√
	Backward quintuple nosepiece		●
Focusing	Coaxial coarse & fine adjustment,fine division 0.002mm,coarse stroke 37.7mm per rotation,fine stroke 0.2mm per rotation .moving range 20mm	√
Stage	Double layers mechanical stage:132142mm, moving range:7540mm	√
Stage	Rectangular 230150mm stage, moving range:7854mm, using low-positioned X/Y coaxial control knob		√
Condenser	Abbe condenser NA1.25 with aperture diaphragm	√	√
Illumination	S-LED Illumination, brightness adjustable	√	√
	12V/20W Halogen lamp, brightness adjustable	●	●
	Kohler illumination	●	●
Power Supply	110-220V, 50/60HZ	√	√
Accessories	Photo attachment, video attachment	●	●
	Dark field condensor	●
	Polarization set, phase contrast kit		●
Package Size	323264440mm(BMM-1000), 380260510mm(BMM-2000)	√	√
Gross Weight	6.5kg(BMM-1000), 10kg(BMM-2000)	√	√
