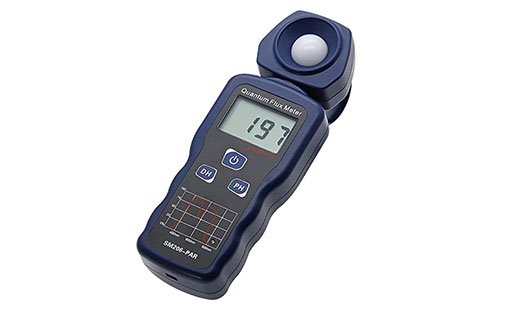

SM206-PAR Quantum PAR Meter

Order Number:

SM206-PAR: Standard Packing

SM206-PAR-1: with extra waterproof Sensor and Telescopic Wand, can use under water.

Applications:

It is mainly applicable to the detection of the irradiation intensity in the effective wavelength range of green plant growth

Specifications:

1. Measuring range: 0~2700 umol/m2/second (400-700nm)

2. Resolution: 1 umol/m2/second

3. Unit: umol/m2/second is photosynthesis rate, 1mW/cm2=46 umol/m2/second

4. Accuracy: ±10%

5. Display: 3-3/4 LCD display, maximum displayed numerical value 3999, over load "OL"

6. Drift: ≦±2% / year

7. Linearity: ±2%

8. Wavelength range: 400~700nm

9. Sampling time: 2 times/s

10. Operation temperature and humidity: 0°C to 40°C; <80%RH

11. Storage temperature and humidity: -10°C to 50°C; <70%RH

12. Dimensions and weight: 132x60x38mm, approx. 150g

13. Power: 6F22 alkaline 9V battery, Battery operation life: Approx. 100 hours
