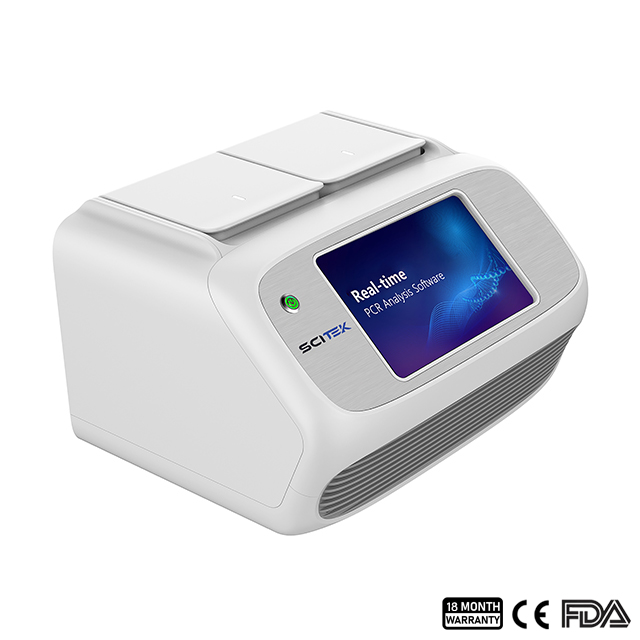

| Name | Real-time Fluorescence Quantitative PCR Detection System |
| Code | scitek-0834 |
| Type | Standard |
| Brand | Scitek |
| Category | PCR Analyzer and Pretreatment |
| subcategory | Real-time PCR System |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Sample Capacity : 32×0.2ml (4×8well, dual block)
MAX. Ramp Rate : 5℃/s; 8℃/s
Reaction Volume : 15-100μL
Sizes (W×D×H)(mm) : 300×267×198mm
This real-time fluorescence quantitative PCR detection system is highly sensitive, highly specific and simple to use.
Real-time Fluorescence Quantitative PCR Detection System Specifications:
| Model | PCR-RFQ324 | PCR-RFQ324I |
|---|---|---|
| Sample Capacity | 32×0.2ml (4×8well, dual block) | |
| Consumable | Clear 0.2ml PCR tube/8-tube strips | |
| Reaction Volume | 15-100μL | |
| Temperature Control Technology | Marlow customized peltier allow 1000000 cycles | |
| Temperature Range | 0-100℃ (Resolution: 0.1℃) | |
| MAX. Ramp Rate | 5℃/s | 8℃/s |
| Temperature Fluctuation | ±0.1℃ | |
| Uniformity | ±0.25℃ | |
| Accuracy | ±0.25℃ | |
| Hot Lid Temperature | 30-110℃ (Adjustable, default 105℃) | |
| Temperature Control | Block/Tube | |
| Excitation Wavelength | 300-800nm | |
| Emission Wavelength | 500-800nm | |
| Factory Calibrated Dyes | F1: FAM/SYBR Green I F2: HEX/VIC/JOE/TET F3: ROX F4: CY5 | |
| Excitation | Long life LED | |
| Detection | High sensitivity photoelectric detector | |
| Dynamic Range | 1-1010 Copies | |
| Sensitivity | 1 copy | |
| Feature Function | Quantitative/qualitative analysis, Melting curve, Genotyping | |
| Date Export Formats | Excel, csv, txt | |
| Printing | Report can be printed (optional USB thermal printer) | |
| Control Method | 7 inch color TFT touch screen, Can be connected to computer control | |
| Communication | USB2.0 | |
| Power Supply | AC220V, 50Hz | |
| Power | DC15V 600W | DC30V 255W |
| Size(W×D×H)(mm) | 300×267×198mm | |
| Shipping Size (W×D×H)(mm) | 500×420×350 | |
| N.W./G.W. (kg) | 8.5/13 | 12/16 |
Real-time Fluorescence Quantitative PCR Detection System Features:
This portable real-time quantitative PCR incorporates several advanced technologies to ensure superior performance and stable operation. The real-time fluorescence quantitative PCR detection system adopts a 4-channel, dual 16-well module, which runs two files simultaneously. In addition to this, the Win10 operating system with analysis software allows genotyping, relative quantification, etc., and quantitative analysis and printing of reports can be done without a computer.
The adoption of highly sensitive photodetector and side-scanning technology improves the accuracy of detection.
Place Positive and negative air vent designs side by side to save laboratory space so quantitative PCR is small in size, light in weight and easy to carry.
20G flash memory can save 40,000 experimental data. Optional printer: you can directly print the records. There is no need to connect to a computer.
They imported 32 optical fiber bundles, collecting fluorescence from the side, increasing fluorescence signal intensity and reducing light conduction damage.
LED light source has the advantages of energy saving, environmental protection, long life, maintenance-free, etc.
Electromagnetic locking lid technology and over-current, over-temperature, power failure data recovery, and other protection functions prevent accidental opening of the thermal cover to ensure the operator's safety in the use process.
Place Positive and negative air vent designs side by side to save laboratory space.
Constant current control circuit so that the power output is smooth.
