Platelet Preservation Box, Touch Screen (scitek-0641) Products

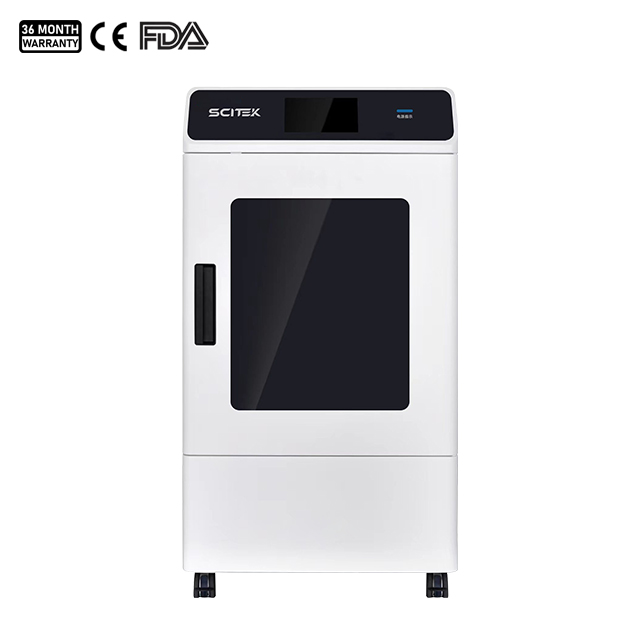

Name Platelet Preservation Box, Touch Screen
Code scitek-0641
Type Standard
Brand Scitek
Category Blood Bank Equipment
subcategory Platelet Preservation Box
Unit pcs (pcs)
In Stock Yes
Berminat hub kami: wa chat
Product details for Invoice
Model : PPB-06; PPB-12

Number of Layers : 6 layers; 12 layers
Maximum Number of Blood Bags Stored : 12 bags; 48 bags
Oscillation Amplitude : 50±5mm
Size(W×D×H)(mm) : 540x500x1090; 640x560x1250
The platelet preservation box is equipped with an automatic thermostat control system to maintain an optimal storage environment for platelets.
Product Details

Platelet preservation box is mainly suitable for blood centers, blood stations, hospital clinical transfusion departments, and other units. The platelet preservation box can continuously output a continuous reciprocating horizontal oscillation with a range of 50mm and a frequency of 60 times per minute, thereby achieving long-term stable storage of platelets.

Platelet Preservation Box Features:

  1. The platelet preservation box is equipped with dual-core components

  2. A medical-grade 8-inch IPS high-definition touch screen

  3. Real-time temperature monitoring, forming a temperature curve, recording and saving the entire process, supporting wireless data export

  4. Automatic constant temperature control

  5. The door light automatically turns on and the oscillation stops when the door is opened

  6. Platelet preservation box equipped with ultraviolet disinfection function

  7. Features power failure alarm, stoppage alarm, and high/low temperature alarm

Platelet Preservation Box Specifications:

ModelPPB-06PPB-12
Number of Layers6 layers12 layers
Maximum Number of Blood Bags Stored12 bags48 bags
Temperature Control Range22±2℃
Temperature Resolution0.1℃
Oscillation Frequency60 cycles/min
Oscillation Amplitude50±5mm
Oscillation ModeContinuously reciprocates left and right, oscillating horizontally
Data Recording and StorageStorage capacity of 64GB, capable of recording and storing over 32,000 sets of data records
Consumption1000W
Power SupplyAC220/110V, 50/60Hz
Size(W×D×H)(mm)540x500x1090640x560x1250
Shipping Size(W×D×H)(mm)600x560x1130700x620x1300
N.W./G.W. (kg)75/9890/108

Optional Features:

  1. Internet of things (IoT) functionality

  2. Reserved communication port, can be connected to the hospital's HIS system

  3. Optional cloud alarm system

  4. Optional scanner, can scan and input data from blood plasma bag barcodes
