| Name | Ozone Aging Test Chamber |
| Code | scitek-0010 |
| Type | Standard |
| Brand | Scitek |
| Category | Aging Test Instruments |
| subcategory | Ozone Aging Test Chamber |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Temperature Range : 0℃～70℃
Humidity Range : 30～65%R.H
Ozone Concentration : 20~1000pphm
Tester : Dynamic and static (optional)
Sample Frame Speed : 360 ° rotation of sample rack (1 rpm)

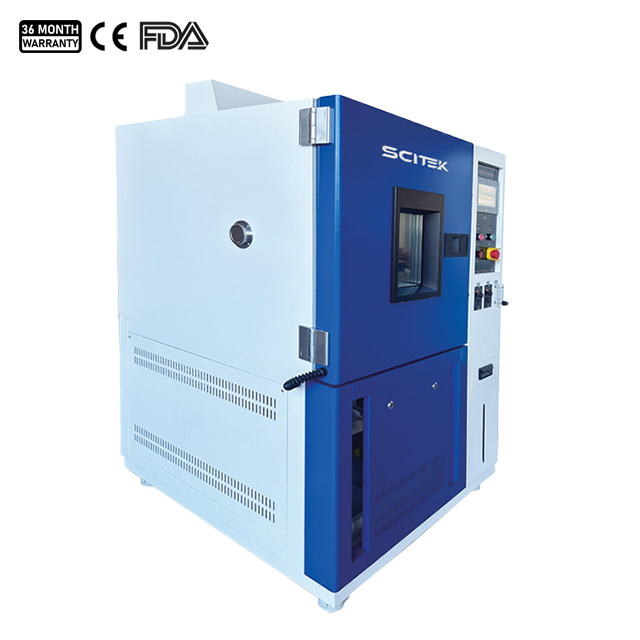

The ozone content in the atmosphere isn't usually the main cause of rubber cracking. The ozone aging test chamber is used to simulate and intensify ozone environments, helping study its effect on rubber. It allows for quick identification and evaluation of rubber's resistance to ozone aging and helps determine effective anti-aging measures to improve the lifespan of rubber products. This series of products is suitable for testing non-metallic and organic materials (such as coatings, rubber, plastics, paints, and pigments) under ozone conditions.
Ozone Aging Test Chamber Specifications:
| Model | OATC-01 | OATC-02 | OATC-03 | OATC-04 | OATC-05 | OATC-06 | OATC-07 | OATC-08 | |
|---|---|---|---|---|---|---|---|---|---|
| Chamber Size (W×D×H)(mm) | 500×500×400 | 500×500×500 | 500×500×600 | 500×600×750 | 600×600×800 | 700×800×900 | 800×1000×1000 | 1000×1000×1000 | |
| External Size(W×D×H)(mm) | 920×940×1680 | 1030×1010×1720 | 1100×1030×1880 | 1140×1120×1950 | 1190×1100×1950 | 1250×1300×2030 | 1290x1500x2140 | 1490×1500×2140 | |
| Power(KW) | 4.5 | 5 | 5.5 | 6 | 6 | 6.5 | 7 | 8 | |
| Performance | Temperature Range | 0℃～70℃ | |||||||
| Humidity Range | 30～65%R.H | ||||||||
| Ozone Concentration | 20~1000pphm | ||||||||
| Temperature Fluctuation | ±0.5℃ | ||||||||
| Run the Control System | Tester | Dynamic and static (optional) | |||||||
| Sample Frame Speed | 360 ° rotation of sample rack (1 rpm) | ||||||||
| Gas Flow Rate | 12～16mm/s | ||||||||
| Temperature Controller | Imported LED display P.I.D + S.S.R. Microcomputer integrated controller | ||||||||
| Time Controller | High precision hour, minute, second time controller | ||||||||
| Ozone Concentration Analysis | Import concentration analysis regulator 4 ~ 20 mA output, RS232 communication port | ||||||||
| Ozonizer | Silent discharge tube type / UV absorption type (optional) | ||||||||
| Security Guard | Leakage, short circuit, overtemperature, motor overheating, over-current protection | ||||||||
| Shipping Size (W×D×H)(mm) | 980×1000×1800 | 1090×1070×1840 | 1160×1090×2000 | 1200×1180×2070 | 1250×1160×2070 | 1310×1360×2150 | 1350×1560×2260 | 1550×1560×2260 | |
| N.W/G.W(kg) | 188/239 | 223/265 | 260/325 | 325/378 | 330/445 | 410/490 | 445/670 | 635/780 | |
Ozone Aging Test Chamber Feature:
Stable technical indicators, reliable operation and convenient maintenance;
Large touch screen operation, the operation is easy to set value and actual value display;
Vacuum double glazing: large window design, high brightness lighting, heating without fog;
Ozone concentration / temperature and humidity setting value control PID self-setting, convenient and reliable operation;
With a metrological verification and calibration interface;
Bill-Lambert Principle measurement application software (internationally recognized);
Keep interfaces for classical chemical test ozone concentration. Internal voltage stabilizing power supply;
Provide more interface options for programming and document processing, with large record volume;
