| Name | Mini Laminar Flow Cabinet |
| Code | scitek-0085 |
| Type | Standard |
| Brand | Scitek |
| Category | Laboratory Ventilation |
| subcategory | Vertical Laminar Flow Cabinet |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Airflow Pattern : Vertical
Max Door Opening : 310mm
HEPA Filter Efficiency : ≥ 99.999% at 0.3um partical
Air Speed Adjustable : 0.2-0.6 (m/s)
Noise: ≤62db
Internal Size ( WxDxH ) (mm) : 480x340x370
Vertical laminar flow cabinet is a range of high-efficiency products designed to protect equipment and other contents from particulate matter in decontaminated work areas for applications sensitive to such contamination.

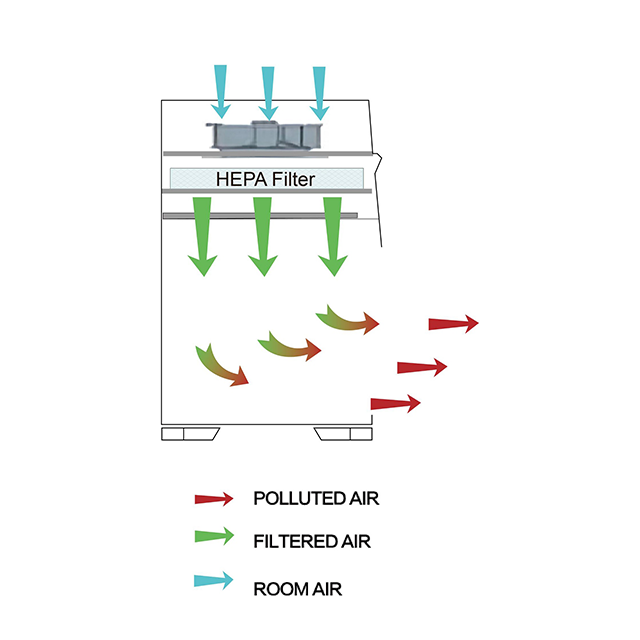

Mini laminar flow cabinet provides sample protection as purified air travels across the working zone of the cabinet in a vertical, unidirectional stream and leaves the main work chamber across the entire open front of the cabinet.
Our mini vertical laminar flow benches also have perforations at the back wall of the work zone which are designed to eliminate air turbulence and the possibility of dead air corners in the work zone.
Mini Laminar Flow Cabinet Specifications:
| Model | LCB-V500II |
|---|---|
| Applicable Scope | Protect experiment samples |
| Airflow Direction | Vertical |
| Cleanliness | Class 100 |
| HEPA Filter | 0.3um particle≥ 99.999% |
| Colony Count | ≤0.5pcs/vessel (petri dish is φ 90mm) |
| Airfdsflow Velocity | 0.2-0.6 (m/s), initial: 0.6; final: 0.2 (m/s) |
| Sound Emission | ≤62db |
| Vibration Semi-peak Value | ≤3um |
| Work Surface Bearing | 10kg |
| Inner Chamber | SUS304 Stainless steel plate |
| Outer Shell | Cold rolling steel electrostatic spraying exterior |
| Operation Door | Tempered Glass |
| Max Door Opening | 310mm |
| Pre-Filter | Polyurethane |
| LED Lamp | 8Wx1 |
| UV Lamp | 8Wx1 |
| Top Fan | 90W one piece |
| Display | LCD display |
| Wind Speed Control | Intelligent multi-level adjustable |
| Additional Function | One key to open and close lighting sterlization |
| Internal Size (WxDxH)(mm) | 480x340x370 |
| External Size (WxDxH)(mm) | 580x460x700 |
| Shipping Size (WxDxH)(mm) | 710x590x850 |
| Max Power | 110W |
| Power Supply | AC220V/0.5A, 50/60Hz |
| Net Weight | 36kg |
| Gross Weight | 41kg |
| Standard Accessory | Wind speed sensor |
Mini Laminar Flow Cabinet Features:
HEPA filter with efficiency: 99.995% at 0.3um. It also has pre-filter which made of washable polyester fiber, can extend the life of the HEPA filter.
Microprocessor control panel with soft button, LED/LCD display.
Table top, Manual front window is 5mm toughened glass, anti-UV.
Air speed adjustable.
UV lamp and front window has interlock function.
Desktop type, with a handle, saving space and easy to move.
Pre-filter is polyester fiber, washable and anti-ultraviolet radiation.
Automatic cutting off UV lamp function by opening glass.
LCB-V500II have color screen LCD controller (with sterilization timing, built-in socket controllable switch , front window status display, can set three position interlock , cumulative work timing, remote control)
Detail of Mini Laminar Flow Cabinet:

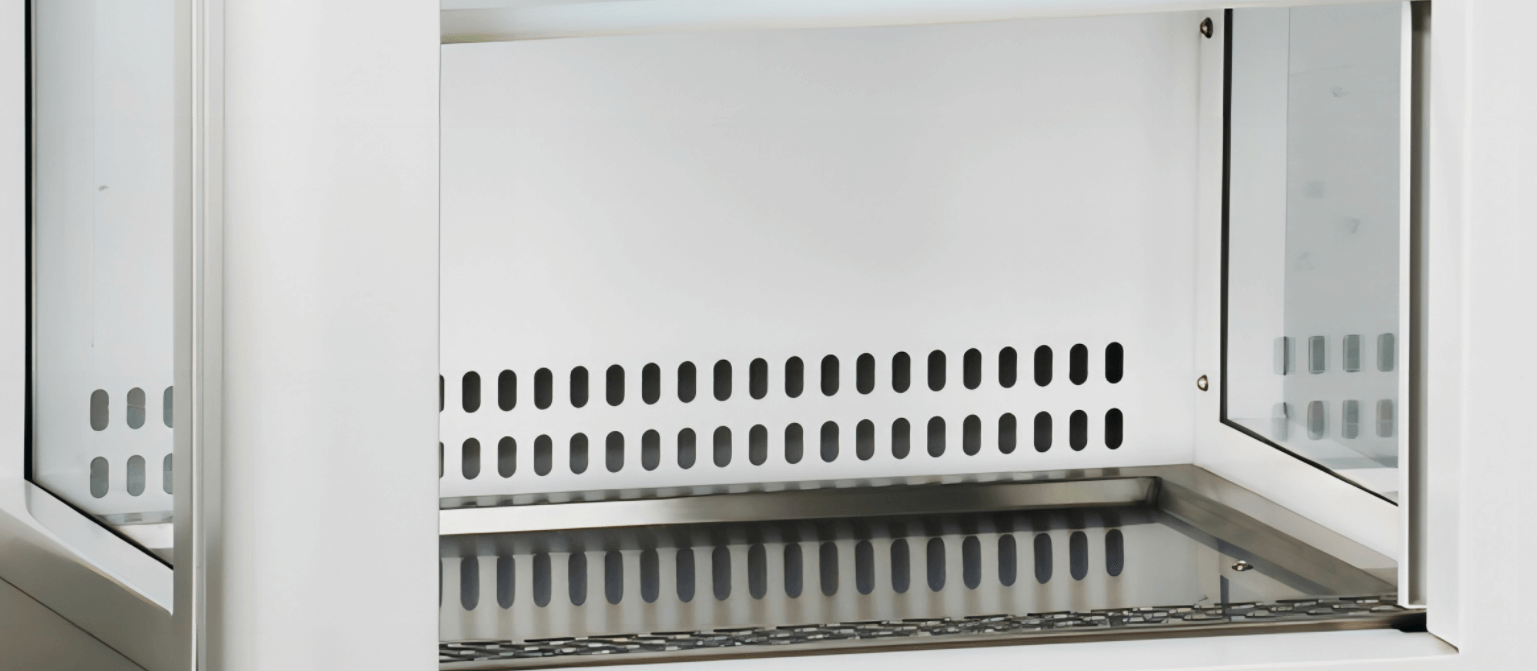

Perforations at the back wall of the work zone which are designed to eliminate air turbulence and the possibility of dead air corners in the work zone.

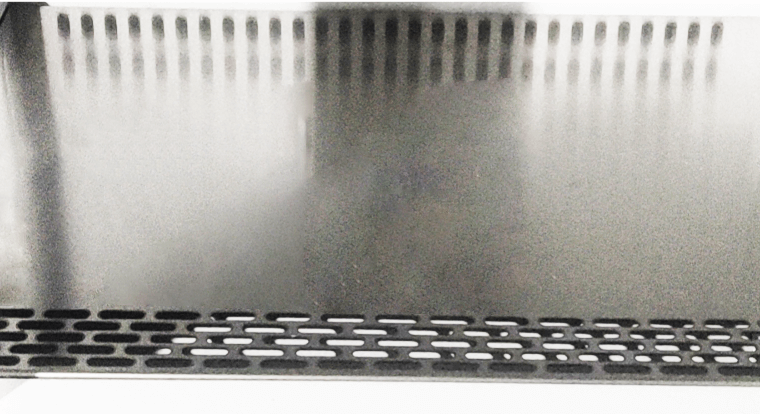

304 Stainless Steel work surface

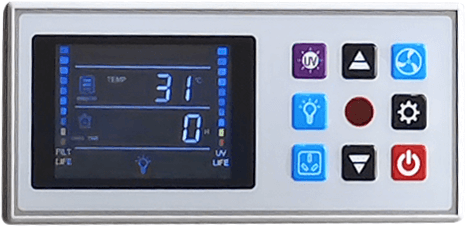

High Definition lcd Display

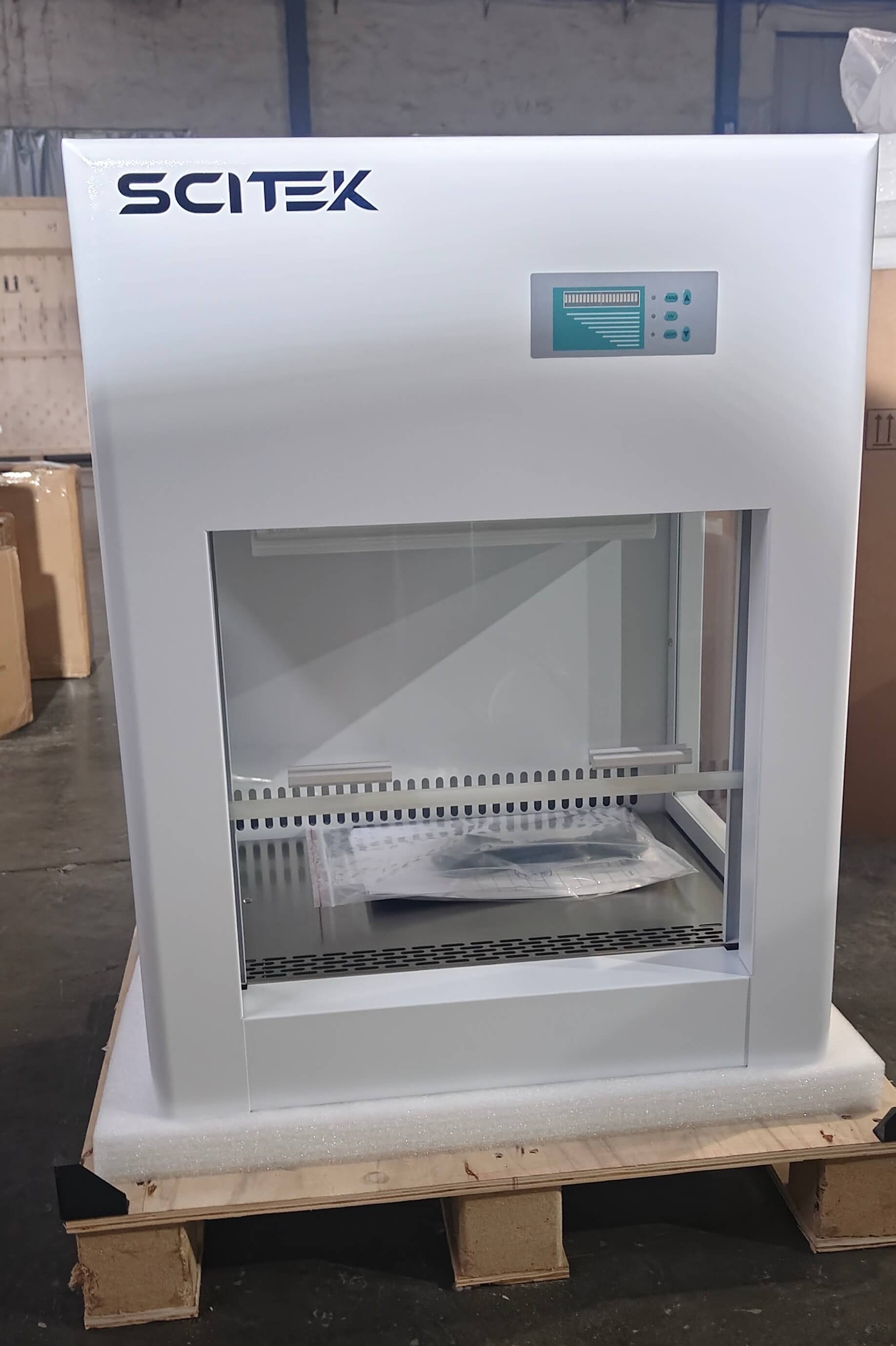

Mini Laminar Flow Cabinet real photo display:

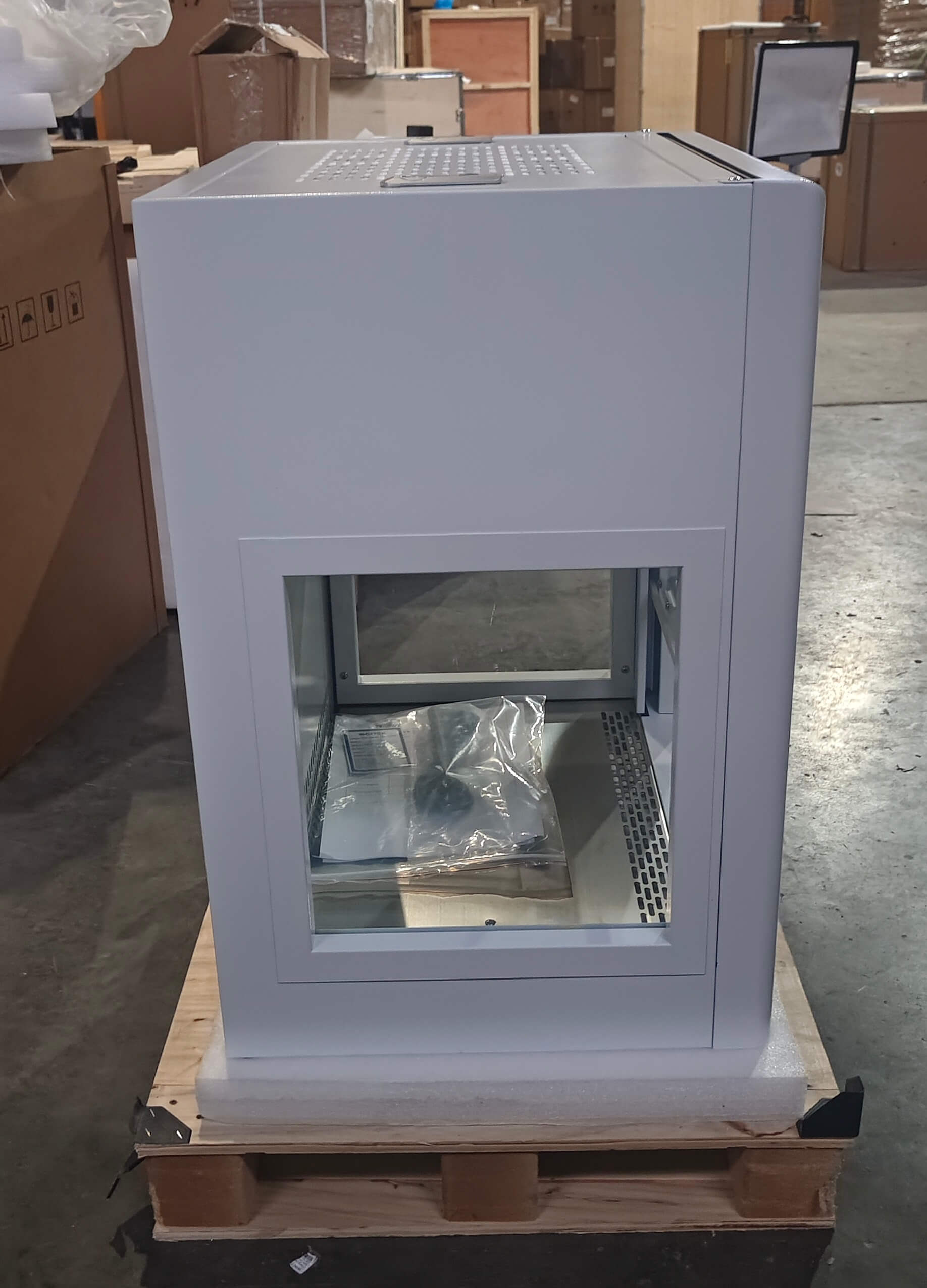

The laminar flow cabinet has clear, protective glass windows on the front and sides to ensure that the user has a clear view of the interior during operation.

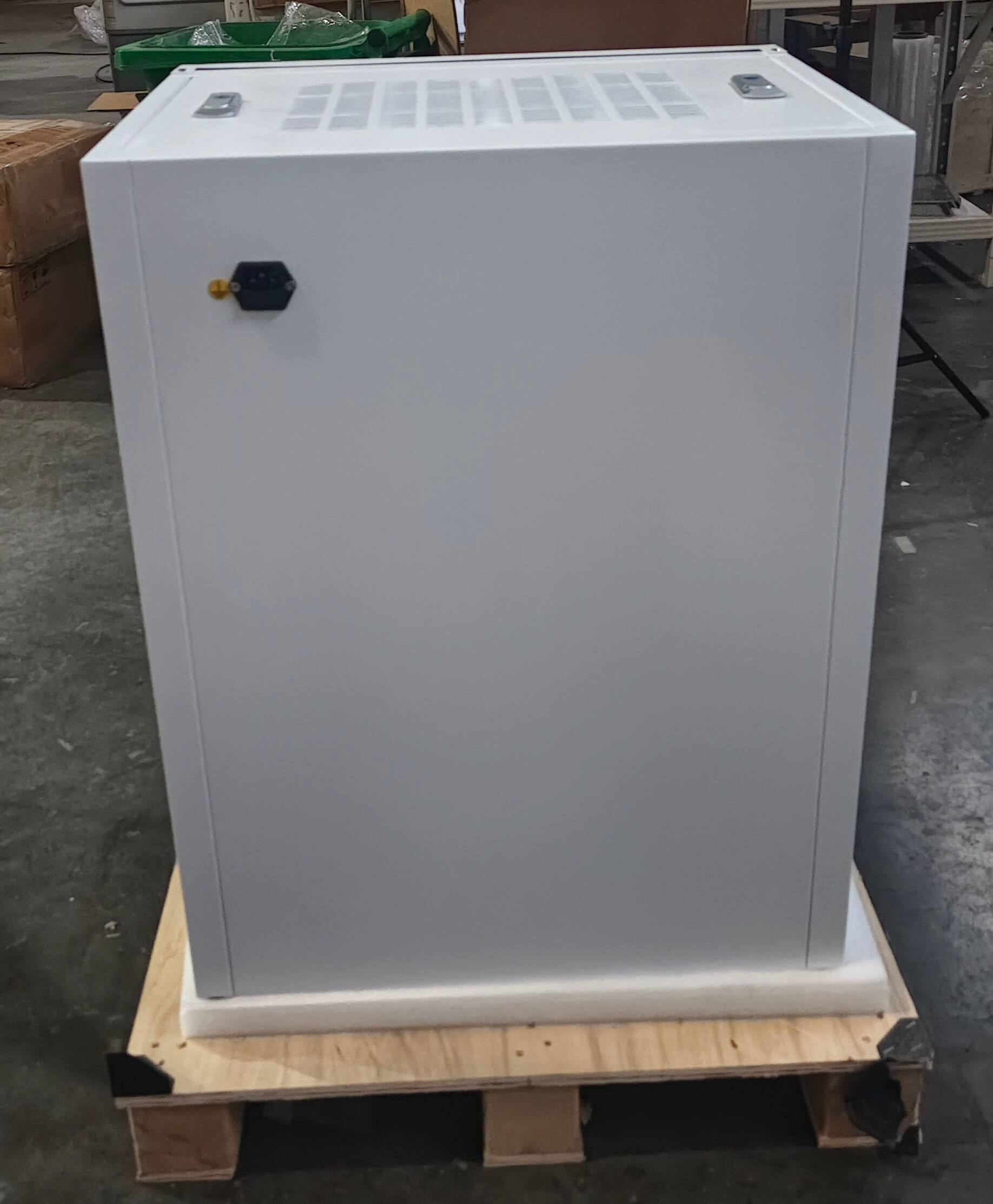

The back panel is made of a reinforced material that is easy to clean and maintain, ensuring that the unit lasts for a long time.
