Wall-mounted Emergency Eye Wash (scitek-1161) Products
| Name | Wall-mounted Emergency Eye Wash |
| Code | scitek-1161 |
| Type | Standard |
| Brand | Scitek |
| Category | Clean Room Project |
| subcategory | Eye Washer |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Product details for Invoice
Model : EW-W1; EW-W2
Material of Eye Wash : Stainless steel 304
Surface Finishing : Fine-polished
Function : Wash eyes and face
Eye Wash Switch : Two-piece ball valve
Package Size(W×D×H)(mm) : 470x320x230; 350x320x250
Material of Eye Wash : Stainless steel 304
Surface Finishing : Fine-polished
Function : Wash eyes and face
Eye Wash Switch : Two-piece ball valve
Package Size(W×D×H)(mm) : 470x320x230; 350x320x250
Product Details

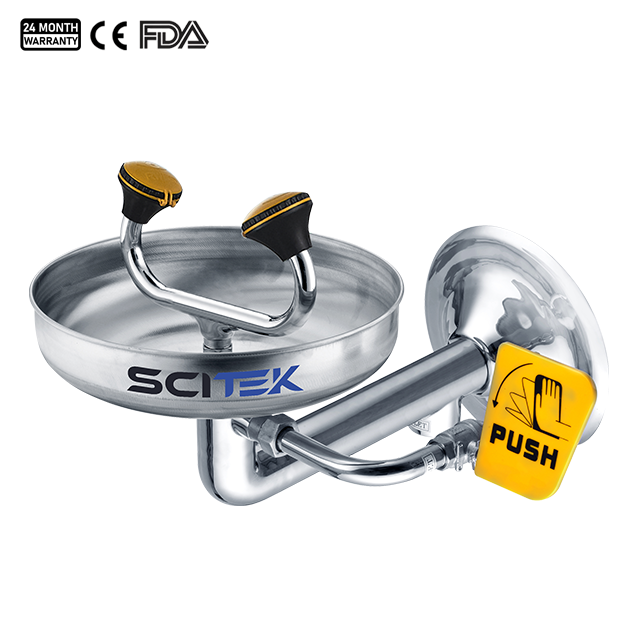

Wall-mounted Emergency Eye Wash Specifications:
| Model | EW-W1 | EW-W2 |
|---|---|---|
| Material of Eye Wash | Stainless steel 304 | |
| Surface Finishing | Fine-polished | |
| Function | Wash eyes and face | |
| Eye Wash Switch | Two-piece ball valve | |
| Nominal Pressure | 1.0 Mpa | |
| Working Pressure | 0.2~0.4 Mpa | |
| Testing Pressure | 1.5 Mpa | |
| Temperature Requirement on Working Environment | 0°C~40°C | |
| Flow Rate of Eye/Face Wash | ≥ 11.4 L/min | |
| Inlet Thread | Rp 1-1/4", female | RP 1/2", female |
| Outlet Thread | p 1-1/4", female | RP 1", female |
| Package Size (W×D×H)(mm) | 470x320x230 | 350x320x250 |
| Gross Weight | 8kg | 5.5kg |
Notes: The inlet part and outlet part are customizable; shutoff valve and filter are proposed to be equipped on the water-supply end.
