| Name | Low-Temperature Penetrometer BK-LTPF |
| Code | biobase-0739 |
| Type | Standard |
| Brand | Biobase |
| Category | New Products |
| subcategory | New Products |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |

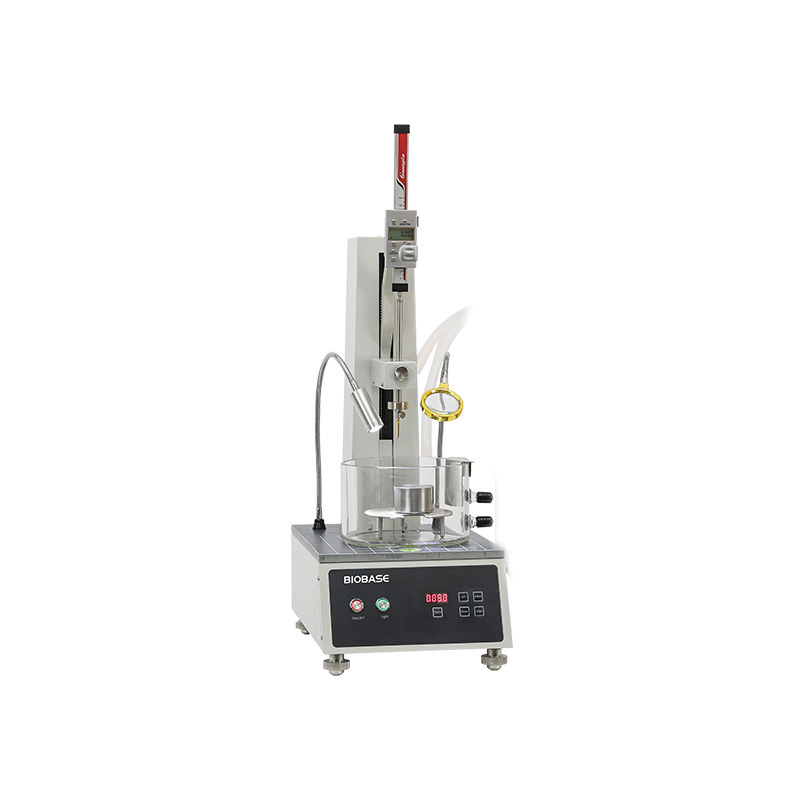

The Low-Temperature Penetrometer is a precision instrument designed to measure the consistency and penetration characteristics of materials such as bitumen, asphalt, and other semi-solid substances under low-temperature conditions.
Features:
1. It adopts digital display to show the penetration number and two grades of timing control.
2. Specially designed low-temperature circulatory water bath can supply the constant temperature water into glass bath on the penetrometer. It creates a constant low temperature which can be preset for the specimen.
Technical Parameters:
1. Circulatory Water Bath
Model | BK-LWB3 |
Bath Volume | 5L(Including external circulation 2L) |
Temperature Range | 5.0~60.0℃ |
Temperature Accuracy | ±0.1℃(5.0~25.0℃) |
Circulatory Water Quantity | 8L/min |
Working Environment | Temperature: 15~35℃ Relative humidity: ≤85% |
Consumption | 1200W |
Power Supply | AC220V±10％, 50Hz |
External Size(W*D*H) | 460*290*420mm |
Net Weight | 22kg |
Package Size(W*D*H) | 510*470*950mm |
Gross Weight | 47kg |
2. Penetrometer
Model | BK-LTPF |
Timing Controller | 5s , 8s, 10s, 12s, 30s or 60s can be selected |
Needle Holder | High accuracy digital display |
Resolution | 0.01mm |
Penetration Accuracy | ±1 penetration |
Measurement Range | 0~600 penetration |
The Length of Standard Needle | 50mm |
The Weight of Standard Needle | 2.5g±0.05g |
Sample Container | It meets the standard T0604-2011 |
Counter Weight | 50g |
Maximum Power Consumption | 100W |
Power Supply | AC220V±10％, 50Hz |
External Size(W*D*H) | 260*400*640mm |
Net Weight | 13kg |
Package Size(W*D*H) | 660*390*720mm |
Gross Weight | 25kg |
*BK-LWB3 and BK-LTPF were used in combination and could not be tested separately.
